AOFAR GX6 Golf Rangefinder User Manual

1. Introduction

Thank you for choosing the AOFAR GX6 Golf Rangefinder. This device is designed to provide precise distance measurements for golf, hunting, archery, and shooting ranges. Equipped with advanced ED glass, 7x magnification, and a powerful lithium battery, the GX6 offers accuracy, durability, and convenience. This manual will guide you through the setup, operation, and maintenance of your new rangefinder to ensure optimal performance.

Image: The AOFAR GX6 Golf Rangefinder, showcasing its sleek design and blue-white color scheme.

Key Features:

• Laser Accuracy Measurement: ± 0.5 yards accuracy with 0.02 seconds measurement speed.
• 7X Magnification: Provides clear and precise visuals for targeting.
• USB-C Rechargeable Battery: Up to 12,000 measurements on a single charge.
• Magnetic Design: N52 grade magnet for secure attachment to golf carts or bags.
• Flag Lock & Slope Compensation: Tactile vibration upon flag lock and adjustable slope function with LED indicator.
• Durable & Waterproof: Made of ABS material & silicone with IPX4 waterproof rating.

2. What's in the Box

Upon unboxing your AOFAR GX6 Golf Rangefinder, please ensure all the following components are present:

• AOFAR GX6 Golf Rangefinder Unit
• Type-C Charging Cable
• Cleaning Cloth
• User Manual (this document)
• Carabiner
• Carrying Pouch
• High-grade Portable Rope

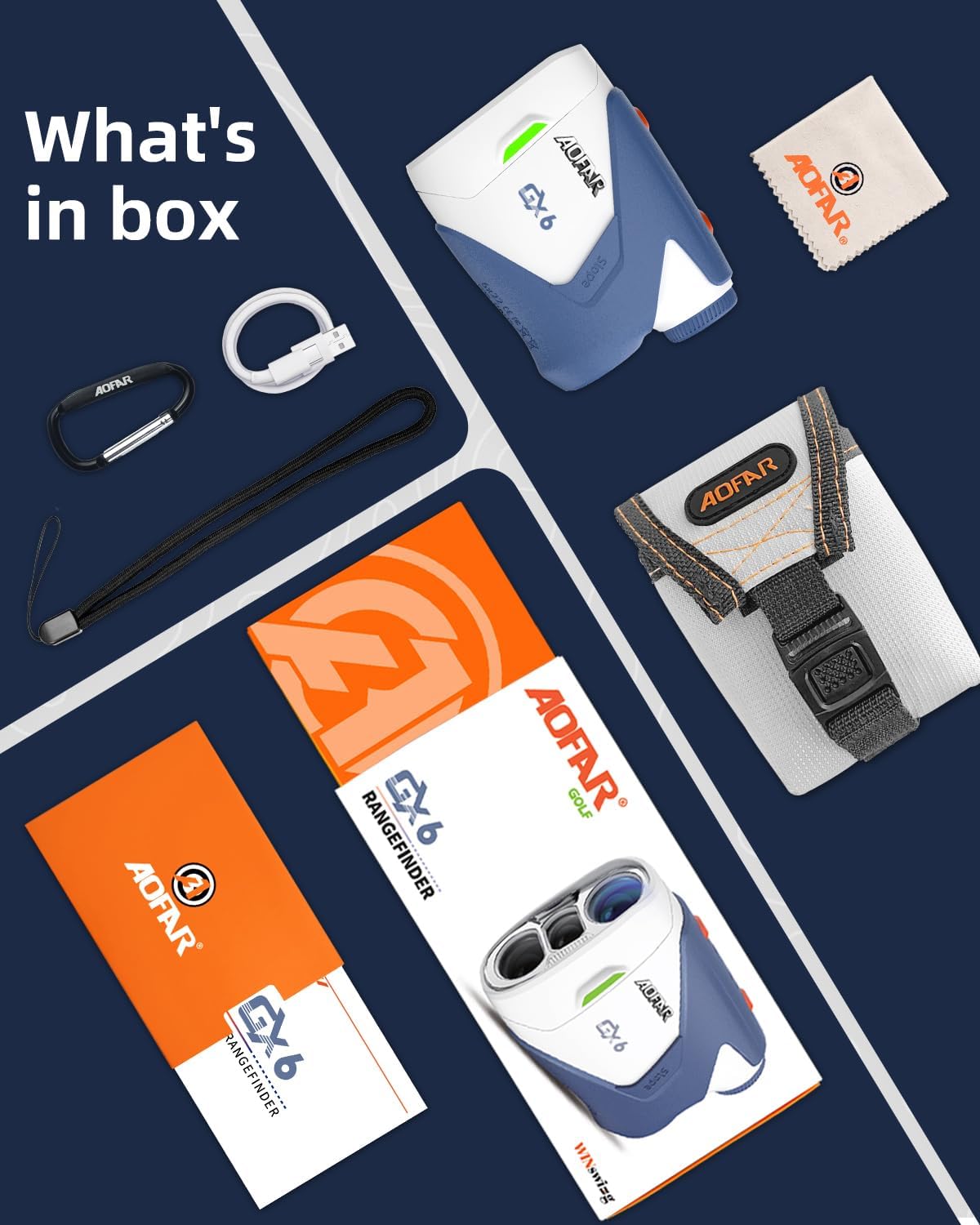

Image: All included accessories for the AOFAR GX6 Golf Rangefinder, neatly laid out.

3. Setup

3.1 Charging the Device

The AOFAR GX6 features a long-lasting USB-C rechargeable battery. Before first use, or when the battery indicator is low, charge the device using the provided Type-C charging cable.

1. Locate the USB-C charging port on the side of the rangefinder.
2. Insert the Type-C cable into the port.
3. Connect the other end of the cable to a compatible USB power source (e.g., computer, wall adapter).
4. The battery indicator on the display will show charging status. A full charge can provide up to 12,000 measurements.

Image: Close-up of the AOFAR GX6 Golf Rangefinder showing the USB-C charging port and cable connection.

3.2 Power On/Off

To power on the rangefinder, simply press the Power button. The device will automatically enter sleep mode after a period of inactivity to conserve battery.

3.3 Selecting Measurement Units (Yards/Meters)

The GX6 can display measurements in either yards or meters.

1. With the device powered on, press and hold the 'MODE' button for approximately 3 seconds.
2. The unit will switch between yards (Y) and meters (M) on the display.

4. Operating Instructions

4.1 Basic Distance Measurement

To measure the distance to a target:

1. Look through the eyepiece and aim the reticle (aiming circle) at your desired target.
2. Press the Power button once.
3. The distance will be displayed on the LCD screen instantly.

4.2 Flag Lock & Vibration

The Flag Lock feature helps you accurately target the flagstick, even with background objects.

1. Long-press the Power button to activate the flag targeting mode.
2. Scan across the flagstick. The rangefinder will vibrate once it successfully locks onto the flag.
3. The flag icon will appear on the LCD display, confirming the lock.

Image: The rangefinder's display showing a flag locked with a measurement, highlighting the 7X magnification capability.

4.3 Slope Compensation

The GX6 includes a dedicated slope switch for easy on-the-fly adjustment, providing compensated distances based on terrain elevation. A green LED indicator lights up as an anti-cheat alert, ensuring tournament compliance when slope is off.

1. To activate or deactivate slope compensation, slide the 'Slope' switch located on the side of the unit.
2. When the green LED indicator is flashing, slope mode is OFF (tournament legal).
3. When the green LED indicator stops flashing (solid or off, depending on model), slope mode is ON.

Image: Diagram illustrating how the AOFAR GX6's adaptive slope technology calculates ballistic distance, with an inset showing the physical slope switch and indicator light.

5. Maintenance

5.1 Cleaning

To maintain the clarity of the lenses and the overall condition of your rangefinder:

• Use the provided cleaning cloth to gently wipe the lenses and exterior surfaces.
• Avoid using abrasive materials or harsh chemicals that could damage the optics or casing.

5.2 Storage

When not in use, store the rangefinder in its carrying pouch in a cool, dry place, away from direct sunlight and extreme temperatures.

5.3 Waterproofing

The AOFAR GX6 has an IPX4 waterproof rating, meaning it is resistant to splashing water from any direction. While it can withstand rain or sweat, it should not be submerged in water.

Image: The AOFAR GX6 Golf Rangefinder with water droplets on its surface, emphasizing its IPX4 waterproof rating and magnetic attachment capability.

6. Troubleshooting

If you encounter any issues with your AOFAR GX6 Golf Rangefinder, please refer to the following common solutions:

• No Display/Power: Ensure the battery is charged. Connect the USB-C cable and allow it to charge for at least 30 minutes before attempting to power on again.
• Inaccurate Readings: Ensure the lens is clean. Make sure you are aiming at a clear target and not through obstructions like thick fog or heavy rain, which can affect laser performance.
• Difficulty Locking onto Flag: Ensure you are in Flag Lock mode (long-press Power button). Try scanning slowly across the flagstick. Ensure there are no significant obstructions directly in front of or behind the flag.
• Unit Not Switching (Yards/Meters): Ensure you are pressing and holding the 'MODE' button for the correct duration (approx. 3 seconds). A quick press may activate other modes.
• No Vibration: Verify that the flag lock feature is active and that the device has successfully locked onto the flag.

If problems persist after attempting these solutions, please contact AOFAR customer service for further assistance.

7. Specifications

8. Warranty & Support

The AOFAR GX6 Golf Rangefinder is backed by a 24-month hassle-free warranty, ensuring peace of mind for your purchase. AOFAR is committed to providing lifetime customer service support for this product.

Contact Support:

For any warranty claims, technical assistance, or product inquiries, please refer to the contact information provided on the AOFAR official website or your purchase documentation. Please have your model number (GX6) and proof of purchase ready when contacting support.
