Introduction
Thank you for choosing the Sekey Double Klemmfix Roller Blind. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new roller blind. Please read these instructions carefully before use and retain them for future reference.
This double roller blind, model BL-2514, measures 70 cm wide by 130 cm high and features a linen yellow fabric. It is designed for interior use, offering both sun protection and privacy.
Safety Information
- Keep the pull chain out of reach of small children to prevent strangulation hazards.
- Ensure the blind is securely mounted to prevent it from falling.
- Do not attempt to modify the blind's mechanism, as this may cause damage or injury.
- This product is intended for indoor use only.
Package Contents
Please check that all parts are present before beginning installation.
- 1x Sekey Double Klemmfix Roller Blind (Model BL-2514)
- 2x Mounting Brackets (Klemmfix)
- 1x Screw Set (for optional drilling installation)
Image: Components included in the Sekey Double Klemmfix Roller Blind package.
Setup and Installation
The Sekey Double Klemmfix Roller Blind offers two installation methods: Klemmfix (no drilling) or Drilling (with screws).
1. Measuring Your Window
For optimal fit and light blockage, measure your window carefully.
- Recommended Order Width: Glass width + approximately 4 cm (for better privacy and sun protection).
- Important: Do not exceed the window handle width.
- Recommended Order Height: Window frame height.
Image: Guide for measuring window dimensions for the roller blind.
2. Klemmfix Installation (No Drilling)
This method is suitable for window frames with a thickness between 1 cm and 2.3 cm.
- Attach the two Klemmfix brackets to the top edge of your window frame. Ensure they are evenly spaced and secure.
- Hook the roller blind mechanism onto the installed brackets.
- Verify that the blind is level and operates smoothly.
Image: Detail of the Klemmfix bracket for easy, drill-free mounting.

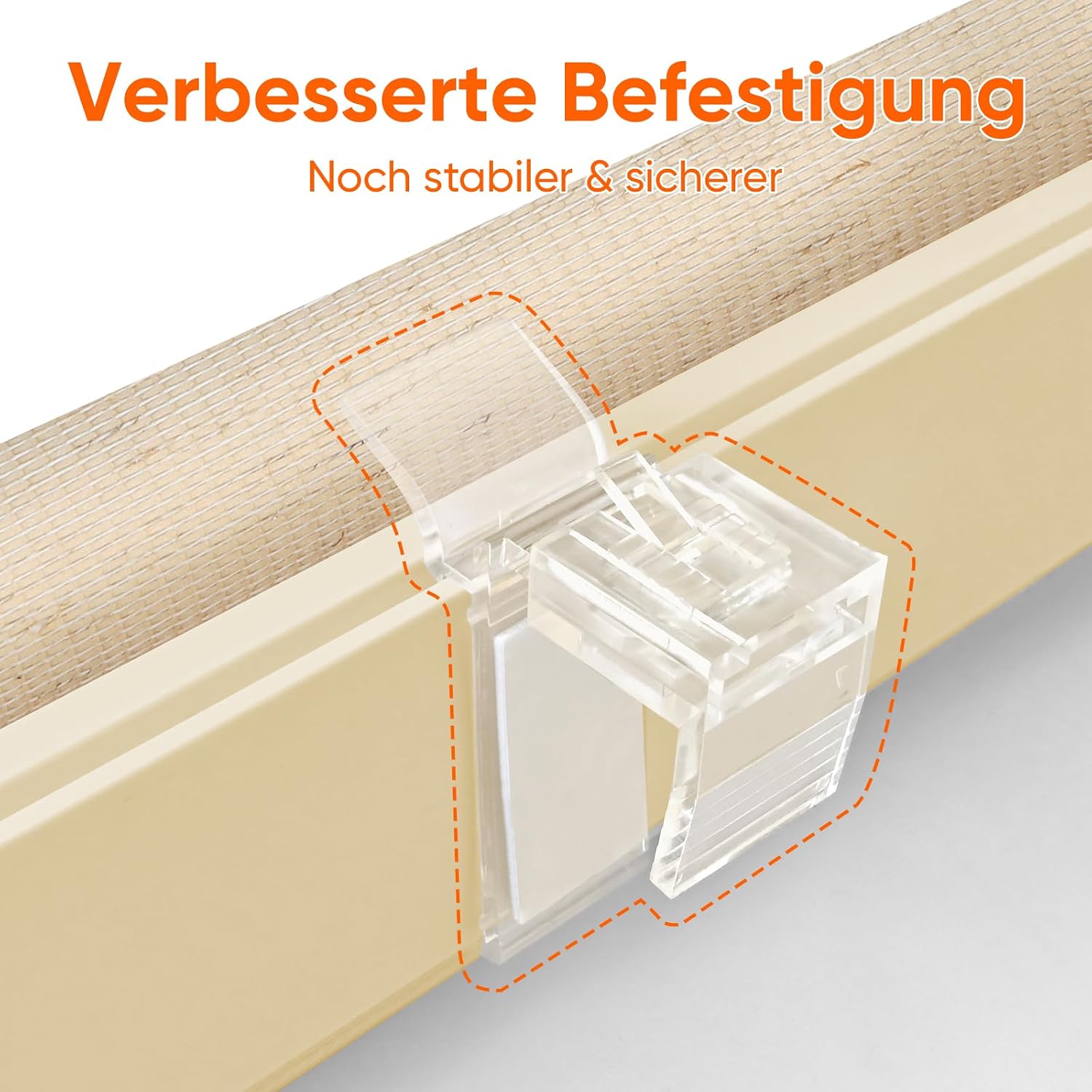

Image: Enhanced fastening for increased stability and security.
3. Drilling Installation (Optional)
If your window frame is not suitable for Klemmfix installation or if you prefer a permanent fixture, use the included screw set.
- Mark the desired positions for the mounting brackets on the wall or ceiling.
- Drill pilot holes at the marked positions.
- Insert wall plugs (if necessary) and secure the mounting brackets with the provided screws.
- Attach the roller blind to the secured brackets.
Image: Overview of mounting options: no-drill and drill installation with included hardware.
Operating Instructions
The Sekey Double Klemmfix Roller Blind is operated manually using a pull chain. The chain can be installed on either the left or right side of the blind.
- To Lower the Blind: Gently pull the chain downwards.
- To Raise the Blind: Gently pull the chain in the opposite direction.
- Adjusting Light and Privacy: The double layer fabric allows for precise control over light transmission and privacy. Adjust the two fabric layers by pulling the chain to align the opaque and transparent stripes as desired.
Image: Sekey Double Klemmfix Roller Blind installed, showcasing its design and how it blends with interior decor.

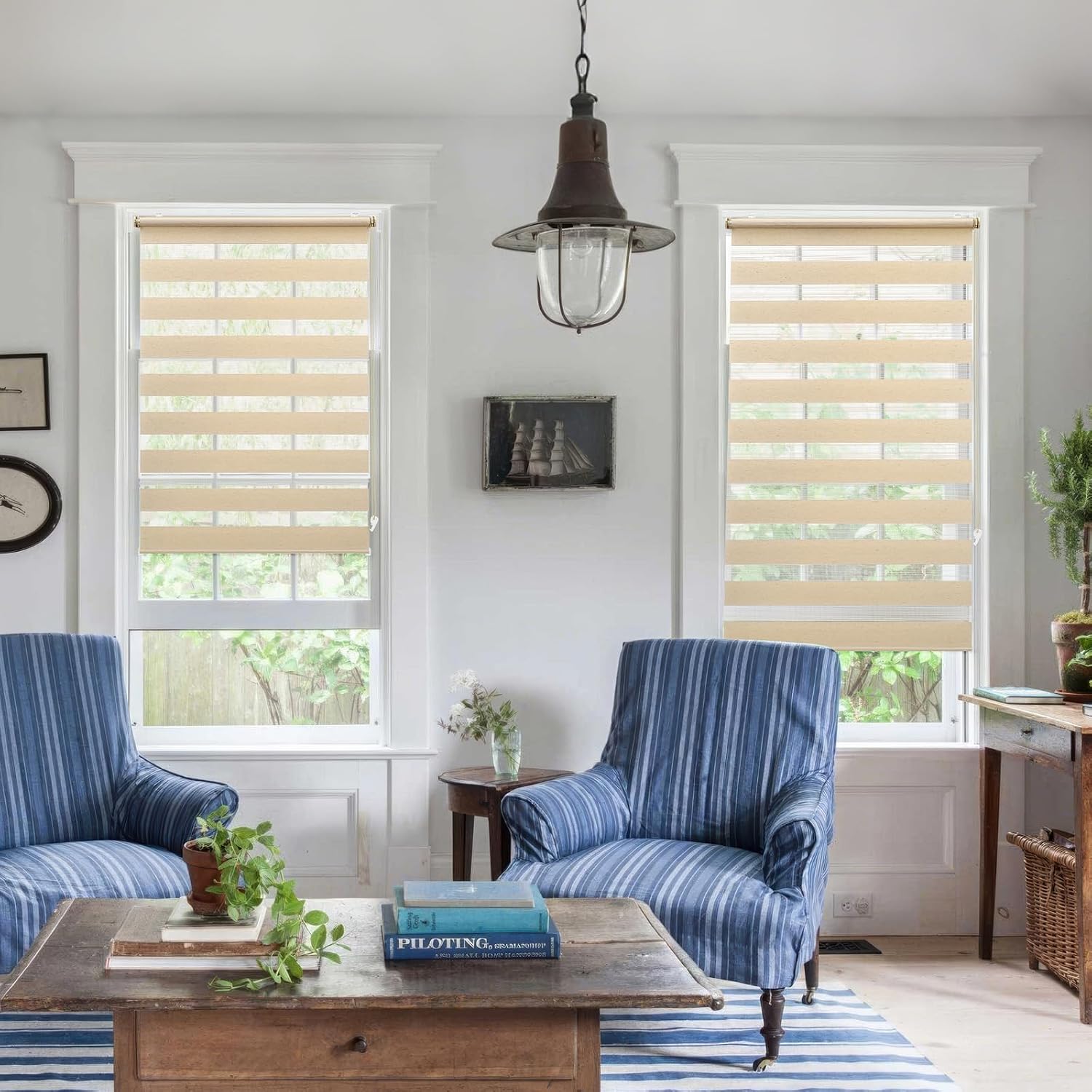

Image: Two Sekey Double Klemmfix Roller Blinds on a window, illustrating their function in a home setting.
Image: Detailed view of the linen yellow double roller blind fabric, highlighting its texture and dual-layer design.
Maintenance and Care
To ensure the longevity and appearance of your Sekey Double Klemmfix Roller Blind, follow these maintenance guidelines:
- Cleaning: Dust the blind regularly with a soft brush or a vacuum cleaner with a brush attachment. For light stains, gently wipe with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners.
- Mechanism: Periodically check the pull chain and mechanism for any signs of wear. Ensure the chain moves freely.
- Fabric: Avoid creasing or folding the fabric unnecessarily. Roll the blind up and down smoothly to prevent damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Blind does not roll up/down smoothly. | Chain tangled or mechanism obstructed. | Check the pull chain for tangles. Ensure no objects are obstructing the rolling mechanism. |
| Blind is crooked. | Uneven installation or brackets not level. | Re-check bracket installation to ensure they are level. Adjust as needed. |
| Blind falls from window. | Brackets not securely fastened or incorrect window frame thickness for Klemmfix. | Ensure Klemmfix brackets are firmly attached to the window frame (1-2.3 cm thickness). If using screws, verify they are tightened. |
Product Specifications
- Model Number: BL-2514
- Dimensions (W x H): 70 cm x 130 cm
- Material: 100% Polyester
- Color: Linen Yellow
- Operation: Manual (pull chain)
- Mounting Type: Klemmfix (no drilling) or Drilling (with screws)
- Recommended Use: Indoor
- Package Dimensions: 79 x 7.5 x 6.5 cm
- Item Weight: 850 grams
- Included Components: 2x Mounting Brackets, 1x Screw Set
- Country of Origin: China
Warranty and Support
This product comes with a standard return policy of 30 days (refund/replacement) if purchased from Amazon. For further support or warranty claims, please contact Sekey customer service through the retailer where the product was purchased.
Manufacturer: Sekey
