1. Introduction
This manual provides essential information for the safe and efficient operation of your Bosch WNA2E4UCIN 10.5/6 KG Inverter Fully Automatic Front Load Washer Dryer. Please read these instructions carefully before using the appliance and retain them for future reference.
Image 1.1: Front view of the Bosch WNA2E4UCIN Washer Dryer.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the appliance:
- Ensure the appliance is properly earthed.
- Do not allow children to operate or play near the appliance.
- Unplug the appliance before cleaning or maintenance.
- Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances.
- Refer to the installation section for proper setup to avoid electrical hazards or water leaks.
3. Setup and Installation
Proper installation is crucial for the performance and longevity of your washer dryer. This appliance is designed for freestanding installation.
3.1 Unpacking and Placement
Carefully remove all packaging materials. The appliance weighs approximately 79 kg. Ensure the chosen location has a stable, level surface and is near appropriate water and electrical connections.
3.2 Dimensions
- Product Dimensions (LxWxH): 59 x 59.8 x 84.8 Centimeters
Image 3.1: Side view of the Bosch WNA2E4UCIN Washer Dryer illustrating its dimensions.
3.3 Water and Electrical Connections
Connect the supplied inlet pipe to a cold water tap. Ensure all connections are secure to prevent leaks. The appliance requires a standard electrical outlet. It is recommended to have a qualified plumber or technician perform the initial installation and adjustments.
3.4 Included Components
- Inlet Pipe
4. Operating Instructions
Your Bosch washer dryer features a fully automatic operation with touch controls and a front load access. It offers 14 wash programs and a spin speed of 1400 RPM.
4.1 Loading Laundry
Open the front door and load laundry into the stainless steel drum. The washing capacity is 10.5 kg, and the drying capacity is 6 kg. For optimal drying results, do not exceed the 6 kg drying limit.
Image 4.1: The washer dryer highlighting its ability to wash and dry in 60 minutes for smaller loads.
4.2 Selecting a Program
Use the touch display to select one of the 14 available wash programs:
- Wash & Dry 60 min
- Lingerie
- Outdoor/Waterproofing
- Anti bacteria
- Bedsheet/curtain
- Denim
- Drum clean
- Cottons
- Mix load
- Synthetics
- Wool
- Spin
- Rinse
Additional cycle options include Active Wear, Extra Rinse, Heavy Duty, and Tub Clean.
4.3 Special Features
- Delay Start: Postpone the start of a wash cycle.
- Hygiene Care: A program designed to effectively kill germs and bacteria.
- Inbuilt Heater: For effective washing at various temperatures.
- LED Display: Provides clear program and status information.
- Wash & Dry: Integrated washing and drying functionality.
- AntiStain Program: Targets and removes common stains.
- ActiveWater Plus: Utilizes 265 sensing levels for precise water usage.
- AntiVibration Side Panels: Engineered to minimize operational noise and vibration.
Image 4.2: The Hygiene Care feature ensures germ-free laundry.

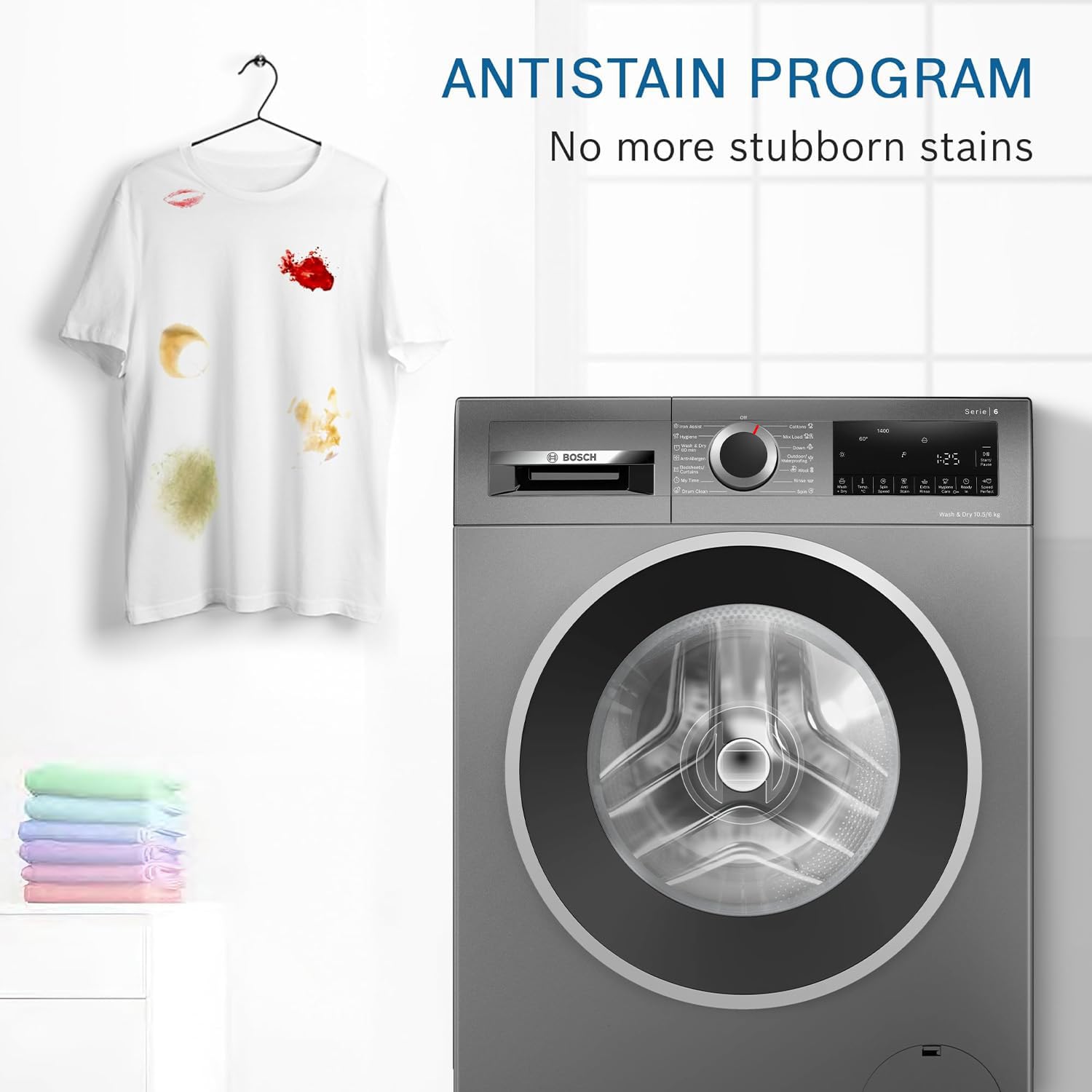

Image 4.3: The AntiStain Program helps remove stubborn stains.
5. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your appliance.
5.1 Drum Cleaning
Utilize the dedicated "Drum clean" program periodically to remove residue and maintain hygiene within the stainless steel drum.
Image 5.1: The stainless steel drum of the washer dryer.
5.2 General Cleaning
- Wipe the exterior with a soft, damp cloth.
- Clean the detergent dispenser regularly to prevent buildup.
- Check and clean the lint filter after each drying cycle.
6. Troubleshooting
If you encounter issues with your washer dryer, refer to the following common troubleshooting steps:
- Appliance does not start: Ensure the power cord is securely plugged in and the door is properly closed. Check if a program has been selected and the start button pressed.
- No water filling: Verify that the water tap is open and the inlet hose is not kinked.
- Excessive vibration/noise: Ensure the appliance is level and all transit bolts have been removed during installation. Do not overload the drum.
- Clothes not drying properly: Check that the drying capacity (6 kg) has not been exceeded. Ensure the lint filter is clean.
For persistent issues, contact Bosch customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model | WNA2E4UCIN |
| Brand | Bosch |
| Capacity (Washer) | 10.5 Kilograms |
| Capacity (Dryer) | 6 Kilograms |
| Operation Mode | Fully Automatic |
| Access Location | Front Load |
| Controls Type | Touch |
| Number of Washing Cycles | 14 |
| Spin Speed | 1400 RPM |
| Energy Rating | 5 Star |
| Annual Energy Consumption | 360 Kilowatt Hours |
| Product Dimensions (LxWxH) | 59 x 59.8 x 84.8 Centimeters |
| Item Weight | 79 Kilograms |
| Drum Material | Stainless Steel |
| Finish Type | Metallic Grey |
| Special Features | Delay Start, Hygiene Care, Inbuilt Heater, LED Display, Wash & Dry |
| Country of Origin | China |
8. Warranty and Support
8.1 Warranty Information
- Product Warranty: 2 Years
- Motor Warranty: 12 Years
The brand warranty can be availed using your purchase invoice.
8.2 Customer Support
For further assistance, technical support, or to schedule service, please contact Bosch customer service. The user manual can also be accessed from the official Bosch brand website.
