1. Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your TROPOW 3-Tank 30L Commercial Beverage Dispenser with Mixer. Please read this manual thoroughly before initial use and retain it for future reference.

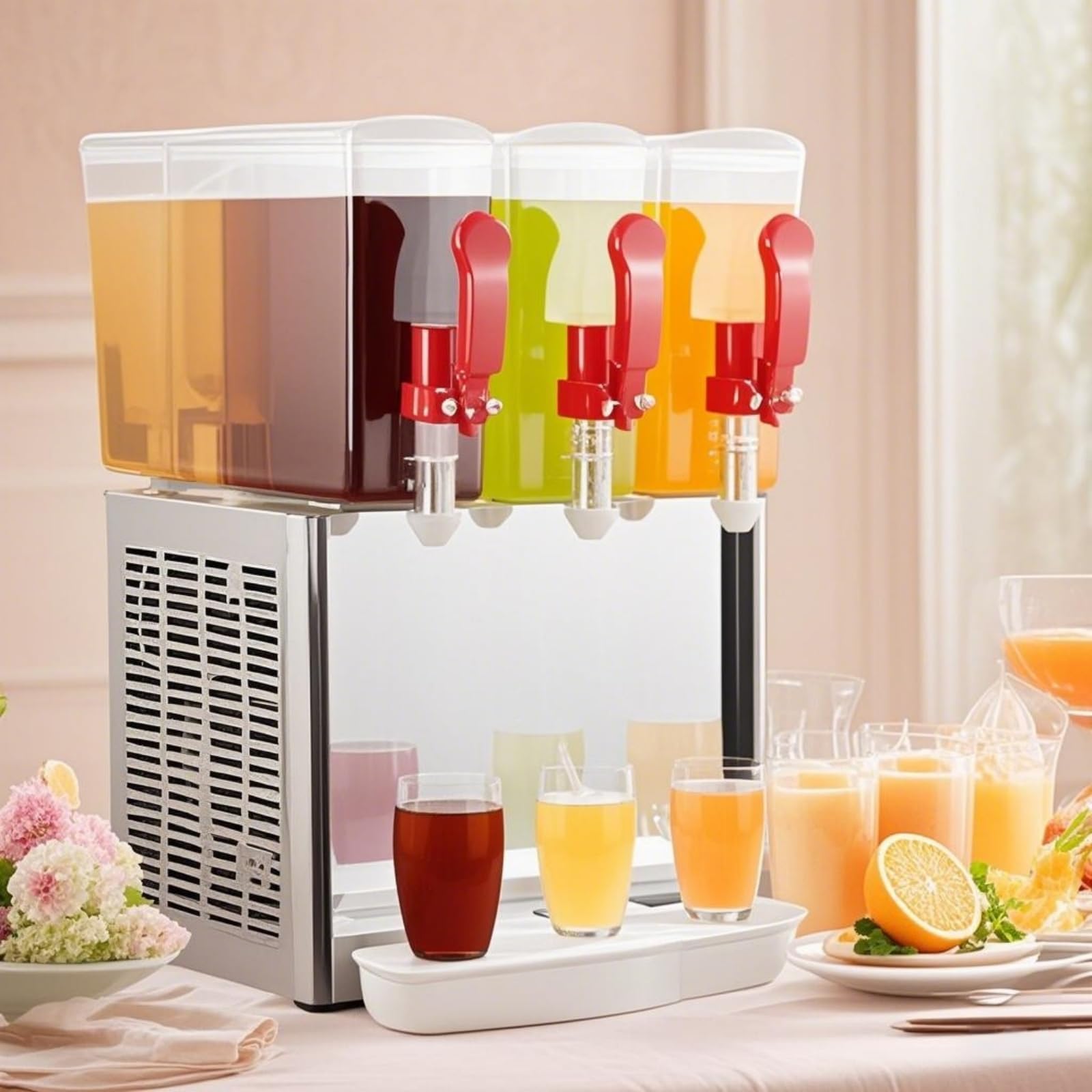

Image: The TROPOW 3-Tank 30L Commercial Beverage Dispenser, showcasing its three clear tanks filled with colorful beverages, positioned on a kitchen counter.
Key Features:
- 10L Large Capacity per Tank: Each tank holds 10 liters (approximately 2.6 gallons), suitable for high-volume serving. The three-tank design allows for simultaneous serving of multiple beverages.
- Built-in Mixer and Infuser: Ensures consistent blending and infusion of flavors for various beverages like infused water, iced tea, fruit juices, or cocktails.
- Refrigerated System with Thermostat Control: Maintains optimal temperature for cold beverages, ensuring freshness and taste.
- Premium Stainless Steel Construction: Durable, food-grade stainless steel for commercial use, offering easy cleaning and longevity.
- Integrated Ice Tub for Extended Cooling: Helps keep drinks chilled without dilution, ideal for iced coffee, smoothies, or cocktails.
2. Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury, read and understand all instructions before operating this appliance.
- Ensure the appliance is connected to a properly grounded electrical outlet with the correct voltage (refer to specifications).
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Keep hands and utensils out of the tanks during operation, especially when the mixer is active.
- Unplug the appliance from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Use only manufacturer-recommended attachments.
- This appliance is intended for commercial use only.
- Ensure adequate ventilation around the unit to prevent overheating.
- Do not fill tanks beyond the maximum fill line to prevent overflow during mixing.
3. What's in the Box
Upon unpacking, ensure all components are present and undamaged:
- TROPOW 3-Tank 30L Commercial Beverage Dispenser (Main Unit)
- Three 10L Beverage Tanks
- Three Mixing Paddles/Infusers
- Three Drip Trays
- Lids for each tank
- User Manual
4. Setup Instructions
- Unpack and Inspect: Carefully remove all packaging materials. Inspect the unit for any shipping damage. Report any damage to your supplier immediately.
- Placement: Place the dispenser on a stable, level surface capable of supporting its weight when full. Ensure there is at least 6 inches (15 cm) of clear space around all sides for proper ventilation. Avoid direct sunlight or heat sources.
- Assemble Drip Trays: Attach the drip trays to the front of the unit below each dispenser faucet.
- Install Tanks and Mixers: Place each 10L beverage tank onto its designated base on the main unit. Insert the mixing paddle into the center of each tank, ensuring it sits correctly on the motor shaft.
- Initial Cleaning: Before first use, thoroughly clean all removable parts (tanks, lids, mixing paddles, drip trays) with mild soap and warm water. Rinse thoroughly and dry. Wipe down the exterior of the main unit with a damp cloth.
- Power Connection: Ensure the power switches are in the 'OFF' position. Plug the power cord into a grounded electrical outlet.
Image: Detailed view of the dispenser's thoughtful design, highlighting features like the vent holes for cooling, the easily removable drip tray, and stable non-slip feet.
5. Operating Instructions
- Fill Tanks: Pour your desired beverage into each tank. Do not exceed the 'MAX' fill line to prevent spillage during mixing.
- Secure Lids: Place the lids securely on top of each tank.
- Activate Mixing (Stir): Locate the 'STIR' switch for each tank. Flip the switch to the 'ON' position to activate the mixing paddle. This ensures consistent beverage consistency and prevents settling.
- Activate Cooling (Cool): Locate the 'COOL' switch. Flip the switch to the 'ON' position to begin the refrigeration process. The unit will cool the beverages to the set temperature.
- Temperature Control: The dispenser features thermostat control. Adjust the temperature as needed to maintain your desired coldness. Allow sufficient time for the unit to reach the desired temperature, especially after initial setup or refilling.
- Dispensing: To dispense a beverage, place a cup under the desired faucet and push the lever. Release the lever to stop the flow.
- Turning Off: When finished, turn off both the 'STIR' and 'COOL' switches. Unplug the unit from the power outlet.
Image: A graphic representation emphasizing the 3-tank, 30-liter total capacity of the dispenser, ideal for commercial use.
6. Maintenance and Cleaning
Regular cleaning and maintenance are crucial for hygiene and extending the lifespan of your dispenser.
Daily Cleaning:
- Empty and Rinse: After each use, empty any remaining beverage from the tanks. Rinse the tanks, lids, and mixing paddles with warm water.
- Wash Components: Wash tanks, lids, mixing paddles, and drip trays with mild, food-safe detergent and warm water. Use a soft brush for hard-to-reach areas.
- Rinse Thoroughly: Ensure all soap residue is removed by rinsing thoroughly with clean water.
- Dry: Allow all components to air dry completely or dry with a clean, lint-free cloth before reassembly or storage.
- Wipe Exterior: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
Periodic Deep Cleaning:
- Periodically, disassemble the faucets for thorough cleaning to prevent residue buildup. Consult a professional if unsure.
- Check the ventilation grilles for dust and debris. Clean with a soft brush or vacuum cleaner to ensure proper airflow.
7. Troubleshooting
If you encounter issues with your beverage dispenser, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | Power cord unplugged; Power switch off; Circuit breaker tripped. | Ensure cord is securely plugged in; Turn power switch to ON; Reset circuit breaker. |
| Beverage not cooling | Cooling switch off; Insufficient ventilation; Ambient temperature too high; Refrigerant leak (professional service required). | Turn cooling switch to ON; Ensure adequate space around unit; Operate in a cooler environment; Contact service technician. |
| Mixer not working | Stir switch off; Mixing paddle improperly installed; Motor malfunction. | Turn stir switch to ON; Reinstall mixing paddle correctly; Contact service technician. |
| Leaking from faucet | Faucet seal worn or damaged; Faucet not fully closed. | Check and replace faucet seal if necessary; Ensure faucet lever is fully closed after dispensing. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | TROPOW |
| Model Name | dx9zaMRGJLPyrnlb3ecW6AIQVIPep |
| Size | 3-tank 10L*3 (Total 30L / 7.93 Gallon) |
| Special Feature | Built-in Mixer and Infuser |
| Material Type | Stainless Steel |
| Color | Silver |
| Item Weight | 60.63 Pounds |
| Product Style | Modern |
| Manufacturer | TROPOW |
Image: A visual representation of the product's dimensions and weight, along with examples of beverages it can serve.
9. Warranty and Support
TROPOW products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.
For technical support, warranty claims, or replacement parts, please contact your retailer or the TROPOW customer service department. Have your model number (dx9zaMRGJLPyrnlb3ecW6AIQVIPep) and purchase date available when contacting support.
