1. Safety Information
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or even fatal. Keep these instructions for future reference.
- All electrical connections must be in accordance with local codes and ordinances, National Electric Code (NEC), and ANSI/NFPA 70-1999.
- Consult a qualified electrician if you are unfamiliar with electrical wiring.
- Turn off the electricity at the main fuse box or circuit breaker before installation or servicing.
- Do not use bulbs exceeding the specified wattage.
- Ensure the fixture is securely mounted to a structural element.
2. Package Contents
Carefully unpack the fixture and check that all parts are included. If any parts are missing or damaged, do not attempt to assemble or install the product. Contact customer support for assistance.
- 1 x Light Fixture Body (Matte Black)
- 3 x Clear Glass Shades
- 1 x Mounting Plate
- 1 x Hardware Pack (screws, wire nuts, anchors)
- 1 x Instruction Manual
Image: All components of the Esfos L35 3-Light Vanity Light, including the fixture body, glass shades, mounting hardware, and instruction manual.
3. Specifications
| Feature | Specification |
|---|---|
| Brand | Esfos |
| Model Name | L35 |
| Color | Black |
| Material | Glass, Metal (304 Stainless Steel) |
| Style | Glam / Modern Minimalist |
| Light Fixture Form | Vanity |
| Room Type | Bathroom (Indoor use only) |
| Product Dimensions | 23.6"L x 7.7"W x 7.5"H |
| Power Source | AC |
| Installation Type | Semi Flush Mount |
| Light Source Type | LED, Incandescent |
| Finish Type | Matte |
| Shade Material | Glass (Clear) |
| Number of Light Sources | 3 |
| Voltage | 120 Volts (AC) |
| Max Wattage | 60W per bulb (120 watts total) |
| Bulb Base | E26 |
| Brightness | 1200 Lumens (Maximum) |
| Item Weight | 6.4 Pounds |

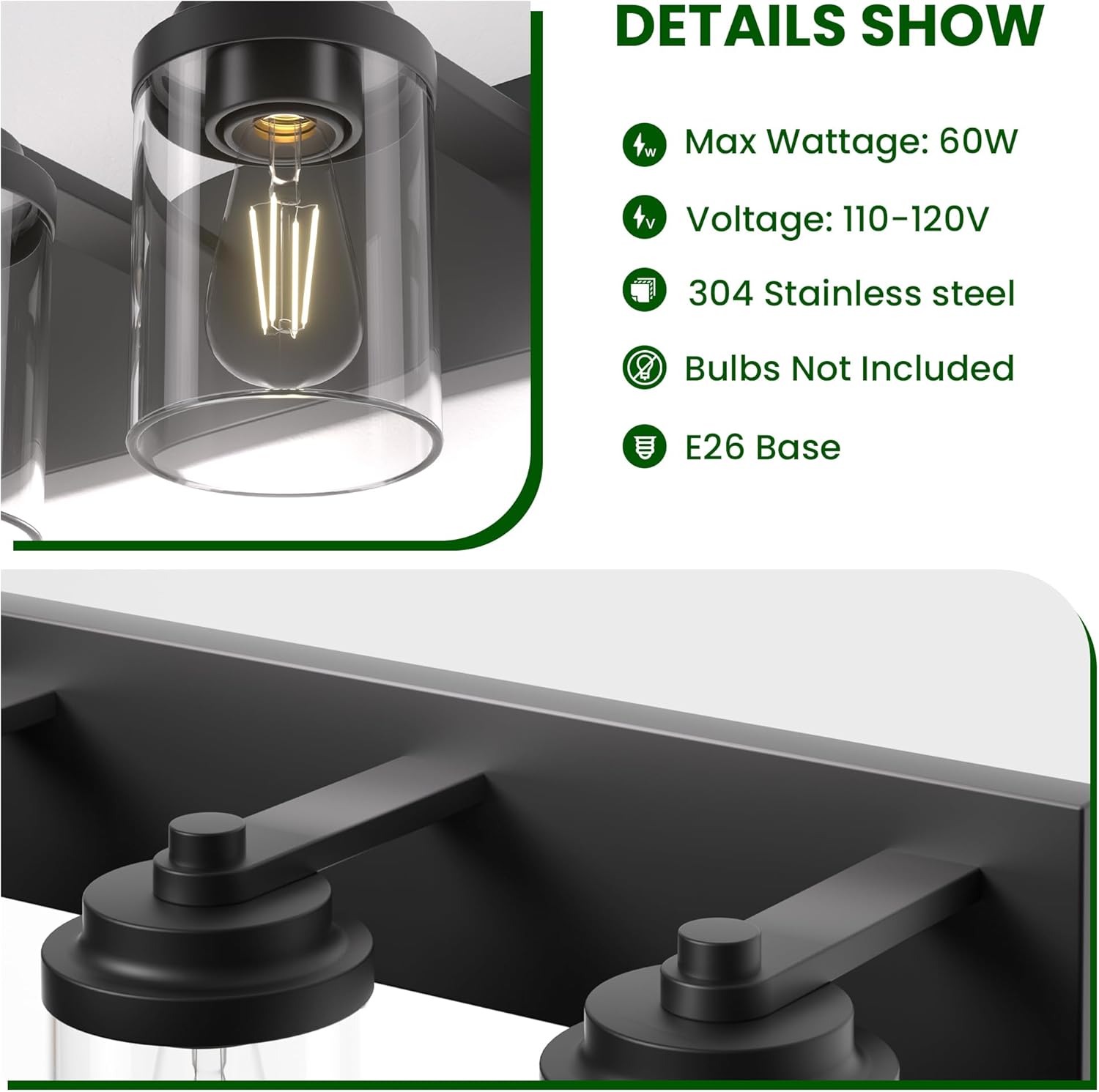

Image: Detailed view of the Esfos L35 Vanity Light highlighting specifications such as wattage, voltage, material, and bulb base.
4. Installation Instructions (Setup)
This section provides a step-by-step guide for installing your Esfos L35 Vanity Light. It is recommended to watch the installation video for visual guidance.
4.1 Pre-Installation
- Turn off Power: Before starting, ensure the power to the circuit is turned off at the circuit breaker or fuse box.
- Prepare Mounting Surface: Ensure the wall surface is clean and clear for mounting.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
4.2 Mounting the Fixture
- Attach Mounting Plate: Secure the mounting plate to the junction box in the wall using the provided screws. Ensure it is level.
- Mark Anchor Points (if needed): If additional support is required, mark and drill holes for the wall anchors. Insert the anchors.
- Electrical Connections: Connect the fixture's wires to the house wires:
- Connect the black wire (live) from the fixture to the black wire from the wall using a wire nut.
- Connect the white wire (neutral) from the fixture to the white wire from the wall using a wire nut.
- Connect the green or bare copper wire (ground) from the fixture to the ground wire from the wall using a wire nut.
- Secure Fixture Body: Carefully align the fixture body with the mounting plate and secure it using the provided screws.
4.3 Assembling Glass Shades and Bulbs
- Install Bulbs: Screw E26 base bulbs (not included, max 60W each) into the sockets.
- Attach Glass Shades: Carefully place each clear glass shade over the bulb and secure it according to the fixture design (typically by screwing a retaining ring or cap).
4.4 Placement Options
The Esfos L35 Vanity Light can be installed with the lights facing upwards or downwards, depending on your preference and desired lighting effect.

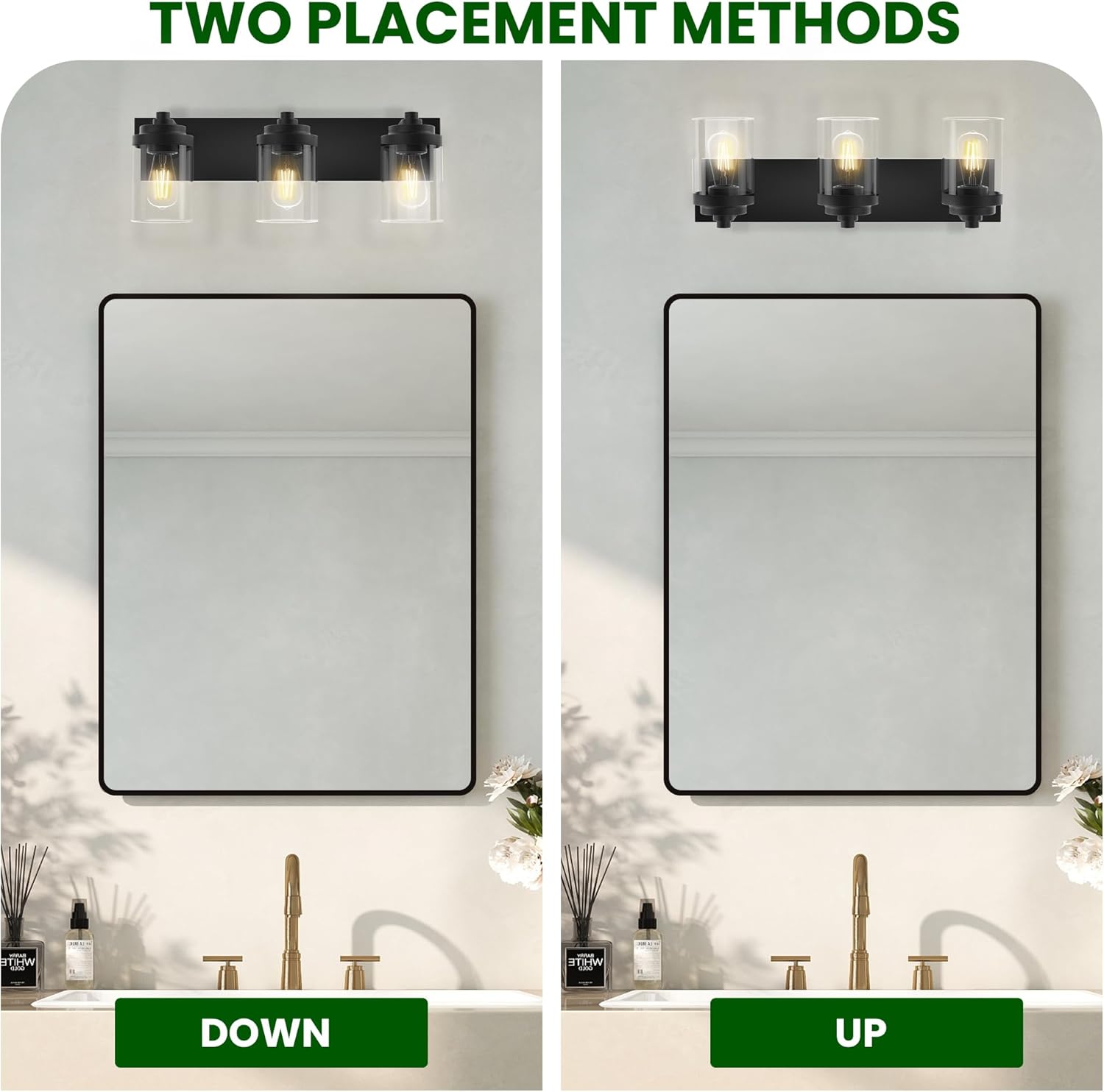

Image: Demonstrates the two possible placement methods for the vanity light: lights facing down and lights facing up.
4.5 Installation Video Guide
For a visual walkthrough of the installation process, please refer to the official installation video:
Video: Official Esfos installation guide for the vanity light, demonstrating assembly and mounting steps.
5. Operation
Once installed, the Esfos L35 Vanity Light operates like any standard wall-mounted light fixture. Control the light using your existing wall switch.
- Power On/Off: Flip the wall switch to turn the light fixture on or off.
- Bulb Compatibility: The fixture is compatible with standard E26 base bulbs, including LED, incandescent, and smart bulbs. Choose bulbs that suit your desired brightness and color temperature.

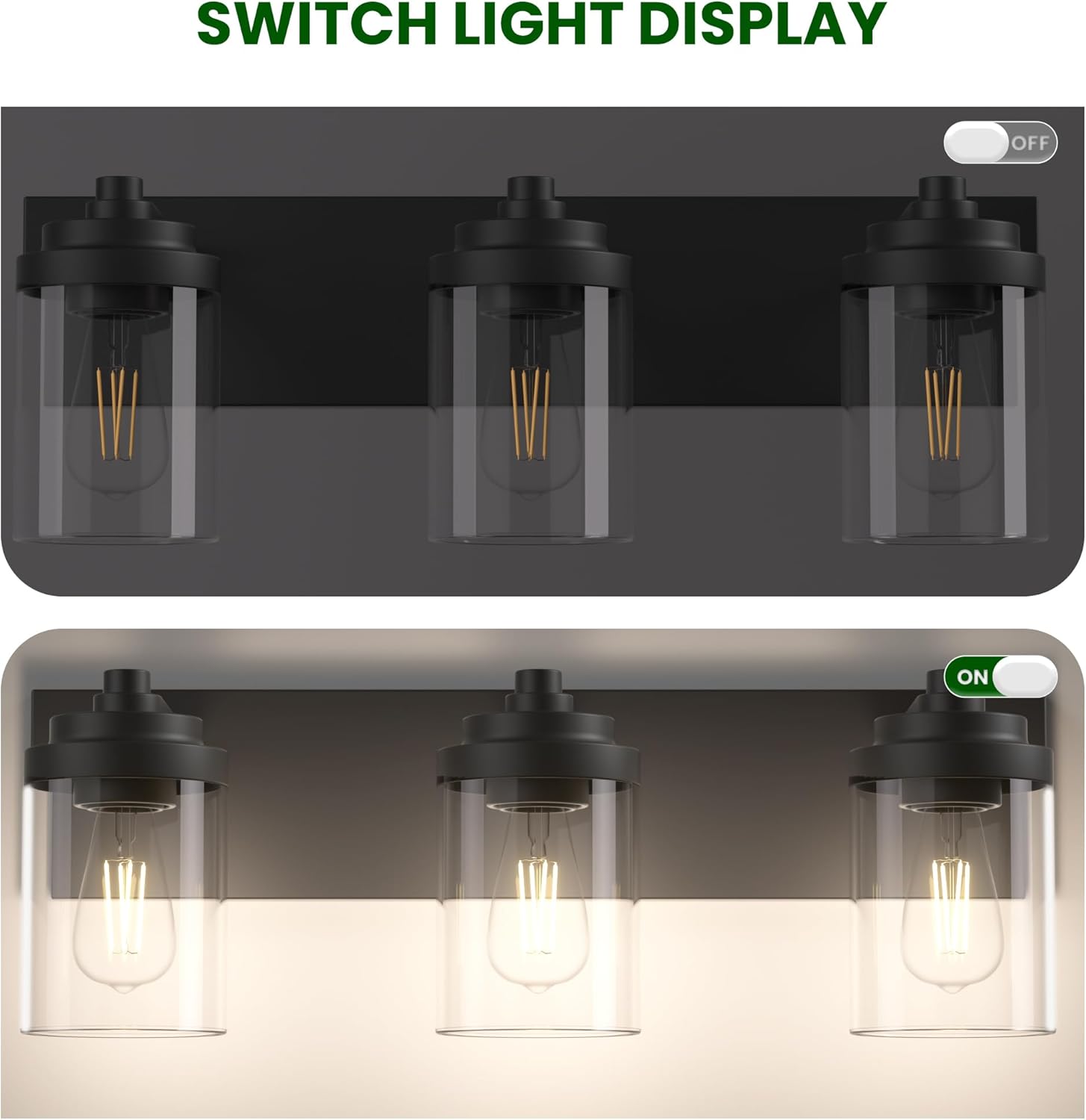

Image: Illustrates the visual difference between the light fixture being switched off and switched on, showcasing the illumination.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your vanity light.
- Cleaning: To clean the fixture, turn off the power and wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or glass.
- Bulb Replacement: Ensure the power is off and the bulbs have cooled before attempting to replace them. Unscrew the old bulb and screw in a new E26 base bulb (max 60W).
- Durability: The vanity light features a matte black finish coated with an anti-rust coating, making it suitable for moist environments like bathrooms without concerns of oxidation or color fading.
7. Troubleshooting
If you encounter issues with your vanity light, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wire connections Faulty bulb | Check circuit breaker/fuse Verify all wire connections are secure (power off first) Replace bulb with a known working one |
| Light flickers | Loose bulb Incompatible dimmer switch Loose wire connections | Tighten bulb Ensure dimmer switch is compatible with your bulbs Check wire connections (power off first) |
| Bulbs burn out quickly | Incorrect wattage bulb Poor quality bulbs | Use bulbs within the specified 60W limit Try higher quality bulbs |
If the problem persists after attempting these solutions, please contact customer support.
8. Warranty and Support
The Esfos L35 3-Light Modern Black Bathroom Vanity Light comes with a 3-year warranty.
- Warranty Coverage: This warranty covers defects in materials and workmanship under normal use.
- Customer Support: For any issues or questions regarding your product, our 24/7 customer service team is available to provide instant troubleshooting guidance. Please contact us via Amazon message box, and we will reply within 24 hours.
