xamily W11578571 Washer Control Board Instruction Manual

1. Product Overview

The xamily W11578571 Main Control Board is an Original Equipment Manufacturer (OEM) component designed specifically for washing machines. This board serves as the central processing unit, responsible for monitoring and controlling all operational functions of the washer.

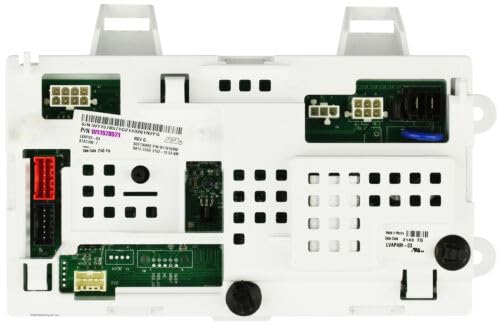

Image 1: The xamily W11578571 Washer Control Board. This image displays the electronic circuit board with various components and connectors, illustrating the complex nature of the main control unit for washing machines.

2. Compatibility

This control board is compatible with the following washing machine models:

• ATW4516MW0
• NTW4516FW4
• VAW3584GW2

Important: Always verify your appliance's model number before purchasing and installing any replacement part to ensure compatibility. Slight variations in appearance or button styles on the part may occur due to revisions, but these do not affect form or function.

3. Installation and Setup

Installation of a washer control board requires technical knowledge and adherence to safety precautions. It is highly recommended that installation be performed by a qualified appliance technician.

Safety Precautions:

• Disconnect Power: Always unplug the washing machine from the electrical outlet before beginning any repair or installation work.
• Water Supply: Turn off the water supply to the washing machine.
• Static Electricity: Discharge any static electricity from your body before handling electronic components by touching a grounded metal object.

General Installation Steps (Consult a service manual for detailed instructions):

1. Access the control panel or rear panel of the washing machine where the control board is located.
2. Carefully disconnect all wiring harnesses and connectors from the old control board, noting their positions for reassembly.
3. Remove any screws or clips securing the old control board.
4. Install the new W11578571 control board in the same position.
5. Reconnect all wiring harnesses and connectors securely.
6. Reassemble the washing machine panels.
7. Restore power and water supply, then test the washer's functions.

4. Operation

The W11578571 Main Control Board operates continuously when the washing machine is powered. It interprets user inputs from the control panel, manages the wash cycle progression, and sends commands to various components such as the motor, water valves, and drain pump. Its proper functioning is critical for the washer to perform its intended cycles and operations.

5. Maintenance

The W11578571 control board is a sealed electronic component and does not require routine user maintenance. To ensure its longevity:

• Ensure the washing machine is used in a dry environment, free from excessive humidity or water exposure.
• Avoid exposing the washer to extreme temperature fluctuations.
• Regularly clean the exterior of the washing machine to prevent dust and debris buildup, which can sometimes affect internal components.

6. Troubleshooting

A malfunctioning control board can lead to various operational issues. If your washing machine exhibits any of the following symptoms, the W11578571 control board may need replacement:

• Washer not starting cycles properly or failing to spin.
• Malfunctioning digital displays or unresponsive buttons on the control panel.
• Inability to change settings or cancel cycles.
• Other components, such as the motor, not reacting to commands.

If you experience these issues, consult a qualified technician for diagnosis and potential replacement of the control board.

7. Specifications

8. Warranty and Support

Warranty Information:

This product comes with a 60-day warranty. Please retain your proof of purchase for any warranty claims.

Customer Support:

For technical assistance, installation guidance, or warranty inquiries, please contact the retailer or manufacturer directly. When contacting support, have your product model number (W11578571) and washing machine model number readily available.
