Introduction
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Migali C-U48R-D-HC 48-inch Under-counter Refrigerator with Drawers. Please read these instructions thoroughly before operating the unit to ensure safe and efficient performance. Retain this manual for future reference.
Safety Information
Always adhere to basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. This unit is designed for commercial use. Improper use can lead to hazards.
- Electrical Safety: Ensure the unit is connected to a properly grounded electrical outlet with the correct voltage as specified on the rating label. Do not use extension cords.
- Ventilation: Maintain adequate clearance around the unit for proper airflow and heat dissipation. Blocked vents can lead to overheating and reduced efficiency.
- Flammable Materials: Do not store explosive substances or flammable materials inside or near the refrigerator.
- Cleaning: Disconnect power before cleaning or performing any maintenance. Use non-abrasive cleaners.
- Service: All service and repairs should be performed by qualified service personnel.
Unpacking and Setup
1. Unpacking
Carefully remove all packaging materials, including tape and protective film. Inspect the unit for any shipping damage. Report any damage to the carrier immediately.
2. Placement
Position the refrigerator on a strong, level surface capable of supporting its weight when fully loaded. The unit comes with wheels preinstalled for easy movement. Ensure the unit is level to allow for proper drainage and operation.
Maintain a minimum of 4 inches (10 cm) of clearance from walls or other equipment on all sides (back, top, and sides) to ensure proper ventilation and efficient operation of the refrigeration system.

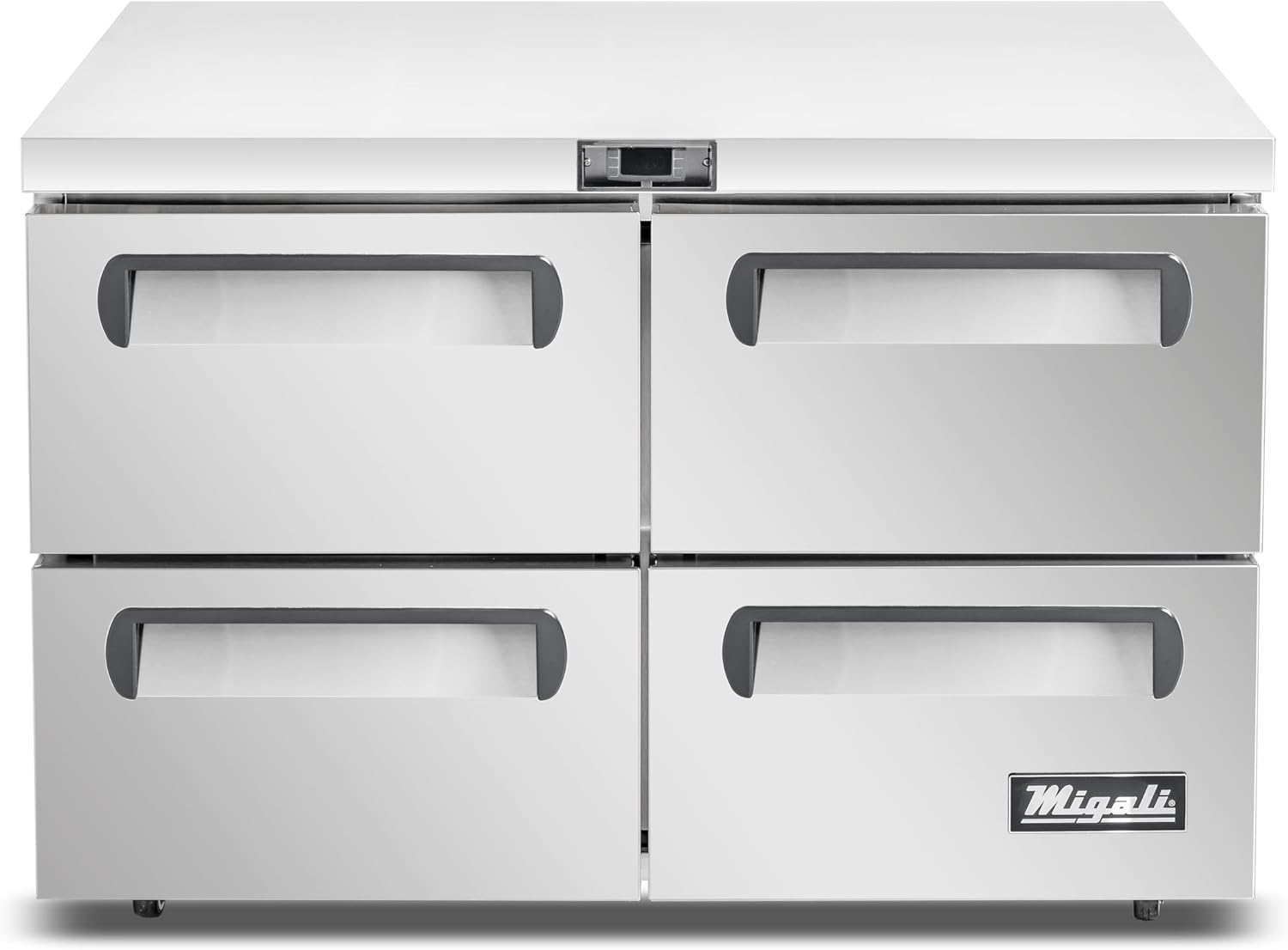

Image: Front view of the Migali C-U48R-D-HC under-counter refrigerator with four drawers, showcasing its stainless steel finish and digital display.
Image: Side view of the Migali C-U48R-D-HC under-counter refrigerator, illustrating its compact depth suitable for under-counter placement.
3. Electrical Connection
Before plugging in the unit, ensure the power supply matches the voltage and amperage requirements listed on the product's rating label. Connect the unit to a dedicated, grounded electrical circuit.
4. Initial Cleaning
Before first use, clean the interior and exterior surfaces with a mild soap and water solution. Rinse thoroughly and dry completely.
5. Initial Startup
After placement and cleaning, plug in the unit. Allow the refrigerator to operate for at least 2-4 hours empty to reach its set temperature before loading with products.
Operating Instructions
1. Digital Temperature Controller
The unit is equipped with a digital temperature controller for precise temperature management. The display shows the current internal temperature.
Image: Close-up of the digital temperature controller with power switches, displaying the internal temperature.
2. Adjusting Temperature
Refer to the specific instructions provided with your digital controller for detailed steps on adjusting the temperature set point. Generally, pressing a 'SET' button allows you to view and then modify the desired temperature using arrow keys.
3. Loading the Refrigerator
Load products evenly within the drawers. Avoid blocking the internal air circulation vents to ensure consistent cooling. The robust forced air refrigeration system is designed for rapid cooling and temperature stability.
4. Power Switch
The unit features a main power switch, typically located near the digital controller. Use this switch to turn the unit on or off.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your Migali refrigerator.
1. Cleaning the Interior
Disconnect power before cleaning. Remove all contents and shelves/drawers. Wash interior surfaces with a mild detergent and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners or sharp objects.
Image: Interior view of a refrigerator drawer, showing the stainless steel construction and a wire shelf for organized storage.
2. Cleaning the Exterior
Wipe down the stainless steel exterior with a soft cloth and a stainless steel cleaner or mild soap and water. Avoid abrasive pads or cleaners that can scratch the surface.
3. Condenser Coil Cleaning
The condenser coil, typically located at the rear or bottom of the unit, should be cleaned regularly (every 1-3 months) to maintain efficiency. Disconnect power. Use a brush or vacuum cleaner to remove dust and debris from the coil fins. A dirty condenser coil can significantly reduce cooling performance and increase energy consumption.
Image: Close-up of an internal fan component, part of the forced air refrigeration system, which requires clear airflow for optimal performance.
4. Automatic Defrost
This unit features an automatic defrost system, minimizing the need for manual defrosting. Ensure the drain pan is clear and the drain line is not obstructed.
5. Gasket Inspection
Regularly inspect the door/drawer gaskets for cracks or tears. Clean them with warm, soapy water. Damaged gaskets can lead to air leaks and reduced efficiency.
Troubleshooting
Before contacting service, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not cooling | No power; thermostat set too high; dirty condenser coil; blocked airflow; door/drawer left open. | Check power supply; adjust thermostat; clean condenser coil; ensure proper loading; close door/drawer securely. |
| Excessive noise | Unit not level; loose components; fan obstruction. | Level the unit; check for loose parts; ensure fan is clear of obstructions. |
| Water on floor | Clogged drain line; drain pan overflowing. | Clear drain line; ensure drain pan is correctly positioned and not damaged. |
| Digital display error | Sensor issue; controller malfunction. | Consult the controller's specific manual or contact service. |
Specifications
The following specifications apply to the Migali C-U48R-D-HC model:
- Model: C-U48R-D-HC
- Dimensions (D x W x H): 30" x 48.25" x 34.1"
- Capacity: 12 Cubic Feet
- Material: Stainless Steel (Exterior and Interior)
- Installation Type: Freestanding
- Number of Doors/Drawers: 2 Drawers (each drawer section contains two drawers, totaling four compartments)
- Defrost System: Automatic
- Refrigerant: R290 (Environmentally friendly)
- Certification: ETL
- Special Features: Quiet operation, Digital Temperature Controller, Pre-installed Wheels
Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or visit the official Migali website. Migali offers protection plans for extended coverage. For technical support or service inquiries, please contact Migali customer service or an authorized service provider.
Contact Information: Please refer to your purchase documentation or the Migali official website for the most current contact details.
