WERHY H5 Electric Scooter User Manual

1. Safety Information

Before operating your WERHY H5 Electric Scooter, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury or property damage.

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads) when riding.
• Ensure all screws and components are securely fastened before each ride.
• Do not ride in wet conditions, heavy rain, or on slippery surfaces.
• Avoid riding on uneven terrain, potholes, or over obstacles that could cause loss of control.
• Maintain a safe distance from other vehicles, pedestrians, and obstacles.
• Adhere to local traffic laws and regulations for electric scooters.
• Do not allow children under the recommended age to operate the scooter.
• Do not exceed the maximum load capacity of 264 lbs (120 kg).
• Be aware of your surroundings and avoid distractions while riding.

2. Product Overview

The WERHY H5 Electric Scooter is designed for efficient and enjoyable commuting. It features a powerful motor, long-range battery, and smart controls for a personalized riding experience.

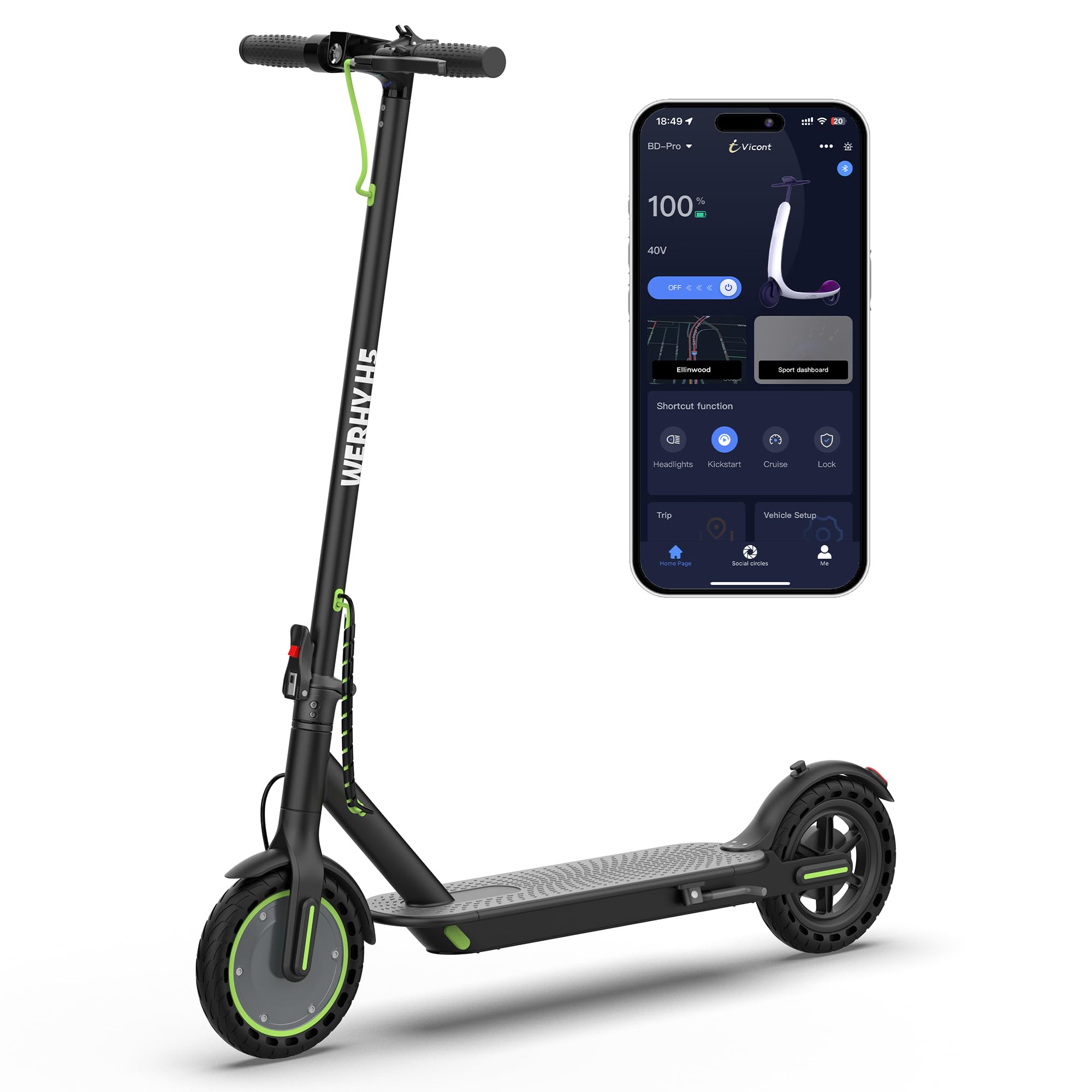

The WERHY H5 Electric Scooter, showcasing its sleek design.

• Powerful Motor: Equipped with a 350W motor, capable of reaching speeds up to 19 mph and conquering inclines up to 15%.
• Extended Range: A reliable lithium-ion battery provides a range of up to 15 miles on a full charge.
• Dual Braking System: Features a front electronic brake and a rear drum brake for reliable stopping power.
• Smart Connectivity: Integrated LCD display and mobile app control for real-time data, mode selection, and security features.
• Portable Design: Lightweight (30 lbs) with a 3-second folding mechanism for easy transport and storage.
• Enhanced Visibility: Bright LED headlights and rear warning lights ensure safety during night rides.

3. Assembly & Setup

The WERHY H5 Electric Scooter requires minimal assembly. Follow these steps to get started:

1. Unpack: Carefully remove all components from the packaging.
2. Unfold: Lift the handlebar stem until it locks into the upright position. Ensure the locking mechanism is secure.
3. Attach Handlebars: Connect the handlebars to the stem. Feed any excess wires into the stem as instructed. Secure the handlebars with the provided screws and tools.
4. Initial Charge: Fully charge the scooter's battery before its first use. Refer to the 'Charging the Battery' section for details.
5. App Connection: Download the dedicated mobile app. Follow the in-app instructions to connect your scooter via Bluetooth for full control and monitoring.

4. Operation

4.1 Power On/Off

• To power on, press and hold the power button on the display until the screen illuminates.
• To power off, press and hold the power button until the display turns off.

4.2 Riding Modes

The scooter offers multiple speed modes to suit different riding conditions:

• E Mode (Eco): Approximately 7 mph, ideal for beginners or maximizing battery life.
• D Mode (Drive): Up to 11 mph, suitable for moderate speeds and general use.
• S Mode (Sport): Up to 19 mph, for experienced riders seeking maximum speed.

Switch between modes using the controls on the handlebar or via the mobile app.

Illustration of the three distinct speed modes available on the WERHY H5 Electric Scooter.

4.3 Braking System

The scooter is equipped with a dual braking system for safety:

• Front Electronic Brake: Activated by the left handlebar lever.
• Rear Drum Brake: Activated by the right handlebar lever.

Always apply both brakes simultaneously for optimal stopping power and control.

Detailed view of the electronic handbrake and rear drum brake for effective stopping.

4.4 Lighting System

For visibility and safety, the scooter includes:

• LED Headlight: Provides illumination for night riding.
• Rear Warning Light: Enhances visibility from behind.

Activate lights via the handlebar controls or the mobile app, especially when riding in low-light conditions.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Cleaning: Wipe the scooter with a damp cloth. Do not use high-pressure water or immerse it in water.
• Tires: The scooter features 8.5-inch solid tires, which do not require inflation. Regularly inspect them for wear and tear.
• Brakes: Periodically check the brake levers and cables for proper function and adjustment.
• Battery Care: Charge the battery regularly, even if not in use, to maintain its health. Avoid completely draining the battery. Store in a cool, dry place.
• Storage: When not in use for extended periods, store the scooter in a dry environment away from direct sunlight and extreme temperatures.

6. Troubleshooting

If you encounter issues with your WERHY H5 Electric Scooter, refer to the following common problems and solutions:

• Scooter Not Turning On: Ensure the battery is charged. Check all cable connections.
• Reduced Speed/Range: This can be affected by rider weight, terrain, riding style, and ambient temperature. Ensure the battery is fully charged.
• App Connectivity Issues: Ensure Bluetooth is enabled on your device and the scooter is powered on. Try restarting both the app and the scooter. If issues persist, consult the app's help section or contact customer support.
• Brakes Not Responding: Check brake cable tension and ensure levers are not obstructed. If necessary, have brakes professionally adjusted.

For problems not listed here, please contact WERHY customer support.

7. Specifications

8. Warranty & Support

The WERHY H5 Electric Scooter comes with a limited warranty. Specific warranty periods apply to different parts:

• Warranty Duration: 180/365 days for different parts.

For detailed warranty information, claims, or technical support, please refer to the official WERHY website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty services.
