Condere 3-Layer Electric Steamer 10L Model ZD-001 User Manual

1. Introduction

Thank you for choosing the Condere 3-Layer Electric Steamer 10L Model ZD-001. This appliance is designed to provide a convenient and healthy way to prepare a variety of foods. To ensure safe and optimal performance, please read this instruction manual thoroughly before first use and retain it for future reference.

Important Safety Instructions

• Read all instructions before using the appliance.
• Do not immerse the base unit, cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• The appliance has a dry-burn protection feature. If the water level is too low, the appliance will automatically shut off.
• Always ensure sufficient water is in the water reservoir before operation.

2. Product Overview

The Condere 3-Layer Electric Steamer ZD-001 is a versatile kitchen appliance designed for healthy cooking. It features a 10-liter capacity and a rapid heating system.

Image 2.1: Fully assembled Condere 3-Layer Electric Steamer ZD-001. This image shows the complete unit with its base, three transparent steaming trays, and a clear lid.

Components

The package includes the following items:

• 1 x Steamer Base Unit
• 3 x Steaming Trays (Food-grade PP material)
• 3 x Baffles (for separating layers)
• 1 x Transparent Cover
• 1 x Instruction Manual

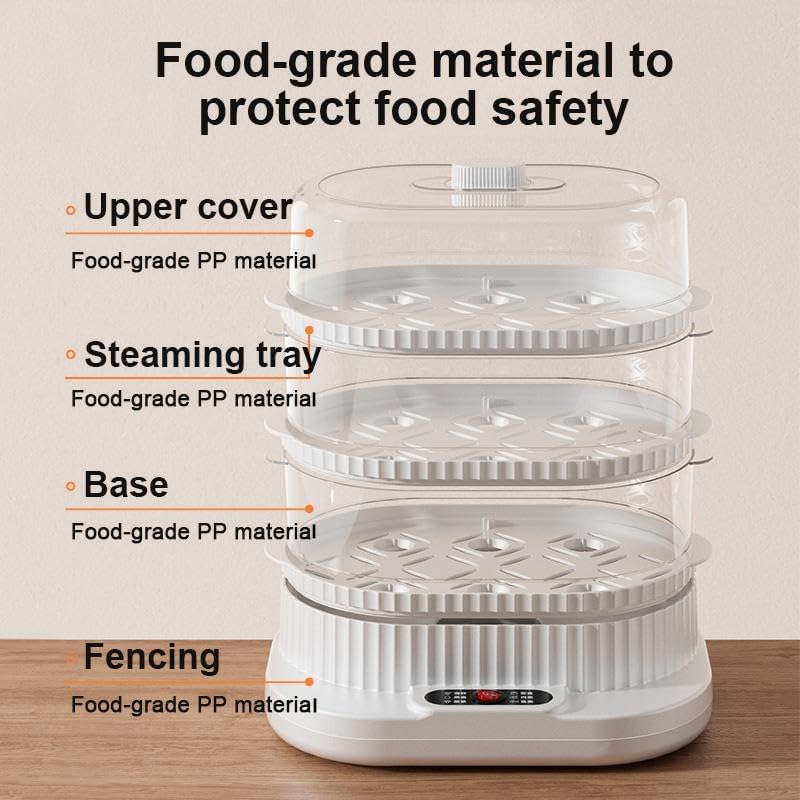

Image 2.2: Diagram illustrating the main components of the steamer, including the upper cover, steaming trays, base, and fencing, all made from food-grade PP material.

Key Features

• 3-Layer Large Capacity: With a 10L total capacity, you can steam multiple dishes simultaneously, suitable for families.
• Rapid Steam Heating: Heats up in approximately 10 seconds, ensuring quick and even cooking while preserving nutrients and natural flavors.
• Dry-Burning Protection: An automatic power-off feature activates if the water level in the reservoir becomes too low, preventing damage and ensuring safety.
• Food-Grade Material: Constructed from high-quality, food-safe PP material for healthy and durable use.
• Easy to Use & Clean: Designed for straightforward operation, assembly, and effortless cleaning.

3. Setup

Unpacking and Initial Cleaning

1. Carefully remove all components from the packaging.
2. Wash the steaming trays, baffles, and cover with warm, soapy water. Rinse thoroughly and dry.
3. Wipe the exterior of the base unit with a damp cloth. Do not immerse the base unit in water.

Assembly

1. Place the steamer base unit on a stable, flat, heat-resistant surface.
2. Fill the water reservoir in the base unit with clean water. Do not exceed the maximum fill line.
3. Place the first steaming tray onto the base unit. If using baffles, place one inside the tray.
4. Stack additional steaming trays as needed, placing baffles inside each tray if desired.
5. Place the transparent cover on the top steaming tray.

4. Operation

Basic Steaming Instructions

1. Ensure the water reservoir is filled to an appropriate level.
2. Place your food items into the steaming trays. Avoid overcrowding to allow for proper steam circulation.
3. Assemble the trays and cover onto the base unit.
4. Plug the power cord into a suitable electrical outlet.
5. Turn on the steamer using the control panel on the front of the base unit. Select the desired cooking time or setting.
6. The steamer will begin to generate steam rapidly (within 10 seconds).
7. Once the cooking cycle is complete, the steamer will typically shut off automatically or alert you.
8. Carefully remove the cover and trays, using oven mitts or heat-resistant gloves as steam will be hot.
9. Unplug the appliance from the wall outlet after use.

Layer Configuration

The steamer's modular design allows for flexible use of its layers:

• Single-layer steaming: Ideal for small portions or single servings.
• Double-layer steaming: Suitable for two to three people or when steaming different food types separately.
• Three-layer steaming: Perfect for larger quantities or family meals, allowing you to cook multiple items simultaneously.

Image 4.1: Illustration demonstrating the versatility of the steamer, showing single, double, and three-layer configurations for different meal sizes.

Cooking Guide (Approximate Times)

Cooking times may vary based on food quantity, size, and desired doneness. Always ensure food is cooked thoroughly.

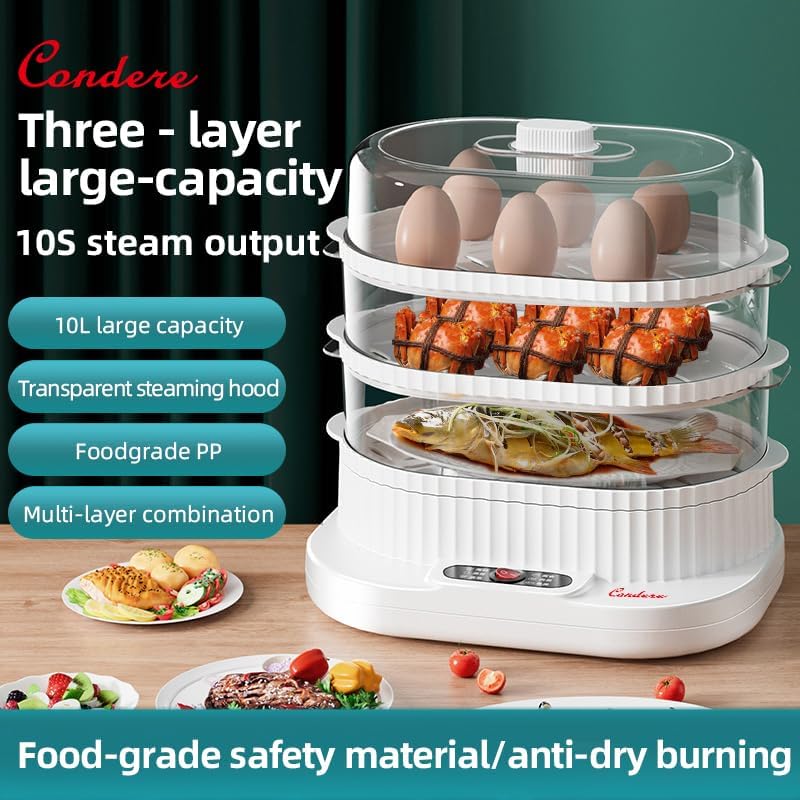

Image 4.2: The steamer in use, demonstrating various food items such as eggs, crabs, and a whole fish being cooked simultaneously across its three layers.

Image 4.3: Another view of the steamer actively cooking a variety of foods, highlighting its multi-functional capability for different meal components.

Dry-Burning Protection

The steamer is equipped with an automatic dry-burning protection system. If the water level in the reservoir drops too low during operation, the appliance will automatically power off to prevent damage and ensure safety. If this occurs, unplug the steamer, allow it to cool, and refill the water reservoir before resuming operation.

Image 4.4: A graphic representation of the dry-burn power-off protection system, showing the internal mechanism that detects low water levels and safely shuts down the unit.

5. Cleaning and Maintenance

Regular cleaning ensures the longevity and hygienic operation of your steamer.

1. Always unplug the steamer from the power outlet and allow it to cool completely before cleaning.
2. Disassemble the steaming trays, baffles, and cover from the base unit.
3. Wash the trays, baffles, and cover in warm, soapy water. A soft brush can be used to remove any food residue. Rinse thoroughly and dry completely.
4. Wipe the exterior of the base unit with a damp cloth. Do not use abrasive cleaners or scouring pads.
5. To remove mineral deposits (limescale) from the water reservoir, fill the reservoir with a mixture of equal parts water and white vinegar. Let it soak for 20-30 minutes, then empty and rinse thoroughly. Do not turn on the steamer with the vinegar solution.
6. Ensure all parts are dry before reassembling or storing the appliance.

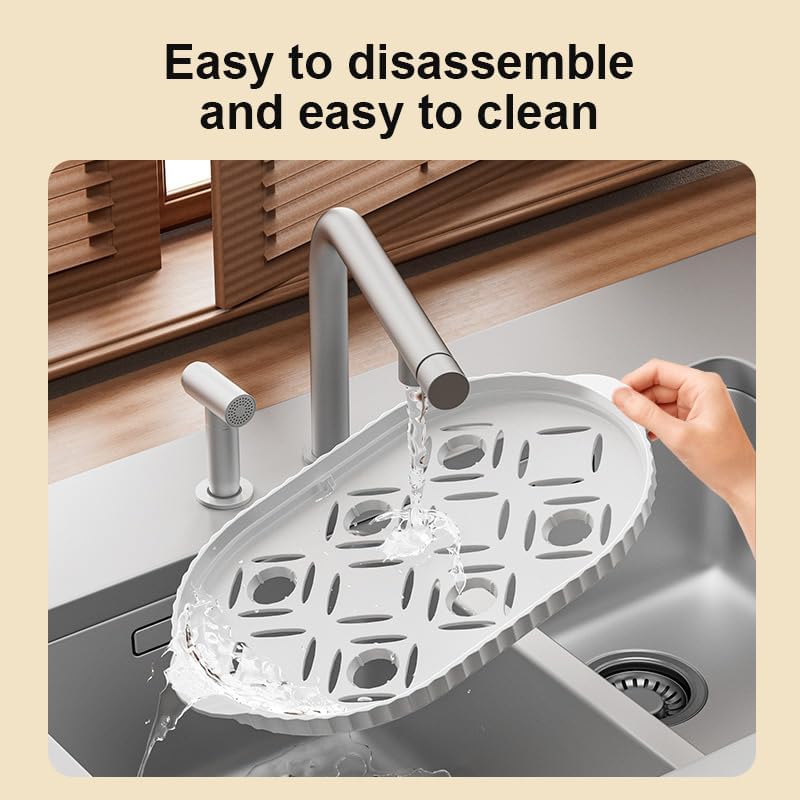

Image 5.1: A hand washing one of the steamer trays under running water in a sink, illustrating the ease of disassembly and cleaning.

6. Troubleshooting

If you encounter any issues with your Condere Electric Steamer, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact the retailer where the product was purchased. You may also visit the official Condere website for further assistance.

Please have your model number (ZD-001) and purchase details ready when contacting support.
