1. Safety Information
Please read this manual carefully before using your Teka WMK 40840 WH washing machine. Keep it for future reference.
General Safety
- Ensure the appliance is properly grounded to prevent electrical shock.
- Do not allow children to play with or operate the washing machine.
- Keep packaging materials out of reach of children.
- Do not install the appliance in areas where the temperature may fall below freezing.
- Always unplug the appliance before cleaning or performing maintenance.
- Do not use flammable sprays or substances near the appliance.
Electrical Safety
- Connect the appliance to a dedicated power outlet with the correct voltage and current rating.
- Do not use extension cords or multiple socket adapters.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
Water Safety
- Ensure all water connections are secure to prevent leaks.
- Do not operate the machine if there is a visible water leak.
- The water inlet hose should not be bent, crushed, or knotted.
2. Product Overview
The Teka WMK 40840 WH is a front-load washing machine designed for efficient and thorough cleaning of your laundry. It features an 8 kg capacity and 15 washing programs to suit various fabric types and soil levels.

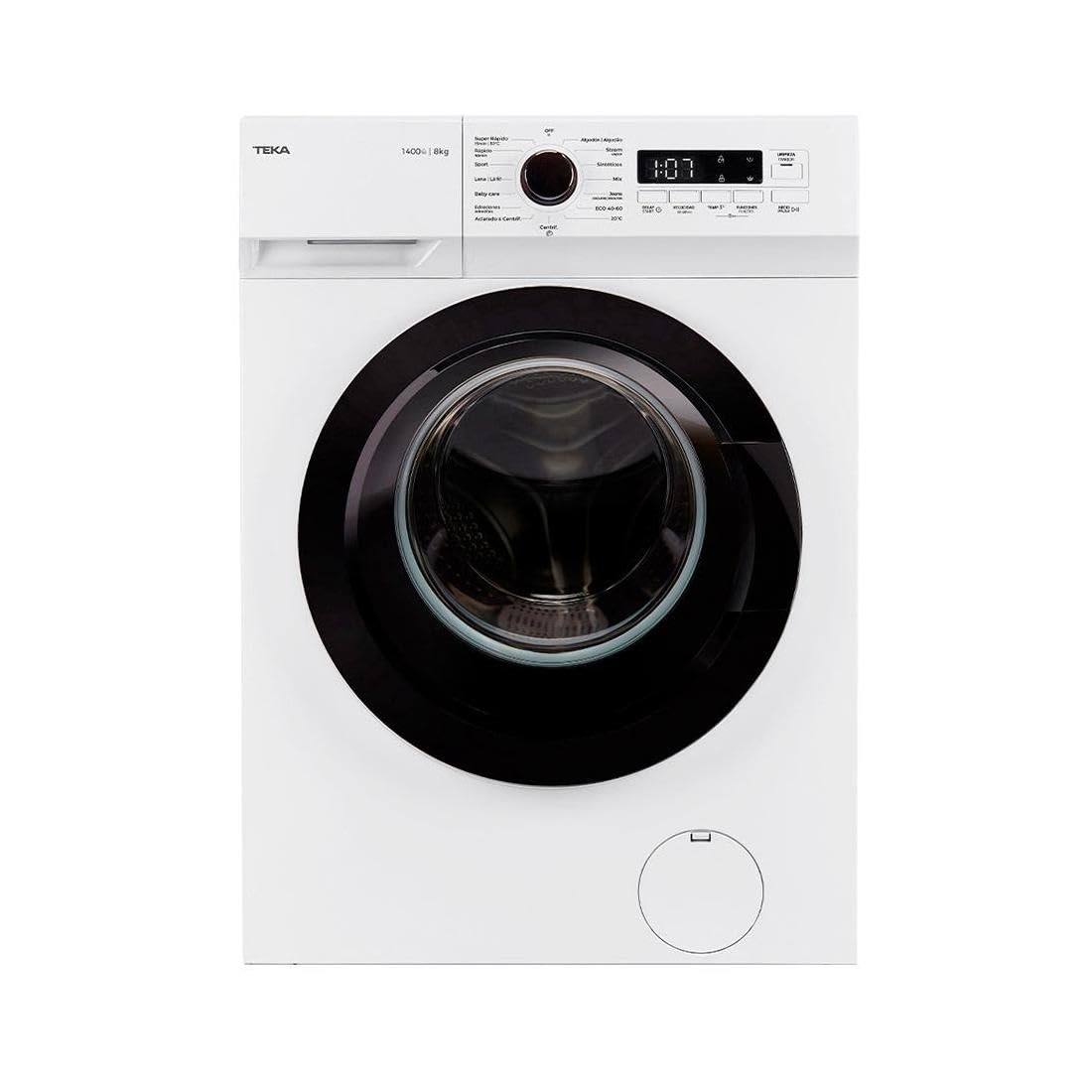

Figure 2.1: Front view of the Teka WMK 40840 WH Washing Machine.
Key Features
- Capacity: 8 kg
- Programs: 15 washing programs, including special programs like Quick 15 minutes, ECO Mode, Wool, Delicate, Sport, Cotton, Baby Care, and Jeans.
- Functions: Delayed Timer, Quick Wash, Steam, Extra Rinse, Pre-wash, Drum Cleaning Reminder, Silence.
- Spin Speed: Maximum 1400 RPM.
- Control Panel: Electronic control panel with touch controls.
- Special Feature: Hygienic Steam, SoftCare porthole door.
3. Installation
Proper installation is crucial for the safe and efficient operation of your washing machine. It is recommended to have the appliance installed by a qualified technician.
Unpacking
Carefully remove all packaging materials. Inspect the appliance for any damage during transit. Report any damage to your retailer immediately.
Location
- Place the washing machine on a firm, level surface.
- Ensure there is adequate space around the machine for ventilation and maintenance.
- Avoid direct sunlight or heat sources.
Figure 3.1: Example of a washing machine installed in a laundry room.
Water Connection
Connect the water inlet hose to a cold water tap with a 3/4-inch thread. Ensure the hose is securely fastened to both the tap and the machine. The drain hose should be placed into a standpipe or connected to a sink trap, ensuring it is not kinked.
Electrical Connection
Connect the power cable to a properly grounded electrical outlet. The appliance operates on standard household electricity. Refer to the specifications section for exact voltage and frequency requirements.
Leveling the Appliance
Use a spirit level to ensure the machine is perfectly level. Adjust the feet at the bottom of the machine as needed. A level machine reduces vibration and noise during operation.
4. Operating Instructions
Follow these steps for optimal washing results with your Teka WMK 40840 WH washing machine.
Loading Laundry
- Open the porthole door.
- Load laundry into the drum, ensuring not to overload the machine. An 8 kg capacity means you can wash up to 8 kg of dry laundry.
- Close the door firmly until it clicks.
Adding Detergent and Softener
Pull out the detergent drawer located on the top left of the control panel. Add detergent to the main wash compartment and softener to the designated compartment. Do not exceed the maximum fill lines.
Selecting a Program
Turn the program selector knob to choose one of the 15 available programs. The selected program will be displayed on the electronic control panel.
Available Programs:
- Quick 15 minutes
- ECO Mode
- Wool
- Delicate
- Sport
- Cotton
- Baby Care
- Jeans
- Normal
- Heavy Duty
- Rinse
- Spin
- Mixed
- Intensive
- Anti-Allergy
Selecting Special Functions
After selecting a program, you can choose additional functions using the touch controls on the panel:
- Delayed Timer: Set a delay for the wash cycle to start.
- Quick Wash: Reduces the wash time for lightly soiled items.
- Steam: Adds steam to the cycle for hygienic cleaning and wrinkle reduction.
- Extra Rinse: Adds an additional rinse cycle.
- Pre-wash: For heavily soiled items, adds a preliminary wash cycle.
- Silence: Reduces noise during operation.
Starting the Wash Cycle
Press the Start/Pause button to begin the selected wash cycle. The machine will automatically adjust water levels and cycle duration based on the program and load.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your washing machine.
Cleaning the Exterior
Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Cleaning the Detergent Drawer
Periodically remove and clean the detergent drawer to prevent residue buildup. Rinse it under running water and dry thoroughly before reinserting.
Cleaning the Drum
The machine has a Drum Cleaning Reminder function. When activated, run a drum cleaning cycle without laundry or detergent to remove any buildup and odors.
Cleaning the Pump Filter
The pump filter should be cleaned regularly to prevent blockages. Refer to the detailed instructions in the full manual for accessing and cleaning the filter.
Care During Non-Use
If the machine will not be used for an extended period, unplug it, turn off the water supply, and leave the door slightly ajar to prevent odors.
6. Troubleshooting
Before contacting customer service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord not plugged in; door not closed properly; power outage. | Check power connection; ensure door is latched; check household circuit breaker. |
| No water intake | Water tap closed; water inlet hose kinked; water supply cut off. | Open water tap; straighten hose; check water supply. |
| Water not draining | Drain hose kinked or blocked; pump filter clogged. | Check and clear drain hose; clean pump filter. |
| Excessive vibration/noise | Machine not level; transport bolts not removed; uneven load. | Adjust leveling feet; ensure transport bolts are removed; redistribute laundry. |
| Detergent residue on clothes | Too much detergent; detergent drawer clogged; low water pressure. | Reduce detergent amount; clean detergent drawer; check water pressure. |
7. Specifications
Detailed technical specifications for the Teka WMK 40840 WH washing machine.
| Feature | Specification |
|---|---|
| Manufacturer | Teka Industrial |
| Model Number | WMK 40840 WH |
| Product Dimensions (D x W x H) | 53.3 x 59.5 x 85 cm |
| Weight | 63 kg |
| Capacity | 8 Kilograms |
| Programs | 15 (Normal, Heavy Duty, Delicates, Quick Wash, Rinse, etc.) |
| Special Functions | Hygienic Steam, SoftCare porthole door, Delayed Timer, Quick Wash, Extra Rinse, Pre-wash, Drum Cleaning Reminder, Silence |
| Access Type | Front Load |
| Color | White |
| Material | Steel |
| Controls Type | Touch |
| Included Components | Power cable |
8. Warranty & Support
For warranty information, technical support, or service requests, please contact Teka customer service or refer to the official Teka website. Keep your purchase receipt as proof of purchase for warranty claims.
You can find more information and contact details on the official Teka website: www.teka.com
