WOLTU BKG005whe 3-Tier Kitchen Shelf with Wheels Instruction Manual

1. Introduction

This manual provides instructions for the assembly, operation, and maintenance of your WOLTU BKG005whe 3-Tier Kitchen Shelf with Wheels. Please read these instructions carefully before assembly and use to ensure safe and correct operation.

Image 1.1: WOLTU BKG005whe Kitchen Shelf in use.

The WOLTU BKG005whe is a versatile 3-tier storage unit designed for various household applications. It features a sturdy metal frame, durable particle board shelves, and four universal wheels for mobility, two of which are lockable for stability. The unit also includes four hooks for hanging utensils.

2. Safety Instructions

• Weight Capacity: Do not exceed the maximum weight capacity of 10 kg (22 lbs) per shelf. Overloading can cause instability and damage.
• Assembly: Ensure all parts are correctly assembled and tightened before use. Refer to the assembly instructions.
• Stability: Always lock the two braked wheels when the shelf is stationary to prevent accidental movement.
• Placement: Place the shelf on a flat, stable, and level surface.
• Children: Keep children away from the shelf during assembly. Do not allow children to climb on or play with the shelf.
• Anti-Tip Device: If using the shelf against a wall, utilize the included anti-tip device for enhanced stability.
• Maintenance: Regularly check all connections and fasteners to ensure they remain secure.

3. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Shelf Boards (3x)
• Metal Frame Components
• Universal Wheels (4x, 2 with brakes)
• S-shaped Wire Hooks (4x)
• Accessory Kit (screws, wrench, anti-tip device)
• Installation Manual (this document)

Image 3.1: Key components and features of the shelf.

4. Assembly Instructions

Assembly of the WOLTU BKG005whe kitchen shelf is designed to be straightforward. Follow these steps carefully:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
2. Assemble Frame: Connect the metal frame components according to the diagrams in the included accessory kit. Ensure all connections are finger-tight initially.
3. Attach Shelves: Secure the three shelf boards to the assembled frame using the provided screws. Ensure the shelves are oriented correctly.
4. Install Wheels: Screw the four universal wheels into the designated holes at the bottom of the frame. Ensure the two wheels with brakes are positioned at the front for easy access.
5. Tighten Fasteners: Once all parts are in place, use the provided wrench to securely tighten all screws and fasteners. Do not overtighten.
6. Attach Hooks: Hang the S-shaped wire hooks onto the side grid of the shelf as desired.
7. Install Anti-Tip Device (Optional): If you intend to place the shelf against a wall, follow the instructions in the accessory kit to install the anti-tip device for added safety.

Image 4.1: Dimensions and weight capacity overview.

5. Operating Instructions

5.1 Moving the Shelf

To move the kitchen shelf, ensure the brakes on the two lockable wheels are disengaged. Gently push or pull the shelf to its desired location. The 360° swivel wheels allow for easy maneuverability.

5.2 Locking the Wheels

Once the shelf is in its desired position, press down on the levers of the two braked wheels until they click into place. This will lock the wheels and prevent the shelf from moving unintentionally, ensuring stability.

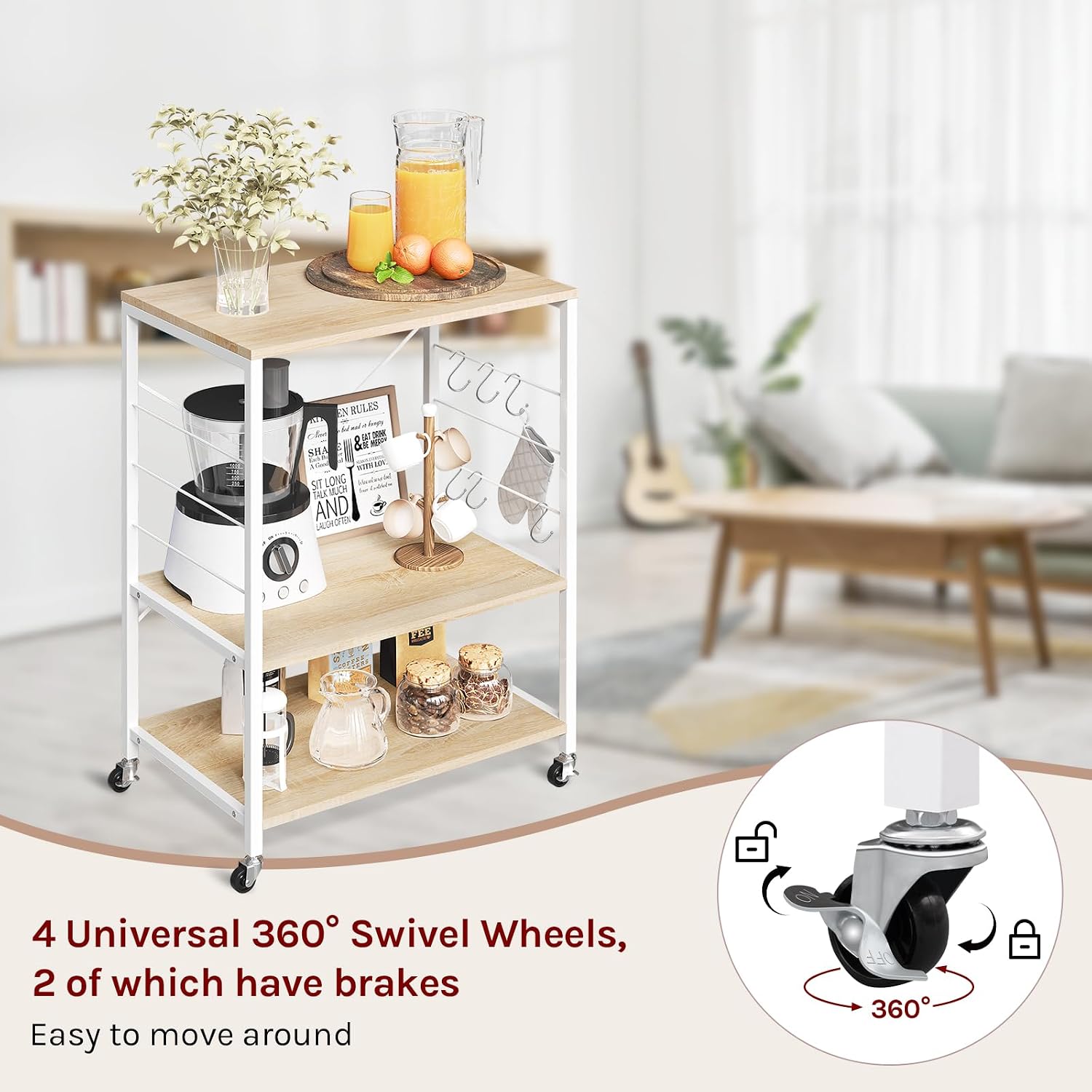

Image 5.1: Detail of universal swivel wheels with brakes.

5.3 Utilizing Storage Space

The three open shelves provide ample space for various kitchen appliances, pantry items, or other household goods. The included S-shaped hooks can be used to hang kitchen utensils, towels, or other small items.

Image 5.2: Example of items stored on the shelves.

6. Maintenance

• Cleaning: Wipe the shelf boards and metal frame with a soft, damp cloth. For stubborn stains, a mild detergent can be used, followed by wiping with a clean, dry cloth. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Periodically check all screws and connections to ensure they are tight. Retighten if necessary to maintain stability.
• Avoid Moisture: While the shelves are water-resistant, avoid prolonged exposure to excessive moisture to prevent damage to the particle board.

7. Troubleshooting

• Shelf is Unstable:
  • Ensure all screws are fully tightened.
  • Verify that the shelf is placed on a level surface.
  • Check if the wheel brakes are engaged when stationary.
  • If used against a wall, ensure the anti-tip device is correctly installed.
• Difficulty Moving the Shelf:
  • Ensure the brakes on the wheels are disengaged.
  • Check for any obstructions around the wheels.
• Missing Parts: If any parts were missing upon delivery, refer to Section 3 and contact customer support for assistance.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact WOLTU customer service directly. Contact details can typically be found on the retailer's website or on the product packaging.
