Pxdiiry 12.6V AC Adapter User Manual

1. Product Overview

This manual provides instructions for the Pxdiiry 12.6V AC Adapter, Model BSG025W, designed to power and charge compatible Aiper Seagull series cordless robotic pool cleaners. This adapter is engineered for reliable performance and includes built-in safety features.

Image 1.1: The Pxdiiry 12.6V AC Adapter, showing the main unit and the connected L-shaped output plug.

Key Features:

• High-Quality Materials: Constructed from durable components for extended service life.
• Built-In Safety Features: Incorporates mechanisms to protect against overvoltage, overheating, and other electrical issues.
• Versatile Compatibility: Designed for seamless operation with a range of specified Aiper Seagull devices.
• Energy-Efficient: Optimized to minimize power consumption while maintaining effective charging.
• Easy Maintenance: Designed for straightforward cleaning and upkeep.

2. Safety Information

Please read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Use only with the specified Aiper Seagull robotic pool cleaner models.
• Do not expose the adapter to water, rain, or excessive moisture.
• Do not operate the adapter if it has been damaged in any way (e.g., frayed cord, cracked casing).
• Ensure the power outlet is easily accessible and properly grounded.
• Unplug the adapter from the power outlet when not in use or before cleaning.
• Keep out of reach of children.
• The adapter is equipped with internal safety mechanisms to prevent overvoltage and overheating. Do not attempt to bypass or modify these features.

3. Setup

Follow these steps to properly set up your Pxdiiry AC Adapter:

1. Verify Compatibility: Before connecting, ensure that your Aiper Seagull robotic pool cleaner requires a 12.6V DC input and has a compatible 2-pin L-shaped charging port. Refer to your pool cleaner's manual for specific power requirements.


Image 3.1: Detailed view of the adapter's 2-pin L-shaped output connector.


Image 3.2: Visual guide for identifying the correct charging port on your Aiper Seagull cleaner. The left image shows a compatible port (green checkmark), while the middle and right images show incompatible ports (red X marks).
2. Connect to Pool Cleaner: Carefully insert the 2-pin L-shaped connector of the AC adapter into the charging port of your Aiper Seagull robotic pool cleaner. Ensure a snug and secure fit. Do not force the connector.
3. Connect to Power Outlet: Plug the AC adapter into a standard 100-240V AC wall outlet. The adapter is designed to work with various international voltages (50/60Hz).

Compatible Aiper Seagull Models:

• Aiper Seagull Plus
• Aiper Seagull P1111
• Aiper Seagull 800
• Aiper Seagull 800B
• Aiper Seagull 1000
• And other Aiper Seagull models requiring 12.6V DC input with the matching connector.

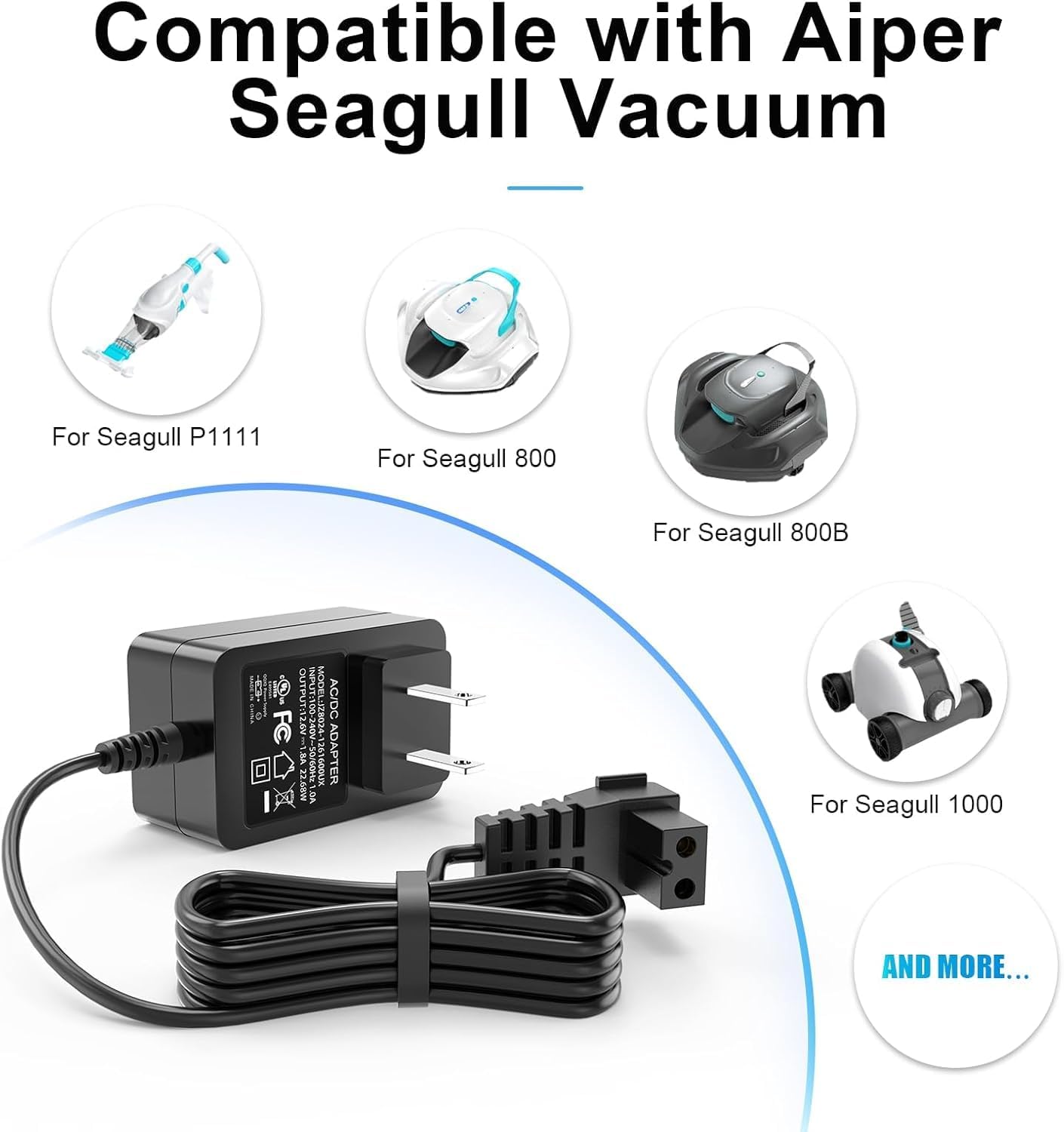

Image 3.3: The Pxdiiry AC Adapter shown with several compatible Aiper Seagull robotic pool cleaner models, including P1111, 800, 800B, and 1000.

4. Operating Instructions

Once properly connected, the Pxdiiry AC Adapter will begin charging your Aiper Seagull robotic pool cleaner. The charging indicator on your pool cleaner (if available) will show the charging status.

• Allow the pool cleaner to charge fully before its next use. Refer to your pool cleaner's manual for typical charging times.
• The adapter is designed to be energy-efficient, minimizing power consumption during the charging process.
• Do not leave the adapter plugged into the wall outlet for extended periods when not in use or when the device is fully charged, although its safety features help prevent overcharging.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your AC adapter.

• Cleaning: Disconnect the adapter from both the power outlet and the pool cleaner before cleaning. Use a soft, dry cloth to wipe the exterior of the adapter. Do not use liquid cleaners or abrasive materials.
• Storage: Store the adapter in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly coiling the cable to prevent damage.
• Inspection: Periodically inspect the adapter's casing and cable for any signs of damage, such as cuts, fraying, or cracks. If damage is observed, discontinue use immediately.

Image 5.1: Features of the adapter, including a metal plug for conductivity, robust craftsmanship, and flexible connectors designed to resist breakage.

6. Troubleshooting

If you encounter issues with your Pxdiiry AC Adapter, refer to the following common troubleshooting steps:

• No Power/Not Charging:
  • Ensure the adapter is securely plugged into both the wall outlet and the pool cleaner.
  • Check if the wall outlet is functional by plugging in another device.
  • Inspect the adapter cable and connector for any visible damage.
• Slow Charging:
  • Verify that the adapter specifications match the requirements of your pool cleaner.
  • Ensure the pool cleaner's battery is not severely depleted or damaged.
• Overheating:
  • Unplug the adapter immediately.
  • Ensure the adapter is in a well-ventilated area and not covered.
  • If overheating persists, discontinue use and contact support.

If these steps do not resolve the issue, please refer to the 'Warranty and Support' section.

7. Specifications

Image 7.1: The product label on the AC adapter, detailing input (100-240V AC) and output (12.6V 1.5A) specifications, along with the model number BSG025W.

8. Warranty and Support

For warranty information or technical support, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.

For further assistance, please provide the product model (BSG025W) and your purchase details.
