MegaChef 21 Quart Digital Electric Multi-Function Air Fryer and Counter Top Oven

Introduction

This manual provides essential information for the safe and efficient operation of your MegaChef 21 Quart Digital Electric Multi-Function Air Fryer and Counter Top Oven. Please read all instructions carefully before first use and retain this manual for future reference.

The MegaChef 21 Quart Digital Electric Multi-Function Air Fryer and Counter Top Oven, shown here in a kitchen, is designed for versatile cooking tasks.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance body in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
• Do not store any materials other than manufacturer's recommended accessories in this oven when not in use.
• Do not place cooking utensils or baking dishes on the glass door.
• Always wear protective, insulated oven mitts when inserting or removing items from the hot oven.

Product Overview and Components

Your MegaChef Multi-Function Air Fryer Oven comes with several accessories to enhance your cooking experience.

The image displays the essential accessories: a Wire Rack, a Fry Basket, and a Bake Tray.

Included Components:

• Main Unit: The 21-quart stainless steel oven with digital controls.
• Aluminum Bake Tray: For baking, roasting, or catching drips.
• Wire Rack: For toasting, baking, or supporting other dishes.
• Air Fry Basket: Designed for optimal air circulation during air frying.
• Crumb Tray: Located at the bottom, it collects crumbs and food debris for easy cleaning.

An interior view of the oven, illustrating the placement of the wire rack and bake tray.

Key Features:

• 21 Quart Capacity: Suitable for small to medium-sized meals.
• Multi-Function: Broil, Bake, Toast, and Air Fry capabilities.
• Digital Controls: Intuitive interface for setting temperature and time.
• Adjustable Temperature: Up to 450°F.
• 120-Minute Timer: For precise cooking management.
• Internal Lamp: Allows monitoring of cooking progress.
• Stainless Steel Construction: Durable and easy to clean.
• Three Tray Slots: Offers flexibility for cooking multiple items or adjusting rack height.

This image highlights the three distinct tray slots within the oven, demonstrating how the fry basket and bake tray can be positioned.

Setup and First Use

Before using your MegaChef Air Fryer Oven for the first time, follow these steps:

1. Unpack: Carefully remove all packaging materials, including any internal packing and protective films.
2. Clean Accessories: Wash the bake tray, wire rack, air fry basket, and crumb tray in warm, soapy water. Rinse thoroughly and dry completely.
3. Wipe Down: Wipe the interior and exterior of the oven with a damp cloth. Ensure all surfaces are dry before plugging in.
4. Placement: Place the oven on a stable, heat-resistant, and level surface. Ensure there is at least 4-6 inches of clearance on all sides and above the oven for proper ventilation. Do not place it directly against a wall or under cabinets.
5. Initial Burn-Off: Before cooking food, operate the oven empty for approximately 15 minutes at 400°F (200°C) on the 'Bake' function. This will burn off any manufacturing residues and odors. A slight smoke or odor is normal during this process. Ensure the area is well-ventilated.
6. Cool Down: Allow the oven to cool completely after the initial burn-off.

Operating Instructions

Your MegaChef oven features intuitive digital controls for various cooking functions.

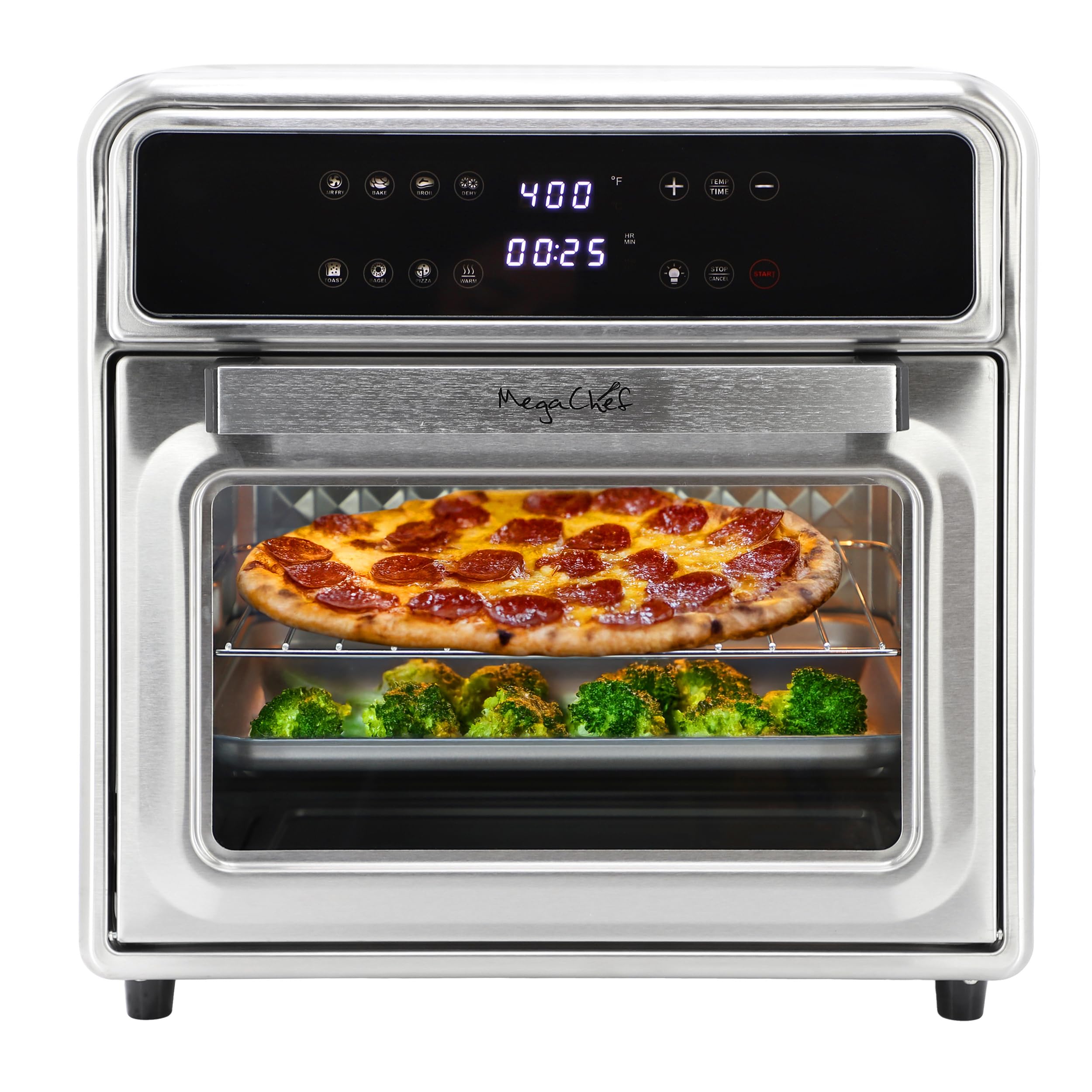

The digital control panel of the MegaChef oven, displaying temperature and timer settings.

Control Panel Overview:

• Function Icons: Select desired cooking mode (Air Fry, Bake, Broil, Toast).
• Temperature Display: Shows the current or set temperature. Use '+' and '-' buttons to adjust.
• Time Display: Shows the remaining or set cooking time. Use '+' and '-' buttons to adjust.
• Start/Stop Button: Initiates or pauses the cooking cycle.
• Light Button: Turns the interior oven lamp on or off.

General Operation:

1. Plug In: Connect the power cord to a standard 120V electrical outlet. The display will illuminate.
2. Select Function: Press the icon corresponding to your desired cooking function (e.g., Air Fry, Bake).
3. Set Temperature: Use the '+' and '-' buttons next to the temperature display to set the desired cooking temperature (up to 450°F).
4. Set Time: Use the '+' and '-' buttons next to the time display to set the desired cooking duration (up to 120 minutes).
5. Preheat (Optional): For best results, especially with baking and air frying, allow the oven to preheat for 5-10 minutes before placing food inside.
6. Place Food: Carefully place your food and appropriate accessories (bake tray, wire rack, or air fry basket) into the oven. Ensure proper rack position for the selected function.
7. Start Cooking: Press the 'Start' button. The oven will begin cooking, and the timer will count down.
8. Monitor: Use the interior lamp to check cooking progress without opening the door.
9. Finish: The oven will beep when the cooking cycle is complete. Carefully remove food using oven mitts.
10. Turn Off: Press the 'Stop' button or unplug the appliance when not in use.

Specific Functions:

• Air Fry: Ideal for crispy foods like fries, chicken wings, and vegetables. Use the air fry basket for optimal air circulation.
• Bake: For cakes, cookies, casseroles, and roasting meats. Use the bake tray or a suitable oven-safe dish on the wire rack.
• Broil: For browning, melting cheese, or cooking thin cuts of meat. Place food on the wire rack with the bake tray underneath to catch drips. Keep a close watch to prevent burning.
• Toast: For bread, bagels, and frozen waffles. Place items directly on the wire rack. Adjust time for desired browning.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your appliance. Always unplug the oven and allow it to cool completely before cleaning.

Exterior Cleaning:

• Wipe the exterior with a soft, damp cloth and mild detergent.
• Do not use abrasive cleaners or scouring pads, as they may scratch the stainless steel finish.
• Ensure no water enters the control panel area.

Interior Cleaning:

• Remove all accessories (bake tray, wire rack, air fry basket, crumb tray).
• Wipe the interior walls with a damp cloth and mild detergent. For stubborn stains, a non-abrasive oven cleaner designed for stainless steel can be used, following product instructions.
• Ensure all detergent residue is wiped away with a clean, damp cloth.
• Do not immerse the oven in water.

Accessory Cleaning:

• The bake tray, wire rack, air fry basket, and crumb tray are dishwasher safe.
• Alternatively, wash them in warm, soapy water, rinse thoroughly, and dry completely before storing or reusing.

Crumb Tray:

• Regularly slide out and empty the crumb tray to prevent accumulation of crumbs, which can be a fire hazard.
• Wash the crumb tray as described above.

Troubleshooting

If you encounter issues with your oven, refer to the following common problems and solutions:

Specifications

Technical details for the MegaChef 21 Quart Digital Electric Multi-Function Air Fryer and Counter Top Oven.

The physical dimensions of the MegaChef oven are shown: 13.25 inches deep, 14.5 inches wide, and 15.2 inches high.

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Megachef website. Keep your purchase receipt as proof of purchase for any warranty claims.

If you have questions or require assistance, please contact Megachef customer service.
