Product Overview
This manual provides essential information for the installation, operation, and maintenance of your Cooper & Hunter 6 Zone Ductless Multi Mini Split Air Conditioner. This system is designed for efficient cooling and heating in residential and light commercial applications, featuring six 9,000 BTU ceiling cassette indoor units connected to a single 4-ton outdoor unit.

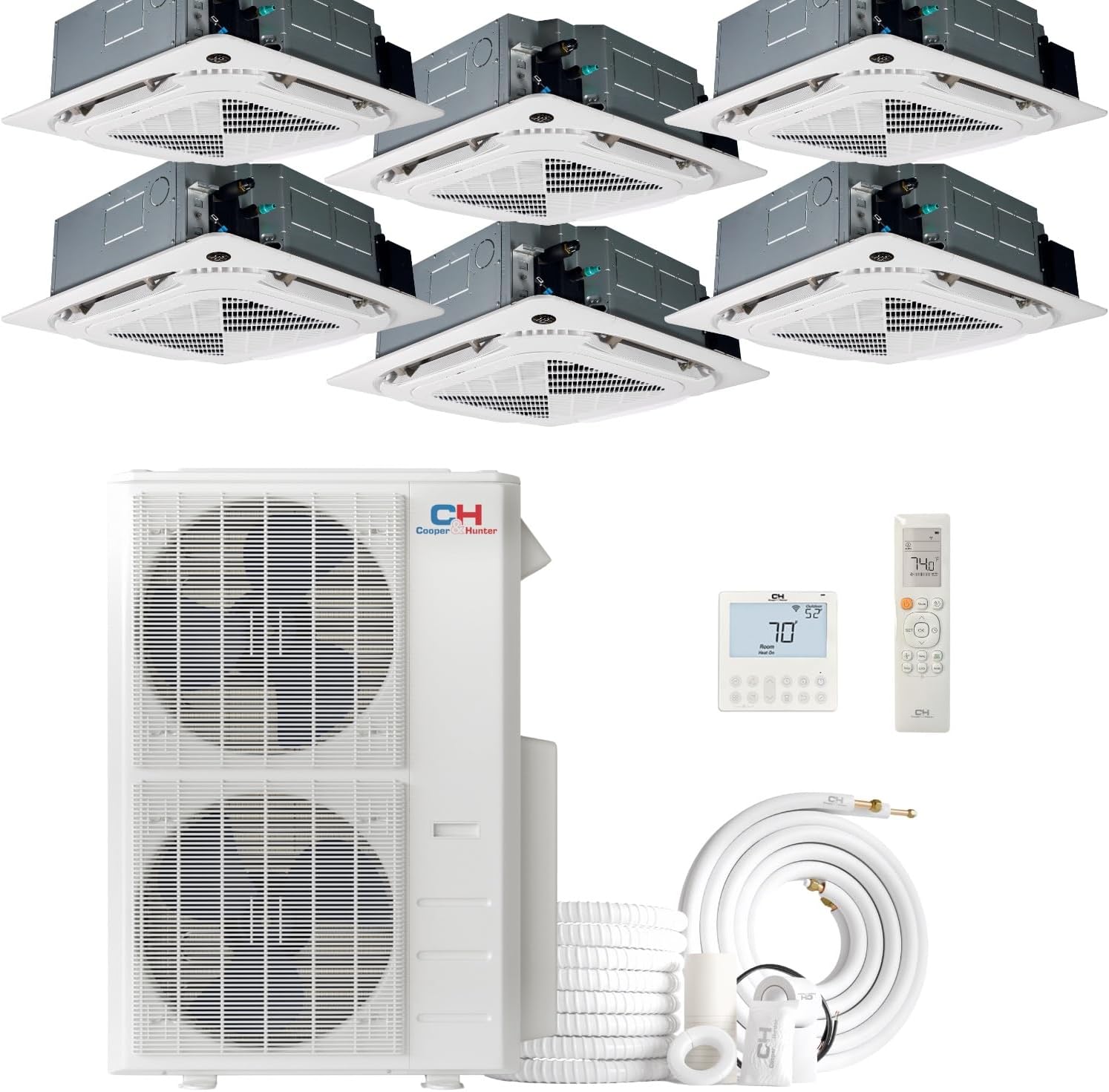

Image: Complete Cooper & Hunter 6 Zone Mini Split System, showcasing the six ceiling cassette indoor units, the large outdoor condenser unit, and the included remote controls and line sets.
Key features include a 24 SEER2 rating for high efficiency, operation on 208-230V, ETL Intertek and AHRI certifications, and heating capability down to -13°F. The system utilizes Whisper Technology for quiet operation, making it suitable for various environments.
Setup and Installation
Professional installation is required for this system. It is not a DIY system. Ensure all local electrical and HVAC codes are followed during installation.
Included Components:
- One 48,000 BTU Outdoor Unit
- Six 9,000 BTU Ceiling Cassette Indoor Units
- Six Remote Controls
- Six Wall Thermostats
- Six 25ft Pre-Flared and Insulated Copper Line Sets
- Communication Wires
- Small Accessories
- 16ft Drainage Extension
Image: A visual representation of all components included in the product package, detailing the indoor units, outdoor unit, controls, and installation accessories.
Operating Instructions
Your Cooper & Hunter system offers versatile climate control for both residential and light commercial environments. It provides both cooling and heating functionalities.
Image: An office conference room demonstrating the suitability of the ceiling cassette for residential and light commercial use, listing key operational features.
Key Operational Features:
- Cooling and Heating: Provides year-round comfort with a wide operating temperature range (Cooling: 62°F~90°F; Heating: 32°F~86°F).
- 360° Air Flow Panel: Ensures even air distribution throughout the room.
- Smart Kit Ready: Allows for smart control via a mobile application when connected to a wall thermostat.
- Remote Included: Each indoor unit comes with a dedicated remote control for convenient operation.
- 12 Indoor Fan Speeds: Offers precise control over airflow.
- Turbo Mode / Sleep Mode: Provides options for rapid cooling/heating or quiet, energy-efficient operation.
- Self Diagnosis Function: Assists in identifying and troubleshooting system issues.
Image: Visual representation of the system's heating and cooling capabilities, indicating the effective temperature ranges for optimal performance.
Smart Control:
The system is Smart Kit Ready. To enable smart control via a mobile application, the wall thermostat must be connected to the unit. This allows for remote management of settings such as temperature, fan speed, and operating modes.
Image: A smartphone screen displaying the mobile application for controlling the Cooper & Hunter mini split system, illustrating the user interface for temperature and mode adjustments.
Maintenance
Regular maintenance is crucial for the longevity and efficient operation of your air conditioning system. It is recommended to have the system inspected by a qualified HVAC technician annually.
User Maintenance:
- Filter Cleaning: Regularly clean or replace the air filters in each indoor unit to ensure optimal airflow and air quality. Refer to the specific indoor unit manual for filter access and cleaning instructions.
- Exterior Cleaning: Keep the exterior of both indoor and outdoor units clean from dust and debris. Use a soft, damp cloth for cleaning.
- Drainage Check: Periodically check the condensate drain line for any blockages to prevent water overflow.
Troubleshooting
If you encounter issues with your Cooper & Hunter system, please refer to the following general advice. For complex problems, contact a qualified HVAC technician or Cooper & Hunter technical support.
Common Issues and Solutions:
- No Power: Check the circuit breaker. Ensure the unit is properly plugged in.
- Insufficient Cooling/Heating: Verify thermostat settings. Clean air filters. Ensure no obstructions to airflow.
- Unusual Noises: Minor operational noises are normal. If loud or unusual, contact support.
- Water Leakage: Check the condensate drain line for blockages.
The system features a self-diagnosis function which may display error codes. Consult the detailed product manual provided with your unit for specific error code interpretations and troubleshooting steps.
Technical Specifications
Below are the detailed technical specifications for the Cooper & Hunter 6 Zone Multi Mini Split Air Conditioner system.
| Specification | Value |
|---|---|
| Brand Name | Cooper & Hunter |
| Model Info | 810068956559 |
| Product Dimensions | 48 x 40 x 40 inches |
| Item Model Number | 810068956559 |
| Efficiency | High Efficiency |
| Installation Type | Split System |
| Part Number | C9+9+9+9+9+9 |
| Form Factor | Cassette |
| Color | White |
| Voltage | 230 Volts (AC) |
| Certification | Energy Star |
| ASIN | B0F22FPN51 |
| Date First Available | March 20, 2025 |
| BEE Star Rating | 4 Star |
| Seasonal Energy Efficiency Ratio (SEER) | 24.0 |
| Power Source | Corded Electric |
| Warranty Type | Limited |
| Control Method | Remote |
Image: Detailed specifications table for various indoor unit models, including rated capacity, power, noise levels, and dimensions.
Image: Comprehensive specifications table for outdoor unit models, detailing voltage, rated capacity, SEER, dimensions, and refrigerant information.
Warranty and Support
Your Cooper & Hunter 6 Zone Multi Mini Split Air Conditioner comes with a Limited Warranty. Please refer to the warranty card included with your product for specific terms and conditions.
Free US-based technical support is available should you ever need assistance with your system. For technical inquiries, troubleshooting guidance, or warranty claims, please contact Cooper & Hunter customer service directly. Contact information can typically be found on the product packaging or the official Cooper & Hunter website.
For additional resources and product information, you may visit the Cooper & Hunter Store on Amazon.
