1. Introduction
This user manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Hisense HV16C Built-in Dishwasher. Please read this manual thoroughly before using the appliance and retain it for future reference. Proper use and care will ensure optimal performance and extend the lifespan of your dishwasher.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Electrical Safety: Ensure the dishwasher is properly grounded. Do not use extension cords or adapters. Disconnect power before servicing.
- Water Safety: Connect to a cold water supply. Ensure water hoses are securely attached to prevent leaks.
- Child Safety: Keep children away from the dishwasher, especially when it is operating. Detergents are corrosive; keep them out of reach of children.
- Appliance Use: Use the dishwasher only for its intended function. Do not sit, stand, or place heavy objects on the door or racks.
- Sharp Objects: Load sharp items (knives, forks) with handles up to prevent injury.
- Flammable Materials: Do not wash items contaminated with gasoline, paint, or other flammable liquids.
- Service: Do not attempt to repair or replace any part of your dishwasher unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
3. Product Overview
The Hisense HV16C is a built-in dishwasher designed for efficient and thorough cleaning of your dishes. It offers a capacity of 16 place settings and operates with a low noise level of 43 dB.
Key Features:
- 16 Place Settings: Accommodates a large volume of dishes, ideal for families.
- Third Flexible Basket: Provides additional space and flexibility for cutlery and small items.
- Automatic Door Opening (Total Dry): Enhances drying performance by releasing steam at the end of the cycle.
- 6 Wash Programs: Offers a variety of cycles for different cleaning needs, including Eco, Intensive, Delicate, and Quick Wash.
- Delay Start Function: Allows you to program the wash cycle to start at a later time.
- Low Noise Level: Operates quietly at 43 dB.
- Energy Class C: Efficient energy consumption.
- Three-Level Washing: Ensures comprehensive cleaning with multiple spray arms.
Figure 3.1: Front view of the Hisense HV16C built-in dishwasher with the door open, revealing the interior racks and control panel. This model is designed for integration into kitchen cabinetry, and the front panel is not included.
Figure 3.2: Overview of the main features of the Hisense HV16C dishwasher, highlighting its capacity, loading flexibility, cleaning efficiency, and energy rating.
Figure 3.3: Detailed view of the dishwasher's interior, illustrating the colored contact points designed to simplify the loading process for various dish types.

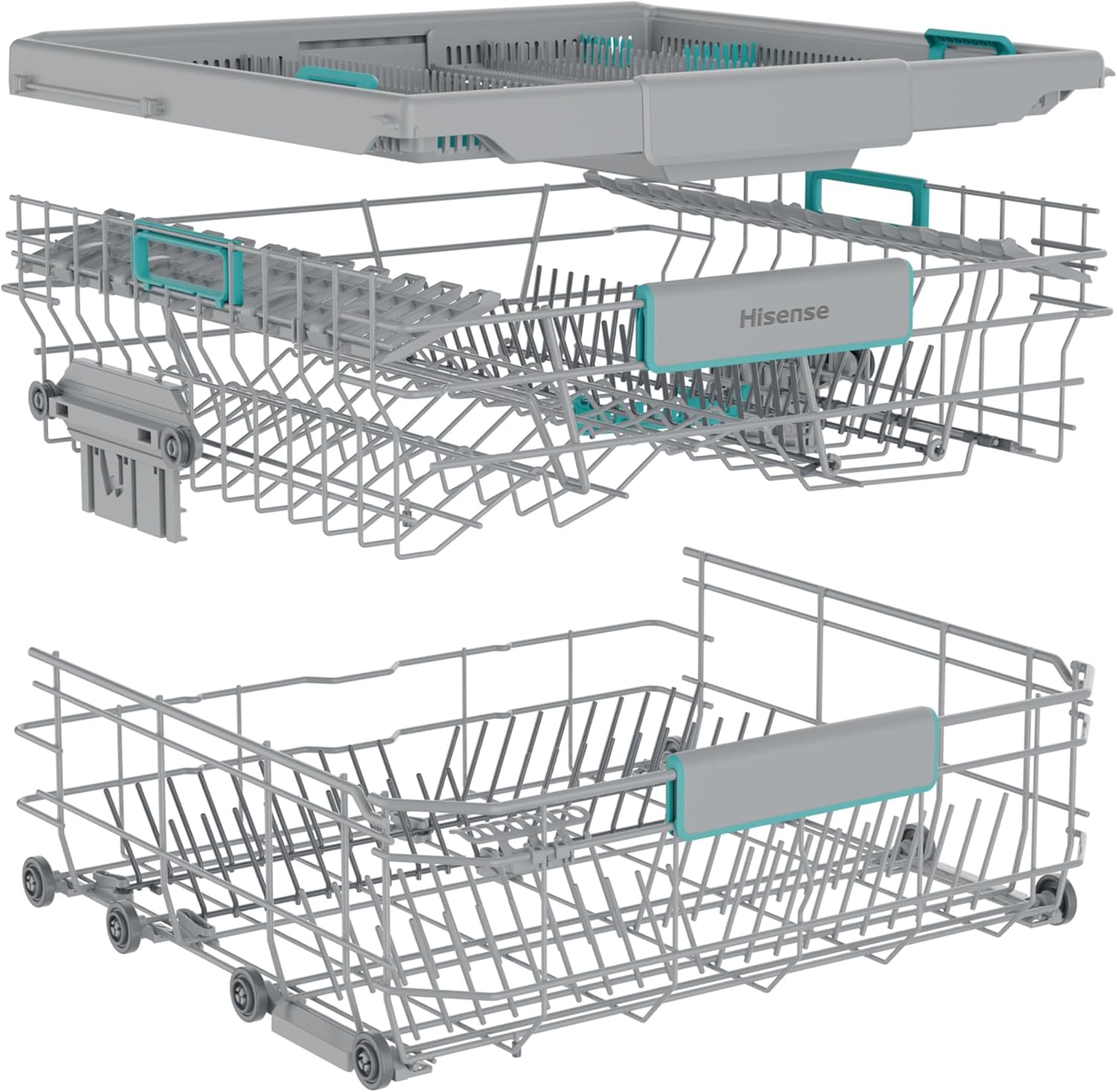

Figure 3.4: An illustration of the dishwasher's three baskets, including the flexible third basket for cutlery, showcasing their design for versatile loading.
4. Setup & Installation
Proper installation is crucial for the performance and safety of your dishwasher. It is recommended that installation be performed by a qualified technician.
4.1 Dimensions and Cabinet Requirements
Ensure your kitchen cabinet opening meets the required dimensions for a built-in installation. The dishwasher dimensions are 55.5 cm (depth) x 59.8 cm (width) x 81.6 cm (height).
Figure 4.1: Detailed technical drawing showing the dimensions of the Hisense HV16C dishwasher and the required cabinet space for built-in installation.
Figure 4.2: Side view of the Hisense HV16C dishwasher, illustrating its physical dimensions for installation planning.
4.2 Installation Steps (General Guidelines)
- Unpacking: Carefully remove all packaging materials. Inspect the dishwasher for any damage.
- Positioning: Place the dishwasher in the desired cabinet opening, ensuring it is level.
- Water Connection: Connect the water inlet hose to a cold water supply and the drain hose to a suitable drain. Ensure all connections are tight to prevent leaks.
- Electrical Connection: Connect the power cord to a grounded electrical outlet. Verify that the voltage matches the appliance's requirements (220 Volts).
- Securing the Appliance: Secure the dishwasher to the adjacent cabinets or countertop to prevent tipping.
- Panel Installation: If applicable, install the custom front panel onto the dishwasher door. Note that the front panel is not included with this built-in model.
5. Operating Instructions
This section guides you through the daily operation of your Hisense HV16C dishwasher.
5.1 Loading the Dishwasher
The dishwasher is designed to hold up to 16 place settings. Utilize the flexible baskets and the third basket for cutlery to maximize space and ensure proper cleaning.
- Lower Basket: Ideal for large plates, serving dishes, pots, and pans.
- Upper Basket: Suitable for glasses, cups, small plates, and bowls.
- Third Basket (Cutlery Tray): Designed for knives, forks, spoons, and other small utensils.
Figure 5.1: The dishwasher interior, demonstrating its capacity and how dishes can be arranged for optimal cleaning.
Figure 5.2: A detailed view of the dishwasher's interior, showcasing the third basket for cutlery and the flexible design of the main baskets.
5.2 Adding Detergent and Rinse Aid
Fill the detergent dispenser with the appropriate amount of dishwasher detergent. Check the rinse aid indicator and refill if necessary to ensure streak-free drying.
5.3 Selecting a Program
The Hisense HV16C offers 6 wash programs. Select the program that best suits your load's soil level and type of dishes using the touch controls and LED display.
- Eco Program: An energy and water-saving program for normally soiled dishes.
- Intensive Program: For heavily soiled dishes and pots.
- Delicate Program: For fragile items like glassware.
- Quick Wash (15 minutes): For lightly soiled dishes that need a fast clean.
- Saniwash: A high-temperature wash for enhanced hygiene.
- Delay Start: Allows you to postpone the start of a wash cycle.
5.4 Starting and Ending a Cycle
Close the dishwasher door firmly. Press the Start button to begin the selected program. At the end of the cycle, the dishwasher will signal completion, and the automatic door opening feature will activate to assist with drying.
6. Maintenance & Care
Regular maintenance ensures your dishwasher continues to operate efficiently.
6.1 Cleaning the Filters
The dishwasher's filter system should be cleaned regularly to prevent blockages and ensure effective washing. Refer to the detailed instructions in the full manual for filter removal and cleaning.
6.2 Cleaning the Spray Arms
Check the spray arm nozzles for any blockages and clean them if necessary to maintain optimal water distribution.
6.3 Exterior and Interior Cleaning
Wipe the exterior with a damp cloth. Clean the interior periodically with a dishwasher cleaner or a mixture of vinegar and baking soda to remove odors and mineral deposits.
7. Troubleshooting
Before contacting customer service, refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Power cord not plugged in; door not closed properly; fuse blown. | Check power connection; ensure door is latched; check household fuse/breaker. |
| Dishes are not clean | Improper loading; clogged spray arms; insufficient detergent; incorrect program. | Reload dishes correctly; clean spray arm nozzles; add more detergent; select appropriate program. |
| Water not draining | Clogged filter; kinked drain hose; drain pump malfunction. | Clean the filter system; straighten the drain hose; contact service if pump is faulty. |
| Spots or film on dishes | Low rinse aid level; hard water; incorrect detergent dosage. | Refill rinse aid dispenser; use a dishwasher cleaner for hard water deposits; adjust detergent. |
| Dishwasher is noisy | Dishes rattling; foreign object in pump; improper installation. | Rearrange dishes; check for foreign objects; ensure dishwasher is level and secured. |
8. Specifications
Detailed technical specifications for the Hisense HV16C Dishwasher.
| Parameter | Value |
|---|---|
| Model Name | Hisense HV16C |
| Capacity | 16 Place Settings |
| Energy Class | C |
| Noise Level | 43 dB |
| Number of Programs | 6 |
| Dimensions (W x D x H) | 59.8 x 55.5 x 81.6 cm |
| Weight | 32.2 kg |
| Voltage | 220 Volts |
| Control Type | Touch |
| Display Type | LED |
| Special Features | Auto Program, Foldable Basket, Adjustable Rack, Self-Cleaning Filter, Timer Delay |
| Water Consumption (Eco Program) | 10.9 Liters/cycle |
| Energy Consumption (Eco Program) | 0.760 kWh/cycle |
| Program Duration (Eco Program) | 3:00 hours |
| Country of Origin | Slovenia |
8.1 Energy Label Information
Figure 8.1: The EU Energy Label for the Hisense HV16C dishwasher, detailing its energy efficiency and consumption metrics. For more details, visit the official EU EPREL database.
Official EPREL Product Page: https://eprel.ec.europa.eu/qr/2246702
Figure 8.2: Product information sheet providing a comprehensive overview of the Hisense HV16C's performance and technical data.
9. Warranty & Support
Your Hisense HV16C dishwasher comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.
- Warranty Duration: The minimum guaranteed availability of spare parts in the EU is 2 years.
- Returns: For information on returning a product within 30 days of receipt, or for issues with defective/damaged products, please consult the retailer's return policy.
- Customer Support: For technical assistance, service requests, or further information, please visit the official Hisense global website.
Official Hisense Global Website: http://global.hisense.com/
