CooFel Automatic Particle Packaging Machine

1. Introduction

This manual provides essential information for the safe and efficient operation of your CooFel Automatic Particle Packaging Machine, Model B0F21M7SMW. This machine is designed for automatic weighing, dispensing, sealing, and cutting of various granular and powdered materials, offering a streamlined solution for packaging tasks.

It features a versatile filling capability for particles up to 5 mm, high accuracy with a dual-stage vibration motor, and an intelligent control panel for easy adjustments. Constructed from durable, food-grade 304 stainless steel, it ensures reliable performance and safety.

Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury.

2. Safety Instructions

Always adhere to the following safety guidelines to prevent accidents and ensure safe operation:

• Read the Manual: Familiarize yourself with all instructions and warnings before operating the machine.
• Power Connection: Ensure the machine is connected to a grounded power outlet with the correct voltage. Disconnect power before any maintenance or cleaning.
• Keep Hands Clear: Never place hands or foreign objects into the hopper, vibrating tray, or discharge port while the machine is operating or connected to power.
• Emergency Stop: Locate and understand the function of the emergency stop button.
• Ventilation: Operate the machine in a well-ventilated area.
• Material Compatibility: This machine is designed for dry, free-flowing particles and powders. Avoid using sticky substances, wet materials, or puffed foods, as these may cause blockages or static buildup, leading to malfunction.
• Supervision: Do not leave the machine unattended during operation.
• Children and Unauthorized Personnel: Keep children and unauthorized personnel away from the machine.

3. Product Overview

3.1 Key Features

• Fully Automatic Operation: Handles weighing, dispensing, sealing, and cutting.
• Versatile Filling: Suitable for particles up to 5 mm, including seasoning powders, tea leaves, grains, coffee beans, and more.
• High Accuracy: Dual-stage vibration motor ensures filling accuracy within ±1 g for quantities from 1 g to 100 g.
• Intelligent Control Panel: Easy adjustment of filling weights and speeds.
• Durable Construction: Made entirely from food-grade 304 stainless steel for longevity and hygiene.

3.2 Machine Components

Familiarize yourself with the main parts of your packaging machine:

Figure 1: Overall view of the Automatic Particle Filling and Packing Machine, highlighting its fully automatic capabilities.

Figure 2: The machine's versatility in handling various particle types up to 5 mm.

Figure 3: Detail of the dual-stage vibration motor system for accurate and smooth discharge.

Figure 4: Key components including the Hopper, Vibrating Tray, and Discharge Port, all constructed from premium stainless steel.

• Hopper: Top container for bulk material.
• Vibrating Tray: Feeds material from the hopper to the weighing hopper.
• Weighing Hopper: Measures the precise amount of material.
• Discharge Port: Releases the weighed material into the packaging.
• Control Panel: Interface for setting parameters and controlling operation.
• Film Roll Holder: Holds the packaging film.
• Sealing Mechanism: Seals the filled pouches.

4. Setup

1. Unpacking: Carefully remove the machine from its packaging. Inspect for any shipping damage. Retain packaging for future transport or storage.
2. Placement: Place the machine on a stable, level surface in a clean, dry, and well-ventilated area. Ensure sufficient space around the machine for operation and maintenance.
3. Power Connection: Connect the power cord to the machine and then to a suitable grounded electrical outlet. Verify that the voltage matches the machine's requirements.
4. Loading Packaging Film:
   • Mount the roll of packaging film onto the film roll holder.
   • Thread the film through the designated guides and rollers, ensuring it is aligned correctly with the sealing mechanism.
   • Ensure the film meets the specified dimensions: PE-PET Material, 0.06-0.08 mm Thickness, 160 mm Width, Film I.D. 72 mm.
5. Loading Material: Pour the dry, free-flowing granular or powdered material into the main hopper. Ensure the material is compatible with the machine (particles < 5 mm, not sticky or wet).

5. Operating Instructions

The machine features an intelligent control panel for precise adjustments. Refer to the panel layout below:

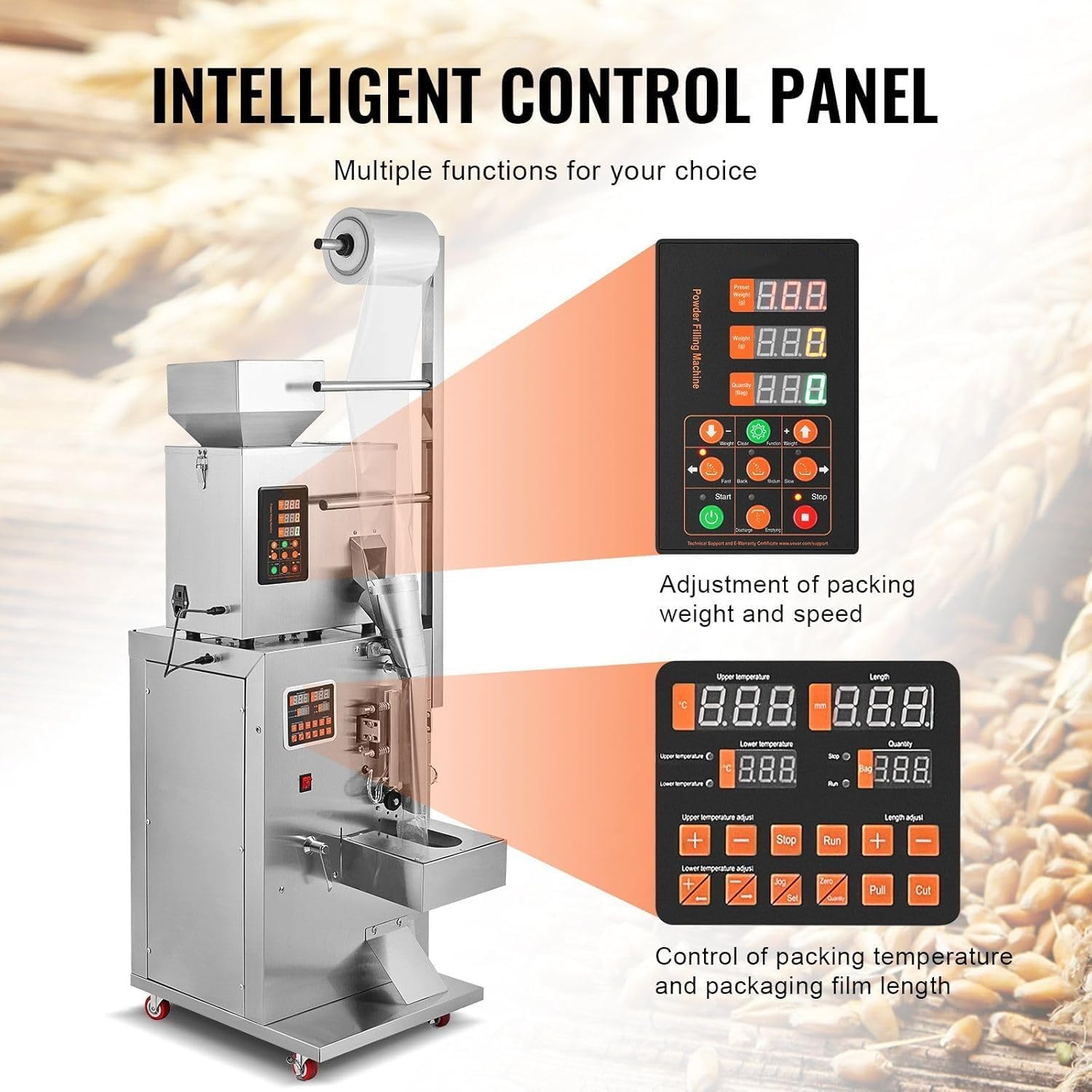

Figure 5: Intelligent Control Panel for setting operational parameters.

1. Power On: Turn on the main power switch. The control panel display will illuminate.
2. Set Filling Weight: Use the 'Weight' adjustment buttons on the control panel to set the desired filling weight (e.g., 1g to 100g).
3. Adjust Filling Speed: Use the 'Speed' adjustment buttons to set the desired packaging speed. Start with a lower speed and gradually increase as needed.
4. Set Sealing Temperature (if applicable): If your model includes temperature control for sealing, adjust the upper and lower temperature settings according to the film material.
5. Set Packaging Film Length: Adjust the 'Length' setting to control the length of each pouch.
6. Start Operation: Press the 'Start' or 'Run' button to begin the automatic packaging process. The machine will weigh, fill, seal, and cut pouches according to your settings.
7. Monitor Process: Observe the transparent top window to monitor the material flow and ensure smooth operation.
8. Stop Operation: Press the 'Stop' button to pause or end the packaging process. In case of an emergency, press the emergency stop button.
9. Adjustments During Operation: Minor adjustments to weight, speed, or length can be made during operation if necessary, but it is recommended to pause the machine for significant changes.

6. Maintenance

Regular cleaning and maintenance will prolong the life of your machine and ensure optimal performance:

• Daily Cleaning: After each use, disconnect the power and thoroughly clean all parts that come into contact with the material, including the hopper, vibrating tray, weighing hopper, and discharge port. Use a soft cloth and mild, food-safe cleaning agents. Ensure all parts are dry before next use.
• Exterior Cleaning: Wipe down the exterior of the machine with a damp cloth. Avoid using abrasive cleaners or solvents that could damage the stainless steel finish.
• Check for Residue: Regularly check for any material residue buildup in crevices or moving parts. Clean as necessary to prevent blockages or contamination.
• Inspect Film Path: Ensure the film path is clear of debris and that rollers are clean and moving freely.
• Storage: When not in use for extended periods, clean the machine thoroughly, disconnect power, and store it in a dry, dust-free environment.

7. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

9. Warranty & Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact CooFel customer service directly. Keep your purchase receipt and model number (B0F21M7SMW) handy when contacting support.

For further assistance, you may visit the manufacturer's website or contact your retailer.
