SASKATE PTM-3 Convertible Top Power Motor Hydraulic Pump User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the SASKATE PTM-3 Convertible Top Power Motor Hydraulic Pump. Please read this manual thoroughly before installation and use to ensure proper function and safety. This product is designed as a direct replacement for existing convertible top hydraulic pump systems.

Figure 1.1: SASKATE PTM-3 Convertible Top Power Motor Hydraulic Pump. This image shows the main unit of the hydraulic pump, featuring a black cylindrical body with a silver band, electrical wiring, and mounting brackets.

2. Safety Information

Always observe the following safety precautions to prevent injury or damage to the product and vehicle:

• Ensure the vehicle's ignition is off and the battery is disconnected before beginning any installation or maintenance procedures.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Handle hydraulic fluid with care. Refer to the vehicle manufacturer's guidelines for proper fluid type and handling.
• Keep the product and all components away from children and pets to prevent accidental ingestion or choking hazards.
• If you are unsure about any step, consult a qualified automotive technician.

Figure 2.1: Safety Warning. This image displays a warning label in multiple languages, advising to store the product separately from children's toys and other items to avoid accidental ingestion or choking.

3. Product Features

The SASKATE PTM-3 Convertible Top Power Motor Hydraulic Pump offers the following key features:

• Part Number: PTM-3, ensuring compatibility as a direct replacement.
• Effortless Operation: Designed for quick and easy operation of your convertible top, facilitating swift raising and secure closing.
• Enhanced Safety and Stability: Engineered for smooth vertical lift and lower action, minimizing malfunctions or jamming for a secure experience.
• Quality Materials: Constructed from durable metal and steel alloys, providing high strength, excellent wear performance, and a long service life.
• Easy Installation: Facilitates straightforward installation and replacement for a fast upgrade.

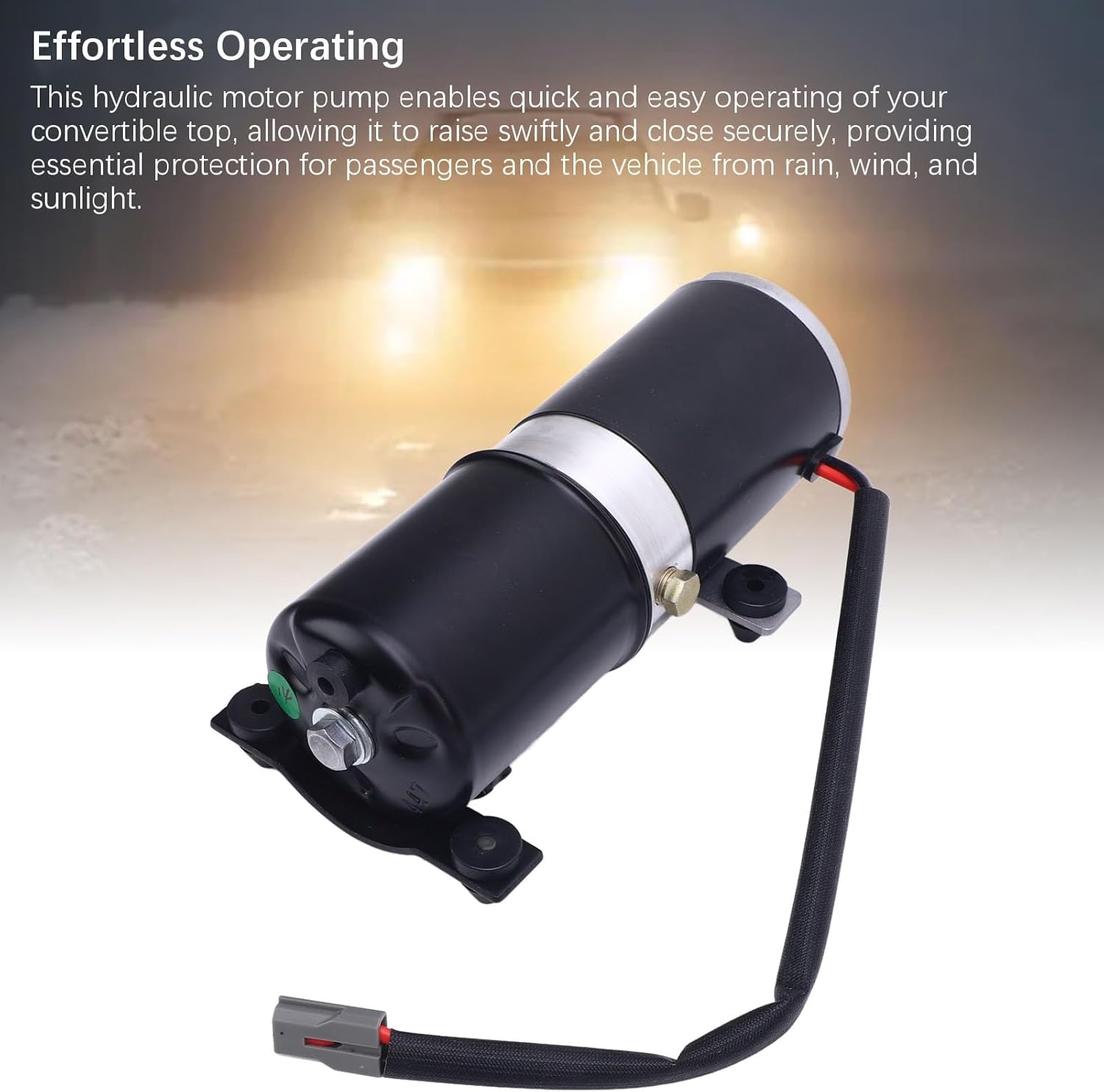

Figure 3.1: Effortless Operating Feature. This image shows the hydraulic pump with text emphasizing its "Effortless Operating" capability, designed for quick and easy convertible top movement.

4. Package Contents

Upon opening the package, verify that all items are present and undamaged:

• 1 x SASKATE PTM-3 Convertible Top Power Motor Hydraulic Pump

5. Installation (Setup)

This hydraulic pump is designed for direct replacement. The following steps are general guidelines. Always refer to your vehicle's specific service manual for detailed instructions.

1. Preparation: Park the vehicle on a level surface, engage the parking brake, and disconnect the negative terminal of the vehicle's battery.
2. Locate Existing Pump: Identify the location of the existing convertible top hydraulic pump in your vehicle. This is typically in the trunk or behind the rear seats.
3. Drain Hydraulic Fluid: Carefully drain the hydraulic fluid from the old pump and reservoir into an appropriate container. Dispose of fluids responsibly.
4. Disconnect Components: Disconnect all electrical connectors and hydraulic lines from the old pump. Label them if necessary to ensure correct re-connection.
5. Remove Old Pump: Unbolt and remove the old hydraulic pump assembly from its mounting brackets.
6. Install New Pump: Position the SASKATE PTM-3 pump in the mounting location. Secure it with the appropriate fasteners.
7. Connect Components: Reconnect the hydraulic lines and electrical connectors to the new pump. Ensure all connections are secure and free from leaks.
8. Fill with Fluid: Fill the hydraulic reservoir with the recommended type and amount of hydraulic fluid for your vehicle.
9. Bleed System: Follow your vehicle manufacturer's procedure to bleed air from the hydraulic system.
10. Reconnect Battery: Reconnect the vehicle's battery.

Figure 5.1: Part Number Reference. This image highlights the PTM-3 part number on the pump, crucial for ensuring correct replacement.

Figure 5.2: Electrical Connector Detail. A close-up view of the electrical connector, showing its design for secure attachment to the vehicle's wiring harness.

6. Operating Instructions

Once installed and the hydraulic system is properly filled and bled, the SASKATE PTM-3 pump operates in conjunction with your vehicle's convertible top control system.

1. Ensure the vehicle is in a safe operating condition (e.g., parked, engine running if required by vehicle manufacturer).
2. Activate the convertible top mechanism using the vehicle's designated control switch.
3. The hydraulic pump will engage to smoothly raise or lower the convertible top.
4. Monitor the top's movement to ensure it operates without obstruction or unusual noises.
5. Once the top is fully open or closed, release the control switch.

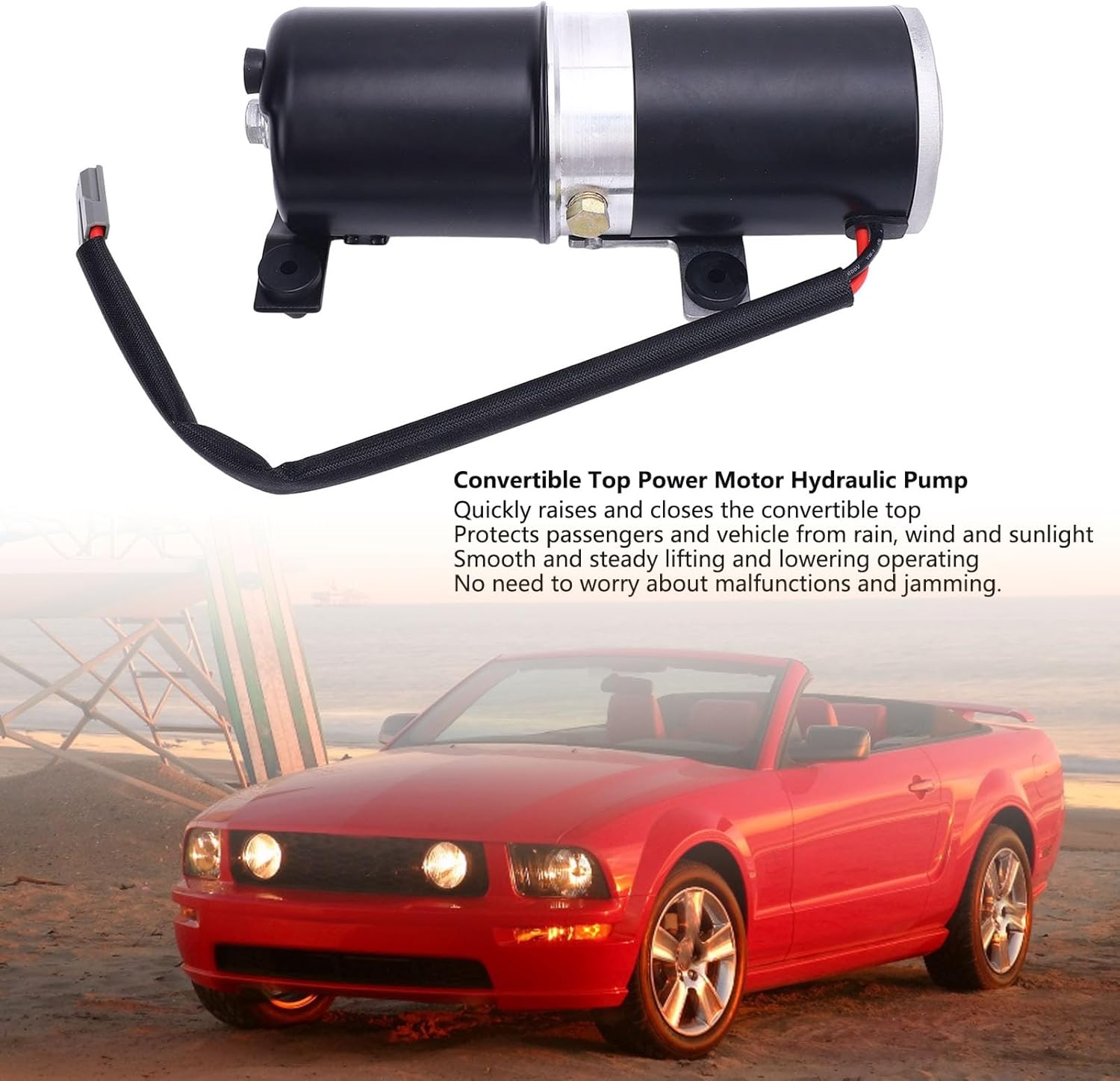

Figure 6.1: Pump in Operation Context. This image shows the hydraulic pump alongside a red convertible car, illustrating its function in raising and closing the convertible top.

Figure 6.2: Enhanced Safety and Stability. This image highlights the pump's design for smoother vertical lift and lower action, contributing to a secure operating experience for the convertible top.

7. Maintenance

Regular maintenance helps ensure the longevity and reliable operation of your hydraulic pump:

• Fluid Level Check: Periodically check the hydraulic fluid level in the reservoir. Top up with the recommended fluid if necessary.
• Leak Inspection: Regularly inspect all hydraulic lines and connections for any signs of leaks. Address any leaks promptly.
• Cleanliness: Keep the pump and surrounding area clean and free from dirt, debris, and moisture.
• Electrical Connections: Ensure all electrical connections remain clean and secure.

8. Troubleshooting

If you encounter issues with your convertible top operation, consider the following common troubleshooting steps:

If these steps do not resolve the issue, it is recommended to seek assistance from a certified automotive repair professional.

9. Specifications

10. Warranty and Support

For warranty information or technical support regarding your SASKATE PTM-3 Convertible Top Power Motor Hydraulic Pump, please refer to the retailer's return policy or contact SASKATE customer service through their official channels. Keep your purchase receipt as proof of purchase.

Before purchasing, please confirm that the part number (PTM-3) is consistent with the part number you need to ensure compatibility with your vehicle.
