1. Product Overview
The DNYN Twin Size L-Shaped Platform Bed is designed for children's bedrooms, offering a space-saving solution with integrated storage. This bed frame features a robust construction of pine wood and MDF, providing durability and stability. Its L-shaped configuration is ideal for maximizing room space, and the three integrated storage drawers offer convenient organization for various items. The design includes safety guardrails and does not require a box spring, making it a practical and functional addition to any child's room.
- Integrated Storage: Features three spacious drawers located beneath the bed frames, providing ample space for clothes, toys, or bedding.
- Solid Construction: Crafted from high-quality pine wood and MDF for enhanced stability and longevity.
- Space-Saving Design: The L-shaped configuration is optimized for rooms with limited space, accommodating two twin mattresses efficiently.
- No Box Spring Required: Equipped with a slatted support system, eliminating the need for a box spring.
- Safety Features: Includes guardrails on both bed sections to ensure user safety.
Figure 1.1: Assembled DNYN Twin Size L-Shaped Platform Bed with mattresses and bedding in a child's room.
2. Safety Information
Please read and understand all instructions before beginning assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Adult Assembly Required: This product requires adult assembly. Keep small parts and assembly hardware out of reach of children before and during assembly.
- Two-Person Assembly Recommended: For safety and ease of assembly, it is recommended that two adults assemble this bed.
- Check All Connections: Ensure all bolts, screws, and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
- Weight Capacity: Do not exceed the recommended weight capacity of 300 lbs per bed.
- Mattress Thickness: Use mattresses with a recommended thickness of 6-8 inches to ensure the safety guardrails function effectively.
- Placement: Place the bed on a level surface. Avoid placing near windows where cords or blinds could pose a strangulation hazard.
- No Jumping: Do not allow jumping on the bed.
3. Package Contents
Before beginning assembly, verify that all parts and hardware are present. Refer to the included parts list in your packaging for a detailed inventory. The product is typically shipped in two packages.
- Bed Frame Components (Headboards, Footboards, Side Rails, Slats)
- Three Storage Drawer Components
- Assembly Hardware (Bolts, Screws, Washers, Allen Wrench)
- Instruction Manual (this document)
Figure 3.1: Overview of the DNYN L-Shaped Platform Bed frame components, including the three storage drawers.
4. Setup and Assembly Instructions
Assembly is required for this product. It is recommended to have two adults for assembly. Please follow the step-by-step instructions provided in the separate assembly guide included in your package. The general steps are outlined below:
- Prepare the Area: Clear a spacious area for assembly. Lay out all components and hardware on a soft, clean surface to prevent scratches.
- Assemble Bed Frames: Begin by attaching the side rails to the headboards and footboards for each twin bed section. Ensure all connections are finger-tightened initially.
- Connect L-Shape: Once both twin bed frames are partially assembled, connect them to form the L-shape configuration using the designated connectors and hardware.
- Install Slats: Securely attach the wooden slats to the bed frames. Ensure even spacing and firm attachment for proper mattress support.
- Assemble Storage Drawers: Follow the instructions to assemble the three storage drawers. Attach the wheels to the bottom of each drawer.
- Insert Drawers: Slide the assembled drawers into their designated spaces under the bed frames.
- Final Tightening: Once all components are in place and aligned, fully tighten all bolts and screws using the provided Allen wrench. Do not overtighten.
- Inspect: Double-check all connections for security and ensure the bed is stable before placing mattresses.
Figure 4.1: The bed frame fully assembled without mattresses, illustrating the slat system and the position of the storage drawers.
5. Operating (Usage)
Once assembled, the DNYN L-Shaped Platform Bed is ready for use.
- Mattress Placement: Place two twin-size mattresses onto the slatted bed frames. Ensure the mattresses fit snugly within the frame.
- Storage Drawers: The three drawers can be easily pulled out and pushed in on their wheels. Use them to store clothing, bedding, books, or toys. Distribute weight evenly within the drawers.
- Guardrails: The integrated guardrails provide a safety barrier. Ensure mattresses are not too thick to compromise the effectiveness of the guardrails.
6. Maintenance
Proper maintenance will extend the life and appearance of your DNYN L-Shaped Platform Bed.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
- Hardware Check: Periodically (e.g., every 3-6 months) check all bolts, screws, and fasteners to ensure they remain tight. Re-tighten as needed to maintain structural integrity.
- Avoid Excessive Moisture: Protect the bed from prolonged exposure to moisture or direct sunlight, which can cause warping or fading.
- Drawer Care: Keep the drawer tracks clean and free of debris to ensure smooth operation.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable. | Loose hardware connections. | Check and tighten all bolts and screws. Ensure the bed is on a level surface. |
| Drawers do not slide smoothly. | Debris in tracks; misaligned drawer. | Clean drawer tracks. Ensure drawers are assembled correctly and wheels are properly attached. |
| Squeaking noises. | Loose connections; friction between wood parts. | Tighten all hardware. Apply a small amount of furniture wax or silicone spray to contact points if necessary. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | DNYN |
| Model Number | DNYN L-Shaped Platform Bed |
| Size | Twin |
| Color | Natural |
| Material | Pine Wood + MDF |
| Overall Product Dimensions | 119.7''L x 78.1''W x 31.4''H |
| Twin Bed Dimensions | 75.9'' x 39.2'' (each) |
| Total Height | 31.4'' |
| Number of Bed Slats | 10 pcs per bed (Total 20 pcs) |
| Recommended Mattress Thickness | 6-8 inches |
| Bed Weight Capacity | 300 lbs per bed |
| Assembly Required | Yes |
| Item Weight | Approximately 86 lbs |
| UPC | 673926617579 |

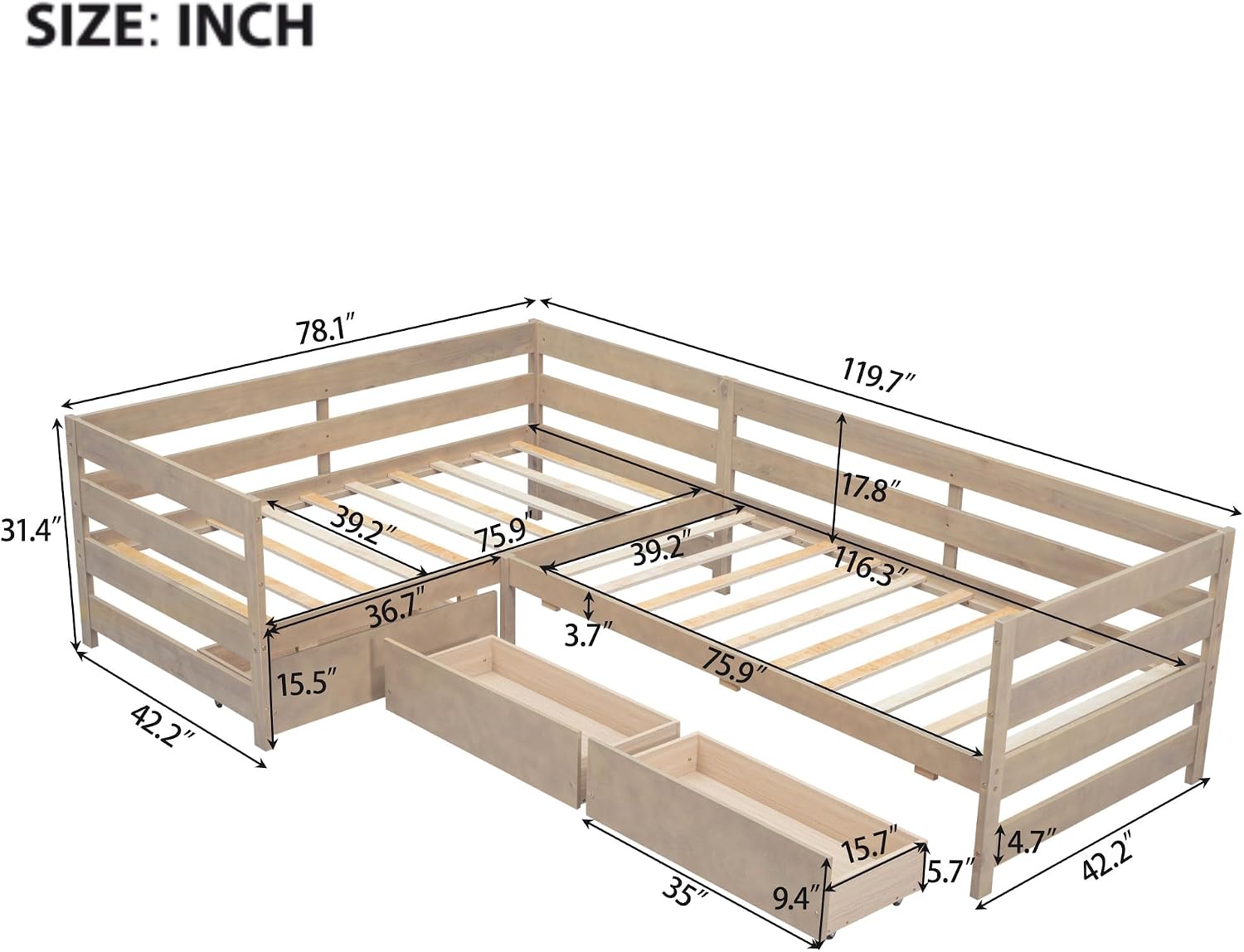

Figure 8.1: Detailed dimensional drawing of the DNYN L-Shaped Platform Bed, showing length, width, and height measurements.
9. Warranty and Support
For specific warranty information, please refer to the documentation included with your purchase or contact DNYN customer support.
If you encounter any issues during assembly or use, or if you have questions regarding your DNYN L-Shaped Platform Bed, please contact our customer support team.
- Customer Support: Refer to your purchase receipt or the DNYN official website for contact details.
- Replacement Parts: If any parts are missing or damaged, please contact customer support for assistance.
