1. Product Overview
This manual provides instructions for the installation, operation, and maintenance of your Kohler Elate 35048-4-2MB Single-Handle Bathroom Sink Faucet. This faucet features a single lever handle for easy water temperature and volume control, and a durable ceramic disc valve. It is designed for single-hole installation and has a 1.2 GPM maximum flow rate, meeting WaterSense® criteria for water efficiency.

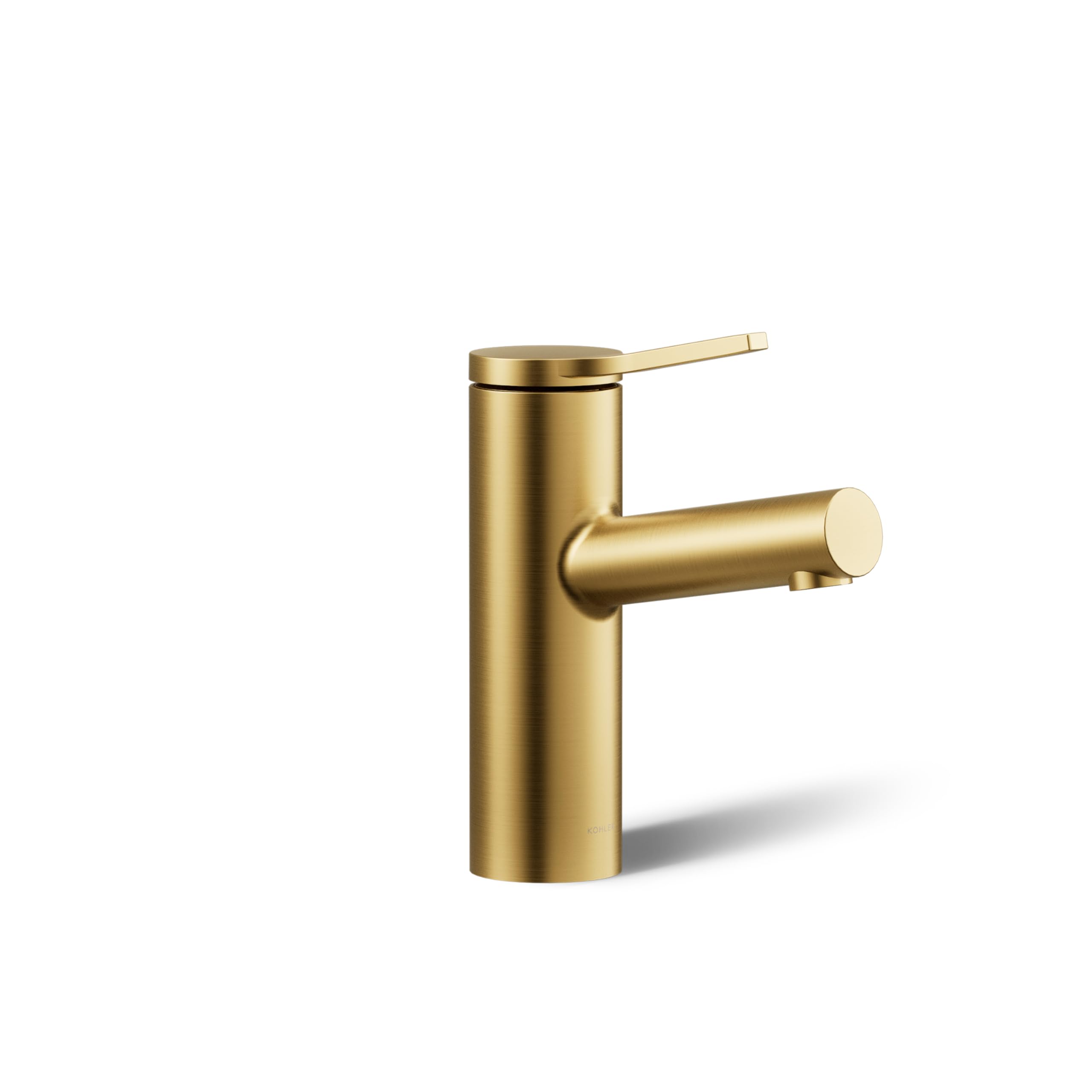

Image 1.1: The Kohler Elate 35048-4-2MB single-handle bathroom sink faucet in Vibrant Brushed Moderne Brass finish.
Key Features:
- Single lever handle for precise temperature and volume control.
- One-piece, self-contained ceramic disc valve for durability.
- Water-efficient 1.2 GPM (4.5 LPM) maximum flow rate.
- Premium metal construction for reliability.
- Designed for single-hole deck mount installation.
- Includes assembled faucet, supply lines, and clicker drain.
2. Setup and Installation
Before beginning installation, ensure all necessary components are present and that water supply lines are shut off. This faucet is designed for simplified installation, typically requiring no special tools beyond standard plumbing equipment.
2.1. Package Contents
Verify that your package contains the following items:
- Assembled Kohler Elate Faucet
- Hot and Cold Water Supply Lines
- Clicker Drain Assembly
- Mounting Hardware
2.2. Pre-Installation Steps
- Shut off Water Supply: Locate the main water supply valve and turn it off. Open nearby faucets to drain any remaining water from the lines.
- Clear Work Area: Ensure the sink area is clean and free of obstructions.
- Review Dimensions: Confirm the faucet dimensions are suitable for your sink and countertop.

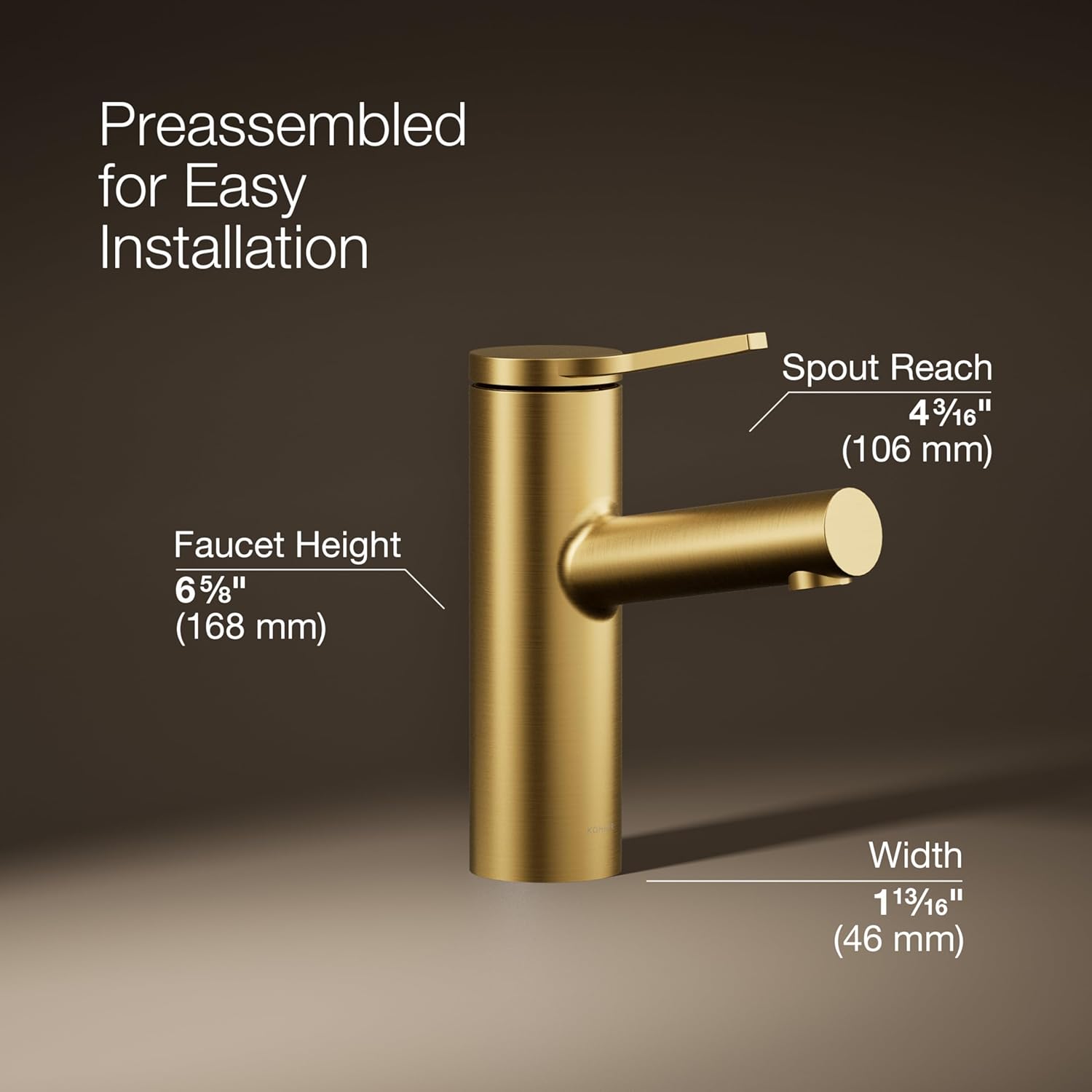

Image 2.1: Dimensional drawing of the Kohler Elate faucet, indicating spout reach, faucet height, and width for installation planning.
2.3. Faucet Installation
- Mount Faucet: Insert the faucet body through the single hole in the sink or countertop. Secure it from underneath using the provided mounting hardware. Ensure the faucet is oriented correctly.
- Connect Supply Lines: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body. Connect the other ends to your hot and cold water supply valves. Hand-tighten, then use a wrench for a quarter turn, being careful not to overtighten.
- Install Drain Assembly: Follow the instructions provided with the clicker drain for proper installation into the sink drain opening. Ensure all seals are correctly seated to prevent leaks.
- Check for Leaks: Slowly turn on the main water supply. Check all connections for leaks. If leaks are detected, gently tighten the connections.
3. Operating Instructions
The Kohler Elate faucet features a single lever handle for intuitive control of water flow and temperature.
Image 3.1: The single lever handle of the Elate faucet, designed for ease of use.
3.1. Water Flow Control
- To Turn On/Off: Lift the handle upwards to turn on the water. Push the handle downwards to turn off the water.
- To Adjust Volume: The further the handle is lifted, the greater the water flow.
3.2. Temperature Control
- To Adjust Temperature: Move the handle to the left for hotter water and to the right for colder water.
4. Care and Maintenance
Proper care and maintenance will ensure the longevity and appearance of your Kohler Elate faucet.
4.1. Cleaning the Faucet
- Regular Cleaning: Clean the faucet regularly with a soft, damp cloth and mild soap. Rinse thoroughly with warm water and dry with a soft cloth to prevent water spots.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, or chemicals containing ammonia, bleach, or alcohol, as these can damage the finish.
- Aerator Cleaning: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the spout, clean any debris, and rinse before reattaching.
Image 4.1: A top-down perspective of the faucet, illustrating its integration with the sink and the importance of regular cleaning to maintain its appearance.
4.2. Ceramic Disc Valve
The faucet is equipped with a durable ceramic disc valve designed for a lifetime of performance. In the unlikely event of a leak from the handle base, consult the troubleshooting section or contact Kohler customer support.
5. Troubleshooting
This section addresses common issues you might encounter with your faucet. For problems not listed here, please contact Kohler customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow |
|
|
| Faucet Leaks from Spout |
|
|
| Faucet Leaks from Handle Base |
|
|
| No Hot or Cold Water |
|
|
6. Product Specifications
| Feature | Detail |
|---|---|
| Model Number | 35048-4-2MB |
| Brand | Kohler |
| Material | Metal |
| Finish Type | Brushed |
| Color | Vibrant Brushed Moderne Brass |
| Mounting Type | Deck Mount |
| Installation Type | Single Hole |
| Number of Handles | 1 |
| Hole Count | 1 |
| Maximum Flow Rate | 1.2 Gallons Per Minute (4.5 LPM) |
| Special Feature | Leak Resistant |
| Product Dimensions | 4.8"D x 1.81"W x 6.63"H |
| Item Weight | 4.14 pounds |
| UPC | 195711207258 |

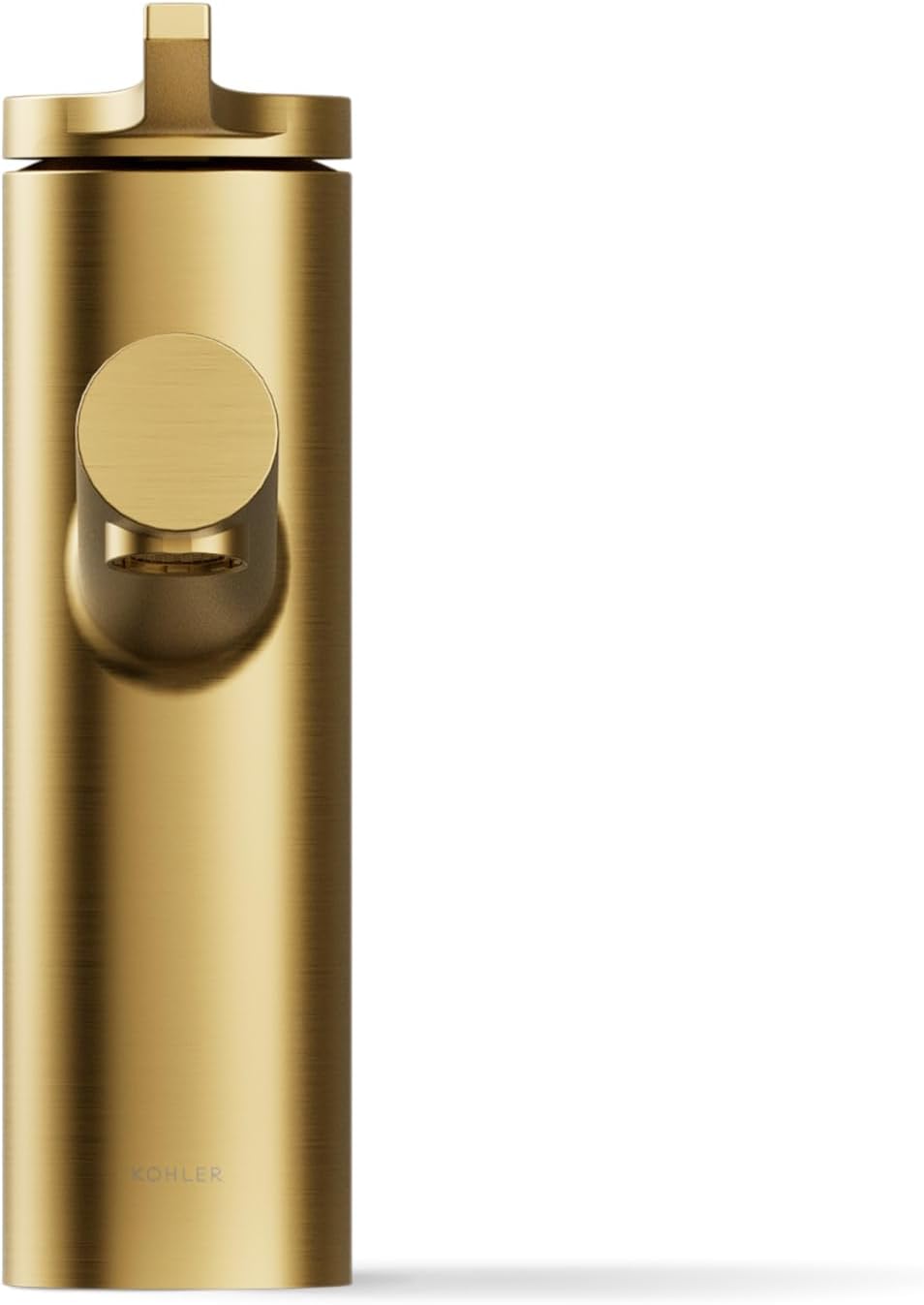

Image 6.1: A detailed side view of the Kohler Elate faucet, highlighting its modern aesthetic and the brand's commitment to design.
7. Warranty and Customer Support
7.1. Limited Lifetime Warranty
The Kohler Elate 35048-4-2MB Single-Handle Bathroom Sink Faucet is backed by Kohler's Lifetime Limited Warranty. This warranty covers defects in material and manufacturing for the original consumer purchaser. For full warranty details, please refer to the official Kohler warranty documentation or visit the Kohler website.
7.2. Customer Support
If you have any questions, require assistance with installation, or need to report a warranty claim, please contact Kohler customer support:
- Website: www.kohler.com/support
- Phone: Refer to the Kohler website for regional contact numbers.
