RATION 99-0973 (for Toro 20786, 20787, 20789 Recycler Mowers)
RATION Replacement Carburetor Instruction Manual
Model: 99-0973 (Compatible with Toro 20786, 20787, 20789 53cm Recycler Mowers)
Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your RATION replacement carburetor, part number 99-0973. This carburetor is specifically designed to be compatible with Toro 20786, 20787, and 20789 53cm Recycler Mower models, ensuring optimal engine performance and fuel efficiency. Please read this manual thoroughly before attempting any installation or maintenance procedures.
Safety Information
Always prioritize safety when working with engine components. Failure to follow these safety guidelines may result in serious injury or damage to equipment.
- Ensure the mower engine is completely off and cool before beginning any work.
- Disconnect the spark plug wire to prevent accidental starting.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Work in a well-ventilated area.
- Keep flammable materials away from the work area.
- If you are unsure about any procedure, consult a qualified technician.
Product Overview
The RATION replacement carburetor (part 99-0973) is a precision-engineered component designed to deliver the correct air-fuel mixture to your mower's engine. It includes the main carburetor body and necessary gaskets for a secure seal.

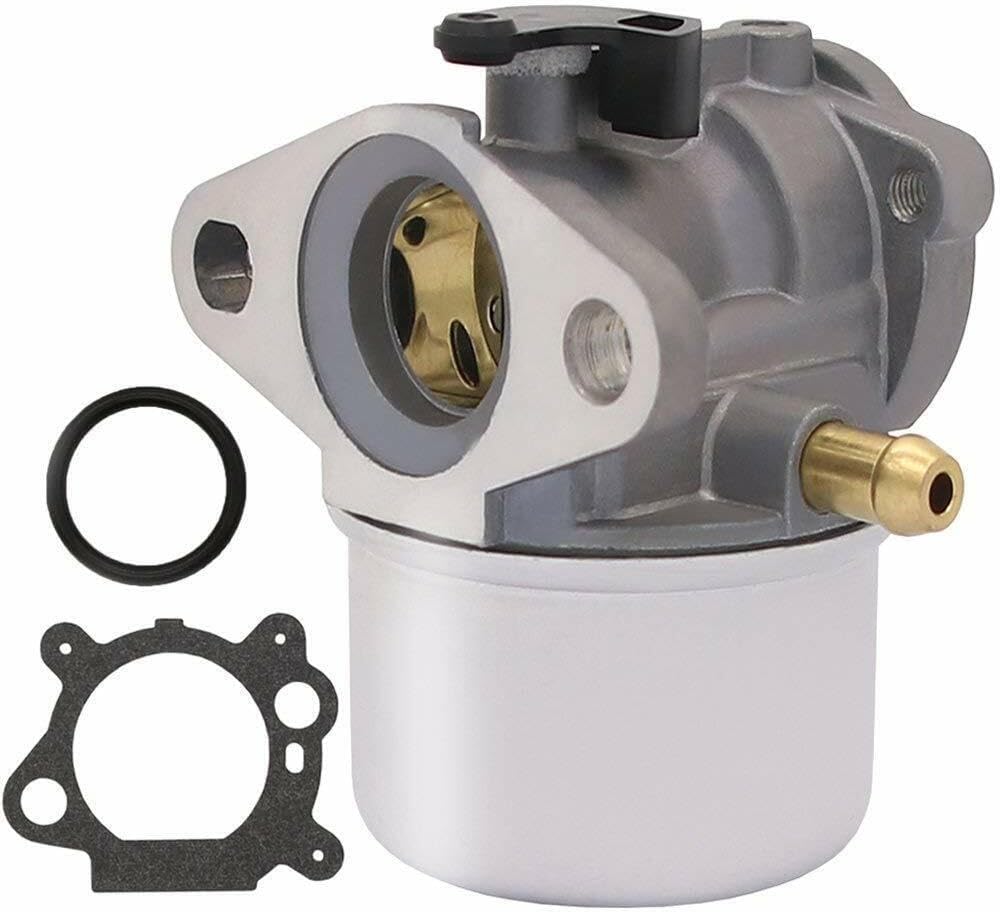

Image: RATION Replacement Carburetor 99-0973. This image shows the main carburetor unit along with two accompanying gaskets, one round and one shaped, essential for installation.
Image: RATION Brand Logo. This image displays the RATION brand logo, indicating the manufacturer of the replacement part.
Setup and Installation
Proper installation is crucial for the carburetor's performance. Follow these steps carefully:
- Preparation: Ensure the mower is on a flat, stable surface. Disconnect the spark plug wire and drain the fuel tank.
- Access Carburetor: Remove the air filter housing and any shrouds or covers that obstruct access to the existing carburetor.
- Disconnect Components: Carefully disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Note their positions for reassembly.
- Remove Old Carburetor: Unbolt the old carburetor from the engine. Be mindful of any gaskets between the carburetor and the engine block/intake manifold.
- Clean Mounting Surface: Thoroughly clean the mounting surface on the engine to ensure a proper seal with the new gaskets.
- Install New Gaskets: Place the new gaskets provided with the RATION carburetor in their correct positions.
- Mount New Carburetor: Position the new RATION carburetor and secure it with the bolts. Do not overtighten.
- Reconnect Components: Reconnect the fuel line, throttle linkage, and choke linkage. Ensure all connections are secure and move freely.
- Reassemble: Reinstall the air filter housing, shrouds, and any other components removed during disassembly.
- Refuel and Test: Refill the fuel tank with fresh fuel. Reconnect the spark plug wire. Start the mower and check for proper operation and any fuel leaks.
For detailed visual instructions, refer to a service manual specific to your Toro mower model or seek professional assistance.
Operating Instructions
Once the new carburetor is installed, the mower should operate as designed. The carburetor automatically mixes air and fuel for optimal combustion.
- Starting: Follow your mower's standard starting procedure (e.g., prime bulb, choke, pull cord). A properly installed carburetor should allow for smooth starting.
- Running: The engine should run smoothly without sputtering or excessive smoke.
- Stopping: Use the mower's designated engine stop control.
If the engine does not start or runs poorly after installation, refer to the Troubleshooting section.
Maintenance
Regular maintenance helps prolong the life of your carburetor and ensures consistent engine performance.
- Fuel Quality: Always use fresh, clean, unleaded gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer, especially during storage.
- Fuel Filter: Regularly inspect and replace the fuel filter (if equipped on your mower) to prevent debris from reaching the carburetor.
- Air Filter: Keep the air filter clean. A clogged air filter can restrict airflow, leading to a rich fuel mixture and poor engine performance.
- Storage: Before long-term storage, run the engine until it runs out of fuel, or drain the fuel tank and carburetor bowl to prevent fuel degradation and gumming.
Troubleshooting
If you encounter issues after installing the new carburetor, review the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel line, incorrect choke setting, spark plug issue, improper carburetor installation. | Check fuel level. Inspect fuel line for kinks or blockages. Ensure choke is set correctly. Check spark plug. Re-verify carburetor installation and connections. |
| Engine runs rough/sputters | Dirty air filter, stale fuel, fuel line restriction, carburetor adjustment needed (unlikely for new part), vacuum leak. | Clean/replace air filter. Use fresh fuel. Check fuel filter/line. Ensure all gaskets are sealed properly. |
| Engine lacks power | Clogged air filter, fuel delivery issue, spark plug issue. | Clean/replace air filter. Check fuel flow. Inspect spark plug. |
| Fuel leaks | Improperly seated gaskets, loose fuel line connection, damaged fuel line. | Check all gasket seals. Tighten fuel line connections. Inspect fuel line for cracks or damage. |
If these steps do not resolve the issue, it is recommended to consult a professional small engine mechanic.
Specifications
- Part Number: 99-0973
- Brand: RATION
- Compatibility: Toro 20786, 20787, 20789 53cm Recycler Mowers
- UPC: 670308217891
- Material: High-quality metal alloy and composite materials
- Included: Carburetor unit, mounting gaskets
Warranty and Support
RATION stands behind the quality of its replacement parts. For specific warranty information, please refer to the product packaging or contact the seller directly. For technical support or inquiries regarding this carburetor, please reach out to the RATION customer service team or the retailer from whom the product was purchased.
Contact Information: Please refer to your purchase documentation or the seller's contact details for support.
