1. Introduction
Thank you for choosing the LifePlus 10000 BTU Portable Air Conditioner. This unit is designed to provide efficient cooling, dehumidification, and fan functions for rooms up to 450 sq.ft. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.
This portable air conditioner offers four versatile modes: Cooling, Fan, Dehumidifier, and Sleep. It features convenient control options via a remote control or the top-mounted control panel, allowing for temperature adjustments between 62-86°F, two fan speeds, and a 24-hour timer. Its compact design and smooth-rolling casters ensure easy mobility, making it a versatile climate control solution for various spaces.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Ensure the power supply matches the voltage specified on the unit's rating label.
- Do not operate the unit with a damaged cord or plug.
- Do not insert fingers or foreign objects into the air inlet or outlet.
- Keep the unit away from flammable materials and open flames.
- Always unplug the unit before cleaning or servicing.
- Do not block the air vents.
- Ensure proper drainage to prevent water overflow.
3. Product Overview
Familiarize yourself with the components of your portable air conditioner.
Figure 3.1: Main unit and included accessories (remote, window kit components, exhaust hose).
Figure 3.2: The unit offers 3-in-1 functionality: Cooling, Fan, and Dehumidifier modes.

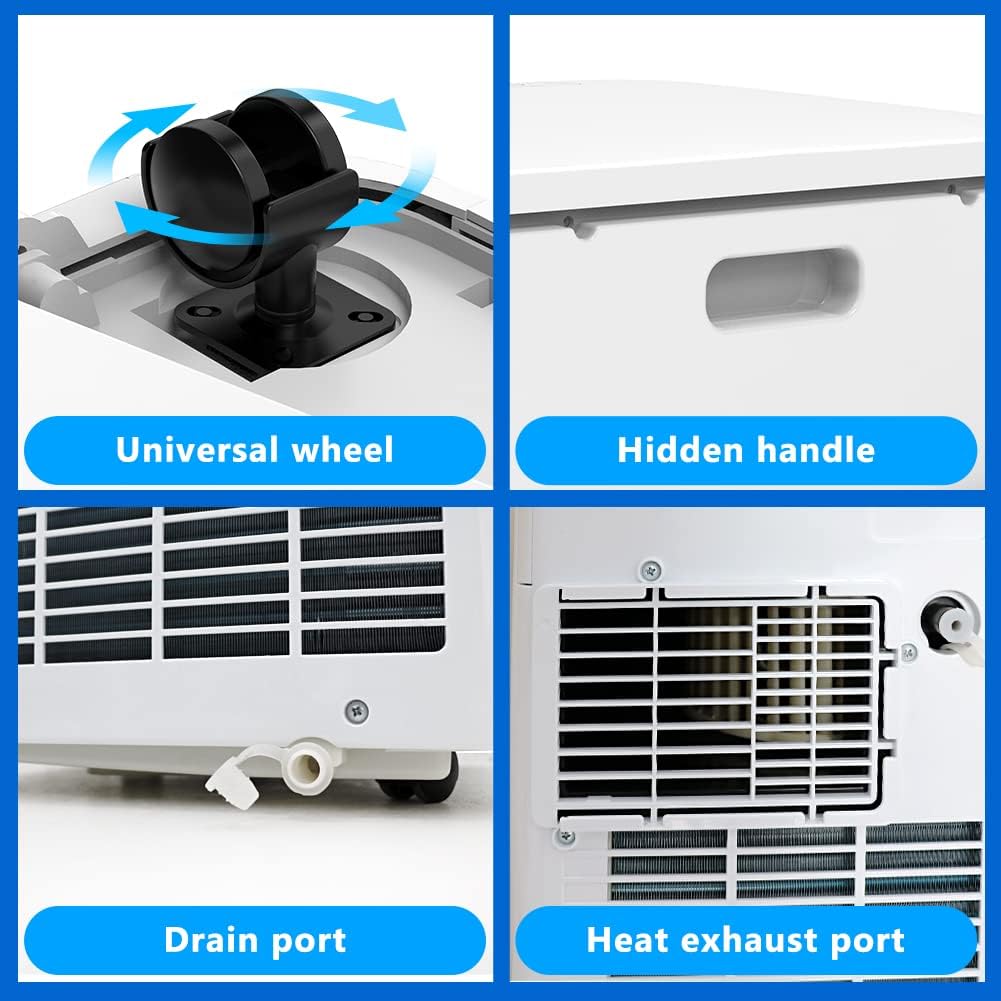

Figure 3.3: Key features include universal wheels for easy movement, a hidden handle for portability, a convenient drain port, and a heat exhaust port for ventilation.
4. Setup
Follow these steps for initial setup and window kit installation.
4.1 Exhaust Hose Assembly
- Grasp both ends of the exhaust hose and gently pull to expand it.
- Attach one end of the exhaust hose to the exhaust nozzle.
- Attach the other end of the exhaust hose to the air outlet unit.
4.2 Window Kit Installation
The universal window kit is designed to fit various apartment styles.
Figure 4.1: Step-by-step guide for assembling and installing the window kit.
- Adjust the window installation kit to the length of your window and use screws to fix it. The kit is scalable from 25.6 to 49.5 inches.
- Attach the exhaust hose to the air outlet on the back of the unit.
- Connect the other end of the exhaust hose to the window kit.
- Ensure all connections are secure to prevent air leakage.
Figure 4.2: Dimensions of the exhaust hose and window kit for proper fit.
5. Operating Instructions
Your portable air conditioner can be controlled via the top-mounted control panel or the included remote control.
5.1 Control Panel and Remote
Figure 5.1: The control panel allows direct access to all functions.
Figure 5.2: The remote control provides convenient operation from a distance.
5.2 Operating Modes
- Cooling Mode: Set desired temperature (62-86°F) for powerful cooling.
- Fan Mode: Circulates air without cooling. Choose between High and Low fan speeds.
- Dehumidifier Mode: Removes excess moisture from the air.
- Sleep Mode: Operates quietly (around 45dB) for undisturbed rest, gradually adjusting temperature for optimal comfort and energy efficiency.
Figure 5.3: Sleep mode ensures quiet operation for a peaceful night.
5.3 Timer Function
The 24-hour timer allows you to program the unit to turn on or off automatically, optimizing energy usage and comfort.
5.4 Product Video Overview
Video 5.1: This video provides a visual overview of the 10000 BTU Portable Air Conditioner, demonstrating its key features such as dual control, easy mobility, quiet sleep mode, convenient drainage, and universal window kit installation. It highlights the unit's efficiency and suitability for various environments.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your unit.
6.1 Filter Cleaning
The air filter should be cleaned regularly, typically every two weeks, or more often depending on usage and air quality.
Figure 6.1: Clean the air filter by rinsing it under running water. Ensure it is completely dry before reinserting.
6.2 Water Drainage
The unit has a bottom drain hole for easy water removal, especially when operating in dehumidifier mode or when the 'Water Full' indicator lights up.
Figure 6.2: The bottom drain hole allows for easy water removal. Connect the provided drain hose to direct water into a suitable container.
7. Troubleshooting
If you encounter issues, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power, power cord unplugged, fuse blown, timer active. | Check power connection, reset circuit breaker, deactivate timer. |
| Unit not cooling effectively | Dirty air filter, blocked air intake/outlet, room too large, window kit not sealed. | Clean filter, clear obstructions, ensure proper room size (up to 450 sq.ft), seal window kit. |
| Water full indicator is on | Water tank is full. | Drain the water from the unit's drain port. |
| Unit is noisy | Unit not on a flat surface, internal components vibrating. | Place on a flat, stable surface. If noise persists, contact support. |
For issues not listed here, please contact customer support.
8. Specifications
- Brand: LifePlus
- Model Number: NPLD1-06C/X1E
- Cooling Power: 10000 BTU
- Coverage Area: Up to 450 sq.ft.
- Product Dimensions: 11.8"D x 13.4"W x 27"H
- Item Weight: 48 pounds
- Voltage: 115 Volts (AC)
- Noise Level: 53 dB (normal operation), <45dB (Sleep Mode)
- Modes: Cooling, Fan, Dehumidifier, Sleep
- Special Features: Dehumidifier, Fast Cooling, Remote Controlled, Sleep Mode, Wheels
- Included Components: Portable AC Unit, Window Installation Kit, Remote Control, Wheels
- Warranty: 1 year
9. Warranty and Support
This LifePlus Portable Air Conditioner comes with a 1-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
9.1 Protection Plans
Extended protection plans are available for purchase:
- 3-Year Protection Plan: $74.99
- 4-Year Protection Plan: $98.99
- Complete Protect: $16.99/month (covers all eligible past and future purchases)
9.2 Customer Support
For technical assistance, warranty claims, or general inquiries, please contact LifePlus customer support. Refer to the contact information provided with your product packaging or visit the official LifePlus website.
Return Policy: This product is eligible for a refund/replacement within 30 days of purchase, subject to the retailer's return policy.
