Paulmann 50141 Smart Home Zigbee 3.0 Remote Control User Manual

Introduction

Welcome to the Paulmann 50141 Smart Home Zigbee 3.0 Remote Control. This device provides convenient control over your Zigbee 3.0 compatible lighting products. It allows for direct control without the need for an app or gateway for basic functions, offering an intuitive way to manage your smart lighting environment.

Image Description: Main product image showing the Paulmann 50141 remote control and its retail packaging. The remote is white with seven buttons and a small red indicator light. A CR2032 battery is also visible, indicating its power source.

Setup

Battery Installation

1. Locate the battery compartment on the back of the remote control.
2. Open the compartment cover by sliding or gently prying it off.
3. Insert one CR2032 Lithium Metal battery, ensuring correct polarity (+/− symbols must align).
4. Close the battery compartment cover securely until it clicks into place.

Image Description: The Paulmann 50141 remote control with its battery compartment open, clearly showing the slot for the CR2032 battery and the removable cover. This illustrates the battery installation process.

Image Description: A clear image of the Paulmann 50141 remote control positioned next to a CR2032 battery, indicating the type of battery required for operation.

Pairing with Zigbee 3.0 Devices (Touchlink)

The Paulmann 50141 remote control uses Touchlink for direct pairing with Zigbee 3.0 compatible light products without requiring a gateway or app.

1. Ensure your Zigbee 3.0 compatible light product is powered on and within close proximity (ideally within 10 cm) to the remote control.
2. Press and hold the Power Button (On/Off) on the remote control for approximately 5 seconds. The small red indicator light on the remote will flash to confirm it is in pairing mode.
3. The light product should respond by flashing, dimming, or changing its state, indicating successful pairing.
4. Repeat this process for each light product you wish to control directly with the remote. The remote can control up to 30 light products.

Image Description: A man in a modern living room setting holding the Paulmann 50141 remote control, demonstrating its intuitive use for controlling smart lighting within a home environment.

Image Description: An illustrative diagram depicting the Paulmann 50141 remote control as part of a Zigbee 3.0 smart home network. It shows the remote connecting to various light fixtures and a central gateway, highlighting its integration capabilities.

Operating

Button Functions

The Paulmann 50141 remote control features seven distinct buttons for comprehensive light management:

• Power Button (On/Off): Press to toggle connected lights on or off.
• Brightness Up (+): Press to gradually increase the brightness of connected lights.
• Brightness Down (-): Press to gradually decrease the brightness of connected lights.
• Warm White (Flame icon): Press to adjust the color temperature towards warmer white tones, creating a cozy ambiance.
• Cool White (Snowflake icon): Press to adjust the color temperature towards cooler white tones, ideal for focused tasks.
• Scene 1 (S1): Press to activate a pre-saved lighting scene.
• Scene 2 (S2): Press to activate a pre-saved lighting scene.

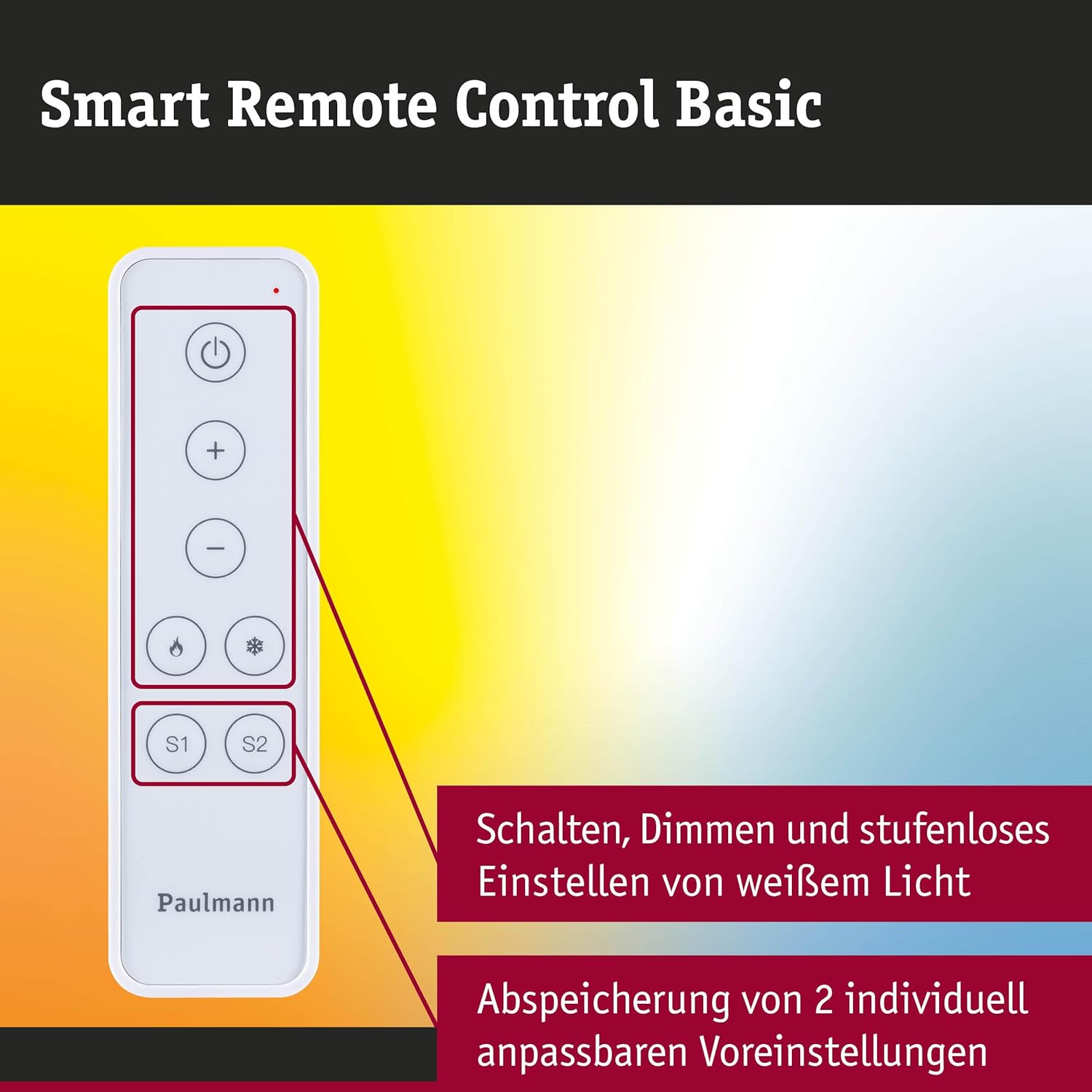

Image Description: A close-up view of the Paulmann 50141 remote control, with graphical overlays indicating the functions of each button, including power, brightness adjustment, color temperature control, and scene presets.

Image Description: A hand is shown pressing a button on the Paulmann 50141 remote control, illustrating the tactile interaction and ease of use for controlling lighting.

Saving Scenes (S1/S2)

The remote allows you to save two custom lighting scenes for quick recall:

1. Adjust your connected lights to the desired brightness and color temperature using the respective buttons.
2. Once the desired lighting is set, press and hold either the S1 or S2 button for approximately 3 seconds. The indicator light on the remote will flash to confirm that the scene has been successfully saved.
3. To recall a saved scene, simply press the corresponding S1 or S2 button.

Maintenance

Cleaning

To maintain the appearance and functionality of your remote control, wipe it with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface or internal components.

Battery Replacement

When the remote's response becomes inconsistent, the indicator light does not illuminate, or the range decreases, it may be time to replace the battery. Follow the "Battery Installation" steps outlined in the Setup section to replace the CR2032 battery.

Troubleshooting

• Remote not responding:
  • Check the battery level and replace it if necessary.
  • Ensure the remote is within effective range of the light product.
  • Re-pair the remote with the light product using the Touchlink procedure described in the Setup section.
• Lights not pairing:
  • Verify that the light product is Zigbee 3.0 compatible.
  • Confirm that the light product is in pairing mode (refer to the light product's specific instruction manual).
  • Ensure the remote is held very close to the light product (within 10 cm) during the pairing process.
  • If issues persist, try resetting the light product and then attempting the pairing process again.

Specifications

Image Description: An image displaying the Paulmann 50141 remote control with its approximate dimensions (125mm length, 35mm width, 10mm thickness) clearly marked. The image also highlights a "5 Jahre Garantie" (5-year warranty).

Warranty & Support

This Paulmann 50141 remote control comes with a 5-year warranty. Please retain your proof of purchase for warranty claims.

For further assistance, technical support, or to view additional product information, please visit the official Paulmann website or contact their customer service department. Contact details can typically be found on the product packaging or the Paulmann website.
