FIREGAS 60cm Telescopic Range Hood Instruction Manual

1. Introduction

Thank you for choosing the FIREGAS 60cm Telescopic Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read these instructions carefully before use and retain them for future reference.

1.1 Safety Information

• Ensure the electrical supply matches the rating plate on the appliance.
• Installation must be performed by a qualified technician in accordance with local regulations.
• Do not operate the range hood without filters properly installed.
• Regularly clean grease filters to prevent fire hazards.
• Ensure adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
• Do not flambé under the range hood.

2. Package Contents

Before installation, verify that all components are present and undamaged:

• Range Hood Unit
• Grease Filter (Aluminum)
• Carbon Filters (for recirculation mode)
• Installation Kit (screws, wall plugs)
• Instruction Manual

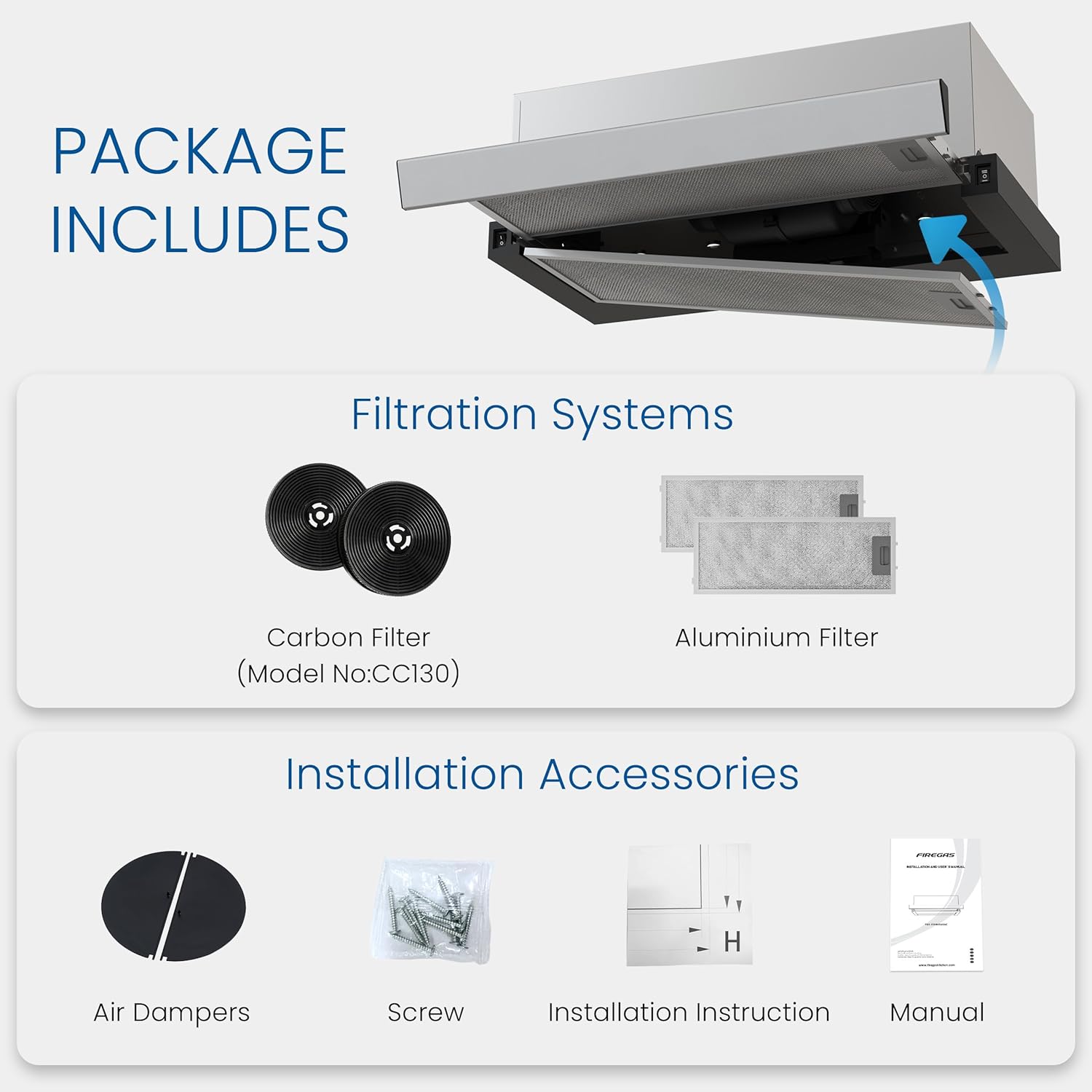

Image: Overview of the range hood dimensions and included accessories, such as carbon filters, aluminum filters, air dampers, screws, and the instruction manual.

3. Installation

The FIREGAS Telescopic Range Hood can be installed under a cabinet or mounted on a wall, supporting both ducted (extraction) and recirculation modes.

3.1 Mounting Options

• Under Cabinet Mounting: The hood is designed to integrate seamlessly under kitchen cabinets.
• Wall Mounting: The hood can also be mounted directly on a wall.

3.2 Ventilation Modes

• Ducted Mode: Air is extracted and expelled outside through a ducting system.
• Recirculation Mode: Air is filtered through carbon filters to remove odors and then recirculated back into the kitchen. Carbon filters are included for this mode.

3.3 Installation Steps (General Guidelines)

1. Preparation: Ensure the installation area is clear and the power supply is disconnected. Refer to the dimension diagram for proper placement.
2. Marking: Use the provided template or measure carefully to mark drilling points for mounting screws.
3. Mounting: Secure the range hood to the cabinet or wall using the screws and wall plugs from the installation kit.
4. Ducting/Recirculation Setup:
   • For ducted mode, connect the exhaust pipe to the hood and lead it to an external vent.
   • For recirculation mode, install the carbon filters (refer to Section 5.2) and ensure the air outlet is unobstructed for filtered air return.
5. Electrical Connection: Connect the range hood to a suitable power outlet.
6. Final Check: Ensure the hood is securely mounted and all connections are tight.

Image: Detailed dimensions of the FIREGAS 60cm Telescopic Range Hood, including width (595mm), depth (282mm), and height (155mm), with adjustable extension.

4. Operation

The FIREGAS Telescopic Range Hood features intuitive controls for efficient kitchen ventilation.

4.1 Power and Speed Control

The hood is equipped with a rocker switch control for power and speed selection:

• On/Off: Use the main power switch to turn the unit on or off.
• Speed Selection: Choose between 2 fan speeds (low and high) to adjust the extraction power according to your cooking needs.

Image: Diagram illustrating the rocker switch controls for the range hood, showing positions for On/Off and High/Low speed settings.

4.2 LED Lighting

The integrated 2W LED lamp provides efficient illumination for your cooking area.

• Light Activation: The LED light can be controlled independently or may activate automatically with the hood's operation, depending on the model.

Image: The FIREGAS telescopic range hood installed above a stovetop, with its LED light brightly illuminating the cooking surface.

4.3 Memory Function

The telescopic design incorporates a memory function for convenience:

• Pull to Activate: Pulling out the telescopic front panel automatically activates the airflow and restores the last used fan speed and lighting settings.
• Push to Deactivate: Pushing the panel back in will automatically shut off the airflow and lighting.

Image: Two panels demonstrating the memory function: one showing a hand pushing the hood in to shut off, and another showing a hand pulling it out to activate airflow and lighting.

5. Maintenance

Regular maintenance ensures optimal performance and longevity of your range hood.

5.1 Cleaning Aluminum Grease Filters

The aluminum grease filters capture airborne grease particles. They should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain efficiency and prevent fire hazards.

1. Removal: Carefully unlatch and remove the aluminum filters from the hood.
2. Cleaning: Wash the filters by hand in hot soapy water or in a dishwasher. Avoid using abrasive cleaners.
3. Drying and Reinstallation: Allow filters to dry completely before reinserting them into the hood. Ensure they are securely latched.

Image: The FIREGAS telescopic range hood with its aluminum grease filters clearly visible, indicating easy access for cleaning.

5.2 Replacing Carbon Filters (Recirculation Mode Only)

If your hood is operating in recirculation mode, the carbon filters absorb cooking odors. These filters cannot be washed and must be replaced every 3-6 months, depending on usage.

1. Access: Remove the aluminum grease filters to access the carbon filters.
2. Removal: Twist or unclip the old carbon filters from their housing.
3. Installation: Install new carbon filters, ensuring they are securely attached.
4. Reassemble: Reinstall the aluminum grease filters.

5.3 Exterior Cleaning

Clean the exterior of the hood with a soft cloth and a mild, non-abrasive detergent. Do not use harsh chemicals or abrasive materials that could damage the finish.

6. Troubleshooting

If you encounter issues with your range hood, refer to the following common problems and solutions:

• Hood not operating:
  • Check if the power cord is securely plugged into the outlet.
  • Verify that the circuit breaker or fuse has not tripped.
  • Ensure the telescopic panel is fully extended to activate the hood (if using memory function).
• Poor suction performance:
  • Clean or replace the aluminum grease filters.
  • If in recirculation mode, replace the carbon filters.
  • Check for obstructions in the ducting system (if in ducted mode).
  • Ensure windows and doors are not creating excessive drafts that interfere with airflow.
• Excessive noise:
  • Ensure the hood is securely mounted and all screws are tightened.
  • Check for loose components or foreign objects inside the fan housing.
  • Verify that the ducting (if applicable) is properly installed and not vibrating.
• Lights not working:
  • Check if the light switch is in the 'on' position.
  • If the LED is integrated, contact customer support for assistance.

If these steps do not resolve the issue, please contact FIREGAS customer support.

7. Specifications

Technical details for the FIREGAS 60cm Telescopic Range Hood, Model FGS-EBH06Z460AC:

Image: A diagram illustrating the internal components of a brushless motor, highlighting its energy efficiency, quiet operation, and long lifespan.

8. Warranty and Support

FIREGAS is committed to customer satisfaction. For any questions, technical assistance, or warranty claims, please contact our customer support team.

• After-Sales Support: Dedicated support is available for any issues you may encounter.
• Lifetime Technical Assistance: Benefit from ongoing technical guidance for the lifespan of your product.

Please refer to your purchase documentation for specific warranty terms and contact information.
