ZAFRO A8505W-5K Window Air Conditioner User Manual

Model: A8505W-5K

1. Important Safety Instructions

Please read all instructions carefully before installing and operating your ZAFRO A8505W-5K Window Air Conditioner. Retain this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or personal injury.

  • Ensure the unit is properly grounded to prevent electrical shock.
  • Do not operate the unit with a damaged power cord or plug. If the cord is damaged, it must be replaced by a qualified service technician.
  • Do not insert fingers or foreign objects into the air inlet or outlet grilles.
  • Always disconnect the power supply before cleaning or servicing the unit.
  • Do not use chemical solvents or flammable liquids for cleaning.
  • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Ensure the window opening is securely sealed around the unit to prevent air leakage and moisture intrusion.

2. Product Overview

The ZAFRO A8505W-5K is a compact and efficient window-mounted air conditioner designed to cool rooms up to 150 square feet. It features a powerful compressor for rapid cooling, multiple operating modes, and user-friendly controls.

ZAFRO A8505W-5K Window Air Conditioner

Figure 2.1: ZAFRO A8505W-5K Window Air Conditioner Unit.

Key Features:

  • Rapid Cooling: 5000 BTU capacity effectively cools spaces up to 150 sq. ft.
  • Multiple Functions: Offers 7 modes (Cool, Fan, Dry, Auto, Sleep, ECO, Timer) and four fan speeds for customized comfort.
  • Low Noise Operation: Operates at a minimum of 52 dB for a quiet environment.
  • ECO Mode: Energy-saving function to optimize power consumption.
  • Filter Check Light: Convenient reminder for timely filter cleaning.
  • Remote Control: Allows for easy adjustment of settings from a distance.
  • Environmentally Friendly Refrigerant: Uses R32 refrigerant.

3. What's in the Box

Verify that all components listed below are included in your package before beginning installation.

Contents of the ZAFRO A8505W-5K Air Conditioner Box

Figure 3.1: Illustrated view of included components.

  • ZAFRO A8505W-5K Window Air Conditioner Unit
  • Remote Control
  • User Manual
  • Window Sash Seal (Sponge) x1
  • Foam Top Window Gasket x1
  • Filler Panels x2
  • Sash Lock (Two holes) x1
  • Lock Frame x2
  • Top Rail (With sponge) x1
  • 3/8" Screws x4
  • 1/2" Screws x3
  • 3/4" Screws x4

4. Installation Instructions

This air conditioner is designed for installation in standard double-hung windows with a width between 23 inches and 34 inches (584mm-863mm) and a vertical clearance of at least 14.5 inches. For detailed steps, refer to the illustrated manual included in your package.

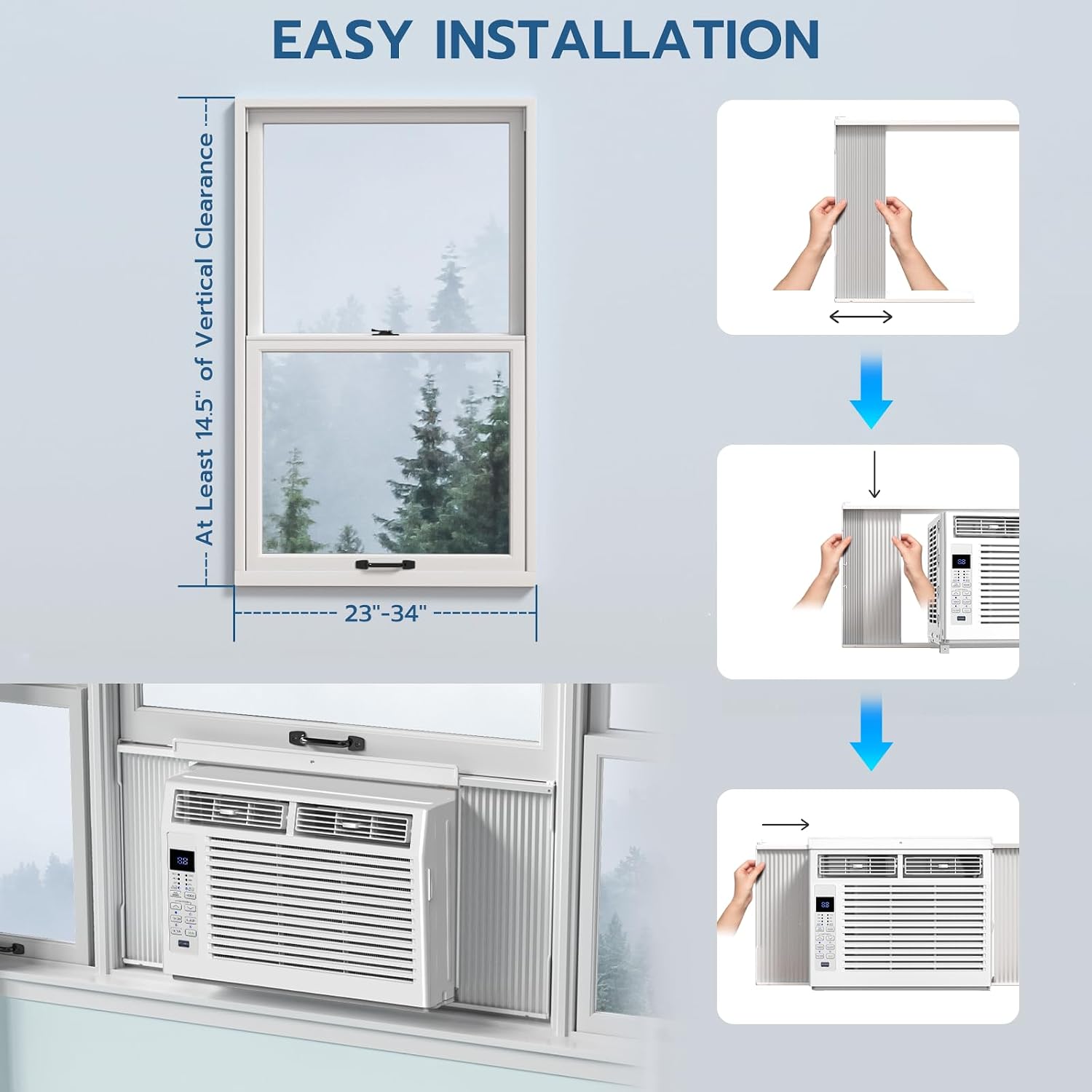

Diagram showing easy installation steps for the ZAFRO A8505W-5K Window Air Conditioner

Figure 4.1: Visual guide for window installation.

General Installation Steps:

  1. Prepare the Window: Ensure the window opening meets the specified dimensions. Clean the window sill and frame.
  2. Install Top Rail: Attach the top rail to the unit using the provided screws.
  3. Attach Filler Panels: Slide the filler panels into the side channels of the unit.
  4. Place Unit in Window: Carefully lift the unit and place it in the window opening, ensuring the bottom rail rests on the window sill. It is recommended to have assistance due to the unit's weight (approximately 36.3 lbs).
  5. Extend Filler Panels: Extend the filler panels to fill the window opening completely and secure them with screws.
  6. Secure the Unit: Install the sash lock and lock frames to firmly secure the unit in place and prevent the window from being opened from the outside.
  7. Seal Gaps: Apply the window sash seal and foam top window gasket to seal any gaps and improve insulation.
  8. Ensure Proper Drainage: Verify that the unit is slightly tilted outwards to allow for proper condensation drainage.

Installation Video Guide:

Video 4.1: Official video demonstrating the installation process for the ZAFRO Window Air Conditioner.

5. Operating Instructions

The ZAFRO A8505W-5K can be operated using the control panel on the unit or the included remote control. The digital display shows the current temperature and selected settings.

Control panel of the ZAFRO A8505W-5K Air Conditioner

Figure 5.1: Close-up of the unit's control panel.

Control Panel and Remote Functions:

  • POWER Button: Turns the unit ON or OFF.
  • MODE Button: Cycles through operating modes:
    • COOL: Provides cooling with adjustable temperature and fan speed.
    • FAN: Circulates air without cooling. Choose from High, Medium, Low, or Auto fan speeds.
    • DRY: Dehumidifies the room.
    • AUTO: Automatically selects cooling or fan-only operation based on room temperature.
  • Temperature Up/Down Arrows: Adjust the desired temperature in COOL or AUTO modes.
  • FAN SPEED Button: Selects fan speed (High, Medium, Low, Auto Speed).
  • ECO Button: Activates energy-saving mode. The unit will cycle on and off to maintain the set temperature, reducing power consumption.
  • SLEEP Button: Engages Sleep Mode, which gradually increases the set temperature over several hours to save energy and provide comfortable sleeping conditions.
  • TIMER Button: Sets a delay start or delay stop time for the unit (up to 24 hours).
  • FILTER Button: Resets the filter reminder light after cleaning the air filter.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your air conditioner.

Cleaning the Air Filter:

The filter check light will illuminate to remind you to clean the air filter. A dirty filter can reduce cooling efficiency and airflow.

  1. Disconnect the power supply to the unit.
  2. Open the front panel of the unit.
  3. Carefully remove the air filter.
  4. Wash the filter with warm, soapy water. Rinse thoroughly.
  5. Allow the filter to air dry completely before reinstalling. Do not expose to direct sunlight or heat.
  6. Reinstall the dry filter and close the front panel.
  7. Reconnect power and press the FILTER button on the control panel or remote to reset the filter reminder.

Cleaning the Unit Exterior:

  • Wipe the exterior casing with a soft, damp cloth.
  • Do not use harsh chemicals, abrasives, or solvents.

Seasonal Storage:

  • Before storing, run the unit in FAN mode for a few hours to dry out any internal moisture.
  • Clean the air filter and the exterior of the unit.
  • Store the unit in a dry, cool place, preferably in its original packaging.

7. Troubleshooting

Before contacting customer support, please refer to the following troubleshooting guide for common issues.

Problem Possible Cause Solution
Unit does not start No power supply; Power cord not fully plugged in; Blown fuse/tripped circuit breaker. Check power outlet; Ensure plug is secure; Reset circuit breaker or replace fuse.
Unit does not cool sufficiently Dirty air filter; Airflow blocked; Room too large; Doors/windows open; Temperature setting too high. Clean air filter; Remove obstructions; Close doors/windows; Lower temperature setting.
Water dripping outside Normal operation in high humidity. This is normal. Ensure the unit is slightly tilted outwards for proper drainage.
Water dripping inside Unit not tilted correctly; Drain plug blocked. Adjust unit tilt; Check and clear drain plug if accessible.
Noisy operation Loose installation; Fan hitting an obstruction. Ensure unit is securely installed; Check for and remove any obstructions.

8. Specifications

Detailed technical specifications for the ZAFRO A8505W-5K Window Air Conditioner.

Feature Specification
Brand ZAFRO
Model Number A8505W-5K
Cooling Power 5000 British Thermal Units (BTU)
Coverage Area Up to 150 Sq. Ft.
Product Dimensions (D x W x H) 13.07"D x 15.98"W x 12.01"H
Item Weight 36.3 Pounds
Voltage 115 Volts
Wattage 570 watts
Noise Level 50 Decibels (minimum)
Refrigerant R32
Window Opening Minimum Width 23 Inches (584 mm)
Window Opening Maximum Width 34 Inches (863 mm)
Window Opening Minimum Height 14.5 Inches
Control Method Remote Control, On-unit Buttons
Special Features 4 Way Swing, Dehumidifier, Dust Filter, Fast Cooling, Filter Light Reminder, Remote Controlled, Sleep Mode, ECO Mode, Timer

9. Warranty and Support

Your ZAFRO A8505W-5K Window Air Conditioner comes with a 1-Year Limited Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your product, please contact ZAFRO customer service:

Please have your model number (A8505W-5K) and proof of purchase ready when contacting support.
