WarmlyYours nTrust 2.0 Nonprogrammable Thermostat (UTN5-4999) Instruction Manual

Introduction

The WarmlyYours nTrust 2.0 Nonprogrammable Thermostat provides straightforward control for radiant heating systems. Its design features an LED display and capacitive touch interface for easy temperature adjustments. This thermostat is suitable for electric floor heating systems and hardwired radiant panels, offering dual voltage compatibility (120V/240V). It includes a 10k ohm floor sensor for efficient operation and has a built-in GFCI for safety, carrying cULus certification. Setup is guided by a user-friendly wizard.

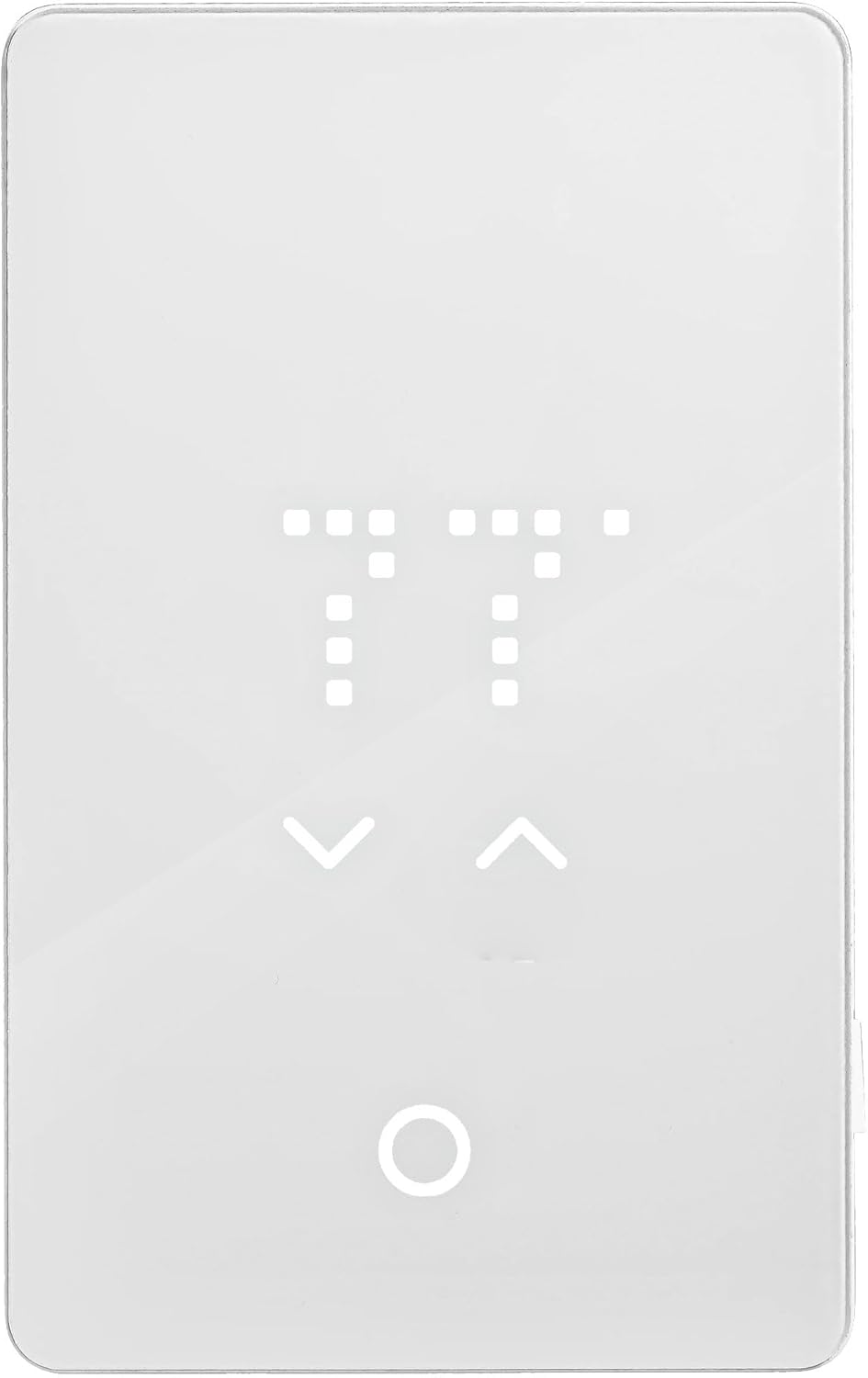

Figure 1: Front view of the WarmlyYours nTrust 2.0 Nonprogrammable Thermostat.

Setup Instructions

Proper installation is crucial for the safe and efficient operation of your nTrust 2.0 thermostat. Always ensure power is disconnected at the circuit breaker before beginning any wiring. This device is designed for installation by a qualified electrician.

1. Safety Precautions

• Turn off power: Before installation, ensure the power supply to the heating system is completely disconnected at the main circuit breaker.
• Verify voltage: Confirm that the voltage of your power supply matches the voltage requirements of your heating system (120V or 240V).
• Grounding: Ensure proper grounding according to local electrical codes.

2. Wiring the Thermostat

The nTrust 2.0 thermostat is designed for easy wiring. Refer to the wiring diagram on the back of the thermostat for specific connections. The thermostat features terminals for power supply, heating load, and the floor sensor.

Figure 2: Back view of the thermostat showing wiring terminals and diagram.

1. Separate components: Gently separate the thermostat's front plate from the back plate.
2. Connect heating cables: Connect the heating cables from your radiant system to the designated LOAD terminals on the thermostat's back plate.
3. Connect power supply: Connect the power supply wires from your circuit breaker to the LINE terminals. Ensure correct voltage connection (120V or 240V).
4. Connect floor sensor: Insert the floor sensor wires into the dedicated sensor terminals. No polarity is required for the sensor wires.
5. Grounding: Connect the ground wire from your electrical box to the thermostat's ground terminal.

For a visual guide on installation, please watch the official WarmlyYours video below:

Another helpful video covering setup and initial use:

3. Mounting the Thermostat

1. Secure back plate: Once all wiring is complete and secure, mount the back plate to the electrical box using the provided screws.
2. Attach face plate: Carefully align the front plate with the back plate and snap it into place.

Figure 3: Thermostat installed on a wall.

Operating Instructions

The nTrust 2.0 thermostat is designed for simple, non-programmable operation. Once installed and powered on, it will display the current floor temperature.

1. Adjusting Temperature

• Wake up: Tap the screen to wake up the thermostat if the display is off.
• Set temperature: Use the up and down arrows on the capacitive touch interface to set your desired floor temperature. The new setting will blink a few times to confirm.

Figure 4: Adjusting the temperature using the touch interface.

2. Accessing Settings

The thermostat features a menu button (circular icon) to access additional settings. Press and hold this button for 3 seconds to enter the settings menu.

Figure 5: Thermostat touch areas and menu button.

For detailed instructions on changing settings, refer to the following video:

Maintenance

The WarmlyYours nTrust 2.0 thermostat requires minimal maintenance. Keep the screen clean and free from dust and debris. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents, as these can damage the display and touch interface.

Regularly check the connections for any signs of wear or damage. If any issues are observed, contact a qualified electrician for inspection and repair.

Troubleshooting

If you encounter issues with your nTrust 2.0 thermostat, consider the following common troubleshooting steps:

• No display/power: Check the circuit breaker to ensure power is supplied to the thermostat. Verify all wiring connections are secure.
• Incorrect temperature reading: Ensure the floor sensor is properly installed and connected. Check for any damage to the sensor cable.
• Heating not activating: Verify the desired temperature is set above the current floor temperature. Check the GFCI for tripping.
• GFCI tripping: A tripping GFCI indicates a ground fault. Immediately disconnect power and contact a qualified electrician to diagnose and resolve the issue. Do not attempt to bypass the GFCI.

If problems persist after attempting these steps, contact WarmlyYours technical support for assistance.

Specifications

Warranty Information

The WarmlyYours nTrust 2.0 Nonprogrammable Thermostat comes with a limited 3-year warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full details regarding warranty terms and conditions, refer to the documentation included with your product or visit the WarmlyYours official website.

Technical Support

WarmlyYours provides lifetime technical support for the nTrust 2.0 thermostat. If you require assistance with installation, operation, troubleshooting, or any other technical queries, please contact WarmlyYours customer service. Contact information can typically be found on the product packaging, the WarmlyYours website, or within the included product literature.
