Lifenaxx LX-055 Advanced Window Cleaning Robot User Manual

Introduction

Thank you for choosing the Lifenaxx LX-055 Advanced Window Cleaning Robot. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and keep it for future reference.

The Lifenaxx LX-055 is designed to simplify window cleaning on smooth surfaces such as windows, mirrors, and tiles. It features strong suction, an automatic dual-nozzle spray system, and multiple cleaning modes for streak-free results.

Safety Instructions

To ensure safe operation and prevent damage, please observe the following safety precautions:

• Always attach the safety rope securely before operating the robot, especially when cleaning at heights.
• Ensure the power adapter is properly connected during operation. The internal battery is for backup only.
• Do not use the robot on cracked or damaged glass surfaces.
• Keep hands, hair, and loose clothing away from moving parts.
• Do not use the robot in rainy or extremely humid conditions.
• Keep the robot away from children and pets.
• Use only recommended cleaning solutions or water in the water tank.
• Regularly check the cleaning pads for wear and replace them when necessary.
• If the robot malfunctions, disconnect power immediately and refer to the troubleshooting section.

Product Overview

Familiarize yourself with the components of your Lifenaxx LX-055 robot.

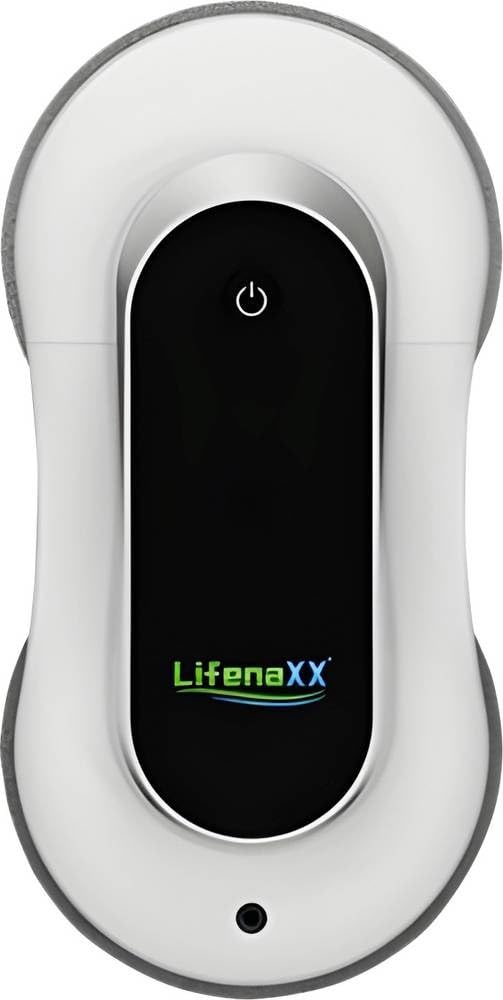

Figure 1: Top view of the Lifenaxx LX-055 robot, highlighting the central control panel with the power button and brand logo.

Figure 2: Angled perspective of the Lifenaxx LX-055, illustrating its sleek profile and the attached cleaning pads on the underside.

Key Components:

• Main Unit: Houses the motor, suction mechanism, and control electronics.
• Cleaning Pads: Removable microfiber pads for wiping surfaces.
• Water Tank: 70ml capacity for cleaning solution.
• Spray Nozzles: Two precision nozzles for automatic liquid distribution.
• Power Adapter: For continuous power supply during operation.
• Safety Rope: Essential safety feature to prevent falls.
• Remote Control: For convenient operation and mode selection.
• Li-ion Battery: Internal backup power source.

Setup

1. Charge the Internal Battery: Before first use, connect the robot to the power adapter and allow the internal Li-ion battery to fully charge. This ensures the backup power function is ready.
2. Attach Cleaning Pads: Securely attach clean microfiber cleaning pads to the underside of the robot. Ensure they are flat and cover the entire cleaning surface.
3. Fill Water Tank: Open the water tank cap and carefully fill the 70ml tank with clean water or a recommended window cleaning solution. Close the cap tightly.
4. Connect Power Adapter: Plug the power adapter into the robot and then into a power outlet.
5. Secure Safety Rope: Attach one end of the safety rope to the robot and the other end to a sturdy anchor point indoors, such as a window handle or heavy furniture. This is critical for preventing falls.

Operating Instructions

1. Placement: Place the robot on the surface to be cleaned, ensuring it is flat against the glass.
2. Power On: Press the power button on the robot or the remote control. The robot will activate its suction, adhering firmly to the surface. Wait for the suction to stabilize before releasing your hand.
3. Select Cleaning Mode: Use the remote control to select one of the three intelligent cleaning programs (e.g., Z-path, N-path, or automatic). The robot will begin its cleaning cycle.
4. Automatic Spray: The dual spray nozzles will automatically dispense cleaning solution as the robot moves, ensuring even coverage.
5. Monitoring: Monitor the robot's progress. If it encounters an obstacle or completes a cycle, it may stop or return to its starting position.
6. Power Off: To stop the robot, press the power button on the robot or remote control. The suction will release, and you can carefully remove the robot from the surface.

Remote Control Functions:

• Power On/Off: Starts or stops the robot.
• Directional Arrows: Manually control the robot's movement (if applicable).
• Mode Selection: Cycles through available cleaning patterns.
• Spray Button: Manually activates the spray function (if applicable, otherwise automatic).

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your robot.

• Clean Cleaning Pads: After each use, remove the microfiber pads and wash them with water and mild detergent. Allow them to air dry completely before reattaching.
• Empty Water Tank: Drain any remaining water or cleaning solution from the tank after each use to prevent residue buildup.
• Wipe Down Robot: Use a soft, dry cloth to wipe the exterior of the robot, removing any dust or dirt. Do not use abrasive cleaners or immerse the robot in water.
• Check Nozzles: Periodically inspect the spray nozzles for blockages. If necessary, gently clear them with a small brush.
• Store Properly: When not in use, store the robot in a cool, dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter issues with your Lifenaxx LX-055, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

Specifications

Warranty and Support

Lifenaxx products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Lifenaxx website. For technical support, troubleshooting assistance beyond this manual, or to inquire about spare parts, please contact Lifenaxx customer service through the contact information provided on our website or your purchase documentation.
