Majnesvon 7-in-1 Foldable Toddler Tricycle Instruction Manual

1. Introduction

Thank you for choosing the Majnesvon 7-in-1 Foldable Toddler Tricycle. This versatile product is designed to adapt to your child's growth from 12 months to 72 months, offering multiple modes of use. Please read this manual carefully before assembly and use to ensure safe operation and proper maintenance.

Image 1.1: The Majnesvon 7-in-1 Foldable Toddler Tricycle in Light Brown, showcasing its primary configuration with canopy and parent handle.

2. Safety Information

Your child's safety is paramount. Always adhere to the following safety guidelines:

• This tricycle is suitable for children aged 12 to 72 months.
• Always supervise your child when they are using the tricycle.
• Ensure all locking mechanisms are securely engaged before each use.
• Do not use the tricycle on uneven terrain, near stairs, or in traffic.
• Ensure the child wears appropriate safety gear, such as a helmet, especially when transitioning to independent riding modes.
• Regularly inspect the tricycle for loose parts, damage, or wear. Discontinue use if any damage is found.
• Keep small parts away from children to prevent choking hazards during assembly.

3. Package Contents

Upon unpacking, please verify that all components are present:

• 1 x Baby Tricycle (main frame with wheels, seat, and handlebars)
• 1 x Removable and Adjustable Parent Handle
• 1 x Removable Canopy
• 1 x Removable Guardrail
• 1 x Set of Removable Pedals
• Instruction Manual

4. Product Features

The Majnesvon 7-in-1 Foldable Toddler Tricycle is designed with several key features for safety, comfort, and adaptability:

• 7-in-1 Multifunctional Design: Adapts to various stages of your child's development, from a push trike to a balance bike.
• Premium Safety Features: Robust aluminum frame, 3-point safety harness, and anti-slip design ensure stability.
• Adjustable Push Handle: 135-degree rotating and height-adjustable handle for parental control and comfort.
• Lightweight & Portable: Weighs only 13 lbs with a quick-folding design for easy storage and transport.
• Adjustable Canopy: Provides multi-level sun protection for outdoor use.
• Comfortable Cushion: Ergonomically designed seat for a smooth ride.
• Folding Footrest: Convenient for younger children who cannot reach the pedals.

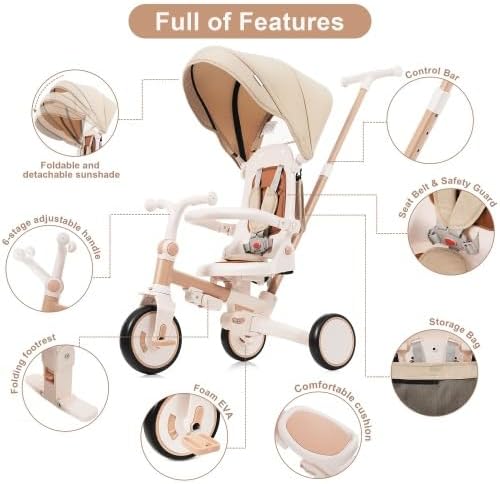

Image 4.1: Detailed view of the tricycle's features, highlighting the foldable canopy, 6-stage adjustable handle, seat belt, safety guard, storage bag, folding footrest, foam EVA wheels, and comfortable cushion.

5. Assembly and Setup

The tricycle comes partially assembled. Follow these steps for initial setup and configuration:

1. Unfolding the Frame: Locate the folding mechanism (usually a button or lever) on the main frame. Press or pull it to unfold the tricycle until it locks into place.
2. Attaching the Parent Handle: Insert the adjustable parent handle into the designated slot at the rear of the tricycle. Ensure it clicks securely into position. Adjust the height by pressing the adjustment button and sliding the handle to your desired level.
3. Installing the Canopy: Attach the canopy frame to the designated points above the seat. Secure the fabric canopy to the frame. Adjust its angle for optimal sun protection.
4. Securing the Guardrail: If using the guardrail mode, attach the guardrail around the seat. Ensure it is firmly locked on both sides.
5. Attaching Pedals/Footrest: For younger children, ensure the folding footrest is extended. For older children, attach the pedals to the front wheel axle. Ensure they are securely fastened.
6. Safety Harness: Adjust the 3-point safety harness to fit your child snugly and securely.

Folding for Storage

To fold the tricycle for storage or transport:

1. Remove the parent handle and canopy if desired.
2. Retract the footrest and remove pedals if attached.
3. Locate the quick-folding button or lever on the frame. Activate it and carefully fold the tricycle until it collapses into its compact form.
4. Ensure all parts are securely tucked in to prevent damage during transport.

Image 5.1: The tricycle in its folded state, illustrating its compact size for storage in a car trunk or small living space. A person is shown holding the folded tricycle by its handle.

Image 5.2: A close-up view of the tricycle when fully folded, highlighting its compact design for easy portability.

6. Operating Instructions: 7-in-1 Modes

The Majnesvon tricycle offers seven distinct modes to support your child's development:

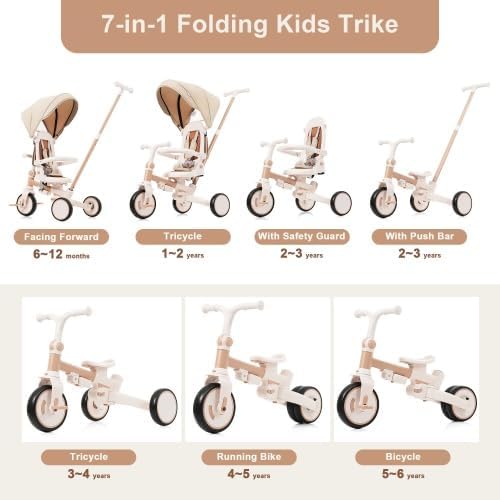

Image 6.1: Visual representation of the seven different configurations of the tricycle, detailing the recommended age range for each mode.

1. Facing Forward (6-12 months): Child faces forward, secured by the harness and guardrail. Parent controls direction and speed with the push bar. Footrest extended.
2. Tricycle with Parent Handle (1-2 years): Similar to the previous mode, but the child may begin to use the footrest or attempt to reach pedals. Parent maintains full control.
3. With Safety Guard (2-3 years): Child can steer, but the parent still has control via the push bar. Guardrail provides added security. Pedals may be engaged or disengaged.
4. With Push Bar (2-3 years): Guardrail removed, allowing more freedom. Parent still guides with the push bar. Child can practice pedaling.
5. Standard Tricycle (3-4 years): Parent handle removed. Child rides independently, steering and pedaling.
6. Running Bike (4-5 years): Pedals removed and stored. Child uses feet to push off the ground, developing balance and coordination.
7. Bicycle (5-6 years): Similar to the standard tricycle, but often implies a more advanced stage of independent riding, potentially with the seat adjusted for height.

To switch between modes, adjust or remove components such as the parent handle, canopy, guardrail, and pedals as needed. Always ensure all components are securely attached or removed according to the desired mode.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your tricycle:

• Cleaning: Wipe down the frame and plastic parts with a damp cloth and mild soap. Avoid harsh chemicals. The fabric canopy and seat cushion can be spot cleaned.
• Inspection: Periodically check all screws, bolts, and fasteners to ensure they are tight. Inspect wheels for wear and tear. Ensure the safety harness is intact and functional.
• Storage: Store the tricycle in a dry, cool place away from direct sunlight and extreme temperatures to prevent material degradation.
• Lubrication: If any moving parts (e.g., wheel axles) become stiff, apply a small amount of silicone-based lubricant.

8. Troubleshooting

If you encounter any issues, refer to the following common problems and solutions:

• Tricycle does not fold smoothly: Ensure all attachments (parent handle, canopy) are removed or adjusted correctly. Check for any obstructions in the folding mechanism.
• Wheels are stiff or squeaky: Inspect for debris caught in the wheels. Apply a small amount of lubricant to the wheel axles if necessary.
• Parent handle feels loose: Ensure the handle is fully inserted and the locking pin or button is engaged. Check for any damage to the locking mechanism.
• Safety harness is difficult to buckle/unbuckle: Ensure no fabric is caught in the buckle. Clean the buckle if dirt or debris is present.

If the problem persists or you encounter an issue not listed here, please contact customer support.

9. Specifications

Image 9.1: Detailed dimensional drawing of the tricycle, indicating key measurements in inches for various components and overall size.

10. Warranty and Support

Warranty information for this product is not explicitly provided in the available data. For specific warranty details, please refer to the product packaging or contact Majnesvon customer service directly.

For further assistance, technical support, or to inquire about replacement parts, please contact Majnesvon customer service through their official channels.
