1. Introduction
This user manual provides detailed instructions for the safe and efficient operation of your Redroad W15 Pro Wet Dry Vacuum Cleaner. Please read this manual thoroughly before first use and retain it for future reference. This appliance is designed for cleaning various hard floor surfaces, offering vacuuming, mopping, and self-cleaning functionalities.
2. Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.
- Read all instructions before using the appliance.
- Do not immerse the appliance in water or other liquids.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
- Do not handle plug or appliance with wet hands.
- Turn off all controls before unplugging.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Use extra care when cleaning on stairs.
- Do not use without filters in place.
- Unplug from outlet when not in use and before servicing.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Package Contents
Verify that all items are present and in good condition upon unpacking.
Image: Redroad W15 Pro Package Contents. Includes main unit, handle, charging dock, two rotating brushes, two replacement filters, a cleaning brush, and the user manual.
- Main Unit (1)
- Handle (1)
- Charging Dock (1)
- Rotating Brush (2)
- Replacement Filter (2)
- Cleaning Brush (1)
- User Manual (1)
4. Product Overview
Familiarize yourself with the components of your Redroad W15 Pro Wet Dry Vacuum Cleaner.
Image: The Redroad W15 Pro Wet Dry Vacuum Cleaner shown with its main components and included accessories like extra brush rolls and filters.
Key Features:
- 3-in-1 Cleaning Modes: Mop, Dry Vac, and Steam for versatile cleaning.
- 180° Lie-Flat Design: Allows cleaning under low furniture.
- Self-Propelled: Assists movement for effortless cleaning.
- Self-Cleaning & Hot-Air Drying: Automatic brush roll cleaning and drying at 85°C.
- Smart LED Digital Display & Voice Prompts: Provides real-time status and guidance.
- Powerful Suction: 22,000 Pa for effective debris pickup.
- Dual Water Tank Design: Separate tanks for clean and dirty water (650ml clean, 700ml dirty).
- Long Runtime: Up to 60 minutes in Auto/Suction mode.
5. Setup
5.1 Assembly
- Insert the handle into the main unit until it clicks securely into place.
- Ensure the brush roll is correctly installed in the cleaning head.
- Place the main unit onto the charging dock.
5.2 Charging
- Connect the charging dock to a power outlet.
- Place the vacuum cleaner on the charging dock. The LED display will indicate charging status.
- Fully charge the battery before first use (approximately 4-5 hours).
5.3 Filling Water Tanks
- Remove the clean water tank from the main unit.
- Fill the clean water tank with clean tap water up to the MAX line. For mopping, you may add a small amount of approved floor cleaning solution (refer to solution manufacturer's instructions).
- Reinsert the clean water tank securely.
- Ensure the dirty water tank is empty before starting operation.
6. Operating Instructions
6.1 Power On/Off
- Press the Power button on the handle to turn the vacuum cleaner on.
- Press the Power button again to turn it off.
6.2 Cleaning Modes
The Redroad W15 Pro offers three cleaning modes:
- Mop Mode: For daily cleaning of hard floors like tile and wood. Dispenses water and mops while vacuuming light debris.
- Dry Vac Mode: Quickly vacuums up spills and leaves floors dry. Ideal for liquid messes.
- Steam Mode: Uses high-temperature steam for deep cleaning sticky messes and grime. Suitable for kitchens, bathrooms, and pet areas.
Switch between modes using the mode selection button on the handle. The LED display will show the active mode.
Image: The Redroad W15 Pro in use, demonstrating its cordless operation and highlighting its 60-minute runtime in Auto/Suction mode and 22,000 Pa suction power.
6.3 LED Digital Display and Voice Prompts
The integrated LED display provides real-time information on battery life, current cleaning mode, and water tank levels. Voice prompts will guide you through operations and alert you to important statuses, such as low battery or full dirty water tank.
Image: The Redroad W15 Pro displaying voice alerts for critical statuses like low battery, full dirty water container, and empty clean water tank, ensuring timely user action.
6.4 180° Lie-Flat Design and Edge Cleaning
The vacuum cleaner's design allows it to lie flat at a 180° angle, enabling easy cleaning under beds, sofas, and other low-clearance furniture. Its edge cleaning technology reaches within 0.2 inches of walls and corners for comprehensive coverage.

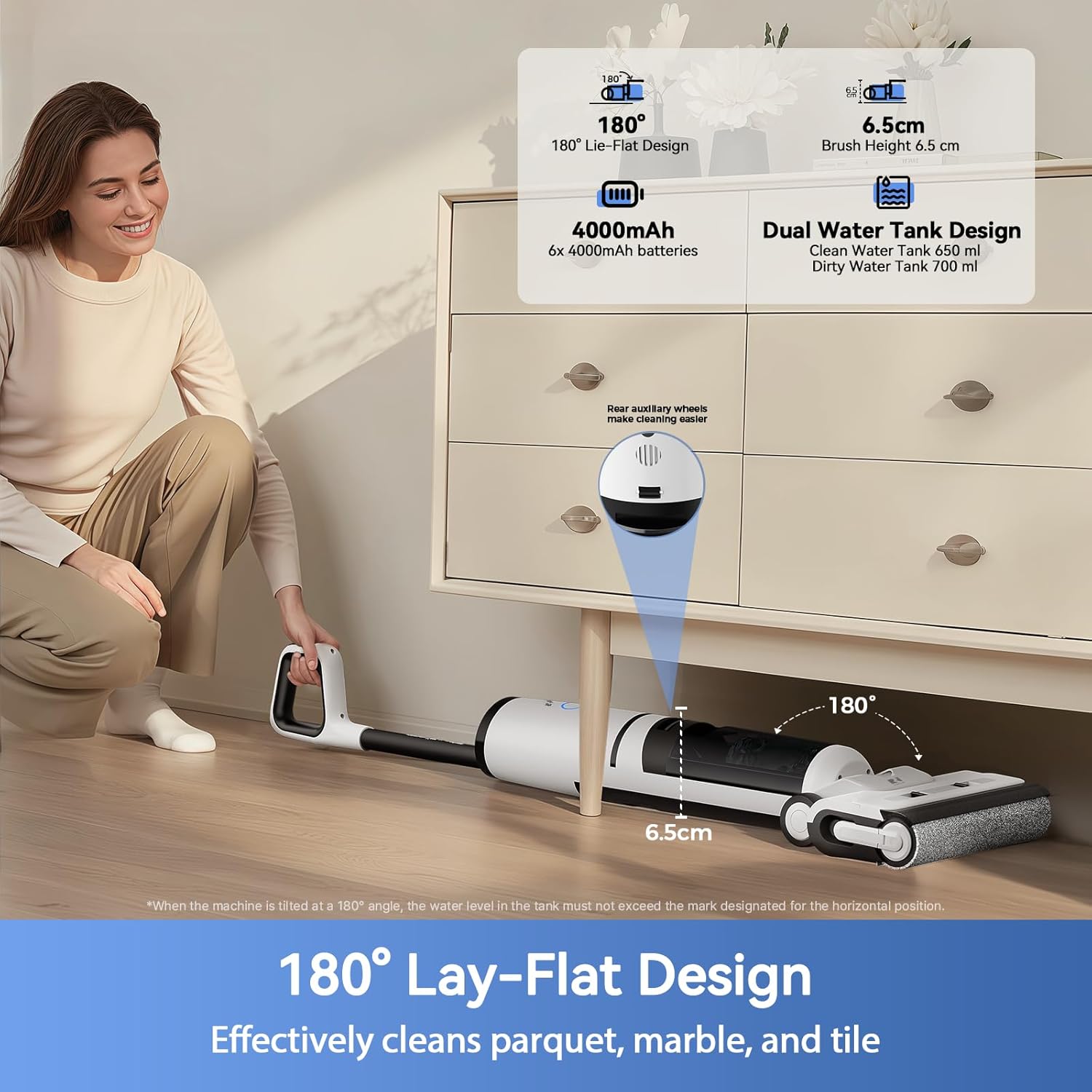

Image: The Redroad W15 Pro showcasing its 180-degree lie-flat design, allowing it to easily clean under low furniture. Also highlights its dual water tank system and 4000mAh battery capacity.
Image: The Redroad W15 Pro illustrating its triangular cleaning capability, reaching close to walls and corners for thorough cleaning.
6.5 Self-Propelled Movement
The vacuum cleaner features a self-propelled design with wheels, making it easy to maneuver across floors with minimal effort. This reduces user fatigue during cleaning.
Image: The Redroad W15 Pro demonstrating its automatic movement with wheels, providing effortless cleaning traction.
6.6 Cleaning Various Messes
The Redroad W15 Pro is effective at cleaning a variety of messes, including liquid spills, dry debris, pet hair, and sticky stains on parquet, marble, and tile floors.
Image: The Redroad W15 Pro effectively cleaning different types of messes, including liquid spills, food crumbs, tangled hair, and sticky pasta sauce, on various hard floor surfaces.
7. Maintenance
7.1 Self-Cleaning and Hot-Air Drying
After each use, place the vacuum cleaner on the charging dock and activate the self-cleaning function. The system will automatically rinse the brush roll with 100°C hot water and then dry it with 85°C warm air to prevent odors and bacteria growth.
Image: The Redroad W15 Pro's automatic hot air drying process at 85°C, ensuring the brush roll is thoroughly dried after self-cleaning to prevent odors and maintain hygiene.
7.2 Emptying and Cleaning Water Tanks
- After each cleaning session, remove the dirty water tank and empty its contents.
- Rinse the dirty water tank thoroughly with clean water.
- Periodically clean the clean water tank to prevent residue buildup.
7.3 Brush Roll Cleaning
- Even with self-cleaning, it is recommended to periodically remove the brush roll for manual inspection and cleaning of any tangled hair or debris.
- Use the provided cleaning brush to remove stubborn dirt.
- Ensure the brush roll is completely dry before reinserting.
7.4 Filter Maintenance
- The HEPA filter should be cleaned regularly. Remove the filter and tap it gently to dislodge dust.
- If necessary, rinse the filter with clean water. Ensure it is completely dry before reinserting to prevent damage to the motor.
- Replace filters every 3-6 months, or as needed, to maintain optimal suction performance.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on | Battery is low or depleted. | Charge the vacuum cleaner fully. |
| No suction or weak suction | Dirty water tank is full. Clean water tank is empty. Brush roll is clogged. Filter is dirty. | Empty the dirty water tank. Fill the clean water tank. Clean the brush roll. Clean or replace the filter. |
| Water not dispensing | Clean water tank is empty. Nozzle is clogged. | Fill the clean water tank. Check and clear any clogs in the nozzle. |
| Unpleasant odor from brush roll | Brush roll not dried properly. | Ensure self-cleaning and hot-air drying cycle completes. Manually dry brush roll if needed. |
| Voice prompts not clear | Volume setting too low or language incorrect. | Adjust volume or language settings via the control panel. |
If the problem persists after trying these solutions, please contact Redroad customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Redroad |
| Model | W15 Pro |
| Suction Power | 22,000 Pa |
| Power/Wattage | 200 Watts |
| Voltage | 22.2 Volts (DC) |
| Battery Capacity | 4000mAh (6x batteries) |
| Runtime | Up to 60 minutes (Auto/Suction Mode) |
| Clean Water Tank Capacity | 650 ml |
| Dirty Water Tank Capacity | 700 ml |
| Product Dimensions | 35 x 26 x 74 cm |
| Item Weight | 7.99 kg |
| Filter Type | HEPA Filter |
| Special Features | Cordless, Lightweight, Low Noise, Self-Propelled, Wet/Dry, 180° Lie-Flat, Self-Cleaning, Hot Drying, LED Display, Voice Prompts |
10. Warranty and Support
The Redroad W15 Pro Wet Dry Vacuum Cleaner comes with a 2-year extended warranty. Redroad also provides lifetime technical support for this product.
For warranty claims, technical assistance, or any inquiries, please contact Redroad customer service through their official channels or the retailer where the product was purchased.
Image: Redroad's commitment to customer service, highlighting a 2-year product warranty, 24/7 online support, and a 100% hassle-free satisfaction guarantee.
