ATTACK SHARK X1 Ultralight Wireless Gaming Mouse User Manual

Introduction

This user manual provides comprehensive instructions for the setup, operation, and maintenance of your ATTACK SHARK X1 Ultralight Wireless Gaming Mouse. Designed for high-performance gaming and daily use, the X1 features a PixArt PAW3395 Pro Sensor, multiple connectivity options, and a magnetic RGB charging dock. Please read this manual thoroughly to ensure optimal performance and longevity of your device.

Image: The ATTACK SHARK X1 gaming mouse in red, shown with its magnetic RGB charging dock. The mouse is ultralight and designed for high-performance use.

Package Contents

Verify that all items are present in your package:

• ATTACK SHARK X1 Ultralight Wireless Gaming Mouse
• Magnetic RGB Charging Dock
• USB Type-C Charging Cable
• 2.4GHz USB Wireless Receiver
• Anti-Slip Grip Tape
• User Manual (this document)

Product Overview

Familiarize yourself with the components and controls of your ATTACK SHARK X1 mouse and charging dock.

Image: Diagram illustrating the various components of the ATTACK SHARK X1 mouse and its charging dock, including dimensions and port locations.

Mouse Components:

• Left/Right Click Buttons: Equipped with OMRON optical micro switches for over 100 million clicks.
• Scroll Wheel: F-Switch encoder for precise scrolling.
• DPI Button: Located on the top, allows cycling through DPI settings.
• Side Buttons: Programmable for various functions.
• Indicator Light: Displays battery status and DPI level.
• Type-C Port: For wired connection and charging.
• Switch: Power and connection mode switch (Wired/2.4Ghz/Bluetooth).
• Bluetooth Toggle: For activating Bluetooth mode.
• 2.4GHz Dongle Storage: Compartment for the USB wireless receiver.
• Magnetic Points: For secure connection to the charging dock.
• PTFE Feet: For smooth glide on surfaces.

Charging Dock Components:

• Magnetic Points: Align with mouse for charging.
• Touchpad for Light Switching: Controls RGB lighting effects.
• USB-A Port: For connecting the 2.4GHz wireless receiver.
• Type-C Port: For connecting the dock to a power source.

Setup

1. Initial Charging:

Before first use, it is recommended to fully charge the mouse. Connect the magnetic RGB charging dock to a USB power source using the provided Type-C cable. Place the mouse onto the dock, ensuring the magnetic points align for a secure connection. The RGB lighting on the dock indicates charging status.

Image: The ATTACK SHARK X1 mouse magnetically attached to its charging dock, highlighting the RGB lighting and fast charging capability.

2. Attaching Anti-Slip Grip Tape:

For enhanced grip and comfort, you may apply the included anti-slip grip tape to the designated areas on the mouse. Ensure the mouse surface is clean and dry before application for optimal adhesion.

Operating Instructions

Connectivity Modes:

The ATTACK SHARK X1 supports three connection modes: Type-C Wired, 2.4GHz Wireless, and Bluetooth. Switch between modes using the button on the bottom of the mouse.

Image: The ATTACK SHARK X1 mouse connected via its Type-C cable, illustrating the three connectivity options: Bluetooth, 2.4GHz Wireless, and Type-C Wired.

• Type-C Wired Mode: Connect the mouse directly to your computer using the USB Type-C cable. This mode allows for simultaneous use and charging.
• 2.4GHz Wireless Mode:
  1. Remove the 2.4GHz USB wireless receiver from its storage compartment on the mouse.
  2. Plug the receiver into an available USB-A port on your computer or into the USB-A port on the charging dock.
  3. Set the mouse's bottom switch to the 2.4Ghz position. The mouse will automatically connect.
• Bluetooth Mode:
  1. Set the mouse's bottom switch to the Bluetooth position.
  2. Press and hold the Bluetooth toggle button on the mouse until the indicator light flashes, indicating pairing mode.
  3. On your computer or device, search for Bluetooth devices and select "ATTACK SHARK X1" to pair.

DPI Adjustment:

The mouse features a PixArt PAW3395 Pro Sensor with a maximum DPI of 40000. You can cycle through preset DPI levels by pressing the DPI button on the top of the mouse. For fine-tuning and custom DPI settings in 50-unit increments, use the programmable web driver.

Programmable Features (Web Driver):

Unlock the full potential of your ATTACK SHARK X1 mouse by utilizing its programmable web driver. This software allows for comprehensive customization, including:

• Creating and assigning macros.
• Re-assigning key functions for all buttons.
• Fine-tuning DPI settings.
• Adjusting polling rate.

Access the web driver via this link: bit.ly/4mqcdwo. No download is required for the web interface, but a small client-side executable may be needed for communication.

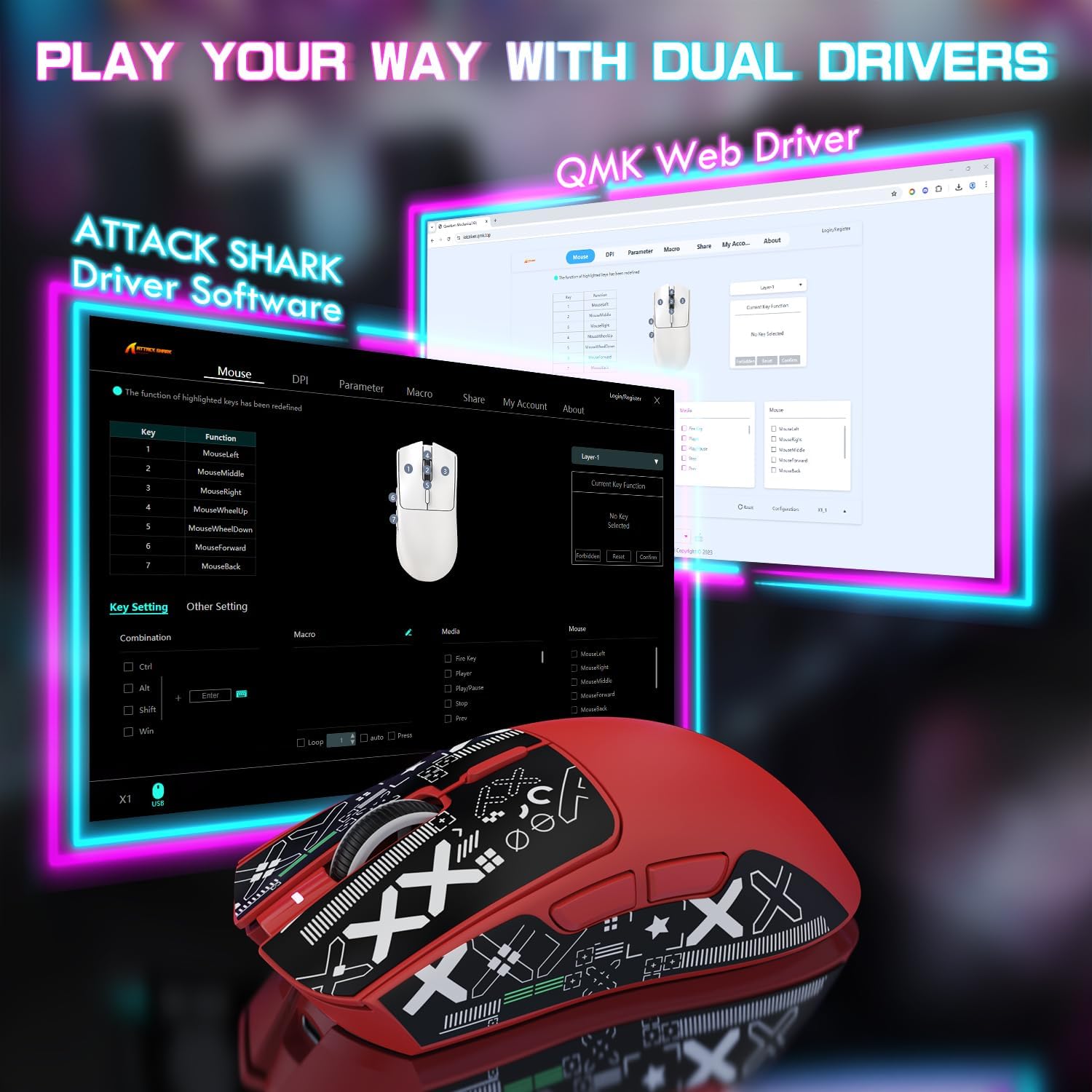

Image: Screenshot of the ATTACK SHARK X1 web driver interface, showing options for key assignment, DPI settings, and macro creation.

RGB Lighting Control:

The magnetic RGB charging dock features dynamic lighting effects. These can be adjusted by clicking the upgraded touchscreen controls located on the dock itself.

Charging

The ATTACK SHARK X1 mouse is equipped with a large-capacity built-in battery, offering up to 200 hours of usage on a full charge. Charging takes approximately 2-3 hours for a complete charge.

• Via Charging Dock: Place the mouse on the magnetic RGB charging dock. Ensure proper alignment for charging to begin. The dock's RGB lighting will indicate charging status.
• Via Type-C Cable: Connect the mouse directly to a USB power source or computer using the provided Type-C cable. This allows for continued use while charging.

The mouse features a smart sleep mode to conserve battery life during periods of inactivity.

Image: Visual representation of the ATTACK SHARK X1 mouse's long-lasting battery, indicating up to 200 hours of power and a 2-3 hour charging time.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the mouse and charging dock. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the device. Avoid abrasive cleaners or solvents.
• Storage: When not in use for extended periods, store the mouse and dock in a cool, dry place away from direct sunlight and extreme temperatures.
• PTFE Feet: The Teflon HyperGlide feet are designed for smooth movement. If they become worn, replacement feet may be available from the manufacturer or authorized resellers.

Troubleshooting

Specifications

Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official ATTACK SHARK website. Support for the ATTACK SHARK X1 mouse, including driver updates and FAQs, can be found through the web driver link provided in this manual (bit.ly/4mqcdwo) or by contacting ATTACK SHARK customer service.

For additional product information and accessories, visit the ATTACK SHARK Store on Amazon.
