Introduction
Welcome to the user manual for your Acer Nitro V 15 ANV15-52 Gaming Laptop. This document provides essential information for setting up, operating, maintaining, and troubleshooting your device. The Acer Nitro V 15 is designed for an immersive gaming experience, powered by an Intel Core i7-13620H processor and NVIDIA GeForce RTX 5050 graphics.
Figure 1: Acer Nitro V 15 ANV15-52 Gaming Laptop.
Setup
1. Unboxing and Initial Inspection
Carefully remove your laptop and all accessories from the packaging. Verify that all components, including the charger, are present and undamaged. Keep the packaging for future transport or service needs.
2. Connecting the Power Adapter
Connect the power adapter to the laptop's power input port and then plug it into a wall outlet. It is recommended to fully charge the battery before initial use.
3. Operating System Installation
This laptop is shipped without a pre-installed operating system (DOS). You will need to install a compatible operating system, such as Windows or Linux, to use the device. Ensure you have the necessary installation media (USB drive) and drivers ready. Drivers can typically be downloaded from the Acer support website for your specific model.
4. Connecting Peripherals
Utilize the available ports to connect external devices such as a mouse, external keyboard, or monitor. The laptop features multiple USB 3.2 Type-A ports and a Thunderbolt port for versatile connectivity.
Figure 2: Side view of the laptop displaying connectivity ports.
Figure 3: Rear view of the laptop with power and display output ports.
Operating Your Laptop
1. Power On/Off and Sleep Mode
- To power on, press the power button located on the keyboard.
- To shut down, use the operating system's shutdown function.
- To enter sleep mode, close the lid or select 'Sleep' from the operating system's power options.
2. Keyboard and Touchpad
The laptop features a full-size QWERTY keyboard, often with backlighting for low-light conditions. The precision touchpad supports multi-touch gestures for navigation.

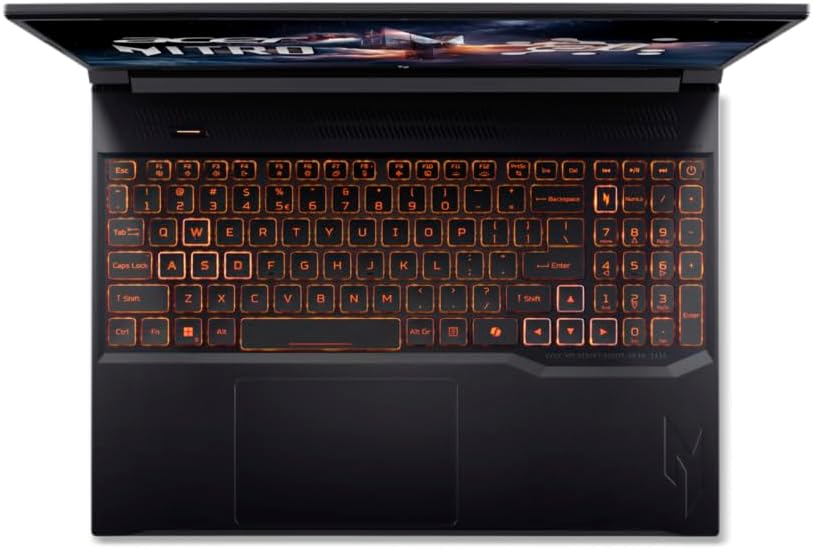

Figure 4: Top-down view of the laptop keyboard and touchpad.
3. Display Features
Enjoy clear visuals on the 15.6-inch Full HD (1920 x 1080) LCD display with a 165Hz refresh rate, providing smooth and responsive gaming. The narrow bezels enhance the immersive viewing experience.
4. Wireless Connectivity
The laptop supports Wi-Fi 6 (802.11ax) for high-speed wireless internet access. Connect to compatible networks for online gaming, streaming, and browsing.
Maintenance
1. Cleaning
- Use a soft, lint-free cloth to clean the screen and exterior surfaces. Avoid harsh chemicals.
- Periodically clean the keyboard and touchpad to remove dust and debris.
2. Battery Care
- Avoid fully discharging the battery frequently.
- Store the laptop in a cool, dry place if not used for extended periods.
- Use only the original Acer power adapter.
3. Cooling System
Gaming laptops generate heat. Ensure the cooling vents are not obstructed to maintain optimal performance and prevent overheating. Regular cleaning of the vents can help.
Figure 5: Bottom view of the laptop, highlighting cooling vents.
4. Software Updates
Regularly update your operating system, drivers, and gaming software to ensure stability, security, and optimal performance.
Troubleshooting
If you encounter issues with your Acer Nitro V 15 laptop, refer to the following common solutions:
- No Power: Ensure the power adapter is securely connected to both the laptop and a working power outlet. Check the power button.
- Display Issues: If the screen is blank, try connecting an external monitor to verify if the laptop is functioning. Adjust display settings in your operating system.
- Performance Problems: Close unnecessary applications, update drivers, and ensure the cooling vents are clear.
- Operating System Installation: As noted in the setup section, this laptop requires an OS installation. If you face issues during OS setup, ensure all necessary drivers (especially storage drivers) are loaded during the installation process. Refer to Acer's support website for specific driver downloads and installation guides.
- Connectivity Issues: For Wi-Fi problems, restart your router and laptop. Check network settings in your operating system.
For further assistance, visit the official Acer support website or contact their customer service.
Specifications
| Feature | Detail |
|---|---|
| Brand | Acer |
| Model Name | Nitro V 15 ANV15-52 |
| Screen Size | 15.6 inches |
| Display Resolution | 1920 x 1080 pixels (Full HD) |
| Display Technology | LCD, 165Hz Refresh Rate |
| Processor | Intel Core i7-13620H (13th Gen, 10 Cores, up to 2.41 GHz) |
| Graphics Processor | NVIDIA GeForce RTX 5050 (Dedicated) |
| RAM | 16 GB DDR4 SDRAM |
| Storage | 512 GB PCIe 4.0 NVMe SSD |
| Operating System | DOS (User-installed OS required) |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Bluetooth | Not specified |
| USB Ports | 4 (including USB 3.2 Type-A) |
| Thunderbolt Ports | 1 |
| Keyboard | QWERTY Type Keyboard |
| Included Components | Charger |
Warranty and Support
Your Acer Nitro V 15 ANV15-52 laptop comes with a standard manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. For technical support, driver downloads, and service inquiries, please visit the official Acer support website:
Ensure you have your laptop's serial number and model information ready when contacting support.
