Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your SOOPYK Self-Cleaning Hot and Cold Water Cooler Dispenser with Ice Maker. Please read this manual thoroughly before use and retain it for future reference.
Product Overview
The SOOPYK Water Cooler Dispenser is designed to provide convenient access to hot, cold, and room-temperature water, along with on-demand ice production. It features a bottom-loading design for easy bottle replacement and a self-cleaning function for hygiene.
Front view of the SOOPYK Self-Cleaning Hot and Cold Water Cooler Dispenser with Ice Maker, showing the water and ice dispensing area and the bottom-loading compartment for a 5-gallon water bottle.
Safety Instructions
- Always place the dispenser on a flat, stable surface.
- Ensure proper ventilation around the unit.
- Do not operate the dispenser with a damaged power cord or plug.
- Keep children away from the hot water spigot, utilizing the child safety lock feature.
- Unplug the unit before cleaning or performing any maintenance.
- This appliance is intended for household use only.
Setup
- Unpacking: Carefully remove the dispenser from its packaging. Inspect for any shipping damage.
- Placement: Position the dispenser upright on a level surface, ensuring adequate space (at least 4 inches) from walls for proper ventilation. Avoid direct sunlight or heat sources.
- Initial Cleaning: Before first use, clean the external surfaces with a soft, damp cloth.
- Water Bottle Installation:
- Open the bottom compartment door.
- Insert the probe into a new 3 or 5-gallon water bottle (not included).
- Slide the bottle into the compartment and close the door.
- Power Connection: Plug the power cord into a grounded electrical outlet.
- Priming: Before turning on heating or cooling functions, dispense water from both the hot and cold spigots until water flows steadily to ensure the tanks are filled.

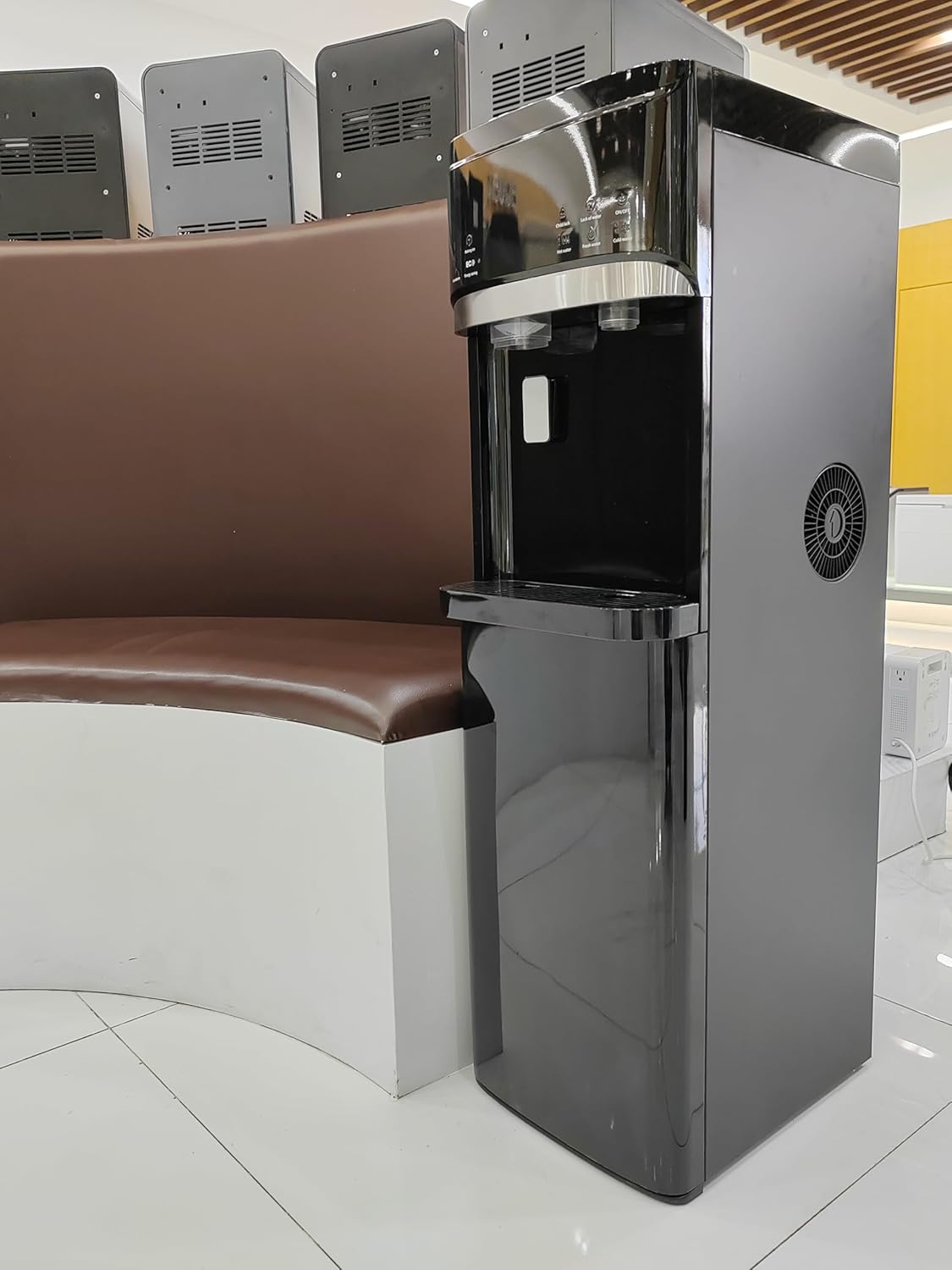

The SOOPYK water cooler dispenser, showing its full height and bottom-loading design, indicating its freestanding installation type and ETL certification.
Operating Instructions
Control Panel and Indicators
Close-up of the SOOPYK water cooler's touch screen control panel, illustrating icons for hot water, fresh water, cold water, and ice cubes, along with the child safety lock feature.
The dispenser features a touch screen control panel with indicator lights for various functions:
- Ice Volume Indicator: Shows when ice is being made.
- Energy Saving (ECO) Mode: Activates energy-saving function.
- Child Lock: Engages the safety lock for hot water dispensing.
- Lack of Water Indicator: Alerts when the water bottle is empty.
- ON/OFF: Power indicator.
- Hot Water Indicator: Illuminates when hot water is ready.
- Fresh Water Indicator: Indicates room-temperature water availability.
- Cold Water Indicator: Illuminates when cold water is ready.
Water Dispensing
- Cold Water: Press the cold water button on the touch screen.
- Hot Water: For safety, first press the Child Lock button, then press the hot water button.
- Room-Temperature Water: Press the fresh water button.
Ice Making Function
An image detailing the ice-making capabilities of the SOOPYK dispenser, highlighting fast ice-making in 7 minutes, 9 pieces per cycle, and a daily capacity of 22 lbs. It also notes that the unit does not keep ice frozen.
The built-in ice maker produces bullet-shaped ice. It can make ice in approximately 7 minutes per cycle, producing 9 pieces of ice. The daily ice production capacity is up to 22 lbs. Note that the unit does not keep ice frozen; ice will melt if not used or transferred to a freezer.
- To activate ice making, ensure the ice making function is enabled via the touch screen.
- Ice is dispensed via a dedicated paddle.
Special Features
- ECO Mode: To conserve energy, especially at night, press the energy saving button to turn on ECO mode. The machine will stop heating water. Press and hold the ECO button to turn it off.
- Nightlight: The nightlight feature illuminates the dispensing area, making it easier to use in low-light conditions and providing visibility to the removable drip tray.
The SOOPYK water cooler dispenser with its night light feature activated, illuminating the dispensing area for easy use in the dark.
- Empty Bottle Alert: An indicator light will notify you when the water bottle needs to be replaced.
Maintenance
Regular maintenance ensures the longevity and hygiene of your dispenser.
- Self-Cleaning Function: The dispenser is equipped with a self-cleaning feature. Refer to the control panel for activation or specific instructions. This function helps maintain internal hygiene.
An illustration of the UV-infused cleaning process within the SOOPYK water cooler, showing ultraviolet light sanitizing the internal water pathways.
- Drip Tray Cleaning: The removable drip tray should be emptied and cleaned regularly to prevent overflow and maintain cleanliness. The nightlight feature provides full visual access to the drip tray.
- Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Descaling: Over time, mineral deposits may accumulate. Consult the manufacturer's website or support for descaling procedures if necessary.
Troubleshooting
Before contacting customer support, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No water dispensed | Empty water bottle; Airlock in system; Unit not primed. | Replace water bottle; Dispense water from all spigots until flow is steady; Ensure unit is primed before turning on heating/cooling. |
| Water not hot/cold enough | Heating/cooling functions not activated; ECO mode is on; Insufficient time for heating/cooling. | Ensure hot/cold functions are turned on; Turn off ECO mode if hot water is desired; Allow 15-30 minutes for water to reach desired temperature. |
| Ice maker not producing ice | Ice making function not activated; Water tank empty; Ambient temperature too high. | Activate ice making via touch screen; Ensure water bottle is full; Operate in a room with appropriate temperature. |
| Child lock not disengaging | Incorrect button sequence. | Ensure the Child Lock button is pressed first, then the hot water button. |
Specifications
| Feature | Detail |
|---|---|
| Brand | SOOPYK |
| Model Number | SOOPYKLYCZ628-B |
| Color | Black |
| Material | Plastic |
| Product Dimensions (D x W x H) | 16.5"D x 12.2"W x 40.7"H |
| Installation Type | Freestanding |
| Power Source | Corded Electric |
| Ice Production Capacity | Up to 22 lbs daily |
| Ice Storage Capacity | 0.88 lbs (Note: Does not keep ice frozen) |
| Compatible Water Bottle Sizes | 3 and 5 Gallon (not included) |
| Temperature Settings | Hot, Cold, Room-Temperature, Ice |
Diagram showing the dimensions of the SOOPYK water cooler dispenser: 16.54 inches deep, 12.2 inches wide, and 40.75 inches high.
Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact SOOPYK customer service directly. Contact details are typically available on the manufacturer's official website or through your point of purchase.
Note: This manual provides general guidance. Specific warranty terms and conditions may vary.
