SUNLEI Metal Loft Bed Twin Size with Desk Instruction Manual

1. Introduction

Thank you for choosing the SUNLEI Metal Loft Bed Twin Size with Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new loft bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Important Safety Information

Your safety is paramount. Adhere to the following guidelines to prevent injury and ensure the longevity of your product:

• Guardrails: Always use the provided guardrails on the upper bunk. The 14-inch guardrail is designed to protect occupants.
• Weight Capacity: Do not exceed the maximum weight capacity of 300 lbs. for the bed.
• Mattress Recommendation: For optimal safety, the mattress should be at least 6 inches below the top edge of the guardrail. Recommended mattress size: 74.5" L x 40.5" W with a thickness of 4-6 inches.
• Assembly: Ensure all parts are correctly assembled and tightened according to the instructions. Periodically check all connections and hardware to ensure they remain secure.
• Climbing: Use the built-in ladders for climbing to and from the upper bunk. Do not jump on the bed.
• Placement: Position the bed on a level surface. Avoid placing the bed near windows where cords or blinds could pose a strangulation hazard.
• Ventilation: Ensure adequate ventilation around the bed, especially if using the under-bed space for study or sleep.

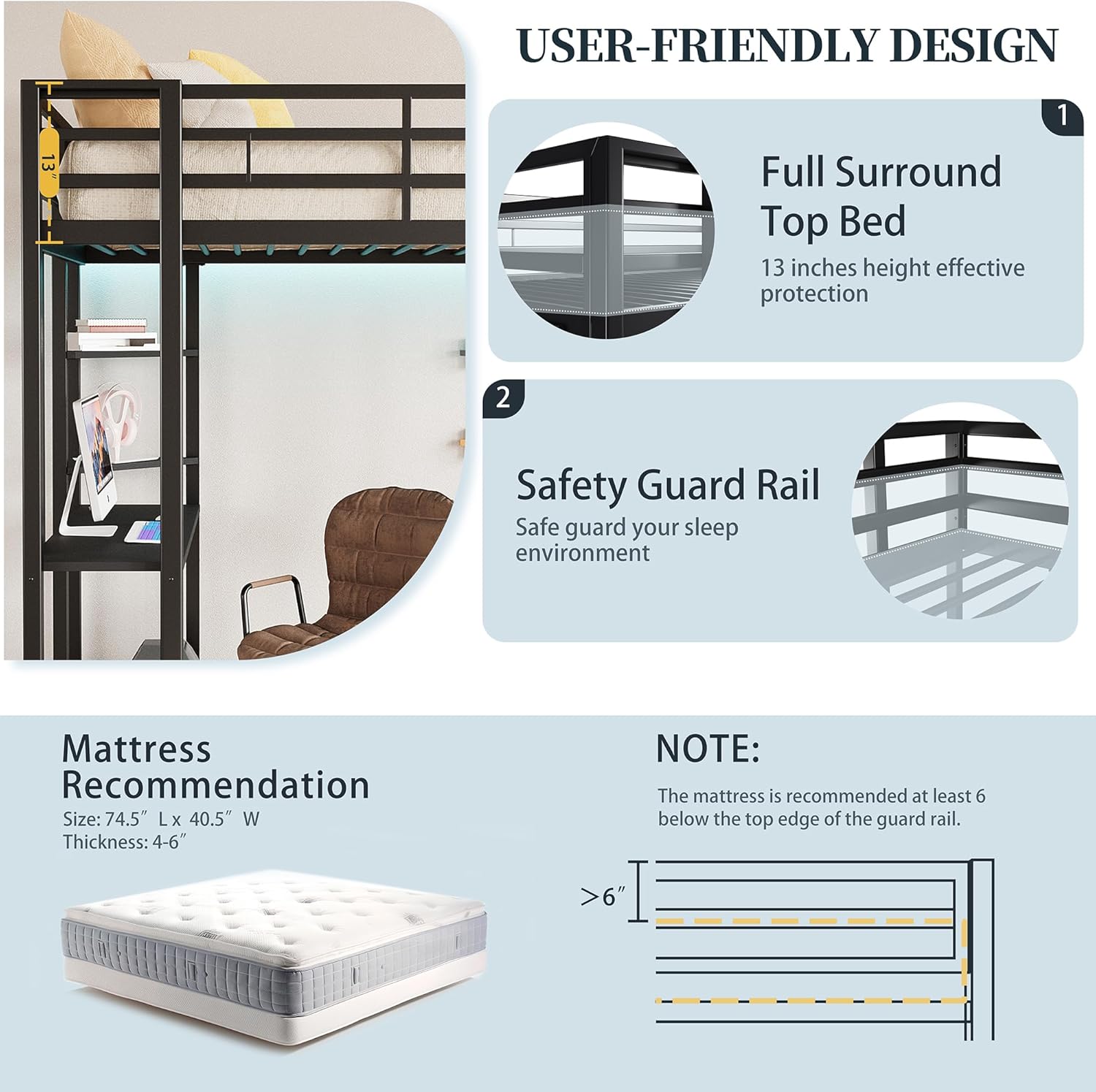

Image: Safety features including the full surround top bed and safety guard rail, with mattress recommendation.

Image: Detailed view of the 13-inch full-length guardrail, emphasizing safety during sleep.

3. Package Contents

The SUNLEI Metal Loft Bed is packaged in one box. Please verify that all components are present and undamaged before beginning assembly. Refer to the included assembly manual for a detailed list of parts and hardware.

4. Setup and Assembly

Assembly is required for this loft bed. It is designed for easy assembly, typically taking less than 40 minutes with the provided instructions. Two adults are recommended for safe and efficient assembly.

4.1 Assembly Overview

Follow the step-by-step instructions provided in the separate assembly guide included in your package. Ensure all bolts and screws are securely tightened, but do not overtighten until instructed.

Image: Product dimensions diagram, useful for planning placement and assembly.

4.2 Ladder Installation

The loft bed features built-in ladders on both the left and right sides, offering flexibility in room arrangement. Ensure the ladders are securely attached to the bed frame as per the assembly instructions.

Image: Details of the two-sided ladders and secure connections.

Image: The flexible design with ladders on both sides for convenient access.

5. Operating Instructions

5.1 Utilizing the Desk and Storage

The integrated desk provides a dedicated space for study, work, or creative activities. The spacious desktop measures 40.6" x 10.8". Triangular storage racks with double wood shelves (10.8" x 14.4") are available for books and other items. A vertical board (32.2" x 8.7") helps prevent items from falling off the desktop.

Image: Features of the integrated desk and storage, including dimensions.

Image: The spacious desk top, suitable for various activities.

5.2 Space-Saving Design

The raised design of the loft bed creates a versatile under-bed space that can be used for various purposes, such as a study area, a mini living room, or an entertainment and storage zone. This optimizes room layout, especially in smaller bedrooms.

Image: Examples of how the under-bed space can be utilized.

6. Maintenance

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
• Structural Integrity: Regularly check the bed frame for any signs of wear, damage, or instability. Address any issues promptly.

7. Troubleshooting

• Difficulty Assembling: If you encounter issues during assembly, double-check the instruction manual for correct part orientation and sequence. Some parts may appear similar but have subtle differences.
• Missing Parts/Hardware: If any parts or hardware are missing, contact SUNLEI customer support immediately for assistance.
• Bed Feels Unstable/Wobbly: Ensure all connections are fully tightened. Verify that the bed is placed on a flat, level surface. If the issue persists, disassemble and reassemble, carefully following each step.
• Noise: Loose connections can cause noise. Re-tighten all hardware. Applying a small amount of lubricant to metal-on-metal contact points (if applicable and safe for the material) might help reduce squeaking.

8. Specifications

Image: Visual summary of product specifications.

9. Warranty and Support

For information regarding product warranty, returns, or to obtain replacement parts, please refer to the documentation included with your purchase or visit the official SUNLEI store online.

SUNLEI Store: Visit the SUNLEI Store
