Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your AMERLIFE BHB031 Queen Size Bed Frame with Fireplace. Please read this manual thoroughly before assembly and use to ensure safe and correct operation and to maximize the lifespan of your product.
Important Safety Information
- Read all instructions before assembling and using the bed frame.
- Keep all small parts away from children during assembly.
- Ensure all connections are secure before use.
- Do not exceed the maximum weight capacity of 800 pounds.
- The electric fireplace is non-heating. Do not attempt to use it as a heat source.
- Only use the provided remote control for the fireplace features.
- Avoid placing liquids directly on or near the fireplace unit.
WARNING: Failure to follow these safety instructions could result in injury or product damage.
Package Contents
Your AMERLIFE Queen Size Bed Frame with Fireplace is shipped in two packages. Please ensure all parts are present before beginning assembly. Refer to the included parts list in your physical manual for a complete inventory.

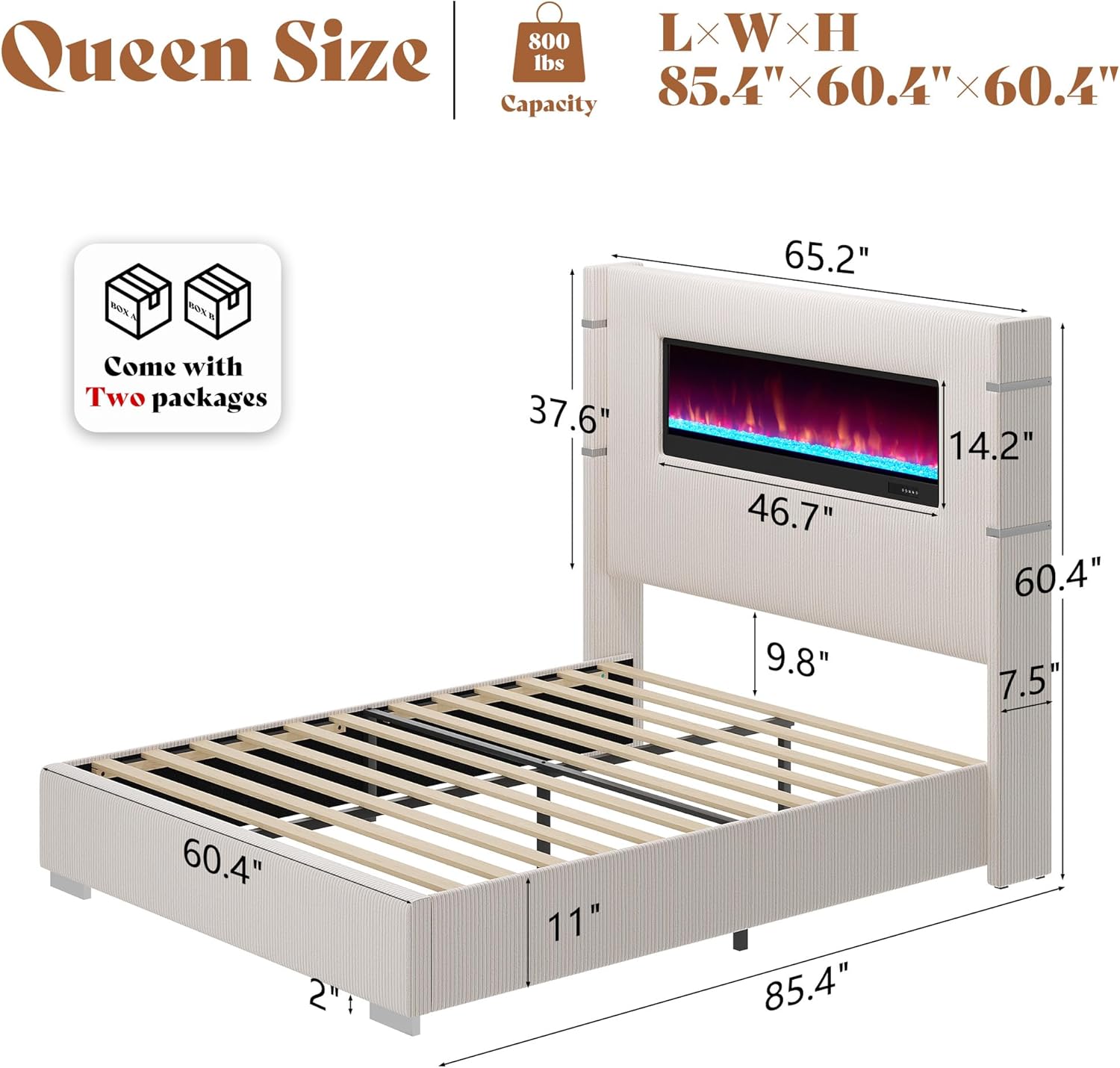

Image: Overview of the Queen size bed frame with key dimensions (85.4"L x 60.4"W x 60.4"H) and a note that it comes in two packages. The weight capacity is 800 lbs.
Product Features
- Integrated Electric Fireplace: A 45-inch non-heating unit with 16-color flame effects, crystal stones, touch buttons, and remote control. Features five levels of adjustable brightness and timing settings.
- Extra Tall Headboard: A 60.4-inch high upholstered headboard with a 7.5-inch thick wingback design for comfort and aesthetic appeal.
- Corduroy Upholstery: Soft corduroy fabric on the headboard, footboard, and side rails provides a luxurious texture.
- Sturdy Construction: Features electroplated metal strips for wingback fixation, sturdy metal bed legs, and a firm metal foundation with wooden slats.
- Noise-Free Design: Silent sponge on metal beams and foam strap on slats reduce friction and prevent noise.
- No Box Spring Needed: Designed with wooden slats to support your mattress directly.
Image: A fully assembled AMERLIFE Queen bed frame with the electric fireplace displaying a warm flame effect, set in a modern bedroom.
Image: Detailed view of the 45-inch non-heating electric fireplace insert, highlighting its features: crystal stones, touch buttons, remote control, 5 levels of brightness, timing settings, and 16 color options for the flame effect.
Image: A close-up shot detailing the soft corduroy upholstery and the decorative electroplated metal strip fixation on the headboard, with the fireplace insert visible.
Assembly Instructions
Assembly requires two adults and typically takes approximately one hour. Follow the step-by-step instructions provided in your physical assembly manual.
Before You Begin
- Clear an open space for assembly.
- Lay out all components and hardware.
- Ensure all parts are accounted for.
Key Assembly Steps
- Attach the side rails to the headboard and footboard.
- Install the central support beam and legs.
- Secure the wooden slats using the Velcro design for faster fixation.
- Insert the electric fireplace unit into the designated opening in the headboard.
- Connect the fireplace power cable.
Image: A three-part diagram illustrating the bed frame's internal structure: sturdy metal foundation, Velcro design for securing wooden slats, and noise-free foam tape to prevent friction.
Operating the Electric Fireplace
The electric fireplace is designed for aesthetic flame effects only and does not produce heat.
Controls
- Remote Control: Use the provided remote to adjust flame colors, brightness, and set timers.
- Touch Buttons: Manual controls are located on the fireplace unit for basic functions.
Functions
- Flame Color: Cycle through 16 different color options.
- Brightness: Adjust flame intensity with five levels.
- Timer: Set the fireplace to turn off automatically after a specified duration.
Video: A demonstration of the electric fireplace's various flame colors and brightness settings, showcasing the aesthetic effects within the bed frame's headboard.
Care and Maintenance
- Upholstery: Spot clean corduroy fabric with a damp cloth and mild detergent. Do not use harsh chemicals.
- Fireplace Unit: Wipe the glass and exterior with a soft, dry cloth. Do not spray cleaners directly onto the unit.
- General: Periodically check all bolts and screws to ensure they remain tight.
- Avoid direct sunlight exposure to prevent fading of the upholstery.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fireplace not turning on | Power cord not plugged in; remote control batteries dead; unit switched off. | Check power connection; replace remote batteries; ensure unit is switched on. |
| Bed frame squeaks | Loose bolts or screws; slats not properly secured. | Tighten all assembly hardware; ensure slats are correctly positioned and secured with Velcro. |
| Flame effect not changing colors/brightness | Remote control signal obstructed; fireplace unit malfunction. | Ensure clear line of sight to fireplace sensor; try manual controls. If issue persists, contact customer support. |
Product Specifications
| Feature | Detail |
|---|---|
| Brand | AMERLIFE |
| Model Number | BHB031 |
| Size | Queen |
| Color | Beige |
| Upholstery Fabric Type | Corduroy |
| Product Dimensions (L x W x H) | 85.4" x 65.2" x 60.4" |
| Headboard Height | 60.4" |
| Weight Limit | 800 Pounds |
| Item Weight | 108 Pounds |
| Assembly Required | Yes |
| Fireplace Type | 45" Non-heating Electric Fireplace |
| Mattress Recommendation | 10-16 inches thick (no box spring needed) |
Image: Diagram illustrating recommended mattress thickness (10-16 inches) for the bed frame, and an alternative option for a mattress plus box spring with a total maximum height of 16 inches.
Warranty and Support
For warranty information or customer support, please refer to the documentation included with your product or visit the AMERLIFE Store on Amazon.
You may also contact the manufacturer, Happy Tao, for assistance.
