Omana 3-in-1 Portable Coffee Machine User Manual

Introduction

Thank you for purchasing the Omana 3-in-1 Portable Coffee Machine. This compact and versatile device is designed to provide a rich espresso experience anywhere, anytime. With its self-heating capability and compatibility with ground coffee, Nespresso pods, and Dolce Gusto capsules, it offers unparalleled convenience for home, office, travel, and outdoor adventures. Please read this manual carefully before use to ensure proper operation and maintenance.

Safety Precautions

• Do not immerse the main unit in water or any other liquid.
• Keep out of reach of children.
• Use only clean drinking water.
• Ensure the machine is fully charged before extended use, especially when using the heating function.
• Do not open the brewing chamber during operation, especially when hot.
• Handle hot components with care to avoid burns.
• Store in a cool, dry place when not in use.
• Only use the provided charging cable.

Package Contents

Image: Contents of the Omana 3-in-1 Portable Coffee Machine package.

• Omana 3-in-1 Portable Coffee Machine (Main Unit)
• Nespresso Capsule Adapter
• Dolce Gusto Capsule Adapter
• Ground Coffee Filter (Portafilter)
• Bracket (Stand)
• USB Type-C Charging Cable
• Instruction Manual
• Storage Bag

Product Overview

Image: Front view of the Omana Portable Coffee Machine with its stand.

The Omana Portable Coffee Machine features a unique rocket design and is engineered for ease of use and portability. Key components include:

• Upper Cover: Protects the water tank.
• Water Tank: Holds water for brewing (80ml capacity).
• Body: Main housing containing the battery, heating element, and pump.
• Switch (Power Button): Controls power and brewing functions.
• Indicator Lights: Display battery level and operational status.
• Lid for Coffee Powder Adapter: Secures ground coffee.
• Coffee Powder Adapter (Portafilter): For brewing with ground coffee.
• Coffee Capsule Adapter: For Nespresso and Dolce Gusto capsules.
• Bracket: Detachable stand for stable brewing.
• Coffee Cup: Integrated or separate cup for collecting brewed coffee.
• Type-C Charging Port: For recharging the internal battery.

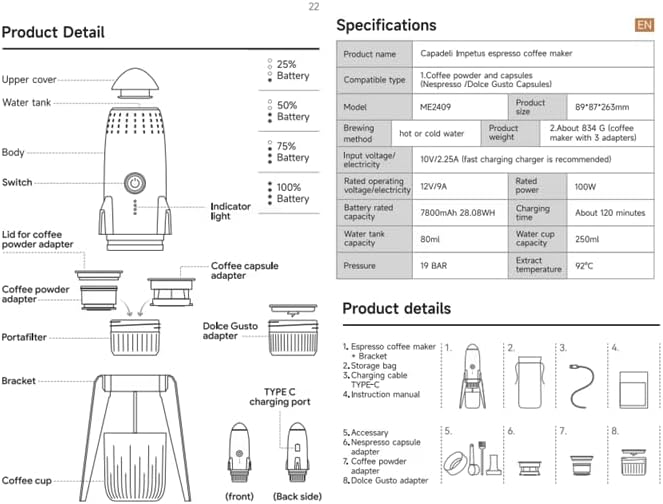

Image: Detailed diagram of product components and dimensions.

Setup

Initial Charge:

Before first use, fully charge the coffee machine using the provided USB Type-C cable. The indicator lights will show charging progress and full charge status.

Assembling the Bracket:

Image: Assembling the bracket for stable brewing.

Attach the three legs to the main unit's base to form a stable stand. This is recommended for hands-free operation and to elevate the machine for cup placement.

Operating Instructions

The Omana 3-in-1 Portable Coffee Machine supports three brewing methods: ground coffee, Nespresso capsules, and Dolce Gusto capsules.

1. Preparing Your Coffee:

Image: The three compatible coffee adapters.

• For Ground Coffee:
  1. Open the coffee powder adapter.
  2. Add approximately 8g of fine ground coffee into the filter basket.
  3. Close the lid securely.
• For Nespresso Capsules:
  1. Insert a Nespresso-compatible capsule into the Nespresso adapter.
  2. Close the adapter securely.
• For Dolce Gusto Capsules:
  1. Insert a Dolce Gusto-compatible capsule into the Dolce Gusto adapter.
  2. Close the adapter securely.

Image: Key features of the Omana Portable Coffee Machine.

2. Adding Water:

Unscrew the upper cover and fill the water tank with up to 80ml of water. You can use either cold or hot water depending on your preference and desired brewing method.

3. Brewing Coffee:

• For Hot Espresso (with cold water heating):

  Place the prepared coffee adapter into the machine's brewing chamber. Screw it firmly into place. Add cold water to the tank. Press and hold the power button for 2 seconds. The machine will begin heating the water to 92°C (198°F), which typically takes 5-6 minutes for 60ml of coffee. Once heated, it will automatically extract the espresso.
• For Espresso (with pre-heated water):

  Place the prepared coffee adapter into the machine's brewing chamber. Screw it firmly into place. Add hot water to the tank. Double-click the power button. The machine will immediately begin extracting the espresso.

• For Iced Coffee:

  Prepare your coffee as usual. Place ice and milk (or other desired additions) into your coffee cup. Brew espresso using either the hot or cold water method directly into the cup with ice. Stir gently to combine.

Image: High-pressure extraction for rich espresso.

Maintenance and Cleaning

Image: Disassembled components for easy cleaning.

Regular cleaning ensures optimal performance and longevity of your coffee machine.

1. After Each Use:
   • Unscrew and remove the coffee adapter. Discard used coffee grounds or capsules.
   • Rinse the coffee adapter, filter basket, and coffee cup with clean water.
   • Wipe the exterior of the main unit with a damp cloth.
2. Deep Cleaning (Weekly/Bi-weekly):
   • Run a cycle with just clean water (without coffee) to flush the internal system.
   • For stubborn residue, use a mild dish soap with water to clean the removable parts. Ensure all soap residue is thoroughly rinsed off.
   • Important: Do not soak the main unit in water.
3. Storage:

   Ensure all parts are completely dry before reassembling and storing the machine. Store in the provided storage bag to protect it from dust and damage.

Troubleshooting

Specifications

Warranty and Support

For warranty information and customer support, please refer to the warranty card included in your package or visit the official Omana website. If you encounter any issues not covered in this manual, please contact our customer service team for assistance.

Contact Information:

• Website: www.omana.com
• Email: support@omana.com
