1. Introduction
This manual provides essential instructions for the safe installation, operation, and maintenance of your atomberg Erica Nuvo 1200mm BLDC Ceiling Fan. Please read this manual thoroughly before installation and use, and retain it for future reference. The Erica Nuvo fan features a Brushless Direct Current (BLDC) motor for energy efficiency, remote control operation, and an LED speed indicator.
2. Safety Instructions
- Electrical Safety: Always disconnect power at the main circuit breaker before attempting any installation, maintenance, or cleaning. Ensure all wiring is performed by a qualified electrician and complies with local electrical codes.
- Installation: The fan must be securely mounted to a ceiling structure capable of supporting its weight. Do not install the fan in locations where blades could strike objects or people. Ensure adequate clearance from walls and ceiling.
- Operation: Do not insert objects into the fan blades while the fan is operating. Keep children and pets away from the fan during operation.
- Cleaning: Use a dry microfibre cloth for cleaning. Do not use water or liquid cleaners directly on the fan to avoid electrical shock or damage.
- Voltage: Ensure the fan is connected to the specified voltage (220 Volts).
3. Package Contents
Verify that all components are present before beginning installation:
- Blade set (1 Unit)
- Remote (1 Unit)
- Motor box (1 Unit)
- Canopy set (1 Unit)
- Downrod (1 Unit)
- Shackle kit (1 Unit)
- Manual Leaflet & Warranty card (1 Unit)
Image 1: atomberg Erica Nuvo 1200mm BLDC Ceiling Fan with remote control.
4. Setup and Installation
Installation should be performed by a qualified professional to ensure safety and proper functioning. Always ensure the power supply is disconnected before installation.
- Power Disconnection: Turn off the power to the fan's circuit at the main electrical panel before starting any work.
- Ceiling Mount: Securely attach the mounting bracket to a ceiling joist or a suitable electrical junction box rated for fan support.
- Wiring: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the included manual leaflet. Ensure all connections are secure. It is crucial to disconnect any existing fan regulator from the electricity board; electricity should flow directly to the fan for optimal performance.
- Assembly: Assemble the downrod, motor, and blades as per the detailed instructions in the manual leaflet. When attaching blades, ensure screws are tightened with equal torque to prevent wobbling.
- False Ceiling Compatibility: This fan is designed for compatibility with false ceilings or low ceiling heights. An additional ceiling plate is provided alongside the canopy set. For full height installations, use both the bottom and top canopy. For low heights or false ceilings, use the top ceiling plate with the bottom canopy.

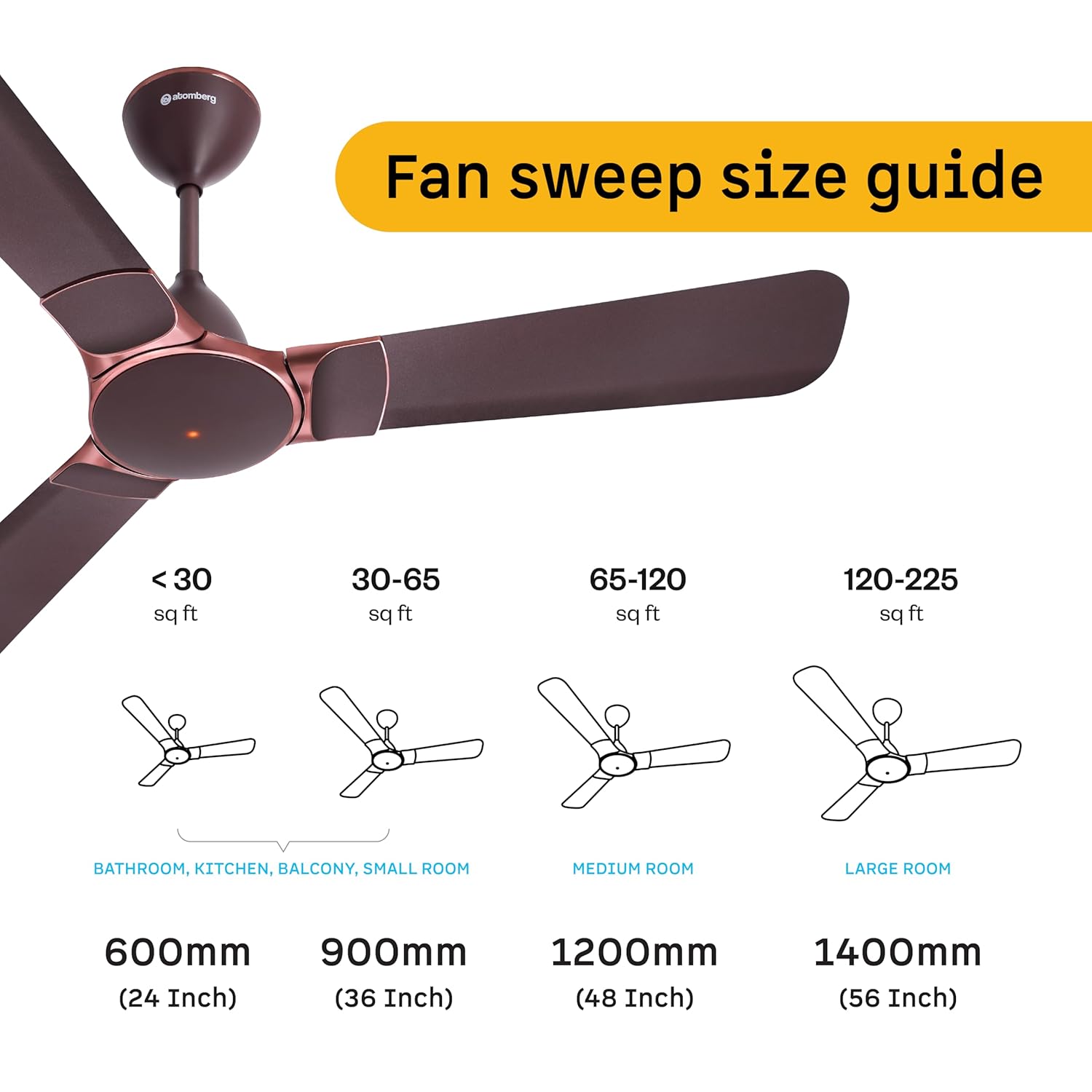

Image 2: Fan sweep size guide illustrating appropriate fan sizes for different room dimensions.
5. Operating Instructions
Your atomberg Erica Nuvo fan is operated using the included Smart IR Remote. The remote is universal across atomberg fans and does not require pairing.
- Power On/Off: Use the power button on the remote to turn the fan on or off.
- Speed Adjustment: The fan offers 6 power levels. Use the speed buttons (1-5 or up/down arrows) on the remote to adjust the fan speed.
- Boost Mode: Activates the highest fan speed for maximum airflow.
- Timer Mode: Set the fan to switch off automatically after a pre-set number of hours.
- Sleep Mode: Gradually decreases the fan's speed every two hours to provide comfortable sleep conditions.
- LED Lights: The remote includes a button to turn the fan's integrated LED lights ON or OFF.
- LED Speed Indicator: The fan features an LED light that indicates functions such as power on/off, speed changes, timer settings, or sleep mode activation.
Image 3: Overview of the Smart IR Remote control and its functions for the Erica Nuvo fan.
6. Maintenance
- Cleaning: Regularly clean the fan with a dry microfibre cloth. Do not use abrasive cleaners, water, or harsh chemicals, as these can damage the finish or electrical components.
- Inspection: Periodically check all screws and connections to ensure they are tight. Loose connections can cause wobbling or noise.
- Lubrication: The BLDC motor is designed for maintenance-free operation and does not require lubrication.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply; remote batteries depleted; incorrect wiring. | Check circuit breaker. Replace remote batteries. Verify wiring connections (consult a professional). |
| Fan wobbles excessively. | Loose mounting screws; unbalanced blades; loose downrod. | Ensure all mounting and blade screws are tightened evenly. Check downrod security. If wobbling persists, professional inspection is recommended. |
| Remote not responding. | Remote batteries depleted; obstruction between remote and fan sensor. | Replace remote batteries. Ensure clear line of sight to the fan's sensor. |
| Fan makes unusual noise. | Loose components; motor issue. | Check for loose screws on blades, canopy, or mounting. If noise persists, contact customer support. Note: Boost mode may produce slightly more noise. |
| Inconsistent speed during voltage fluctuations. | Not applicable. | The atomberg Erica Nuvo BLDC fan is designed to maintain consistent speed during voltage fluctuations between 165V-285V. If inconsistency occurs outside this range, contact support. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | Erica Nuvo |
| Brand | atomberg |
| Electric Fan Design | Ceiling Fan |
| Colour | Umber Brown |
| Power Source | Corded Electric |
| Product Dimensions | 57D x 28W x 20H Centimeters |
| Room Type | Bedroom, Home Office, Living Room |
| Special Features | BLDC Motor with Remote, Low noise, Boost Mode, Timer Mode, Sleep Mode, LED light, High Air Delivery |
| Noise Level | 57 Decibels |
| Wattage | 35 Watts (at top speed) |
| Number of Blades | 3 |
| Air Flow Capacity | 225 Cubic Meters Per Minute (CMM) |
| Blade Length | 1200 Millimetres |
| Speed | 360 RPM |
| Voltage | 220 Volts |
| Item Weight | 3.8 Kilograms |
| Indoor/Outdoor Usage | Indoor |
| Specification Met | BEE 5 star |
| Control Method | Remote |
| Number of Power Levels | 6 |
| Motor Type | Brushless DC (BLDC) |
| Country of Origin | India |

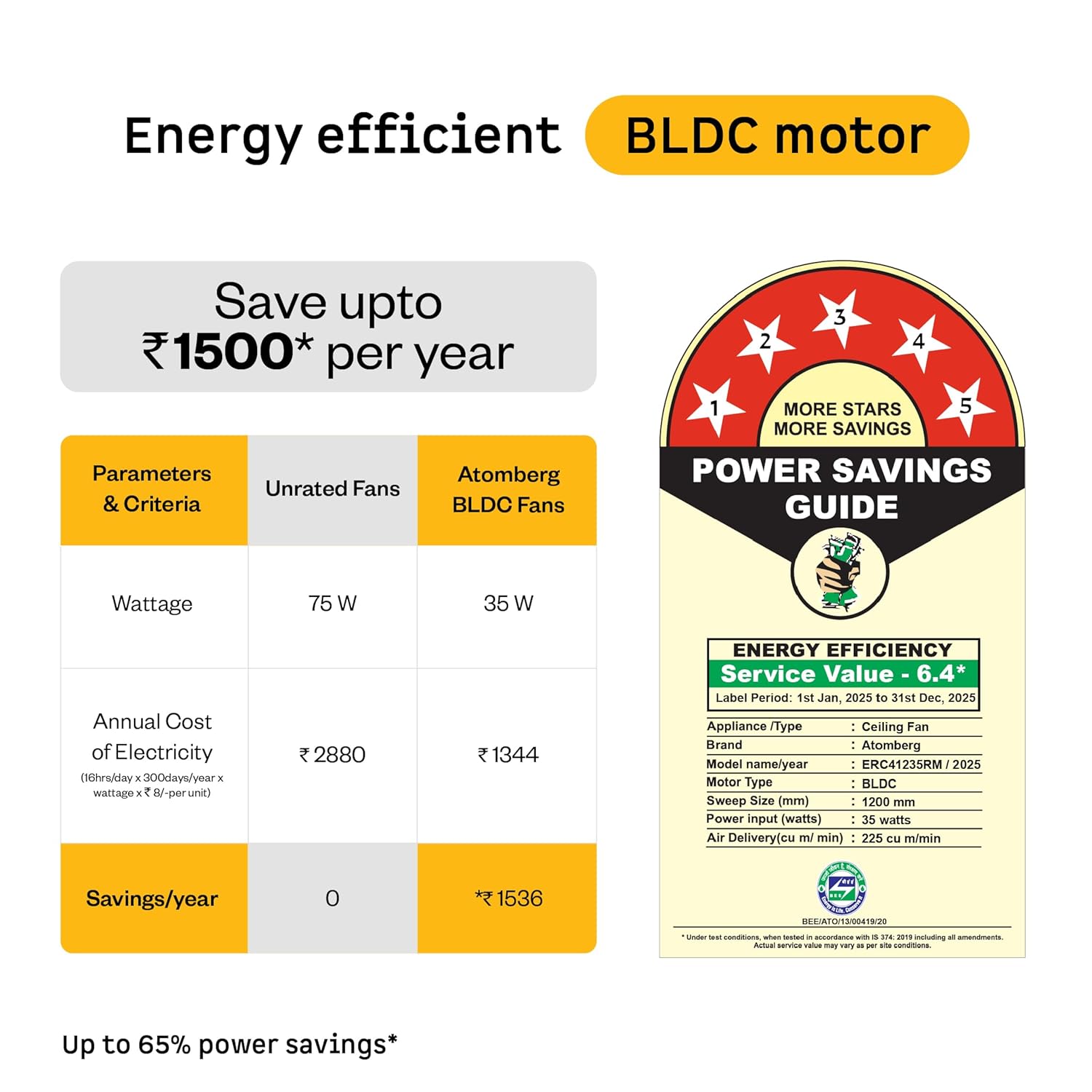

Image 4: Energy efficiency details and BEE 5-star rating for the atomberg BLDC motor.
9. Warranty and Support
- Standard Warranty: The atomberg Erica Nuvo ceiling fan comes with a standard 2-year warranty.
- Extended Warranty: An additional 1-year warranty can be availed by registering your purchase on the official atomberg website. Refer to the warranty card for detailed instructions.
- Customer Support: For any assistance with installation, operation, or troubleshooting, please contact atomberg customer support. Professional installation services are available at a nominal cost across India.
- Contact Information:
- Email: support@atomberg.com
- Toll-Free Number: 08448449442
- Website: www.atomberg.com
