1. Introduction
This manual provides essential information for the safe and efficient operation of your Leomru 2.5 HP Single Voltage Pool Pump. Designed for both in-ground and above-ground swimming pools, this self-priming pump delivers a powerful 8880 GPH flow rate, ensuring effective water circulation and filtration. Please read these instructions thoroughly before installation and use to ensure proper function and longevity of your pump.
Figure 1: Leomru 2.5 HP Pool Pump with included connectors.
2. Safety Information
Your safety and the safety of others are paramount. Always follow basic safety precautions when installing and operating this electrical equipment.
- Electrical Safety: Ensure the pump is connected to a properly grounded 110V/60Hz electrical outlet. All electrical wiring should comply with local codes and be performed by a qualified electrician. The pump features a UL-certified power cord for added safety.
- Water Safety: Never operate the pump dry. Always fill the pump with water before its first use and after any maintenance that drains the pump, to prevent overheating and damage.
- Placement: Install the pump in a well-ventilated area, protected from direct sunlight and extreme weather conditions. The pump has an IPX5 waterproof rating, but protection from elements is recommended.
- Children and Pets: Keep children and pets away from the pump and its electrical connections.
- Maintenance: Disconnect power before performing any maintenance or cleaning.

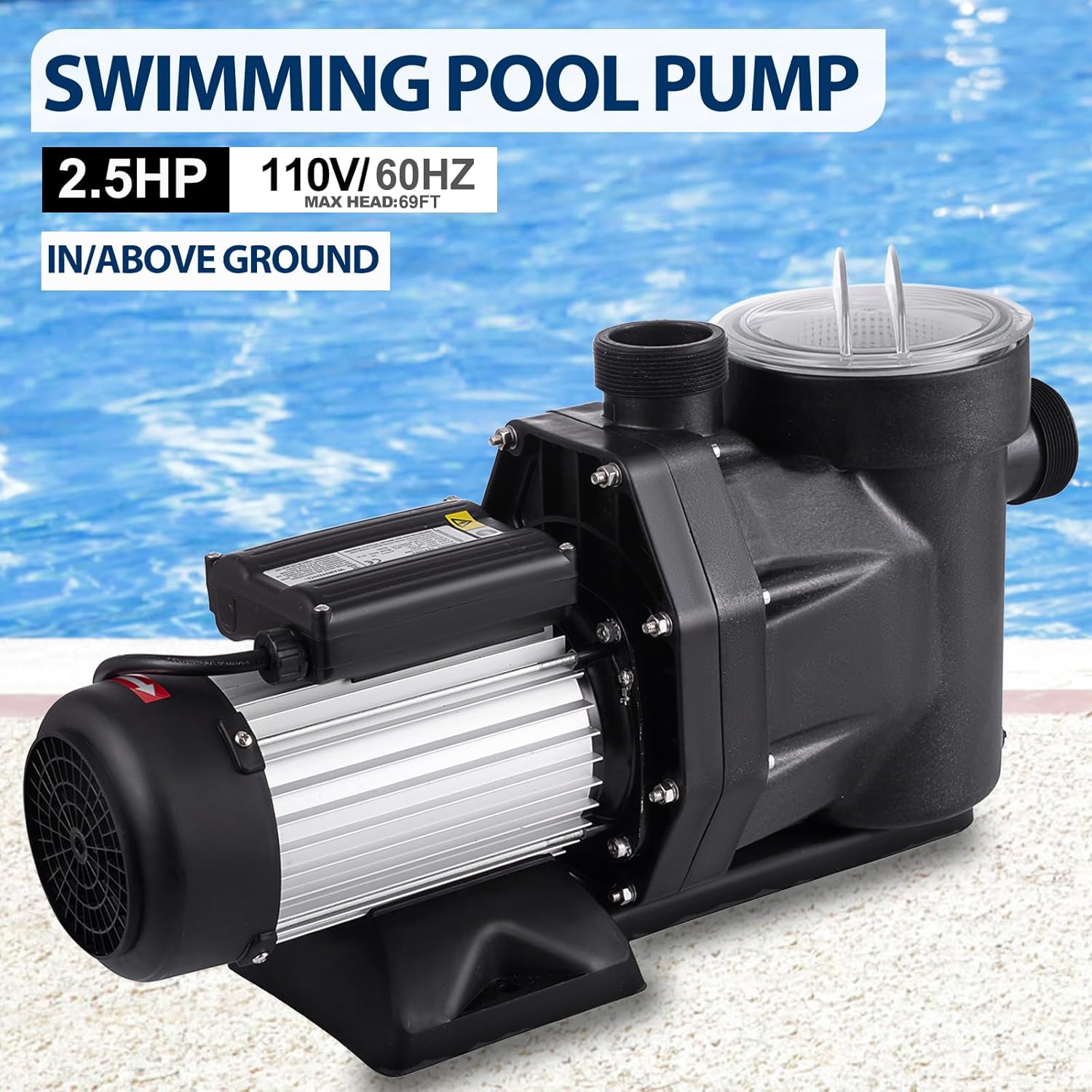

Figure 2: Leomru 2.5 HP Pool Pump, 110V/60Hz, suitable for in-ground and above-ground pools.
3. Product Overview
The Leomru 2.5 HP Pool Pump is engineered for durability and high performance. It features a robust design with a high-efficiency 1850W copper wire motor, capable of handling water temperatures up to 50°C.
Key Components:
- Motor Housing: Constructed from stainless steel for corrosion resistance and extended lifespan.
- Pump Body: Made from commercial-grade reinforced thermoplastic, designed to withstand harsh pool environments.
- Strainer Basket: An oversized basket with a transparent lid allows for easy monitoring and efficient collection of debris like leaves and gravel.
- Drain Plug: A built-in bottom drain plug facilitates quick and mess-free water drainage, particularly useful for winterizing.
- Mechanical Seal: 100% drip-proof and heat-resistant to protect the motor.
Figure 3: Transparent lid and oversized strainer basket for easy debris monitoring.
Figure 4: High-power motor with airflow ventilation for quiet and smooth operation.
4. Setup and Installation
Proper installation is crucial for the pump's performance and safety. If you are unsure about any steps, consult a qualified professional.
4.1 Pre-Installation Checks:
- Ensure the installation site is level, stable, and can support the weight of the pump.
- Verify that the electrical supply matches the pump's requirements (110V/60Hz).
- Confirm all necessary plumbing components and tools are available.
4.2 Plumbing Connections:
- The pump comes with standard 1.5-inch and 2-inch PVC union adapters (V40/N50) to fit various PVC hoses and pipes, meeting U.S. plumbing standards.
- Identify the inlet (suction) and outlet (discharge) ports on the pump.
- Select the appropriate adapters for your plumbing size.
- Apply Teflon tape to the male threads of the pump ports and the female threads of the slip unions to ensure a secure, leak-free seal.
- Connect the adapters to your pool's plumbing system. Ensure all connections are tight but do not overtighten.
4.3 Initial Priming:
IMPORTANT: Before starting the pump for the first time, or after the pump has been drained, it must be primed with water to prevent damage.
- Ensure all valves in the suction line are open.
- Remove the transparent lid of the strainer basket.
- Fill the strainer basket housing completely with water.
- Replace the lid, ensuring it is securely tightened to prevent air leaks.
- Proceed to operating instructions.
Figure 5: Product dimensions and adapter sizes.
Figure 6: Detailed view of the included 1.5-inch and 2-inch PVC union adapters.
5. Operating Instructions
Once installed and primed, your Leomru pool pump is ready for operation.
- Power On: Plug the pump into a grounded 110V/60Hz electrical outlet. The pump will begin operating.
- Monitor Flow: Observe the water flow from your pool's return jets to ensure proper circulation.
- Check Strainer Basket: Periodically check the transparent lid of the strainer basket for accumulated debris. A full basket can restrict flow and reduce pump efficiency.
- Run Time: The optimal run time for your pump depends on pool size, usage, and environmental factors. Consult your pool professional for recommended daily run times.
- Power Off: To stop the pump, simply unplug it from the electrical outlet.
Figure 7: Illustration of water flow and various applications for the pool pump.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pool pump.
6.1 Cleaning the Strainer Basket:
- Disconnect Power: Always unplug the pump before cleaning the strainer basket.
- Remove Lid: Unscrew and remove the transparent lid of the strainer basket.
- Remove Basket: Lift out the strainer basket.
- Clean: Empty any debris from the basket and rinse it thoroughly with water.
- Inspect: Check the basket for cracks or damage. Replace if necessary.
- Reinstall: Place the clean basket back into the housing.
- Prime: Fill the housing with water before replacing the lid and tightening it securely.
- Reconnect Power: Plug the pump back in.
6.2 Winterizing:
For regions with freezing temperatures, proper winterization is essential to prevent damage.
- Disconnect Power: Unplug the pump from the electrical outlet.
- Drain Water: Use the built-in bottom drain plug to completely drain all water from the pump housing.
- Store: Store the pump in a dry, protected area where it will not be exposed to freezing temperatures.
7. Troubleshooting
This section addresses common issues you might encounter with your pool pump.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start or hums but doesn't run. | No power, incorrect voltage, motor overload, seized impeller. | Check power connection and circuit breaker. Ensure the pump is receiving 110V. Allow motor to cool if thermal overload tripped. Consult a professional if impeller is seized. |
| Low water flow or no flow. | Strainer basket clogged, air leak in suction line, pump not primed, closed valves, low water level in pool. | Clean strainer basket. Check all suction line connections for air leaks. Re-prime the pump. Ensure all valves are open. Check pool water level. |
| Pump is noisy. | Air leak in suction line, cavitation (lack of water), motor bearing wear, debris in impeller. | Check for air leaks. Ensure pump is fully primed and receiving adequate water. If noise persists, professional inspection may be needed. Clean impeller if accessible. |
| Water leaking from pump. | Loose connections, damaged O-rings or seals, cracked housing. | Tighten all plumbing connections. Inspect and replace damaged O-rings or seals. If housing is cracked, pump may need replacement. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact customer support.
8. Specifications
Detailed technical specifications for the Leomru 2.5 HP Pool Pump.
| Feature | Specification |
|---|---|
| Model Number | LM0042 |
| Horsepower (HP) | 2.5 HP |
| Wattage | 1850W |
| Voltage | 110V |
| Frequency | 60Hz |
| Maximum Flow Rate | 8880 GPH (148 GPM) |
| Maximum Head Lift | 69 Feet |
| Material | Stainless Steel, Thermoplastic |
| IP Rating | IPX5 (Waterproof) |
| Max Water Temperature | 50°C |
| Product Dimensions | 22.2 x 11.4 x 6.9 inches |
Figure 8: Example performance curve for similar pump models (J15001 and J11501).
9. Warranty and Support
Leomru stands behind the quality of its products.
- Warranty: This product is backed by a 2-year warranty from the date of purchase.
- Customer Support: For any questions, technical assistance, or warranty claims, please contact Leomru customer support. Our team is available to provide responsive assistance. Refer to your purchase documentation for specific contact details.
