Pinmoco Cross Legged Office Chair User Manual

1. Introduction

Thank you for choosing the Pinmoco Cross Legged Office Chair. This manual provides essential information for the safe and efficient use of your new chair. Please read it thoroughly before assembly and operation, and retain it for future reference.

This chair is designed to accommodate various sitting positions, including cross-legged, squatting, or kneeling, offering comfort and flexibility for different users and activities such as office work, meditation, or yoga.

2. Important Safety Information

WARNING: To prevent injury, please adhere to the following safety guidelines:

• Do not exceed the maximum weight recommendation of 330 pounds (150 kg) for safe use.
• Ensure all screws and bolts are securely tightened before use. Periodically check and re-tighten as necessary.
• Keep small parts away from children during assembly.
• Use the chair only for its intended purpose as an office or meditation chair.
• Avoid standing on the chair or using it as a step stool.
• Do not expose the chair to extreme temperatures or direct sunlight for prolonged periods, as this may damage the material.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact Pinmoco customer support.

• Basic Components of Cross Legged Chair (Seat, Backrest, Base, Wheels, Gas Lift)
• Installation Tools and Accessories (Allen Wrench, Screws)
• Manual (This document)

Image: The Pinmoco Cross Legged Office Chair in black PU leather, showcasing its unique design with a separate footrest and backrest.

4. Setup and Assembly

Assembly of the Pinmoco Cross Legged Office Chair is straightforward. Follow these steps carefully:

1. Attach Wheels to Base: Insert the five caster wheels into the holes at the end of each leg of the chair base. Push firmly until they click into place.
2. Insert Gas Lift: Place the gas lift cylinder into the center hole of the chair base.
3. Assemble Seat Mechanism: Attach the seat mechanism to the underside of the main seat cushion using the provided screws. Ensure the lever is facing the front.
4. Attach Seat to Gas Lift: Carefully place the assembled seat onto the gas lift cylinder.
5. Attach Backrest: Secure the backrest support to the main seat mechanism using the provided screws. Then, attach the backrest cushion to the backrest support.
6. Attach Footrest: Secure the footrest to the main chair frame using the designated screws.

Tip: It is recommended to assemble the chair on a soft, clean surface to prevent scratches.

Image: Detailed dimensions of the chair's wider seat cushion and footstool, including backrest width (18.9") and seat cushion width (19.3") and depth (14.96").

5. Operating Instructions

Your Pinmoco Cross Legged Office Chair offers several adjustable features for optimal comfort and posture.

5.1. Seat Height Adjustment

To adjust the seat height, locate the lever under the right side of the seat. While seated, pull the lever up to lower the seat. To raise the seat, lift your weight off the seat and pull the lever up. Release the lever at your desired height. The seat cushion height adjusts from 20 to 27 inches.

Image: A close-up of the chair's height adjustment lever, demonstrating the 10-inch higher adjustable seat range.

5.2. Backrest Adjustment

The backrest offers two adjustable positions. Use the provided Allen wrench to loosen the bolts securing the backrest, adjust it to your preferred angle, and then re-tighten the bolts securely. This allows for customized lumbar support.

Image: A user adjusting the 2-stage backrest, highlighting the extra-wide lumbar support provided by the cloud-shaped backrest.

5.3. Footstool Swivel

The innovative footrest rotates a full 360 degrees, allowing you to effortlessly adjust your posture without moving the entire chair. Simply rotate the footstool to find your most comfortable position.

Image: A woman comfortably seated cross-legged on the Pinmoco chair at a desk, illustrating its ergonomic design for office use.

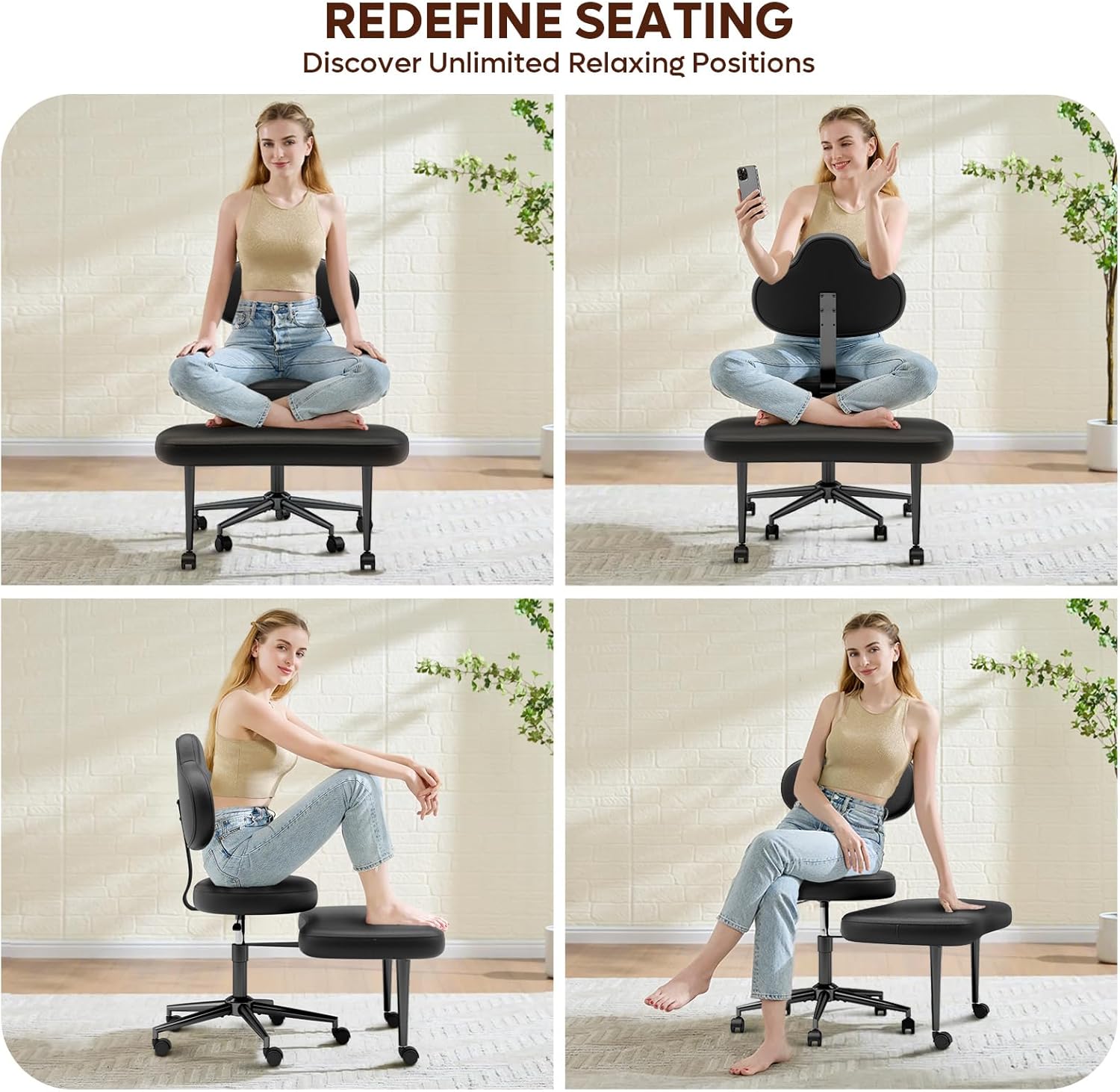

Image: A collage of four images demonstrating the versatility of the chair for various activities: office work, gaming, yoga/meditation, and general leisure, highlighting its ability to support multiple relaxing positions.

6. Care and Maintenance

Proper care will extend the life and appearance of your Pinmoco chair.

• Cleaning: For PU leather surfaces, wipe with a soft, damp cloth. For teddy velvet surfaces, use a soft brush or vacuum to remove dust and debris. For spills, blot immediately with a clean, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Waterproof Feature: The PU leather material is waterproof and easy to clean.
• Inspection: Periodically check all bolts and screws to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
• Movement: When moving the chair, lift it rather than dragging it to prevent damage to the floor or chair components.

Image: A close-up view of the black PU leather surface of the chair, showing its waterproof properties with water droplets visible on the material.

7. Troubleshooting

If you encounter any issues with your chair, please refer to the following common problems and solutions:

8. Product Specifications

9. Warranty and Support

Pinmoco is committed to providing high-quality products and customer satisfaction. For any questions, concerns, or warranty claims, please contact our customer support team.

• Customer Service: If you encounter a missing parts or a bent bar, please contact us in time, we provide parts replacement or upgrade service.
• Online Support: Visit the official Pinmoco Store for more information and support: Pinmoco Direct Store.
