Introduction
Thank you for choosing the ATVEL F40 Steam 3-in-1 Corded Wet Dry Vacuum Cleaner & Steam Mop. This appliance is designed to provide efficient and thorough cleaning for various surfaces in your home. It combines dry vacuuming, wet mopping, and high-temperature steam cleaning functions. Please read this manual carefully before use to ensure proper operation, maintenance, and safety.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
- Read all instructions before using the appliance.
- Do not immerse the appliance in water or other liquids.
- Always ensure the power cord is fully extended and not damaged before use.
- Do not direct steam at people, animals, or electrical appliances.
- Use only clean water in the clean water tank. Distilled water is recommended to prevent mineral buildup.
- Unplug the appliance from the power outlet when not in use and before performing any maintenance or cleaning.
- Keep the appliance out of reach of children.
- Do not use the appliance if it has been dropped, damaged, left outdoors, or dropped into water.
- Do not use the appliance to pick up flammable or combustible liquids, or anything that is burning or smoking.
- Ensure all filters and tanks are correctly installed before operation.
What's in the Box
Carefully unpack the contents and ensure all items are present:
- Steam Vacuum & Steam Mop Unit
- Washable HEPA Filter
- Brush Rollers For Hard Floors
- Brush Roller For Carpets
- Docking Station & Water Tanks
Product Overview
The ATVEL F40 Steam 3-in-1 Corded Wet Dry Vacuum Cleaner and Steam Mop in its upright position.
The appliance features separate tanks for clean (780 ml) and dirty (550 ml) water, ensuring fresh water is always used for cleaning.
A specialized brush roller designed for effective steam carpet cleaning.
The unit performing its intensive automatic self-cleaning cycle, which takes approximately 2 minutes.
The cleaning head demonstrates high maneuverability, allowing access to hard-to-reach areas and under furniture.
The ATVEL F40 Steam effectively cleans up liquid spills and debris from hard floors.
Setup
1. Assembly
- Carefully remove all components from the packaging.
- Insert the handle into the main body of the vacuum cleaner until it clicks securely into place.
- Ensure the clean water tank and dirty water tank are correctly seated in their respective compartments.
- Attach the desired brush roller (hard floor or carpet) to the cleaning head.
2. Filling the Clean Water Tank
- Remove the clean water tank from the appliance.
- Open the tank cap and fill with clean tap water. For optimal performance and to prevent mineral buildup, distilled water is recommended. Do not add cleaning solutions or detergents to the clean water tank.
- Securely close the tank cap and reinsert the tank into the appliance until it clicks.
3. Power Connection
Plug the power cord into a suitable electrical outlet. The appliance is corded to provide uninterrupted cleaning power.
Operating Instructions
1. Power On/Off
Press the power button located on the handle to turn the appliance on or off. The LED display will illuminate.
2. Selecting Cleaning Modes
The ATVEL F40 Steam offers 3-in-1 cleaning modes:
- Dry Vacuuming: For picking up dry debris, dust, and pet hair. The appliance will operate in vacuum mode by default.
- Wet Mopping: To activate wet mopping, press the trigger button on the handle. This will release water onto the floor for wet cleaning.
- High-Temperature Steam Cleaning: The appliance heats water to 110°C for deep cleaning and sanitization. This function is integrated with wet mopping. The LED display will show the temperature.
3. Cleaning Surfaces
- Hard Floors (Tiles, Hardwood): Use the hard floor brush roller. For routine cleaning, use vacuum and wet mop functions. For stubborn stains or sanitization, activate the steam function.
- Carpets: Use the carpet brush roller. The steam function can help refresh carpet fibers and remove embedded dirt.

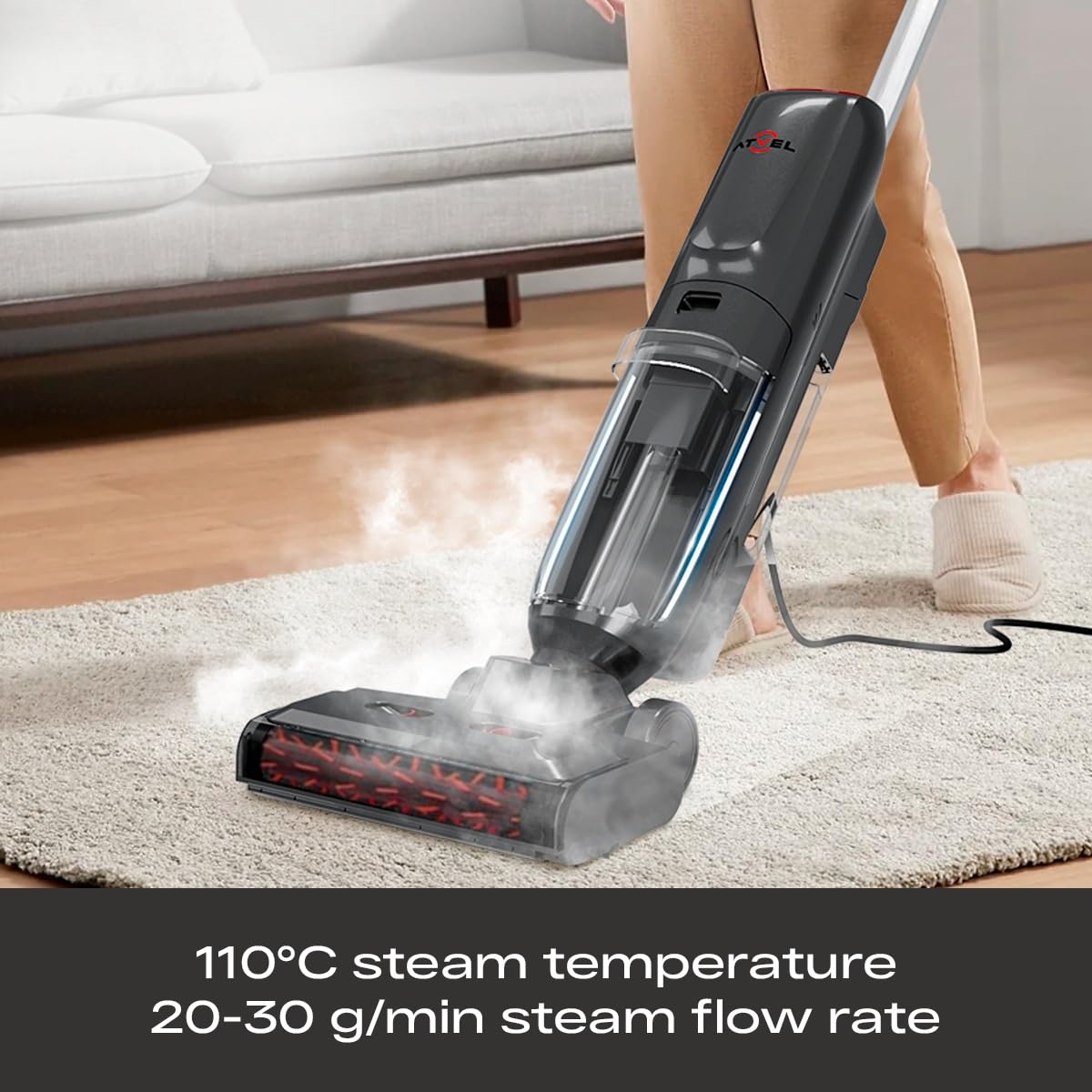

The ATVEL F40 Steam generating 110°C steam for deep cleaning carpets, with a steam flow rate of 20-30 g/min.
High-temperature steam effectively breaks down dirt and grime on hard floor surfaces.
4. Smart LED Display
The intelligent LED screen provides real-time updates on cleaning modes, water levels, and maintenance alerts. Monitor the display for optimal performance and timely maintenance.
Maintenance
1. Automatic Self-Cleaning
Place the appliance on its docking station. With just one touch, the auto self-cleaning mode will flush out dirt and debris from the brush roller and tubes, ensuring fresh, odor-free performance. Ensure the clean water tank is sufficiently filled for the self-cleaning cycle.
2. Emptying and Cleaning the Dirty Water Tank
After each use, or when the dirty water tank is full, remove it from the appliance. Empty the dirty water and rinse the tank thoroughly with clean water. Allow it to air dry before reinserting.
3. Cleaning Brush Rollers
Periodically remove the brush rollers and clean them under running water. Remove any tangled hair or debris. Allow them to air dry completely before reattaching to the appliance.
4. HEPA Filter Maintenance
The washable HEPA filter should be cleaned regularly. Remove the filter, tap out loose dirt, and rinse under cool water. Ensure the filter is completely dry before reinstalling to maintain optimal suction and filtration.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on | No power supply; power cord damaged. | Check power outlet and cord connection. Ensure the power button is pressed. |
| Low suction power | Dirty water tank full; clogged brush roller; clogged HEPA filter. | Empty and clean dirty water tank. Clean brush roller. Clean or replace HEPA filter. |
| No steam production | Clean water tank empty; appliance not heated sufficiently. | Refill clean water tank. Allow appliance to heat up (monitor LED display). |
| Water leaking | Water tanks not properly installed; tank cap not sealed. | Ensure both clean and dirty water tanks are securely in place and their caps are tightly closed. |
| Self-cleaning cycle not starting | Insufficient water in clean water tank. | Ensure the clean water tank is filled to the maximum level before initiating self-cleaning. |
Specifications
| Feature | Detail |
|---|---|
| Brand | ATVEL |
| Model Name | ATVEL F40 Steam |
| Special Feature | Dual Water Tank, Edge Cleaning, Motorized Brush Roll, Removable Tank, Steam Control |
| Filter Type | HEPA Filter |
| Included Components | Brush Roller For Carpets, Brush Rollers For Hard Floors, Docking Station & Water Tanks, Steam Vacuum & Steam Mop, Washable HEPA Filter |
| Cordless | No (Corded Electric) |
| Clean Water Tank Capacity | 780 Milliliters |
| Dirty Water Tank Capacity | 550 Milliliters |
| Wattage | 1500 Watts |
| Voltage | 240 Volts |
| Amperage | 16 Amps |
| Recommended Uses | Carpeted floors, hardwood floors, stairs, pet hair removal |
| Form Factor | Upright |
| Colour | Grey |
| Product Dimensions | 29L x 27W x 119H Centimeters |
| Item Weight | 5.5 Kilograms |
| Noise Level | 70 Decibels |
| Motor Horsepower | 2 Horsepower |
| Indoor/Outdoor Usage | Indoor |
| Vacuum Collection Technology | Rotating Brush Roll & Steam |
| Manufacture Year | 2025 |
Warranty and Support
This ATVEL F40 Steam appliance comes with a standard manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions, including coverage duration and claim procedures.
For technical support, service, or inquiries regarding your product, please contact the importer:
Importer: Amaraj Private Limited
H No. 2-22-298/11/A/607, Prabhath Signature, Kukatpally, Tirumalagiri, Hyderabad, Telangana, India, 500072
Contact: +91 9000 136 459
Email: info@amaraj.in
When contacting support, please have your product model name (ATVEL F40 Steam) and purchase details readily available.
