1. Introduction
Thank you for choosing the CAMMHD W8 4K Body Camera. This manual provides essential information for setting up, operating, and maintaining your device. Please read it thoroughly to ensure proper usage and to maximize the camera's performance and longevity.
2. What's in the Box
Verify that all items listed below are included in your package:
- 1x CAMMHD W8 256G Body Camera (including battery)
- 1x 5V2A Charger
- 1x Type-C Data Cable
- 1x Extra Battery
- 1x Charging Dock
- 1x 360° Rotatable Long Clip
- 1x 360° Rotatable Short Clip
- 1x Instruction Manual
- 1x Troubleshooting Guide
3. Product Features
The CAMMHD W8 Body Camera is designed with advanced features for reliable recording:
- 4K Anti-Shake Video: Records in 4K resolution with a 170° wide-angle lens and gyroscope anti-shake technology for stable, clear video.
- Extended Battery Life: Two replaceable 2000 mAh batteries provide 13-14 hours of continuous recording. Includes a charging dock for simultaneous camera and extra battery charging.
- Infrared Night Vision: Features auto and manual night vision settings with 6x glass lens and 4 infrared lights for clear recording in low-light conditions.
- H.265 Video Codec: Utilizes H.265 for clearer video quality, better color, and reduced storage space (up to 50%) and transmission time (up to 30%). Note: H.265 videos may require a specific player on Windows.
- Built-in 256GB Memory: Non-removable 256GB memory card for secure storage of video, audio, and image content.
- Multiple Recording Modes: Supports loop recording, video tagging for important events, and automatic file categorization.
- Data Security: Optional data encryption and a LOG function to record usage, enhancing data protection.
- Type-C Interface: Upgraded Type-C port for charging and data transfer, offering speeds of 15-20MB/s with the provided cable.

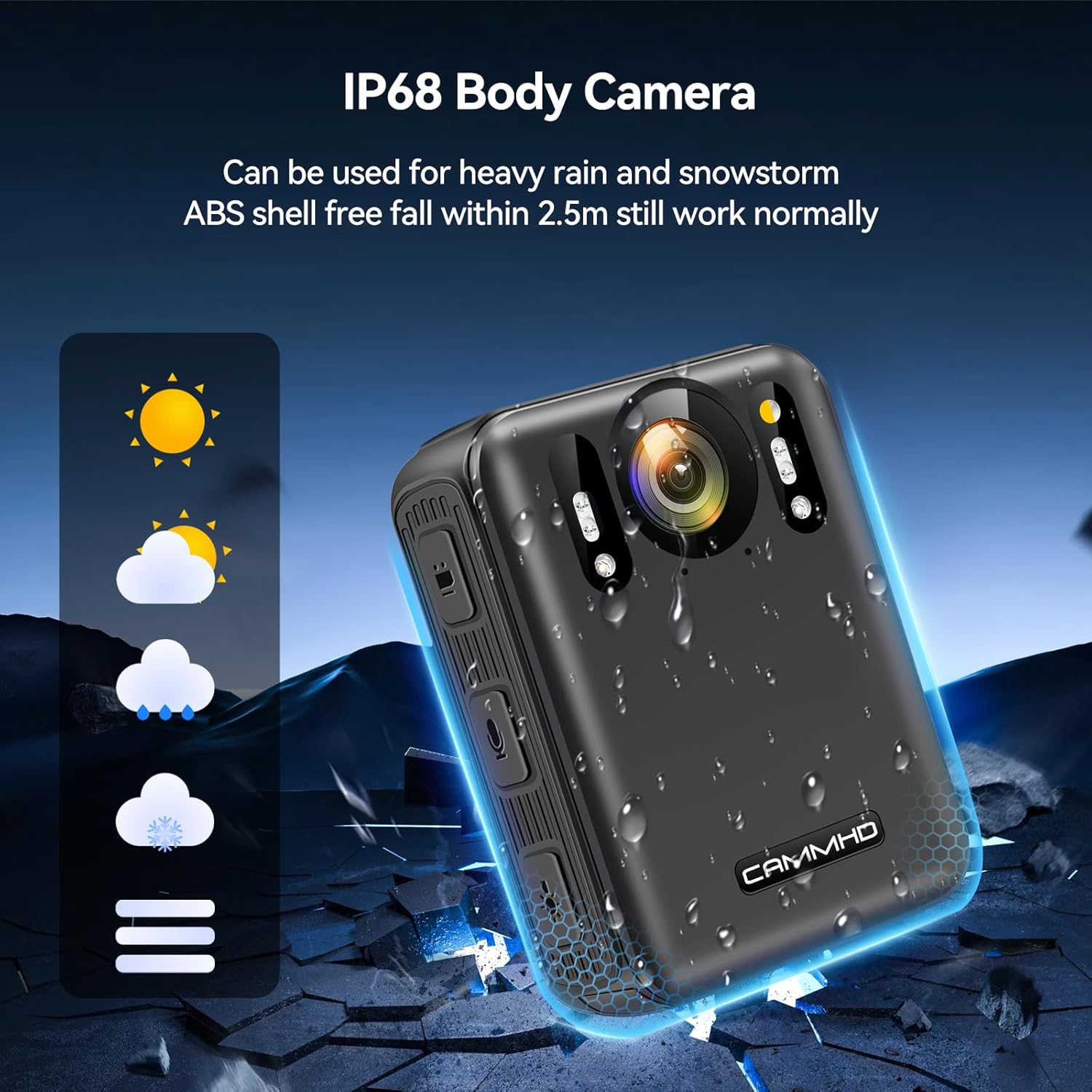

- Durable Design: IP68 rating for water resistance and an ABS shell designed to withstand falls up to 2.5m.
4. Setup
4.1 Attaching the Clips
The CAMMHD W8 comes with two rotatable clips (long and short) for versatile attachment. To attach a clip:
- Align the clip's mounting mechanism with the slot on the back of the camera.
- Slide the clip firmly into the slot until it clicks into place.
- To remove, press the release tab on the clip and slide it out.
4.2 Installing/Replacing the Battery
The camera uses replaceable batteries. To install or replace a battery:
- Locate the battery compartment cover on the bottom of the camera.
- Open the cover.
- Insert the battery into the compartment, ensuring the gold contacts align with the camera's terminals.
- Close the battery compartment cover securely.
5. Operating Instructions
5.1 Camera Overview and Controls
- 1. Video Button: Press to start/stop video recording.
- 2. Audio Button: Press to start/stop audio recording.
- 3. Night Vision Button: Activates/deactivates night vision mode.
- 4. Type-C Interface: For charging and data transfer.
- 5. Power On/Off: Press and hold to power the camera on or off.
- 6. Photo Button: Press to capture a still image.
- 7. Menu Button: Access camera settings and options.
- 8. Up Button: Navigate up in menus or adjust settings.
- 9. Down Button: Navigate down in menus or adjust settings.
- 10. Back/Playback Button: Go back in menus or enter playback mode to review recordings.
5.2 Power On/Off
To power on the camera, press and hold the Power On/Off button (5) until the screen illuminates. To power off, press and hold the same button until the camera shuts down.
5.3 Recording Video and Audio
Press the Video Button (1) to begin video recording. A red indicator light or on-screen icon will confirm recording is active. Press it again to stop. Similarly, press the Audio Button (2) to start or stop audio-only recording.
5.4 Night Vision Operation
The camera features both automatic and manual night vision. To activate or deactivate night vision, press the Night Vision Button (3). In automatic mode, the camera will switch to night vision when ambient light is low.
5.5 File Management and Data Security
The camera offers several features for managing your recordings:
- Loop Recording: When memory is full, the camera automatically deletes the oldest files to make space for new recordings.
- Video Tagging: Use the menu to tag important videos, making them easier to locate later.
- File Categorization: Video, audio, and photo files are automatically organized for easy viewing.
- Data Encryption: Enable data encryption in the settings to protect your recordings with a password, preventing unauthorized access.
- LOG Function: The camera automatically generates a usage record to protect data integrity.
5.6 Connecting to a Computer
To transfer files or charge the camera via a computer:
- Use the provided Type-C data cable.
- Connect one end to the camera's Type-C Interface (4) and the other to your computer's USB port.
- The camera will appear as a removable storage device, allowing you to access and transfer files.
6. Maintenance
6.1 Battery Care
- Always use the provided charger and Type-C cable for optimal charging.
- Avoid exposing batteries to extreme temperatures.
- Store spare batteries in a cool, dry place.
6.2 Cleaning
- Use a soft, dry cloth to clean the camera body.
- For the lens, use a specialized lens cleaning cloth and solution to avoid scratches.
- Do not use harsh chemicals or abrasive materials.
6.3 Storage
- Store the camera in a cool, dry environment away from direct sunlight.
- If storing for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.
7. Troubleshooting
If you encounter issues with your CAMMHD W8 Body Camera, please refer to the dedicated Troubleshooting Guide included in your package. Below are some general tips:
- Camera not powering on: Ensure the battery is fully charged and correctly inserted. Try using the spare battery.
- Recording issues: Check if the internal memory is full. Ensure the camera is not in a low-power state.
- Connection problems with PC: Verify the Type-C cable is securely connected to both the camera and the computer. Try a different USB port.
- Video playback issues (H.265): If playing on a Windows PC, ensure you have a compatible H.265 video player installed.
8. Specifications
Detailed technical specifications for the CAMMHD W8 Body Camera:
| Feature | Specification |
|---|---|
| Model Name | W8 |
| Video Resolution | 2160p (4K) |
| Effective Still Resolution | 2160 Pixels |
| Photo Sensor Technology | CMOS |
| Image Stabilization | Digital (Gyroscope Anti-Shake) |
| Lens Type | Wide Angle (170°) |
| Memory Storage Capacity | 256 GB (Built-in) |
| Supported File Format | MP4, JPEG |
| Video Codec | H.265 |
| Battery Type | Lithium-Ion Polymer |
| Battery Average Life | 13-14 Hours (with two batteries) |
| Water Resistance Level | Water Resistant (IP68) |
| Item Weight | 129 Grams |
| Screen Size | 2 Inches |
| Connectivity Technology | USB (Type-C) |
| Specific Uses For Product | Videography, Law Enforcement, Security, Personal Recording |
9. Warranty and Support
Warranty: If there is any quality problem within 30 working days after purchase, you can apply for returning the goods.
For further assistance or technical support, please refer to the contact information provided in your product packaging or visit the official CAMMHD website.
10. Product Appearance Overview
A visual overview of the CAMMHD W8 Body Camera's design and physical features.
