1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your SHARP 1.5 Ton Inverter Split Air Conditioner, model AH-SI18V3B-SC. Please read this manual thoroughly before using the appliance and retain it for future reference.
Safety Information
- Ensure the AC is installed by a qualified technician.
- Do not attempt to repair or modify the unit yourself.
- Keep children and pets away from the outdoor unit.
- Do not block the air inlets or outlets of the indoor or outdoor units.
- Disconnect power before cleaning or performing maintenance.
2. Product Overview and Key Features
The SHARP AH-SI18V3B-SC is a 1.5 Ton 3 Star Inverter Split AC designed for efficient and reliable cooling. It incorporates several advanced technologies to enhance user comfort and product longevity.

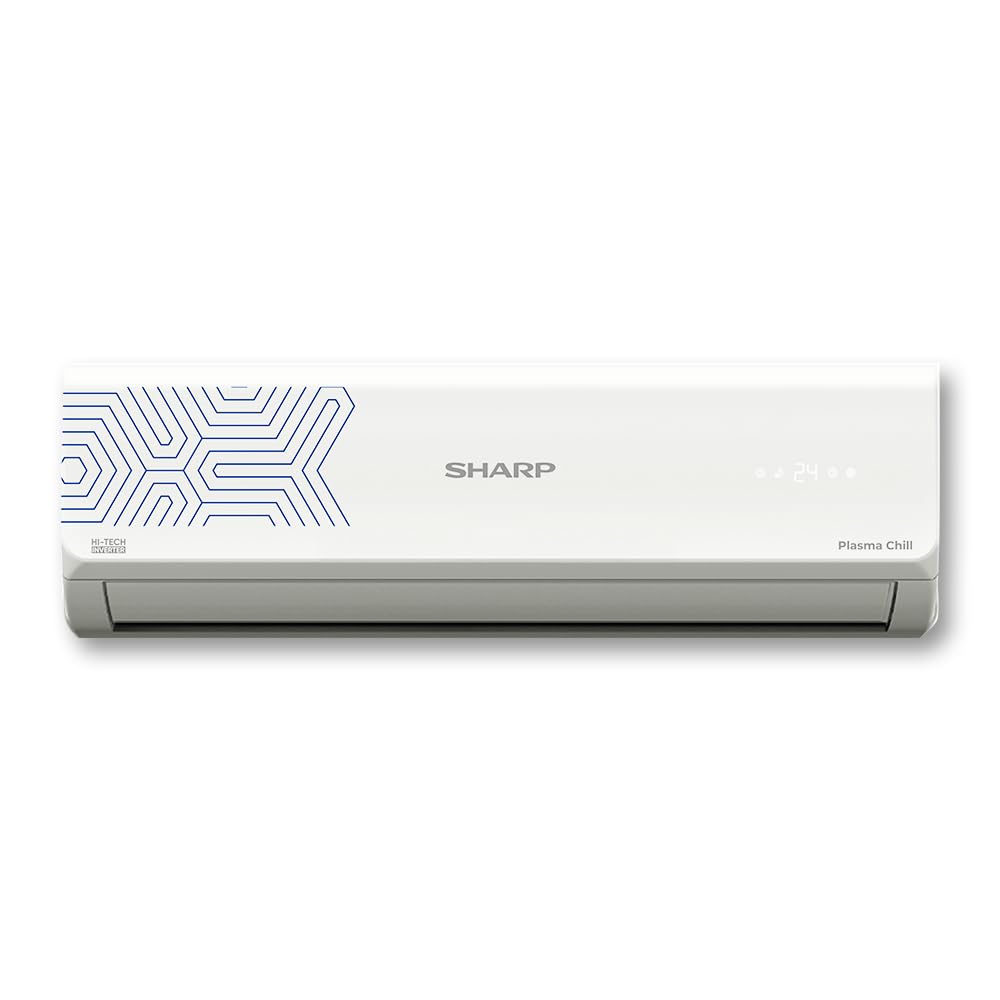

Figure 2.1: Key features of the SHARP AH-SI18V3B-SC AC.
Key Features:
- Hi-Tech Inverter Technology: Provides energy-efficient and precise temperature control.
- 7-in-1 Convertible Cooling: Offers flexible cooling capacities to suit various needs and save energy.
- Turbo Cool Technology: Rapidly cools the room for instant comfort.
- Anti-Corrosive Gold Fin Coating: Protects the evaporator and condenser coils from corrosion, extending the unit's lifespan.
- Nano Coating Technology: Enhances durability and heat exchange efficiency.
- Heavy Duty Air-Conditioners: Designed to operate effectively in extreme temperatures up to 55°C.
- Japan Quality 7 Shields: Provides protection against fire, lightning, voltage fluctuations, vibration, squall, physical damage, and corrosion.
- Self-Diagnosis: Automatically detects and displays error codes for easier troubleshooting.
- Auto-Restart with Memory: Restores previous settings after a power outage.
- PM 0.1 Health Filter: Filters out fine particulate matter for cleaner air.
- Noise-Free Performance: Engineered for quiet operation.
- Eco-Friendly Refrigerant (R-32): Utilizes R-32 refrigerant, which has a lower environmental impact.
3. Setup and Installation
Proper installation is crucial for the performance and longevity of your air conditioner. It is highly recommended that installation be performed by a certified SHARP service technician.
Included Components:
- 1N Indoor Unit
- 1N Outdoor Unit
- 1N Installation Kit
- 1N Remote Control
- 1N User Manual (this document)
Unit Dimensions:
Figure 3.1: Dimensions of the indoor and outdoor units.
- Indoor Unit (D x W x H): 90D x 29.4W x 20.6H Centimeters
- Outdoor Unit (Approximate): Refer to installation diagram for precise measurements.
Installation Guidelines:
- Site Selection: Choose a location for both indoor and outdoor units that allows for proper airflow, drainage, and easy access for maintenance. Avoid direct sunlight or heat sources for the outdoor unit.
- Mounting: Securely mount the indoor unit on a wall and the outdoor unit on a stable surface or wall bracket, ensuring proper vibration isolation.
- Refrigerant Piping: Connect the refrigerant lines between the indoor and outdoor units, ensuring no leaks. The system uses R-32 refrigerant.
- Electrical Wiring: Connect the power supply and communication wiring according to local electrical codes and the wiring diagram provided in the installation manual (separate document). Ensure proper grounding.
- Drainage: Install the drain pipe for the indoor unit to ensure proper condensation removal.
- Vacuuming and Test Run: Evacuate the refrigerant lines to remove moisture and air, then perform a test run to verify proper operation and check for any issues.
4. Operating Instructions
Your SHARP AC is controlled primarily by the included remote control. Familiarize yourself with its functions for optimal use.
Remote Control Functions:
The remote control allows you to power on/off, select operating modes, adjust temperature, fan speed, and activate special features. Refer to the remote control diagram in the separate remote control manual for detailed button functions.
Operating Modes:
- Cool Mode: Provides cooling to lower the room temperature.
- Fan Mode: Circulates air without cooling.
- Dry Mode: Reduces humidity in the room.
- Auto Mode: Automatically selects the appropriate mode based on the room temperature.
- Turbo Mode: Activates maximum cooling power for rapid temperature reduction.
Figure 4.1: Turbo Cool Technology for rapid cooling.
7-in-1 Convertible Cooling Technology:
This feature allows you to adjust the cooling capacity of the AC to match your specific needs, optimizing energy consumption. You can select from various percentages of cooling capacity:
Figure 4.2: 7-in-1 Convertible Cooling Modes.
- 50% ECO: For minimal cooling and maximum energy saving.
- 60% SOLO: Ideal for single-person use or smaller spaces.
- 70% FOCUS: Balanced cooling for moderate conditions.
- 80% RELAX: Comfortable cooling for general use.
- 90% CHILL: Stronger cooling for warmer days.
- 100% REGULAR: Standard cooling capacity.
- 110% PARTY: Boosted cooling for quick temperature drops or larger gatherings.
Airflow and Filtration:
The unit features a long airflow design and advanced filtration for improved air quality.
Figure 4.3: 18-meter Long Airflow.
Figure 4.4: 0.1 PM Health Filters.
5. Maintenance
Regular maintenance ensures optimal performance, energy efficiency, and extends the lifespan of your air conditioner. Always disconnect power before performing any maintenance.
Filter Cleaning:
- Open the front panel of the indoor unit.
- Carefully remove the air filters (including the PM 0.1 filter).
- Clean the filters using a vacuum cleaner or wash them with lukewarm water and a mild detergent.
- Rinse thoroughly and allow them to dry completely in a shaded area before re-installing.
- Frequency: Clean filters every two weeks or more frequently if the environment is dusty.
General Cleaning:
- Wipe the indoor unit's exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Ensure the outdoor unit's coils are free from debris, leaves, and dust. This can be done by gently brushing or using a low-pressure water spray.
Professional Servicing:
It is recommended to have your AC professionally serviced at least once a year, preferably before the cooling season. A professional technician can check refrigerant levels, clean coils, inspect electrical connections, and ensure all components are functioning correctly.
6. Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions. Your unit also features a Self-Diagnosis function that displays error codes.
Common Issues and Solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| AC does not turn on | No power, remote control batteries low, circuit breaker tripped. | Check power supply, replace remote batteries, reset circuit breaker. |
| Insufficient cooling | Dirty air filters, blocked outdoor unit, wrong mode selected, room too large. | Clean filters, clear obstructions from outdoor unit, select Cool mode, ensure room size matches capacity. |
| Water leakage from indoor unit | Clogged drain pipe, improper installation. | Clear drain pipe obstruction. If issue persists, contact service. |
| Unusual noise | Loose parts, foreign objects, compressor issue. | Turn off unit and inspect for loose parts or objects. If noise is from compressor, contact service. |
| Remote control not working | Dead batteries, obstruction between remote and AC. | Replace batteries, ensure clear line of sight to indoor unit. |
If the problem persists after attempting these solutions, or if an error code is displayed, please contact SHARP customer support.
7. Specifications
Detailed technical specifications for the SHARP AH-SI18V3B-SC Inverter Split AC.
| Specification | Detail |
|---|---|
| Brand | SHARP |
| Model Name | Plasma Chill |
| Model Number | AH-SI18V3B-SC |
| Capacity | 1.5 Tons |
| BEE Star Rating | 3 Star |
| Cooling Power | 4.7 Kilowatts |
| Annual Energy Consumption | 946.17 Kilowatt Hours Per Year |
| Seasonal Energy Efficiency Ratio (SEER) | 3.85 |
| Noise Level | 35.2 Decibels |
| Refrigerant | R-32 |
| Filter Type | PM 0.1 filter |
| Inverter Type | Has Inverter |
| Installation Type | Split System |
| Compressor Type | Rotary Scroll |
| Core Material | Copper |
| Voltage | 230 Volts |
| Wattage | 1579 Watts |
| Product Dimensions (Indoor Unit D x W x H) | 90D x 29.4W x 20.6H Centimeters |
| Item Weight | 34.5 Kilograms (Total, likely outdoor unit) |
| Control Method | Remote Control |
| Room Type | Bedroom (suitable for multiple room types) |
| Floor Area Coverage | 150 Square Feet |
| Special Features | Air Purification Filter, Auto restart, Inverter Compressor, Self cleaning, Turbo Mode, 7-in-1 Convertible, Anti-Corrosive Gold Fin Coating |
Figure 7.1: Energy Efficiency Guide and Copper Coil indication.
8. Warranty and Support
Warranty Information:
Your SHARP AH-SI18V3B-SC Air Conditioner comes with the following warranty:
- 1 Year Manufacturer Warranty on the entire product.
- 5 Year Warranty on the PCB (Printed Circuit Board).
- 10 Year Warranty on the Compressor.
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects and does not cover damage due to improper installation, misuse, or lack of maintenance.
Customer Support:
For any queries, service requests, or technical assistance, please contact SHARP customer support:
- Toll-Free: 1800-419-4322
- E-Mail: support@sharp-oa.com
- Manufacturer/Importer: Sharp Business Systems (India) Private Limited, Plot No. 51, First Floor, Okhla Industrial Estate, Phase-III, New Delhi- 110020.
