RHYTHM TESTAMENT Filter and Fuel Filter Combo Instruction Manual

1. Introduction

This manual provides instructions for the installation and maintenance of the RHYTHM TESTAMENT Filter and Fuel Filter Combo. This kit is designed to replace the air filter, pre-filter, and fuel filter in compatible Husqvarna riding mower models, ensuring optimal engine performance and longevity. Regular replacement of these components is crucial for maintaining proper engine function and fuel efficiency.

2. Compatibility

This filter and fuel filter combo is compatible with the following Husqvarna riding mower models:

• Husqvarna YTH22V46
• Husqvarna YTH24V54
• Husqvarna YTA22V46
• Husqvarna YTA24V48

It is designed to replace OEM part numbers: 591334, 796031, 797704, 5428K, 5428, 5421. Please verify your mower's model number and existing part numbers to ensure proper fitment before installation.

3. Package Contents

The RHYTHM TESTAMENT Filter and Fuel Filter Combo includes the following components:

• 1x Air Filter (Paper Element)
• 1x Pre-Filter (Foam)
• 1x Fuel Filter

Image showing the main air filter (paper element) and the foam pre-filter.

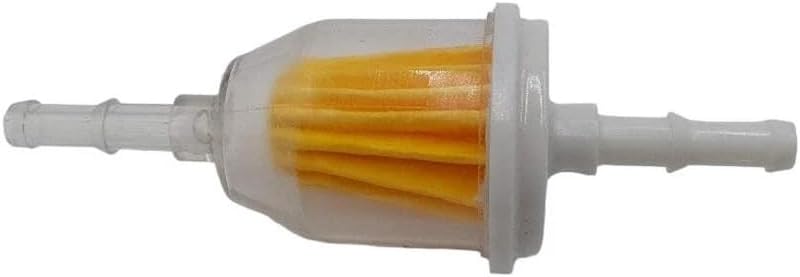

Image showing the transparent fuel filter with a yellow filter element.

4. Installation Guide

Safety First: Always ensure the engine is off, cool, and the spark plug wire is disconnected before performing any maintenance or installation to prevent accidental starting.

4.1. Air Filter and Pre-Filter Installation

1. Locate the Air Filter Housing: The air filter housing is typically found on the side of the engine. It may be secured with clips, screws, or wing nuts.
2. Remove the Cover: Carefully unfasten the clips or screws and remove the air filter housing cover.
3. Remove Old Filters: Take out the old air filter and pre-filter. Note their orientation for correct installation of the new ones. Dispose of them properly.
4. Clean the Housing: Wipe down the inside of the air filter housing to remove any dirt or debris. Ensure no debris falls into the carburetor intake.
5. Install New Pre-Filter: Place the new foam pre-filter over the new paper air filter. Ensure it fits snugly.
6. Install New Air Filter: Insert the combined new air filter and pre-filter into the housing, ensuring it seats correctly.
7. Replace Cover: Reattach the air filter housing cover and secure it with the clips, screws, or wing nuts.

Image showing the new paper air filter element.

Image showing the new foam pre-filter.

4.2. Fuel Filter Installation

1. Locate the Fuel Filter: The fuel filter is typically located in the fuel line between the fuel tank and the carburetor.
2. Prepare for Fuel Spillage: Place a rag or container beneath the fuel filter to catch any spilled fuel.
3. Clamp Fuel Lines: Use fuel line clamps or pliers to pinch off the fuel lines on both sides of the filter to minimize fuel leakage.
4. Remove Old Filter: Carefully loosen the hose clamps securing the fuel lines to the old filter. Gently twist and pull the fuel lines off the old filter.
5. Install New Filter: Ensure the new fuel filter is oriented correctly according to the flow arrow (if present) on the filter body, pointing towards the engine. Push the fuel lines onto the new filter's inlets/outlets.
6. Secure Connections: Re-secure the hose clamps tightly to prevent fuel leaks.
7. Remove Clamps and Check for Leaks: Remove the fuel line clamps. Start the engine and check for any fuel leaks around the new filter connections.

5. Maintenance

Regular maintenance of your riding mower's filters is essential for its performance and longevity. Clogged air filters can restrict airflow, leading to reduced engine power, increased fuel consumption, and potential engine damage. A clogged fuel filter can starve the engine of fuel, causing sputtering, stalling, or failure to start.

It is recommended to inspect your air filter and pre-filter regularly (e.g., every 25 operating hours or annually, whichever comes first) and replace them as needed. The fuel filter should also be replaced annually or if signs of fuel delivery issues occur.

6. Troubleshooting

If you experience issues after replacing your filters, consider the following:

• Engine not starting or running rough:
  • Check fuel filter orientation: Ensure the fuel filter's flow arrow (if present) points towards the engine.
  • Check fuel line connections: Verify all fuel line clamps are tight and there are no leaks.
  • Check air filter seating: Ensure the air filter and pre-filter are correctly seated in the housing and the cover is securely fastened.
• Reduced engine power or excessive smoke:
  • Verify air filter cleanliness: Although new, ensure no debris entered the intake during installation.
• Fuel leaks:
  • Inspect fuel line connections: Tighten hose clamps around the fuel filter. Ensure fuel lines are not cracked or damaged.

If problems persist, consult your mower's official service manual or contact a qualified service technician.

7. Specifications

8. Warranty and Support

For warranty information or technical support regarding this RHYTHM TESTAMENT product, please refer to the manufacturer's official website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
