1. Product Overview
These aVDB-Moto side case mounts are designed to provide a secure and stable platform for attaching side cases or soft luggage to your Royal Enfield Himalayan 400 or 410 motorcycle, model years 2016-2023. Constructed from durable steel and finished with a powder coating, these mounts integrate with existing motorcycle attachment points. They serve to support luggage, preventing contact with the rear fender or exhaust system, and contribute to the motorcycle's load-carrying capability.
2. Safety Information
Read all instructions carefully before installation and use. Improper installation or overloading can lead to loss of control or damage to the motorcycle. Always ensure all fasteners are tightened securely. Regularly inspect the mounts for any signs of wear, damage, or loose connections. Do not exceed the motorcycle manufacturer's recommended load limits. Always distribute weight evenly. Professional installation is recommended if you are unsure about any steps.
3. Package Contents
Verify that all components listed below are present and undamaged before beginning installation.
- Left Side Mount Bracket (1 unit)
- Right Side Mount Bracket (1 unit)
- Mounting Hardware Kit (various bolts, washers, nuts)

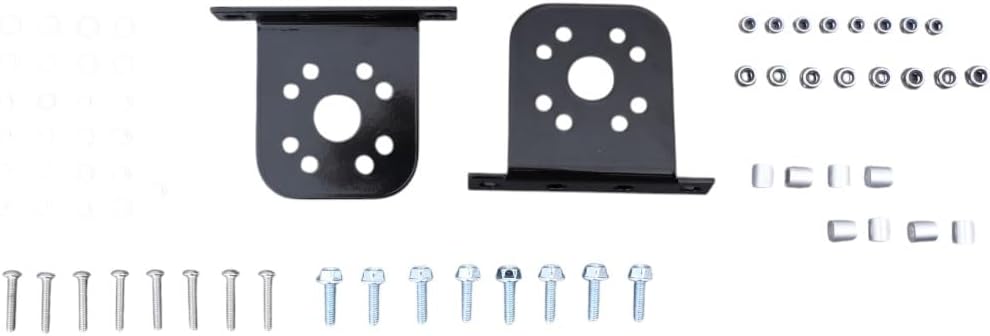

Image: Package contents including two main brackets and a selection of mounting hardware.
4. Setup and Installation
This section outlines the general steps for installing the aVDB-Moto side case mounts. Specific mounting points may vary slightly based on the exact model year of your Royal Enfield Himalayan. Refer to your motorcycle's service manual for detailed information on frame attachment points if necessary.
- Prepare the Motorcycle: Ensure the motorcycle is on a stable, level surface, preferably on its center stand or a paddock stand. Turn off the engine and allow any hot components to cool.
- Identify Mounting Points: Locate the designated mounting points on the motorcycle frame, typically near the rear passenger footpegs and the rear fender/subframe area. These mounts are designed to utilize existing factory attachment points.
- Attach Main Brackets: Position the left side mount bracket against the motorcycle frame. Align the holes on the bracket with the identified mounting points. Insert the appropriate bolts from the hardware kit through the bracket and into the frame. Do not fully tighten at this stage. Repeat this step for the right side mount bracket.
- Secure Hardware: Once both brackets are loosely attached and aligned, progressively tighten all bolts using appropriate tools. Ensure even tightening to prevent stress on the frame or brackets. Refer to your motorcycle's torque specifications if available.
- Final Inspection: After tightening all fasteners, visually inspect both mounts to ensure they are securely attached, level, and do not interfere with any moving parts of the motorcycle (e.g., suspension, chain, wheels) or rider/passenger comfort.
Image: Detail of one of the steel side case mount brackets, illustrating its design and bolt patterns.
5. Operating Instructions
Once the side case mounts are securely installed, they provide a base for your luggage. The universal plate design allows for adaptation of various brands of side cases or soft bags.
- Attaching Side Cases: Follow the specific instructions provided with your side cases for attachment to the universal mounting plates. Ensure the cases are securely locked or fastened to prevent detachment during riding.
- Using with Soft Bags: If using soft saddlebags, drape them over the motorcycle seat and use straps to secure them to the side case mounts. The mounts act as spacers, keeping the bags away from the rear wheel, chain, and exhaust, preventing damage to the bags or the motorcycle's paintwork.
- Load Distribution: Always distribute the weight of your luggage evenly between both sides to maintain motorcycle balance and handling. Avoid placing heavy items on one side only.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your side case mounts.
- Inspection: Periodically check all bolts and fasteners for tightness. Vibrations from riding can cause fasteners to loosen over time.
- Cleaning: Clean the mounts with a mild soap and water solution. Avoid abrasive cleaners or solvents that could damage the powder coating.
- Damage Check: Inspect the steel for any signs of rust, cracks, or bending. If any damage is observed, replace the affected component immediately.
7. Troubleshooting
- Mounts feel loose: Re-tighten all mounting bolts. If the issue persists, inspect for stripped threads or damaged components.
- Rattling noise: Ensure all luggage is securely fastened to the mounts. Check for any loose hardware on the mounts themselves.
- Interference with motorcycle components: Re-check installation steps to ensure correct positioning. If interference occurs, discontinue use and consult a professional.
8. Specifications
- Brand: aVDB
- Model: AVDB
- Material: Alloy Steel
- Color: Black
- Compatibility: Royal Enfield Himalayan 400 410 (2016-2023)
- Mounting: Utilizes existing motorcycle attachment points
- Finish: Powder-coated for durability
9. Warranty and Support
For warranty information or technical support regarding your aVDB-Moto side case mounts, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
