1. Product Overview
The Mesqool CR1028R is a versatile digital alarm clock featuring a dynamic RGB LED display, dual alarms, adjustable brightness and volume, and convenient USB charging ports. This manual provides detailed instructions for its setup and operation.
1.1 Package Contents
- Mesqool CR1028R Digital Alarm Clock
- USB-C Power Cable
- Power Adapter
- User Manual
Image: The Mesqool CR1028R alarm clock, USB-C power cable, power adapter, and user manual are shown as included in the package.
1.2 Button Functions and Ports
Familiarize yourself with the buttons on the top and ports on the back of the alarm clock for easy operation.
Image: Top panel of the alarm clock displaying buttons for Time, Dimmer, Alarm 1, Alarm 2, 12/24 Hour format, DST, Volume, RGB, and Snooze/OK.
Image: Rear view of the alarm clock highlighting the DC IN power jack, USB-A charging port, Type-C charging port, and the battery backup compartment.
2. Setup
2.1 Power Connection
- Connect the provided USB-C power cable to the DC IN port on the back of the alarm clock.
- Plug the other end of the USB-C cable into the power adapter.
- Insert the power adapter into a standard wall outlet. The clock display will light up.
2.2 Battery Backup (Optional)
The clock requires 2 AAA batteries (not included) for backup. These batteries maintain time and alarm settings during a power outage but will not power the display. The display will remain off during battery backup mode.
- Open the battery compartment cover on the back of the clock.
- Insert 2 AAA batteries, ensuring correct polarity (+/-).
- Close the battery compartment cover.
Image: The alarm clock connected to a power adapter, with an illustration showing the battery backup function for retaining settings during power loss.
3. Operating Instructions
3.1 Time Setting
- Press and hold the TIME button for 3 seconds to enter time setting mode. The hour digits will flash.
- Use the + or - buttons to adjust the hour.
- Press the TIME button again. The minute digits will flash.
- Use the + or - buttons to adjust the minute.
- Press the TIME button once more to confirm and exit time setting.
3.1.1 12/24 Hour Format
- Press the 12/24H button to switch between 12-hour (with AM/PM indicator) and 24-hour time formats.
3.1.2 Daylight Saving Time (DST)
- Press the DST button to activate or deactivate Daylight Saving Time. When activated, the time will adjust by one hour.
Image: Three alarm clocks demonstrating the 12-hour format with AM/PM, 24-hour format, and DST adjustment.
3.2 Alarm Setting (AL1 / AL2)
The clock supports two independent alarms, AL1 and AL2.
- Press the AL1 (or AL2) button. The alarm icon will appear on the screen, and the hour digits will flash.
- Use the + or - buttons to adjust the alarm hour.
- Press AL1 (or AL2) again. The minute digits will flash.
- Use the + or - buttons to adjust the alarm minute.
- Press AL1 (or AL2) a third time to confirm the alarm time.
- After setting the time, use the switches on the back of the clock to select the alarm mode: MON-SUN (every day), MON-FRI (weekdays), or SAT-SUN (weekends).
Video: This short video demonstrates the process of setting an alarm, including adjusting the hour and minute digits, and confirming the setting. It also shows the alarm icon appearing on the display.
3.2.1 Alarm Volume Adjustment
The alarm volume can be adjusted to 5 levels, ranging from 76dB to 116dB.
- While the alarm is sounding or during alarm setting, press the VOL button repeatedly to cycle through the 5 volume levels (76-86-96-106-116dB).
Image: The alarm clock display with an overlay indicating 5 adjustable volume levels and three alarm modes: Monday-Sunday, Monday-Friday, and Saturday-Sunday.
3.3 Snooze Function
When the alarm sounds, press the SNOOZE/OK button to activate the snooze function. The alarm will pause for 9 minutes and then sound again. This can be repeated up to 9 times.
- To stop the alarm completely, press any other button (e.g., AL1, AL2, TIME).

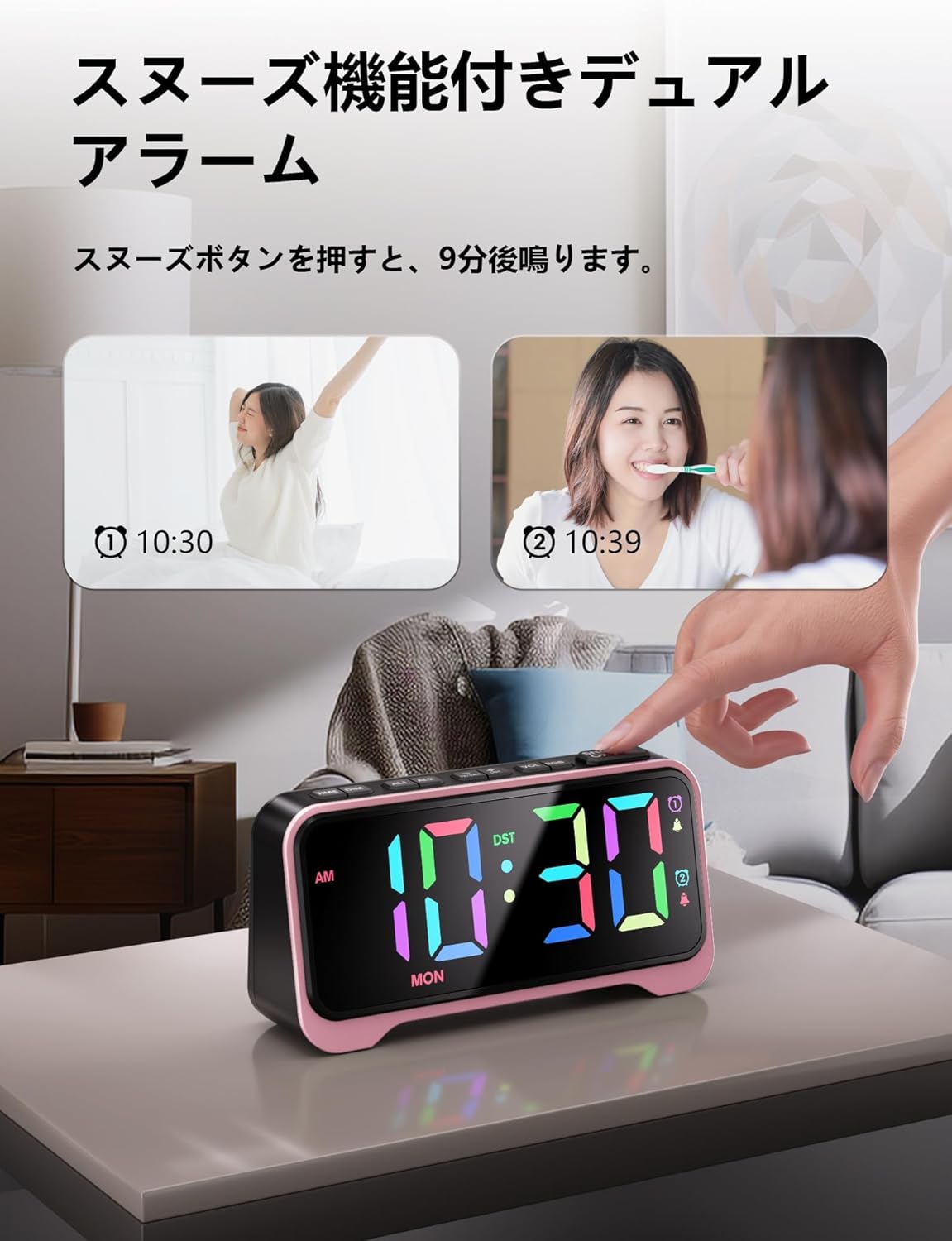

Image: The alarm clock with an illustration of the snooze function, showing the time at 10:30 and then 10:39 after a 9-minute snooze.
3.4 Display Brightness Adjustment
The LED display brightness can be adjusted to 7 levels for optimal visibility in various lighting conditions.
- Press the DIM button repeatedly to cycle through the 7 brightness levels (L01 to L07).
Image: The alarm clock display illustrating the 7 adjustable brightness levels, from dimmest (L01) to brightest (L07).
3.5 Display Color Adjustment (RGB)
The clock offers 10 display color modes, including 6 static colors and 4 dynamic RGB color-changing effects.
- Press the RGB button repeatedly to cycle through the available color modes.
Image: The alarm clock display showcasing 10 different color options, including various static colors and dynamic RGB transitions.
4. Additional Features
4.1 Night Light
The clock includes a soft, warm night light at its base, with 3 adjustable brightness levels.
- Press the SNOOZE/OK button (short press) to turn the night light on/off or cycle through its 3 brightness levels.
Image: The alarm clock on a bedside table with its warm night light illuminated, indicating three adjustable brightness levels.
4.2 USB Charging Ports
The back of the clock features a USB-A port and a Type-C port, both providing 5V/1A output for charging small electronic devices.
- Connect your device's charging cable to the appropriate USB port on the back of the clock.
- Ensure the alarm clock is powered on for the charging ports to function.

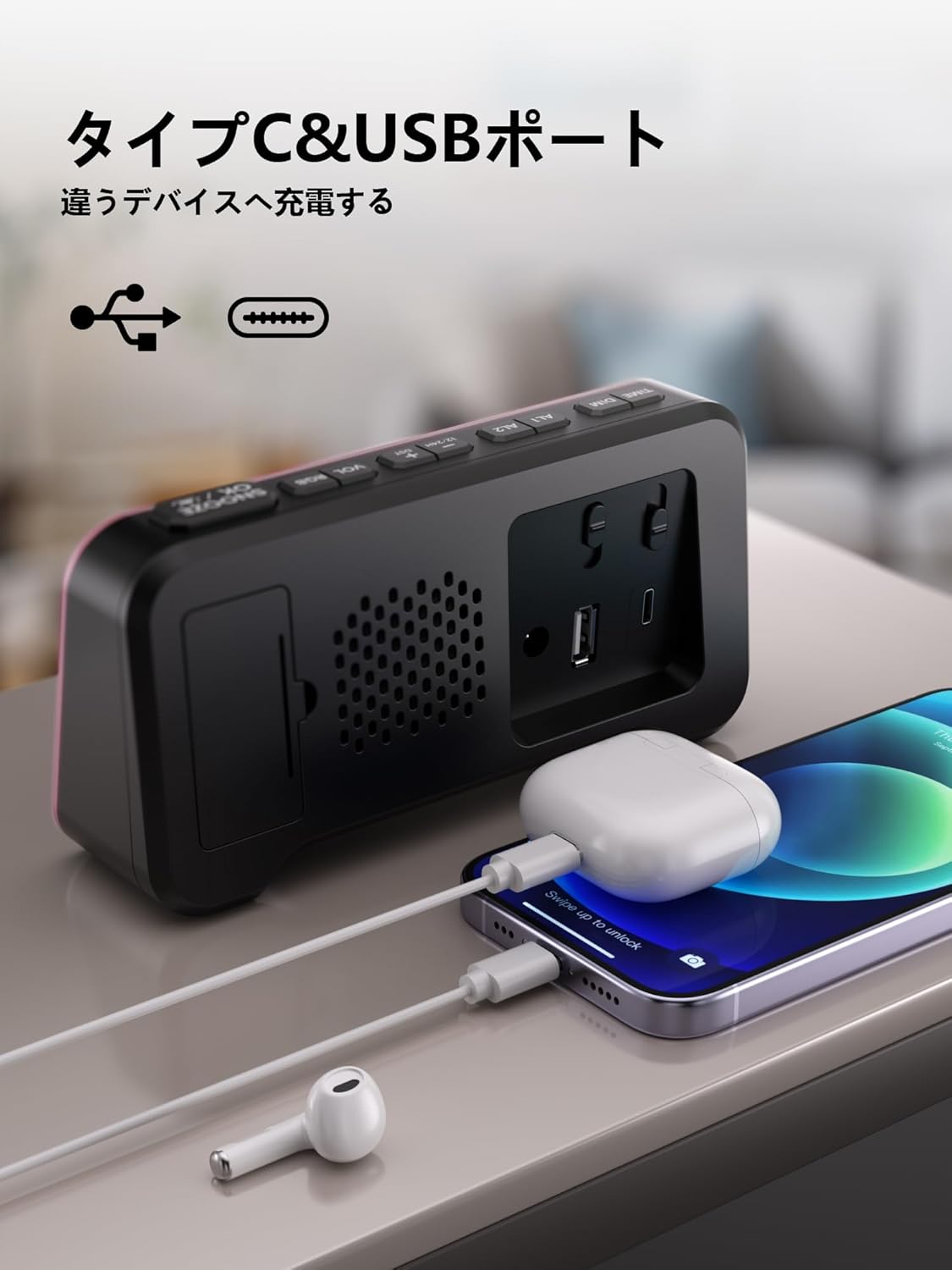

Image: The back of the alarm clock with a smartphone and wireless earbuds charging via the USB-A and Type-C ports.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Clock display is off. | No power connection or power outage. | Ensure the power adapter is securely plugged in. Check power outlet. If using battery backup, the display remains off. |
| Alarm does not sound. | Alarm not activated or volume too low. | Ensure the alarm icon (AL1 or AL2) is visible on the display. Check alarm mode (MON-SUN, MON-FRI, SAT-SUN) on the back. Increase alarm volume using the VOL button. |
| Time/settings reset after power loss. | No backup batteries or batteries are depleted. | Install 2 new AAA batteries in the battery compartment. |
| USB charging not working. | Clock not powered or cable issue. | Ensure the clock is connected to main power. Check if the USB cable is properly connected and functional. |
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | CR1028R |
| Display Type | Digital LED |
| Display Colors | 10 (6 static, 4 dynamic RGB) |
| Display Brightness | 7 levels adjustable |
| Alarm Quantity | 2 independent alarms |
| Alarm Modes | Weekdays, Weekends, Everyday |
| Alarm Volume | 5 levels (76-116dB) |
| Snooze Duration | 9 minutes (up to 9 times) |
| Night Light | 3 levels adjustable |
| Time Format | 12H/24H selectable |
| DST Support | Yes |
| USB Charging Ports | 1x USB-A, 1x Type-C (5V/1A output each) |
| Power Source | Corded Electric |
| Battery Backup | 2x AAA batteries (not included) for memory retention |
| Product Dimensions | 16.9 cm (W) x 4.4 cm (H) |
| Mounting Type | Tabletop |
7. Warranty and Support
Mesqool products are designed for reliability and performance. For any questions, technical support, or warranty claims, please contact Mesqool customer service through your purchase platform or visit the official Mesqool website.
