ZEBRONICS Sheer Plus Wireless Mouse User Manual

1. Overview

The ZEBRONICS Sheer Plus is a versatile wireless mouse designed for various computing environments. It features dual-mode connectivity (2.4GHz and Bluetooth), dual Bluetooth connections, and dual nano-receivers (USB-A and USB-C) for broad compatibility. The mouse offers adjustable DPI settings up to 3200, silent operation, and an ergonomic design with RGB LED lighting.

Image: Top-down view of the ZEBRONICS Sheer Plus Wireless Mouse, highlighting its transparent design, internal circuitry, and RGB LED illumination.

2. Package Contents

Verify that all items are present in the package:

• Mouse - 1 unit
• Nano receiver (USB-A) - 1 unit
• Nano receiver (USB-C) - 1 unit
• Charging cable (Type-C) - 1 unit
• Quick user guide - 1 unit

3. Setup

3.1 Charging the Mouse

Before initial use, fully charge the mouse. Connect the provided Type-C charging cable to the mouse's charging port and to a USB power source (e.g., computer USB port, USB wall adapter). The LED indicator will show charging status and turn off when fully charged.

Image: The ZEBRONICS Sheer Plus Wireless Mouse being charged via its Type-C port, with the charging cable connected.

3.2 Connectivity Options

The mouse supports two primary connection modes: 2.4GHz wireless via USB dongle and Bluetooth.

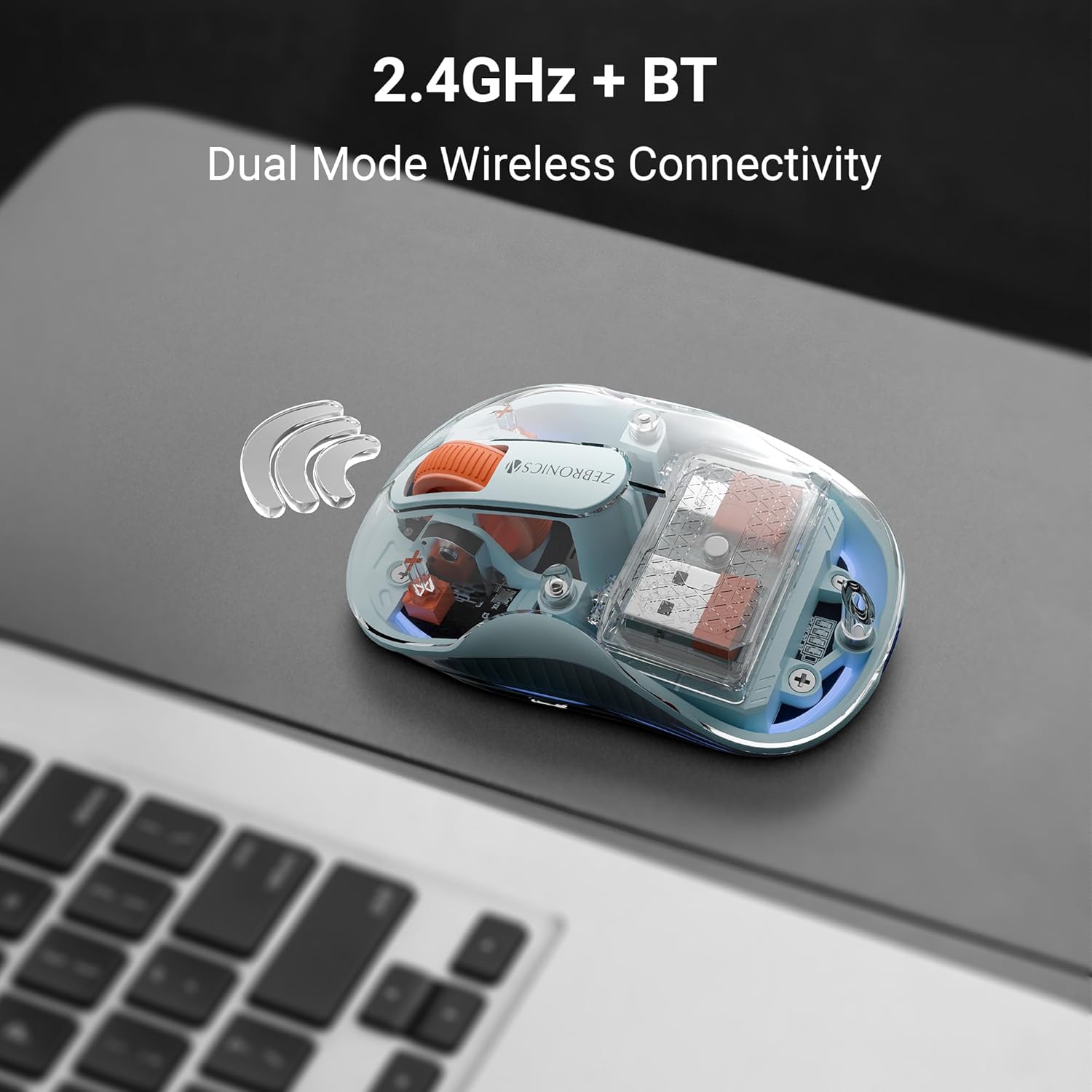

Image: The ZEBRONICS Sheer Plus Wireless Mouse on a surface, indicating its dual-mode wireless capabilities (2.4GHz and Bluetooth).

3.2.1 2.4GHz Wireless Connection

1. Locate the USB-A or USB-C nano receiver from the mouse's storage compartment (usually at the bottom).
2. Insert the appropriate nano receiver into an available USB port on your computer or device.
3. Turn on the mouse using the power switch located on the bottom.
4. Switch the mode selector on the bottom of the mouse to the '2.4G' position. The mouse should connect automatically.

Image: The ZEBRONICS Sheer Plus Wireless Mouse demonstrating its dual nano receivers (USB-A and USB-C) for connectivity with different devices like a laptop and a smartphone.

3.2.2 Bluetooth Connection (BT1 / BT2)

The mouse supports two independent Bluetooth connections (BT1 and BT2).

1. Turn on the mouse using the power switch.
2. Switch the mode selector on the bottom of the mouse to either 'BT1' or 'BT2' position.
3. Press and hold the mode switch button (often combined with DPI button or a dedicated button) for 3-5 seconds until the LED indicator starts blinking rapidly, indicating pairing mode.
4. On your device (computer, laptop, tablet), open Bluetooth settings and search for new devices.
5. Select "ZEB-SHEER PLUS" or a similar name from the list of available devices to pair.
6. Once paired, the LED indicator on the mouse will stop blinking and remain solid for a few seconds, then turn off.
7. Repeat these steps for the second Bluetooth connection (BT2) with another device if desired.

4. Operating Instructions

4.1 Power On/Off

Use the ON/OFF switch located on the bottom of the mouse to power it on or off. Turning off the mouse when not in use conserves battery life.

4.2 Switching Between Modes

The mode selector switch on the bottom of the mouse allows you to switch between 2.4GHz wireless, Bluetooth 1 (BT1), and Bluetooth 2 (BT2) connections. Simply slide the switch to your desired mode.

4.3 DPI Adjustment

The mouse features a dedicated DPI/LED mode switch button, typically located near the scroll wheel. Press this button to cycle through the available DPI settings (e.g., 1200, 1600, 2400, 3200 DPI). Each press changes the cursor sensitivity, allowing you to select the speed that best suits your task.

Image: A top-down view of the mouse illustrating the four adjustable DPI levels for precise cursor control.

4.4 RGB LED Control

The DPI/LED mode switch button may also control the RGB lighting effects. Press and hold or repeatedly press this button (depending on the specific model's firmware) to cycle through different lighting modes or to turn the RGB lighting on/off.

Image: The ZEBRONICS Sheer Plus Wireless Mouse with its transparent top shell detached, showcasing the internal components and the RGB LED strips that provide illumination.

4.5 Button Functions

The mouse is equipped with 4 buttons:

• Left Click: Standard selection and activation.
• Right Click: Context menu access.
• Scroll Wheel/Middle Click: Scrolling and middle-click function.
• DPI/LED Mode Switch: Adjusts cursor sensitivity and controls RGB lighting.

Image: A detailed view of the ZEBRONICS Sheer Plus Wireless Mouse, highlighting the four buttons and their underlying mechanical switches.

4.6 Silent Operation

The mouse is designed for silent clicks, minimizing noise during use. This feature is beneficial in quiet environments such as libraries, offices, or late-night work sessions.

Image: A hand positioned on the ZEBRONICS Sheer Plus Wireless Mouse, demonstrating its quiet click functionality.

5. Maintenance

• Cleaning: Use a soft, dry cloth to clean the mouse. For stubborn dirt, a slightly damp cloth can be used, ensuring no moisture enters the internal components. Avoid harsh chemicals or abrasive cleaners.
• Battery Care: To prolong battery life, avoid fully discharging the mouse frequently. Charge it when the low battery indicator appears. Do not expose the mouse to extreme temperatures.
• Storage: When not in use for extended periods, turn off the mouse and store it in a cool, dry place.

6. Troubleshooting

• Mouse not responding: Ensure the mouse is powered on. Check the battery level and charge if necessary. Verify the correct connection mode (2.4GHz, BT1, or BT2) is selected. For 2.4GHz, ensure the nano receiver is securely plugged in. For Bluetooth, re-pair the device.
• Erratic cursor movement: Clean the optical sensor on the bottom of the mouse. Ensure you are using the mouse on a suitable surface (a mouse pad is recommended).
• Connectivity issues: Move the mouse closer to the receiver/device. Avoid using the mouse near strong interference sources (e.g., other wireless devices, large metal objects). Try connecting to a different USB port or re-pairing the Bluetooth connection.
• Charging problems: Ensure the Type-C cable is properly connected to both the mouse and the power source. Try a different charging cable or USB port.

7. Specifications

8. Warranty and Support

For warranty information and technical support, please refer to the warranty card included in your product packaging or visit the official ZEBRONICS website. Keep your purchase receipt as proof of purchase for warranty claims.
