Introduction
This manual provides essential instructions for the assembly, operation, and maintenance of your Tommy Bahama Sojag BBQ Maui Grill Gazebo. Please read this manual thoroughly before assembly and retain it for future reference. Proper assembly and care will ensure the longevity and safe use of your gazebo.
Image: Front view of the Tommy Bahama Sojag BBQ Maui Grill Gazebo, showcasing its wood grain finish and double roof design.
Safety Information
- Ensure all components are securely fastened before use.
- Do not hang heavy objects from the gazebo frame or roof.
- Keep open flames and heat sources at a safe distance from the gazebo structure, especially when grilling.
- In strong winds or severe weather conditions, it is recommended to secure the gazebo or disassemble it to prevent damage.
- Always follow local building codes and regulations for outdoor structures.
Setup and Assembly
The Tommy Bahama Sojag BBQ Maui Grill Gazebo is designed for straightforward assembly. It is recommended that two or more adults participate in the assembly process. Refer to the detailed illustrated instructions included in your product packaging for step-by-step guidance.
Image: A graphic illustrating the DIY assembly process, with a person securing a component of the gazebo frame.
Key Assembly Steps:
- Site Preparation: Choose a level, stable surface for installation. Ensure adequate clearance around the gazebo for safe use and access.
- Unpacking and Component Identification: Carefully unpack all parts and verify against the parts list in your instruction manual.
- Frame Assembly: Assemble the extruded aluminum design frame using the provided stainless steel bolts and screws. Pay close attention to the wide diameter posts and cross beams for structural integrity.
- Roof Panel Installation: Install the heavy-duty galvanized steel roof panels. The double roof design enhances airflow and stability.
- Shelf Attachment: Secure the spacious side shelves, which provide convenient counter space for grilling accessories and food preparation.
- Securing the Gazebo: Ensure the gazebo posts are firmly anchored to the ground or deck for maximum stability, especially in varying weather conditions.
Image: A top-down diagram illustrating the recommended placement of a grill and other accessories within the 6' x 8' gazebo footprint.
Image: Detail of a gazebo post base, showing how it is secured to a wooden surface, highlighting the stability features.
Image: A detailed view of the gazebo's roof structure, showing the robust connections and an integrated hook for hanging lights or tools.
Operating Instructions
The BBQ Maui Grill Gazebo is designed to enhance your outdoor grilling experience by providing protection and convenience.
Image: The gazebo positioned in a backyard, providing shade and a dedicated space for a grill and outdoor cooking.
Usage Guidelines:
- Sun Protection: The hardtop roof provides reliable protection from direct sunlight, making your grilling area more comfortable. The material offers Ultraviolet Light Protection.
- Airflow: The unique double roof design promotes increased airflow, which helps dissipate heat and smoke from your grill, ensuring a more pleasant environment.
- Work Surfaces: Utilize the spacious side shelves for preparing food, holding grilling tools, or serving drinks. These shelves are designed for convenience during cookouts.
- Weather Resistance: The heavy-duty galvanized steel panels and AkzoNobel's Interpon powder coating offer protection against various elements, including water. While the gazebo is waterproof, it is not designed to withstand extreme weather conditions such as heavy snow loads or hurricane-force winds.
Image: A close-up view of one of the gazebo's side shelves, featuring the Tommy Bahama logo, designed for convenient use during grilling.
Maintenance
Regular maintenance will help preserve the appearance and structural integrity of your gazebo.
- Cleaning: Clean the frame and roof panels periodically with mild soap and water. Rinse thoroughly with a garden hose. Avoid using abrasive cleaners or scrub brushes that could damage the finish.
- Corrosion Resistance: The AkzoNobel's Interpon powder coating is designed to resist scratches and corrosion. However, inspect for any chips or damage to the coating and touch up as needed to prevent rust.
- Fastener Checks: Periodically check all bolts and screws to ensure they remain tight. Re-tighten any loose fasteners to maintain structural stability.
- Seasonal Inspection: Before and after seasons of heavy use, inspect the entire structure for any signs of wear, damage, or loose connections.
Troubleshooting
If you encounter issues with your gazebo, consider the following common solutions:
- Wobbling Structure: Ensure all bolts and screws are tightened. Verify that the gazebo is placed on a level surface and properly anchored.
- Water Accumulation: While the roof is waterproof, ensure that debris (leaves, branches) is not obstructing the roof's drainage paths, which could lead to water pooling.
- Damaged Parts: If any part is damaged during assembly or use, contact customer support for replacement parts. Do not attempt to use the gazebo with compromised structural components.
Specifications
Detailed specifications for the Tommy Bahama Sojag BBQ Maui Grill Gazebo:

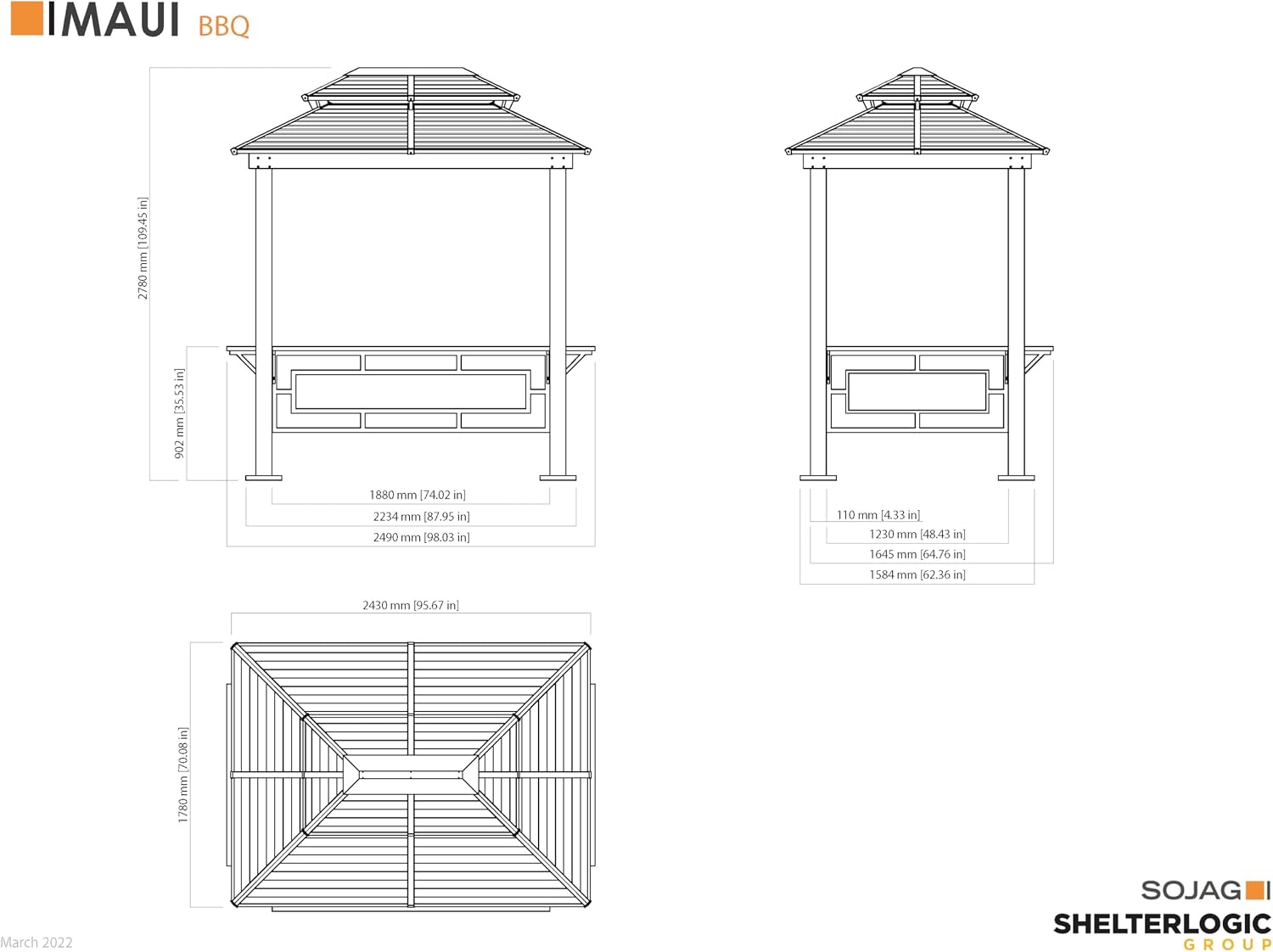

Image: A technical diagram providing detailed measurements and dimensions of the gazebo from multiple perspectives.
| Feature | Detail |
|---|---|
| Brand | Tommy Bahama |
| Style | Grill Gazebo |
| Product Dimensions | 96"L x 72"W x 109.45"H (8'L x 6'W x 9.12'H) |
| Frame Material | Extruded Aluminum, Metal |
| Roof Material | Heavy-Duty Galvanized Steel |
| Coating | AkzoNobel Interpon Powder Coating |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | Yes |
| Assembly Required | Yes |
| Color | Wood Grain Finish |
| Item Weight | 255 pounds |
| Item Model Number | 500-9168693 |
| UPC | 772830168693 |
| Manufacturer | ShelterLogic |
Warranty Information
The Tommy Bahama Sojag BBQ Maui Grill Gazebo is backed by a 1-year limited warranty. This warranty covers manufacturing defects in materials and workmanship under normal use and service conditions.
Image: A graphic prominently displaying '1 YEAR LIMITED WARRANTY'.
For specific details regarding warranty coverage, claims, and exclusions, please refer to the warranty documentation included with your product or contact the manufacturer directly.
Customer Support
Should you require assistance with assembly, have questions about product features, or need to report a missing or damaged part, please contact the manufacturer's customer service department.
Please have your model number (500-9168693) and proof of purchase available when contacting support to ensure efficient service.
