AEEZO Android 14 10-inch Tablet User Manual

1. Introduction

Welcome to the user manual for your new AEEZO Android 14 10-inch Tablet. This manual provides essential information on how to set up, operate, maintain, and troubleshoot your device. Please read this manual thoroughly to ensure optimal performance and longevity of your tablet.

2. What's in the Box

Carefully unpack your new AEEZO tablet and ensure all items are present:

• AEEZO Android 14 10-inch Tablet
• Charger
• Keyboard
• Mouse
• USB Cable

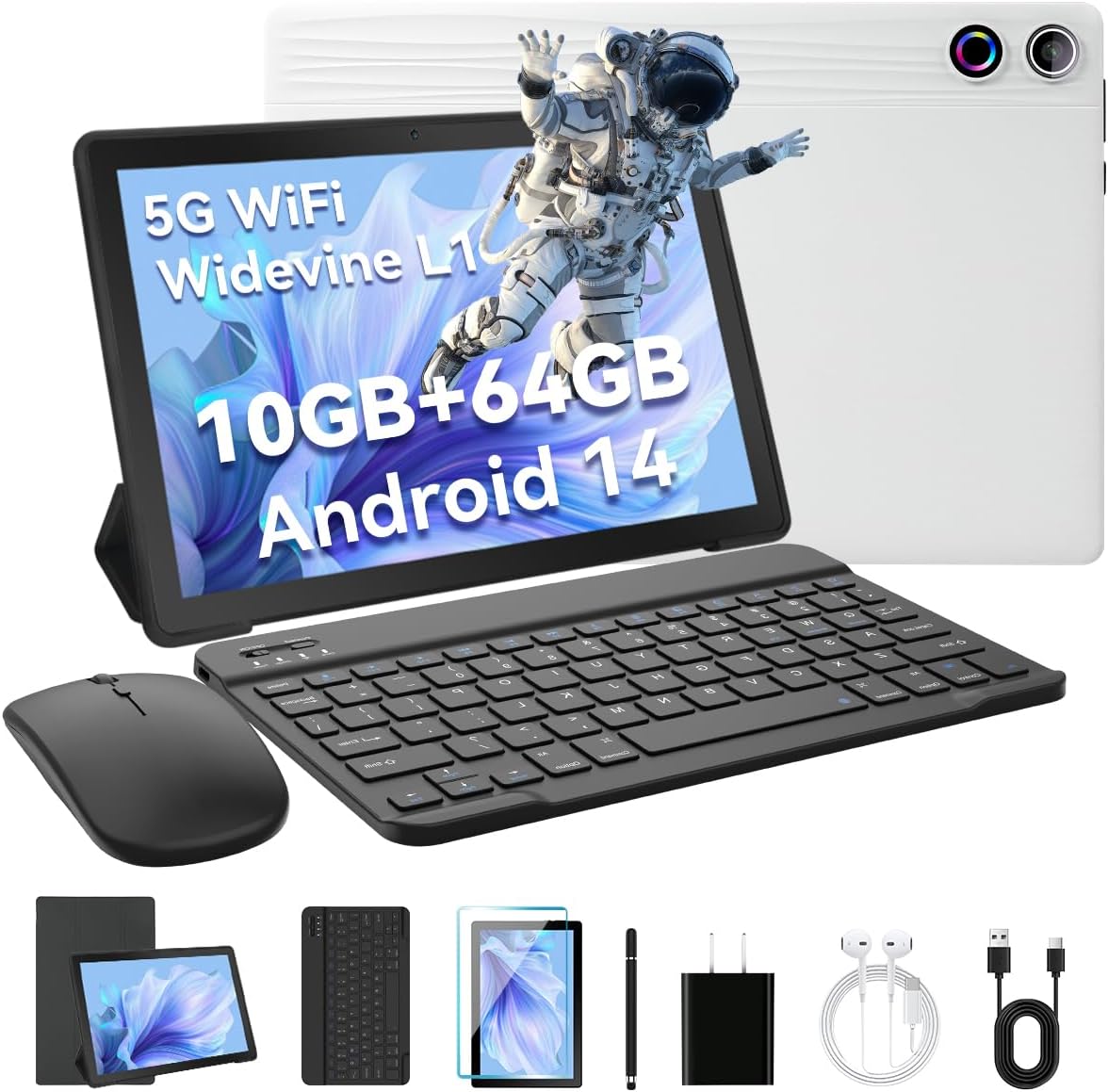

Image: The AEEZO Android 14 10-inch Tablet displayed with its full set of accessories, including the tablet itself, a detachable keyboard, a wireless mouse, a charger, and a USB cable.

3. Product Overview

Familiarize yourself with the main components of your AEEZO tablet.

Image: A front view of the AEEZO Android 14 10-inch Tablet, showcasing its display with various application icons. Below the tablet, key specifications are highlighted, including the Octa-Core Processor, Android 14 operating system, 10GB RAM + 64GB ROM, 1280x800 HD resolution, WiFi 6, and Bluetooth 5.0 connectivity.

3.1. Physical Components

• Power Button: Located on the side, used to power on/off or wake/sleep the screen.
• Volume Buttons: Adjust audio volume.
• USB Type-C Port: For charging and data transfer.
• 3.5mm Headphone Jack: For connecting wired headphones.
• Front Camera: For video calls and selfies (5MP).
• Rear Camera: For taking photos and videos (8MP).
• MicroSD Card Slot: Expand storage up to 1TB (TF card sold separately).
• Dual Speakers: Provide stereo audio output.

Image: The AEEZO Android 14 10-inch Tablet is shown with graphical representations highlighting its memory specifications: 10GB RAM, 64GB internal memory, and the capability for TF card expansion up to 1TB.

4. Setup

4.1. Charging the Tablet

Before first use, fully charge your tablet. Connect the provided charger to the USB Type-C port on the tablet and plug it into a power outlet. The battery indicator on the screen will show charging status.

4.2. Powering On/Off

• To Power On: Press and hold the Power button until the AEEZO logo appears.
• To Power Off: Press and hold the Power button until a power menu appears, then select "Power off".
• To Sleep/Wake: Briefly press the Power button.

4.3. Initial Setup

Upon first power-on, follow the on-screen prompts to configure your tablet:

1. Select your preferred language.
2. Connect to a Wi-Fi network.
3. Sign in with your Google account or create a new one. This is essential for downloading apps from the Google Play Store.
4. Set up screen lock (PIN, pattern, password, or Face Unlock).
5. Review and accept terms and conditions.

4.4. Connecting Keyboard and Mouse

The included keyboard and mouse connect via Bluetooth. Ensure Bluetooth is enabled on your tablet (Settings > Connected devices > Bluetooth).

• Keyboard: Turn on the keyboard. It should appear in the list of available Bluetooth devices. Tap to pair.
• Mouse: Turn on the mouse. It should appear in the list of available Bluetooth devices. Tap to pair.

4.5. Inserting a TF Card (MicroSD)

To expand storage, locate the TF card slot on the side of the tablet. Gently insert a MicroSD card (up to 1TB, sold separately) until it clicks into place. The tablet will recognize the new storage.

5. Operating Your Tablet

5.1. Basic Navigation

• Tap: Select an item or open an app.
• Tap & Hold: Access contextual menus or move icons.
• Swipe: Scroll through screens or lists.
• Pinch-to-Zoom: Zoom in or out on images and web pages.
• 3-Finger Screenshot: Swipe down with three fingers to capture a screenshot.

5.2. Wi-Fi Connection

Go to Settings > Network & internet > Internet. Turn on Wi-Fi, select your desired network, and enter the password if required.

5.3. Bluetooth Connection

Go to Settings > Connected devices > Bluetooth. Turn on Bluetooth, and the tablet will scan for nearby devices. Select a device to pair.

5.4. Using the Cameras

Open the Camera app to take photos or record videos. The tablet features a 5MP front camera and an 8MP rear camera.

Image: A detailed view of the AEEZO Android 14 10-inch Tablet's rear, emphasizing its 8MP rear camera and 5MP front camera. The image also illustrates the Face Unlock feature and shows examples of video calls and outdoor scenes, demonstrating the tablet's utility for communication and capturing moments.

5.5. Parental Control

Android 14 offers enhanced parental control features. Navigate to Settings > Digital Wellbeing & parental controls to manage screen time, app access, and content filters for children's accounts.

5.6. Face Unlock

Set up Face Unlock for convenient and secure access to your tablet. Go to Settings > Security & privacy > Device unlock > Face Unlock and follow the on-screen instructions to register your face.

5.7. Multi-Window Mode

To use two apps simultaneously, open one app, then swipe up from the bottom of the screen to reveal the recent apps. Tap the app icon at the top of the window and select "Split screen". Choose another app to open in the second window.

5.8. Eye Protection Mode

Activate Eye Protection Mode (also known as Night Light or Reading Mode) to reduce blue light emission, which can help reduce eye strain. This setting is typically found in Settings > Display.

5.9. Audio Features

The tablet features built-in dual speakers for a high-quality audio experience. For private listening, connect headphones to the 3.5mm headphone jack.

5.10. Widevine L1 Support

Your tablet supports Widevine L1, enabling high-definition streaming from popular platforms like Netflix, Hulu, and Amazon Prime Video. Ensure your internet connection is stable for optimal streaming quality.

6. Maintenance

6.1. Cleaning Your Tablet

Use a soft, lint-free cloth to clean the screen and body of the tablet. For stubborn smudges, slightly dampen the cloth with water or a screen cleaner. Avoid harsh chemicals or abrasive materials.

6.2. Battery Care

• Avoid extreme temperatures.
• Do not let the battery completely drain frequently.
• Use the provided charger for optimal charging.

6.3. Software Updates

Periodically check for system updates to ensure your tablet has the latest features and security patches. Go to Settings > System > System update.

6.4. Storage Management

Regularly clear unnecessary files, cache data, and uninstall unused apps to free up storage space and maintain performance. You can manage storage in Settings > Storage.

7. Troubleshooting

8. Specifications

Detailed technical specifications for your AEEZO Android 14 10-inch Tablet:

Image: A visual representation of the AEEZO Android 14 10-inch Tablet's internal components, specifically highlighting the Jeazans Octa-Core Processor and its support for WiFi 6. Accompanying text emphasizes key benefits such as large memory expandability up to 1TB via TF card, low power consumption with high performance, and a 2.0GHz main frequency for improved multi-tasking capabilities.

9. Warranty and Support

Your AEEZO tablet comes with a standard manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions. For technical support, product inquiries, or warranty claims, please contact AEEZO customer service through their official website or the retailer where you purchased the product.

For further assistance, you may visit the AEEZO Store online: AEEZO Official Store
