1. Product Overview
This Gnyduw Gas Fuel Tank Carburetor Assembly (Model DO-J0399) is a replacement part designed for Briggs & Stratton 500 Series 158cc engine lawnmowers. It integrates the fuel tank and carburetor into a single unit, simplifying replacement and ensuring proper fuel delivery to the engine.

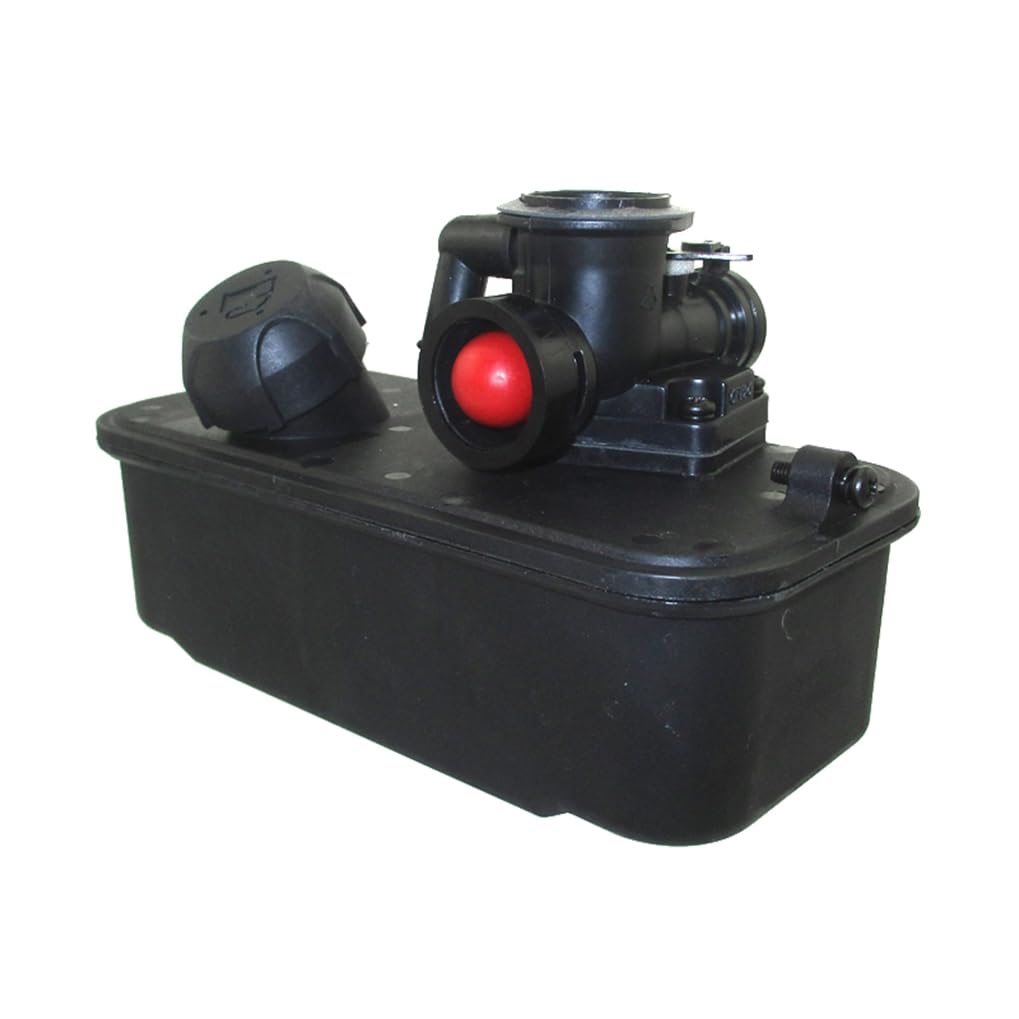

Figure 1.1: Top view of the Gnyduw Gas Fuel Tank Carburetor Assembly. This image shows the overall structure including the fuel tank base and the integrated carburetor unit on top.
2. Safety Information
- Always disconnect the spark plug wire before performing any maintenance or installation.
- Ensure the engine is cool before handling fuel system components.
- Work in a well-ventilated area and avoid open flames or sparks.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Refer to your lawnmower's original service manual for specific safety procedures.
3. Setup and Installation
This assembly is designed for direct replacement in compatible Briggs & Stratton 500 Series 158cc engines. Verify compatibility by comparing your existing part with the product images and specifications before installation.
3.1 Pre-Installation Check
- Confirm the new assembly matches the old unit in terms of mounting points and connections.
- Inspect the assembly for any visible damage from shipping.
3.2 Installation Steps
- Drain Fuel: Completely drain any remaining fuel from the old tank into an approved container.
- Remove Old Assembly: Disconnect fuel lines, throttle linkage, and any mounting bolts securing the old fuel tank and carburetor. Carefully remove the old unit.
- Position New Assembly: Place the new Gnyduw assembly into position, ensuring all mounting points align.
- Secure Assembly: Fasten the assembly using the appropriate bolts. Do not overtighten.
- Connect Components: Reconnect the fuel lines and throttle linkage to the new carburetor. Ensure all connections are secure and free of leaks.
- Add Fuel: Fill the new fuel tank with fresh, appropriate gasoline for your lawnmower engine.
Figure 3.1: View highlighting the primer bulb and fuel cap on the assembly. Ensure these components are properly connected during installation.
4. Operating Instructions
After successful installation, the lawnmower engine should operate as designed. The carburetor's primary function is to mix air and fuel in the correct ratio for combustion. The primer bulb assists in drawing fuel into the carburetor for easier starting.
- Priming the Engine: Before starting a cold engine, press the primer bulb several times (typically 3-5 times, refer to your engine manual) until fuel is visible in the bulb or the bulb feels firm.
- Starting the Engine: Follow your lawnmower's specific starting procedure, which usually involves setting the throttle and pulling the starter cord.
- Engine Operation: The carburetor will automatically adjust the fuel-air mixture during operation.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of the fuel tank and carburetor assembly.
- Fuel Quality: Always use fresh, clean gasoline. Stale or contaminated fuel can clog the carburetor.
- Fuel Filter: Inspect and replace the fuel filter (if applicable to your engine setup) regularly to prevent debris from reaching the carburetor.
- Cleaning: Periodically inspect the exterior of the carburetor for dirt or debris. Clean with a soft brush and appropriate carburetor cleaner if necessary.
- Storage: For long-term storage, drain the fuel tank or use a fuel stabilizer to prevent fuel degradation and carburetor clogging.
Figure 5.1: Side view of the fuel tank portion of the assembly. Regular inspection of the tank for cracks or leaks is recommended.
6. Troubleshooting
If your lawnmower experiences issues after installing this assembly, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start or starts with difficulty | No fuel reaching carburetor; primer bulb not working; clogged fuel line/carburetor. | Ensure fuel tank has fresh fuel. Press primer bulb until firm. Check fuel lines for kinks or blockages. If primer bulb is faulty, inspect for proper seating or damage. |
| Engine runs rough or stalls | Improper fuel-air mixture; dirty carburetor; old fuel. | Replace old fuel with fresh fuel. Clean or replace air filter. If issues persist, the carburetor may require professional cleaning or adjustment. |
| Fuel leaks | Loose connections; damaged fuel lines; faulty gaskets. | Inspect all fuel line connections and tighten if loose. Check fuel lines for cracks and replace if damaged. Ensure gaskets are properly seated. |
If troubleshooting steps do not resolve the issue, consult a qualified small engine technician.
7. Specifications
- Product Name: Gas Fuel Tank Carburetor Assembly
- Brand: Gnyduw
- Model Number: DO-J0399
- Compatible Engine: Briggs & Stratton 500 Series 158cc Engine
- Vehicle Service Type: Lawnmower
- Fuel Type: Gasoline
- Material: Plastic
- Color: Black
- Included Components: 1 piece Gas Fuel Tank Carburetor Assembly
8. Product Video
Video 8.1: An overview of the Gnyduw Gas Fuel Tank Carburetor Assembly, showcasing various angles and features of the product. This video provides a visual guide to the component's design.
9. Warranty Information
This Gnyduw Gas Fuel Tank Carburetor Assembly comes with a 90-day manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accident, or unauthorized repairs.
10. Customer Support
For further assistance, technical support, or warranty claims, please contact Gnyduw customer service through the retailer where the product was purchased. When contacting support, please have your product model number (DO-J0399) and purchase information readily available.
