1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your AGT-DM12X-PLUS 1 Ton Mini Excavator. Please read this manual thoroughly before operating the machine to ensure proper usage and to maximize its lifespan. This compact crawler mini excavator is designed for small to medium excavation tasks in confined spaces, offering a balance of power, maneuverability, and durability.
Figure 1: The AGT-DM12X-PLUS 1 Ton Mini Excavator, showcasing its compact design and robust build.
2. Safety Information
Your safety and the safety of others are paramount. Always adhere to all safety warnings and instructions provided in this manual and on the machine itself. Failure to do so may result in serious injury or death.
- Unloading: Excavators and loaders require a forklift for safe unloading. If a forklift is unavailable, consider renting one or using a trailer to unload the excavator at the closest freight location.
- Rollover Protection: The machine is equipped with a sturdy steel roof and rollover protection to enhance operator safety.
- Clearance: Always be aware of your surroundings and maintain a safe distance from obstacles, power lines, and other personnel.
- Personal Protective Equipment (PPE): Always wear appropriate PPE, including hard hat, safety glasses, hearing protection, and steel-toed boots, when operating the excavator.
- Machine Stability: Ensure the excavator is on stable, level ground before operating. Be cautious on slopes and uneven terrain.
- Hydraulic System: Exercise extreme caution when working with the hydraulic system. High-pressure fluid can cause serious injury.
3. Setup and Features Overview
The AGT-DM12X-PLUS is designed for ease of use and versatility. Familiarize yourself with its key features before operation.
3.1. Adjustable Hydraulic Thumb
The excavator features an adjustable hydraulic thumb, allowing for versatile material handling and gripping capabilities. The angle of the thumb can be adjusted using a pin in three different locations to suit various tasks.
Figure 2: Close-up view of the excavator's hydraulic thumb, designed for enhanced gripping and material handling.
3.2. Backfill Blade
A backfill blade is integrated into the design, allowing for efficient leveling and backfilling of excavated areas. This feature streamlines the cleanup process after digging operations.
3.3. Rubber Tracks
The excavator is equipped with durable rubber tracks, providing excellent traction and minimizing ground disturbance, making it suitable for various terrains, including sensitive landscapes.
3.4. LED Work Light
A bright LED work light is mounted on the boom, ensuring visibility and safe operation in low-light conditions or during nighttime work.
3.5. Grease Fittings
The machine features grease fittings at all critical pivot points to ensure smooth operation and extend the lifespan of moving parts. Regular lubrication is essential for optimal performance.
3.6. Dual Display System
The operator's console includes a dual display system for monitoring machine parameters and accessing various functions, enhancing operational control and convenience.

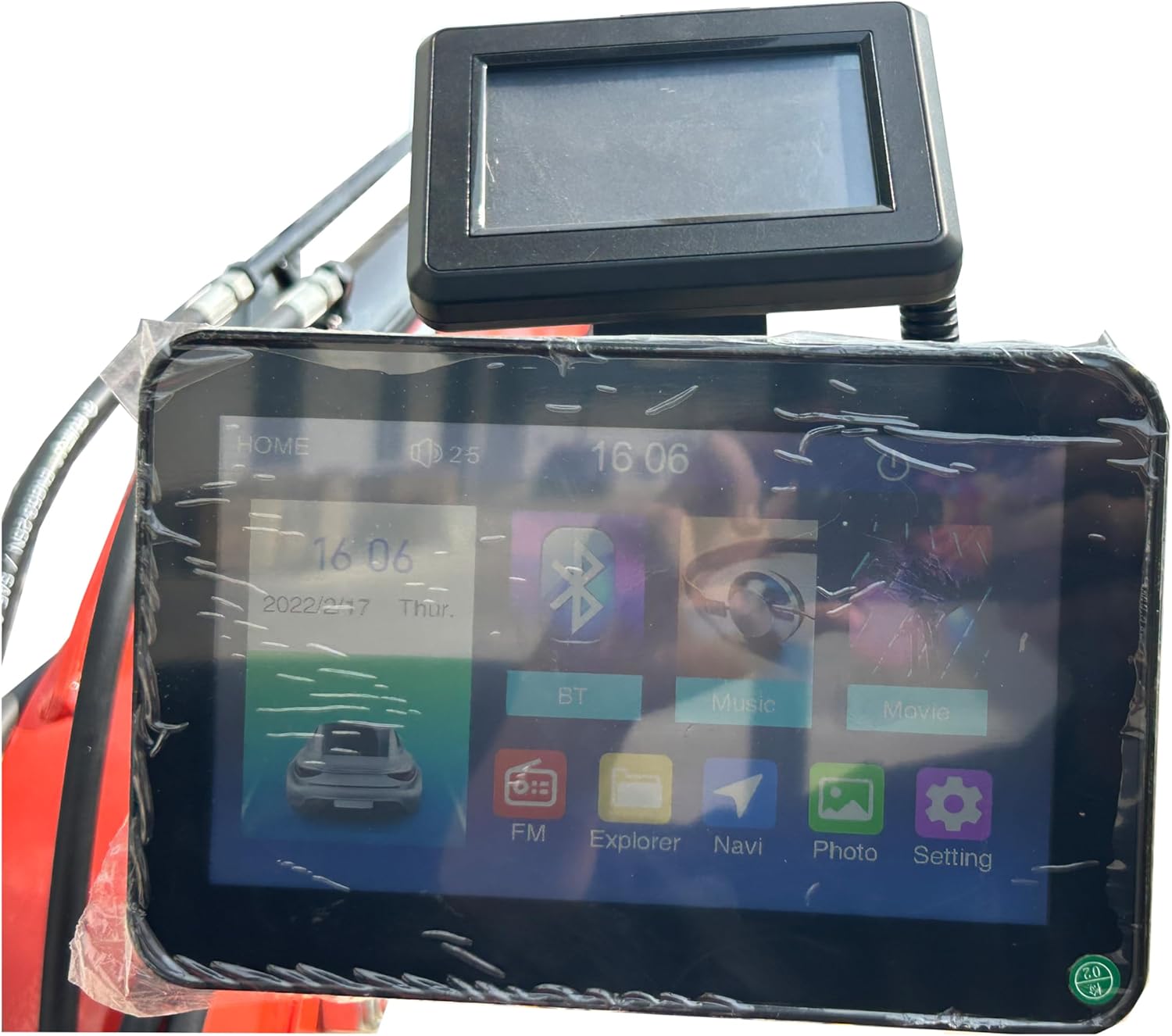

Figure 3: The dual display system on the operator's console, providing essential information and controls.
4. Operating the Excavator
The AGT-DM12X-PLUS is designed with user-friendly controls, operating similarly to a backhoe. While it may take a few minutes to adapt to the controls, its intuitive design makes it accessible for both experienced and less-experienced operators.
4.1. Controls Layout
- Right Side Console: Contains the ignition switch, throttle control, choke, and headlight switch.
- Left Side Console: Features a battery kill switch for safety and power management.
- Between Knees: Controls for tracks (left/right, forward/back), blade control (up/down), and the main boom/dipper/bucket arm controls.
4.2. Starting the Machine
- Ensure the battery kill switch is in the 'ON' position.
- Insert the key into the ignition and turn to the 'ON' position.
- Adjust the choke if starting from cold.
- Engage the throttle to the desired RPM.
- Turn the ignition key to start the engine.
4.3. Movement and Digging
The excavator's travel speed is moderate, suitable for precise movements within a work area rather than rapid transit. For backyard projects or detailed work, this deliberate speed is advantageous.
- Use the track controls to maneuver the machine.
- Operate the boom, dipper stick, and bucket controls to perform digging and lifting tasks.
- Utilize the backfill blade for leveling and clearing debris.
5. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your AGT-DM12X-PLUS Mini Excavator.
- Engine: The excavator is powered by a Briggs & Stratton 13.5 horsepower XR series engine. Refer to the engine manufacturer's manual for specific maintenance schedules, including oil changes, air filter cleaning/replacement, and spark plug inspection.
- Hydraulic System: Regularly check hydraulic fluid levels and inspect hoses and connections for leaks or damage. Ensure the hydraulic pump is clean and free from debris.
- Greasing: Lubricate all grease fittings regularly using the appropriate grease gun fitting. This ensures smooth movement of pivot points and reduces wear.
- Tracks: Inspect rubber tracks for wear, damage, or excessive tension. Clean tracks regularly to prevent buildup of dirt and debris.
- General Inspection: Before each use, perform a visual inspection of the machine for any loose fasteners, damaged components, or unusual conditions.
6. Troubleshooting
This section provides general guidance for common issues. For complex problems, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine not starting | Battery kill switch off, low fuel, spark plug issue, choke setting | Check kill switch, add fuel, inspect/replace spark plug, adjust choke |
| Loss of hydraulic power | Low hydraulic fluid, clogged filter, pump issue | Check fluid level, inspect/replace filter, contact service |
| Tracks not moving | Track control issue, hydraulic pressure, debris in tracks | Check controls, inspect tracks for obstructions, contact service |
7. Specifications
- Product Dimensions: 107.8 x 36.81 x 86.97 inches
- Item Weight: 6000 pounds
- Item Model Number: AGT-DM12X-PLUS
- Manufacturer: YiTong Machine
- Engine: Briggs & Stratton 13.5 HP XR Series (or Kubota/Yanmar options available)
- Bucket Size: 12-inch bucket with adjustable thumb
8. Warranty and Support
AGT INDUSTRIAL is committed to customer satisfaction. Your AGT-DM12X-PLUS Mini Excavator comes with a 30-day easy return policy. For extended coverage, 2-Year and 3-Year Protection Plans are available for purchase.
For any inquiries, technical support, or warranty claims, please feel free to reach out to our customer support directly. Our team is ready to assist you with any questions or concerns regarding your product.
