RovyVon AA145 Rechargeable Flashlight User Manual

1. Introduction

Thank you for choosing the RovyVon AA145 Rechargeable Flashlight. This compact and versatile EDC (Everyday Carry) flashlight is designed for various applications, from daily tasks to outdoor adventures. It features a powerful 800-lumen output, a flexible USB-C charging system, a magnetic base for hands-free operation, and a durable IP68-rated aluminum body. Please read this manual carefully to ensure proper use and maintenance of your device.

2. Product Overview

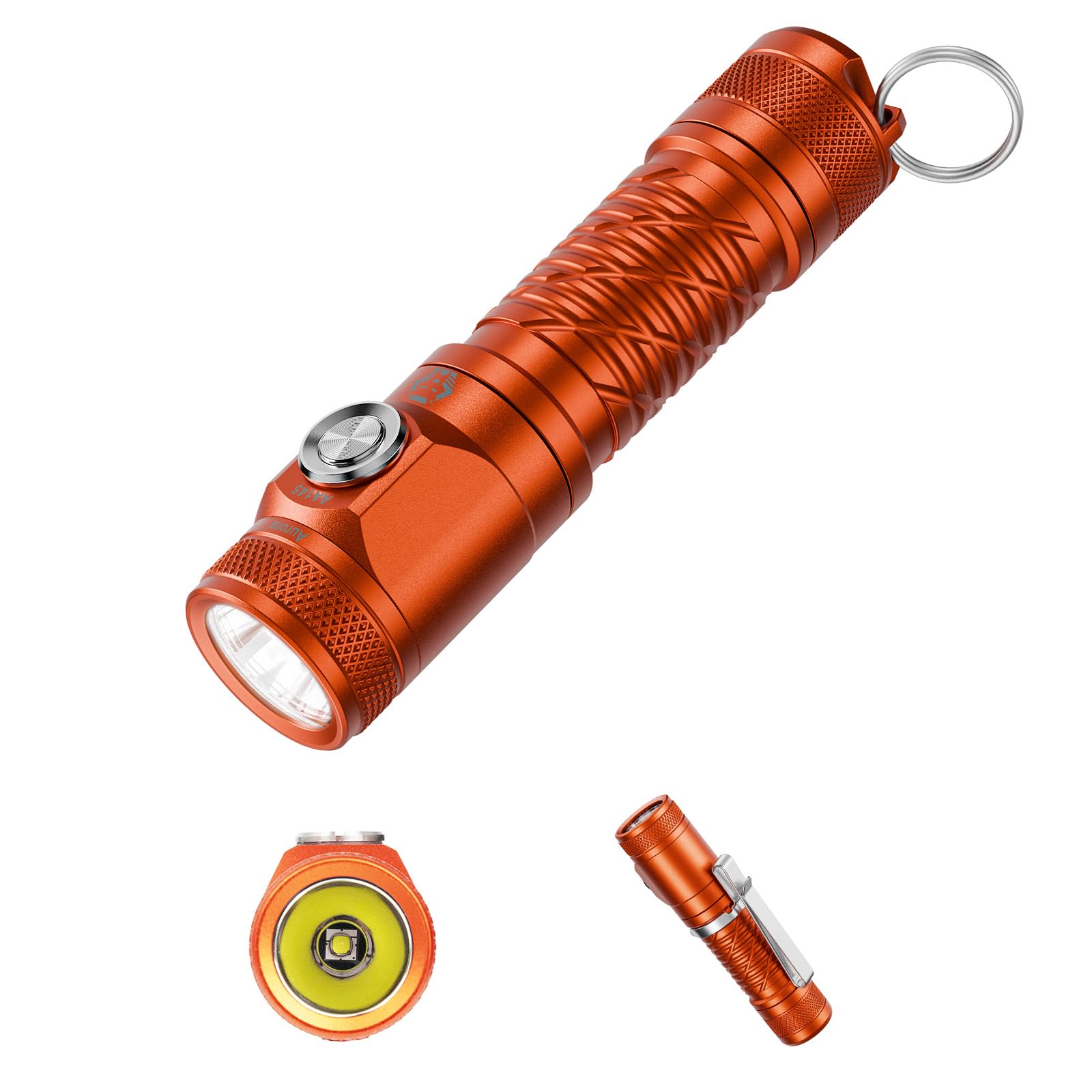

The RovyVon AA145 is a high-performance flashlight built for reliability and convenience. Its key features include:

• Ultra-bright Output: Up to 800 lumens (with 3.7V battery) with a beam distance of 110 meters.
• Flexible Power Options: Compatible with included 3.7V/1.5V rechargeable AA batteries and standard 1.2V/1.5V/3.7V AA batteries.
• Integrated USB-C Charging: Direct charging for the included rechargeable batteries.
• Durable Construction: IP68 water and dust resistant aluminum body, 1.5m impact resistance.
• Magnetic Tailcap: Allows for hands-free attachment to metal surfaces.
• Two-way Clip: For secure attachment to pockets, belts, or backpacks.
• Compact Design: Lightweight and portable for everyday carry.

Figure 2.1: RovyVon AA145 Flashlight showing its compact dimensions (81.7mm length, 21.8mm diameter) and light weight (52.9g). A US Quarter coin is shown for scale.

3. Package Contents

Please check the package for the following items:

• RovyVon AA145 Flashlight
• Rechargeable AA Battery (3.7V or 1.5V, quantity as specified on packaging)
• USB-C Charging Cable
• Two-way Pocket Clip
• User Manual (this document)

4. Setup

4.1. Battery Installation

1. Unscrew the tailcap of the flashlight.
2. Insert the included rechargeable AA battery with the positive (+) end facing towards the flashlight head.
3. Screw the tailcap back on securely.

4.2. Initial Charging

It is recommended to fully charge the battery before first use. Refer to the "5.2. Charging the Battery" section for detailed instructions.

4.3. Attaching the Pocket Clip

The two-way pocket clip can be attached to the flashlight body to secure it to your pocket, belt, or backpack strap. Slide the clip onto the flashlight body in the desired orientation.

5. Operating Instructions

5.1. Basic Operation

The RovyVon AA145 features a single side switch for all operations.

• Momentary On: Press and hold the switch. Release to turn off.
• Constant On/Off: Quickly double-tap the switch to turn on. Double-tap again to turn off.
• Mode Cycling: When the light is on (constant mode), single-tap the switch to cycle through brightness levels (Low-Med-High-Turbo).
• Strobe Mode: Triple-tap the switch from any state (on or off) to activate Strobe mode. Single-tap to return to the previous mode or turn off.
• Lockout Function: From the off state, quickly click the switch 5 times to activate lockout. The light will flash twice to indicate lockout. To unlock, quickly click the switch 5 times again. The light will flash once to indicate unlock.

Figure 5.1: Illustrates the momentary-on function by pressing and holding the button, and constant-on by a quick double-tap.

Figure 5.2: Shows the five available light modes when using a 3.7V battery: Strobe (800 lm), High (800 lm), Mid (200 lm), Low (50 lm), and Moonlight (5 lm).

5.2. Charging the Battery

The included rechargeable AA batteries (3.7V and 1.5V versions) feature an integrated USB-C charging port.

1. Locate the USB-C port on the side of the rechargeable battery.
2. Connect the provided USB-C cable to the battery's port and to a USB power source (e.g., computer, wall adapter, power bank).
3. An indicator light on the battery will show charging status (typically red for charging, green for fully charged).
4. Once fully charged, disconnect the cable.

Note: Standard non-rechargeable AA batteries (e.g., alkaline) cannot be charged via the flashlight or the battery's USB-C port. Only use the USB-C port for the designated rechargeable batteries.

Figure 5.3: Depicts the USB-C charging process for the included rechargeable AA battery, highlighting the 800 lumen output capability.

5.3. Hands-Free Operation with Magnetic Base

The magnetic tailcap allows you to attach the flashlight to any ferrous metal surface, providing convenient hands-free illumination for tasks such as car repairs, workshop activities, or camping.

Figure 5.4: Shows the RovyVon AA145 flashlight attached to a car hood via its magnetic base, providing hands-free lighting for maintenance.

6. Maintenance

• Cleaning: Wipe the flashlight body with a soft, damp cloth. Do not use harsh chemicals or abrasives.
• Lubrication: Periodically apply silicone grease to the O-rings and threads to maintain water resistance and smooth operation.
• Battery Care: If the flashlight will not be used for an extended period, remove the battery to prevent leakage. Store batteries in a cool, dry place.
• O-rings: Inspect O-rings regularly for wear and tear. Replace if damaged to maintain the IP68 rating.

7. Troubleshooting

8. Specifications

9. Warranty and Support

9.1. Warranty Information

RovyVon products are manufactured with high-quality materials and craftsmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official RovyVon website. Keep your purchase receipt as proof of purchase for warranty claims.

9.2. Customer Support

If you encounter any issues or have questions regarding your RovyVon AA145 flashlight that are not covered in this manual, please contact RovyVon customer support through their official website or the retailer where you purchased the product.

Official Website: www.rovyvon.com
