Philco 12Kg Front Load Washing Machine PLR12A User Manual

1. Introduction

Thank you for choosing the Philco 12Kg Front Load Washing Machine, model PLR12A. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before using the washing machine and keep it for future reference.

Image 1.1: The Philco PLR12A washing machine positioned in a contemporary laundry room setting, showcasing its compact design.

2. Safety Instructions

To prevent personal injury or property damage, always follow these basic safety precautions:

• Electrical Safety: Ensure the washing machine is connected to a properly grounded 127V power outlet. Do not use extension cords or adapters. Unplug the appliance before cleaning or performing any maintenance.
• Water Supply: Connect the water inlet hoses securely to prevent leaks. Ensure water pressure is within the recommended range.
• Child Safety: Keep children and pets away from the washing machine during operation. The appliance features a Panel and Door Lock Safety System to prevent accidental opening or program changes.
• Installation: The appliance must be installed on a stable, level floor. Do not install in areas exposed to freezing temperatures or direct sunlight.
• Flammable Materials: Do not wash items that have been cleaned, washed, soaked, or spotted with combustible or explosive substances such as gasoline, dry-cleaning solvents, or other flammable materials.

3. Product Overview

Key Features:

• BLDC Inverter Motor: For efficient and quiet operation.
• 12.0kg Washing Capacity: Suitable for various laundry loads.
• 16 Operating Programs: Diverse options for different fabric types and soil levels.
• Delay End Function: Schedule your wash cycle to finish at a convenient time.
• Adjustable Settings: Customize rinse quantity, spin speed (400, 600, 800, 1000, 1400 RPM), and wash temperature (20, 30, 40, 60, 95°C).
• Safety Systems: Panel and Door Lock Safety System.
• Durable Construction: Front door with tempered glass viewer, stainless steel drum, and corrosion-protected cabinet.
• Convenient Dispenser: 3 compartments for detergent, softener, and bleach.
• Adjustable Leveling Feet: For stable installation.
• Automatic Shutdown: Enhances energy efficiency.
• Energy Efficiency: Class 'A' in overall performance.

Components:

The Philco PLR12A washing machine features a robust design with user-friendly components.

• Control Panel: Located on the front, it includes program selection knob, display, and function buttons.
• Detergent Dispenser: A pull-out drawer with three compartments for pre-wash, main wash detergent, and fabric softener.
• Drum: Stainless steel interior for gentle yet effective washing.
• Front Door: Tempered glass door for visibility and durability.
• Filter Cover: Located at the bottom front for easy access to the drain pump filter.

Image 3.1: Front view of the Philco PLR12A washing machine, showing the control panel, detergent dispenser, and front-loading door.

Image 3.2: Detailed view of the control panel, highlighting the program selection dial and function buttons for 'Delay End', 'Rinse', 'Spin', and 'Temperature'.

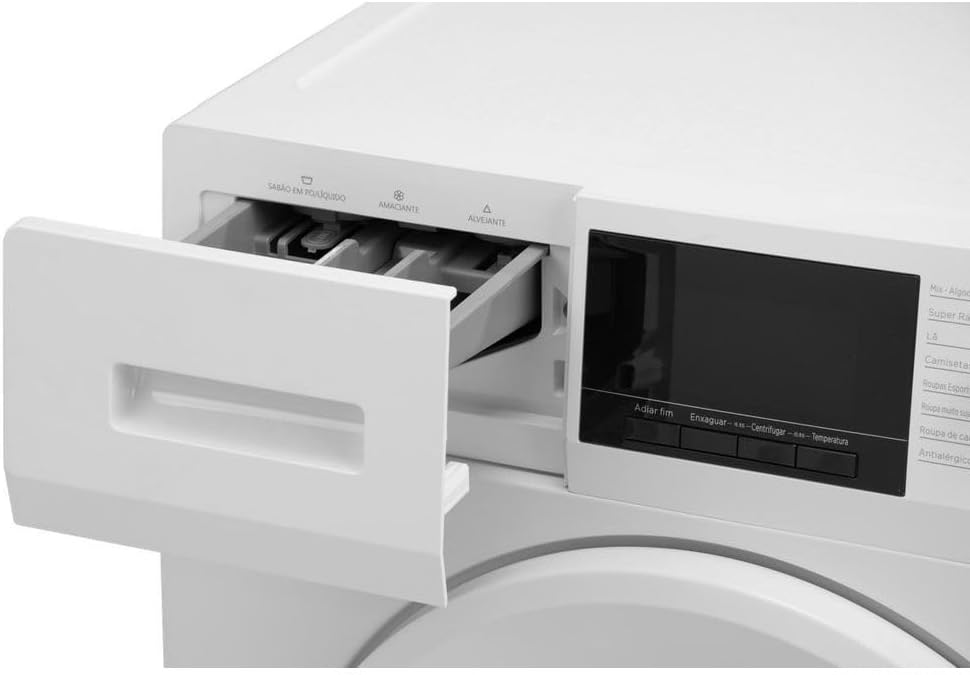

Image 3.3: The three-compartment detergent dispenser drawer, labeled for liquid detergent, softener, and bleach.

4. Installation

Proper installation is crucial for the performance and longevity of your washing machine. Follow these steps carefully:

4.1 Unpacking

• Remove all packaging materials, including the polystyrene base and any protective film.
• Remove the transport bolts located at the rear of the machine. Keep these bolts for future transport.

4.2 Location

• Place the washing machine on a firm, level floor, away from direct sunlight or heat sources.
• Ensure there is adequate space around the machine for ventilation and maintenance.

4.3 Leveling

• Use the adjustable leveling feet to ensure the machine is perfectly level. This prevents excessive vibration and noise during operation.
• Check stability by pressing down on each corner of the machine.

4.4 Water Supply Connection

• Connect the inlet hose to a cold water tap with a 3/4-inch thread.
• Ensure all connections are tight to prevent leaks.

4.5 Drain Hose Connection

• Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent displacement during draining.
• The drain hose should be positioned at a height between 60 cm and 100 cm from the floor.

4.6 Electrical Connection

• Plug the power cord into a dedicated 127V, 60Hz, grounded electrical outlet.
• Do not overload the circuit or use adapters.

Image 4.1: The Philco PLR12A washing machine with its dimensions clearly marked: 60cm depth, 60cm width, and 94cm height.

5. Operating Instructions

Follow these steps for effective and safe operation of your washing machine.

5.1 Before First Use

Run an empty wash cycle with a small amount of detergent to clean the drum and remove any manufacturing residues.

5.2 Loading Laundry

• Sort laundry by fabric type, color, and soil level.
• Open the front door and load items loosely into the drum, ensuring not to overload. The maximum capacity is 12kg.
• Close the door firmly until it clicks.

Image 5.1: The washing machine with its front door open, revealing the stainless steel drum and a load of clothes ready for washing.

5.3 Adding Detergent

• Pull out the detergent dispenser drawer.
• Add the appropriate amount of detergent to the main wash compartment (usually marked 'II' or with a flower symbol for softener).
• Add fabric softener to its designated compartment (usually marked with a star or 'I').
• If using bleach, add it to the bleach compartment.
• Push the dispenser drawer back in completely.

5.4 Selecting a Program

• Turn the program selection dial to choose one of the 16 available programs (e.g., Mix/Cotton, Super Quick, Wool, Shirts, Sportswear, Heavily Soiled, Bedding, Anti-Allergy, Cotton, Pre-Wash, ECO 40-60, Daily Wash, Delicate Clothes, Drum Clean, Spin, Rinse + Spin).
• The selected program will be displayed on the screen.

5.5 Adjusting Program Settings

Depending on the selected program, you can adjust the following settings using the corresponding buttons:

• Temperature: Select wash temperatures from 20, 30, 40, 60, or 95°C.
• Spin Speed: Choose spin speeds of 400, 600, 800, 1000, or 1400 RPM.
• Rinse: Adjust the number of rinses.
• Delay End: Use this function to set a delay for the cycle to finish.

5.6 Starting the Cycle

• Press the 'Start/Pause' button to begin the wash cycle.
• The door will lock, and the machine will start filling with water.

5.7 Ending the Cycle

Once the cycle is complete, the machine will automatically shut down. Wait for the door lock indicator to turn off before opening the door and removing your laundry.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your washing machine.

6.1 Cleaning the Detergent Dispenser

• Pull out the dispenser drawer completely.
• Remove any removable parts and rinse them under running water.
• Clean the inside of the dispenser housing with a brush.
• Reassemble and reinsert the drawer.

6.2 Cleaning the Drum

• Use the 'Drum Clean' program periodically to remove detergent residues and odors.
• For manual cleaning, wipe the stainless steel drum with a damp cloth and mild detergent, then rinse thoroughly.

Image 6.1: A close-up view of the interior of the washing machine, showing the textured stainless steel drum designed for effective cleaning.

6.3 Cleaning the Exterior

• Wipe the exterior surfaces with a soft, damp cloth.
• Do not use abrasive cleaners or solvents, as they can damage the corrosion-protected cabinet.

6.4 Cleaning the Drain Pump Filter

• Periodically clean the drain pump filter to prevent blockages.
• Open the filter cover at the bottom front of the machine.
• Place a shallow container to catch any residual water.
• Unscrew the filter, remove any lint or foreign objects, rinse it, and screw it back in securely.

7. Troubleshooting

Before contacting customer service, refer to this section for solutions to common issues.

8. Technical Specifications

Image 8.1: The energy efficiency label for the Philco PLR12A, indicating its 'A' rating for overall performance, energy consumption (0.26 kWh/cycle), and water consumption (74.6 L/cycle).

9. Warranty and Customer Support

Your Philco washing machine is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or any questions not covered in this manual, please contact Philco customer support. Keep your purchase receipt and product model number (PLR12A) ready when contacting support.

You can find more information and contact details on the official Philco website or through the retailer where you purchased the product.
